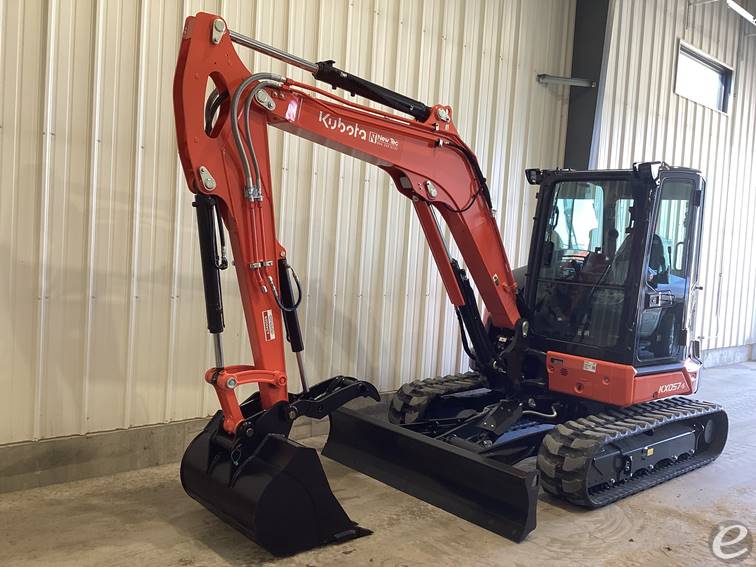

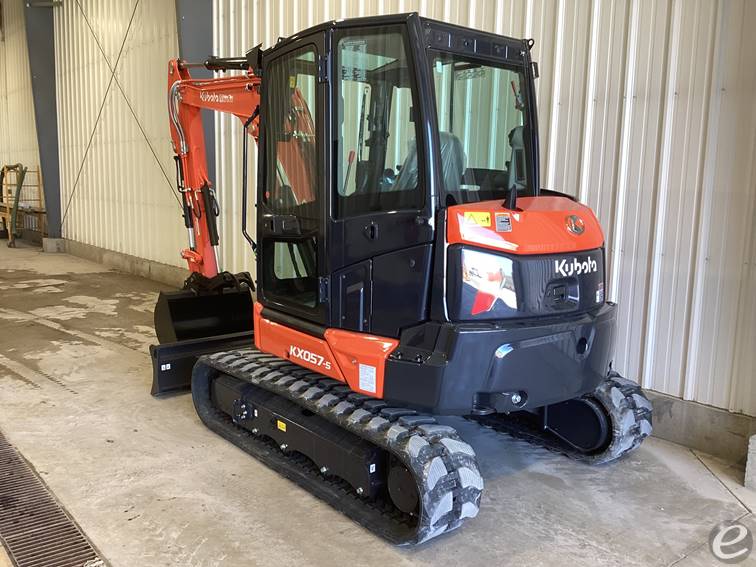

2024 Kubota KX057-5R3AP Earth Moving and Construction

Call for priceNew
Contact Information
New Tec, Inc.
3764 US 75 Ave
Sioux Center, Iowa 51250
CONTACT :
Joe or Marlin
PHONE :
FAX :
Stock #:
009056
YEAR:
2024
Manufacturer:
MODEL #:
SERIAL #:
KBCDZ37CAR3A19105
CONDITION:
New
LOCATION:
DESCRIPTION:

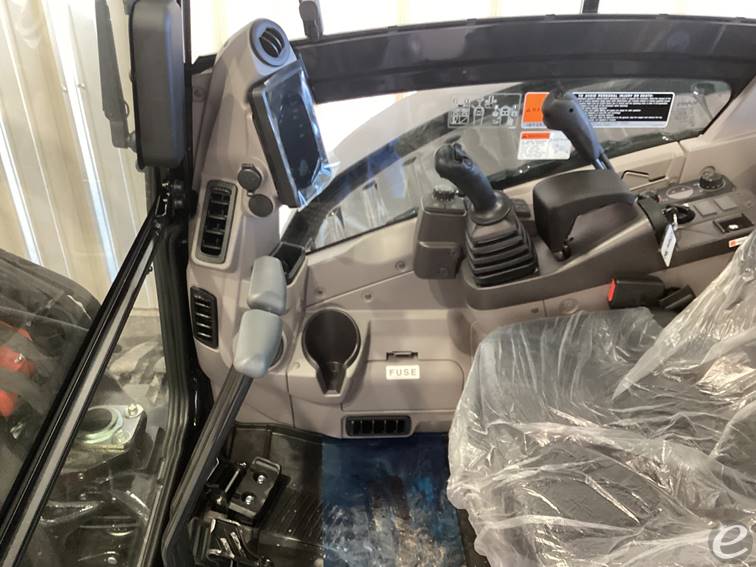

Kubota Engine, Cab w/ AC, Angle Blade, 2 Speed
Equipment Description:
15" Rubber Tracks, Quick Coupler, Thumb Kit, 2 Hydraulic Service Ports, 36" Quick Attach Bucket, 2 Hours
  • Engine
    • Model: Kubota V2607-CR-TE4
    • Type: Direct injection, water-cooled, 4-cycle diesel
    • Gross Horsepower: 47.6 kW (64 HP) at 2,200 rpm
    • Net Horsepower: 46.2 kW (62 HP) at 2,200 rpm
    • Displacement: 2,615 cc (159 cu.in.)
    • Number of cylinders: 4
  • Dimensions and Weight
    • Overall Length: 5,520 mm
    • Overall Height: 2,420 mm
    • Overall Width: 1,960 mm
    • Operating Weight: Approximately 5,775 kg
  • Performance
    • Max Digging Depth: 4,115 mm
    • Max Vertical Digging Depth: 3,415 mm
    • Max Digging Reach: 6,410 mm
    • Max Dumping Height: 4,485 mm
    • Travel Speed (High): 4.9 km/h
    • Travel Speed (Low): 3.1 km/h
  • Hydraulic System
    • Pump Capacity: 159.4 l/min
    • Relief Valve Pressure: 26.5 MPa (270 kgf/cm2)
  • Fuel System
    • Fuel Tank Capacity: 76 liters
  • Blade
    • Width: 1,960 mm
    • Height: 410 mm
  • Swing System
    • Swing Speed: 9.3 rpm
    • Tailswing Radius: 1,055 mm
  • Undercarriage
    • Track Width: 400 mm
    • Ground Pressure: 34.4 kPa
