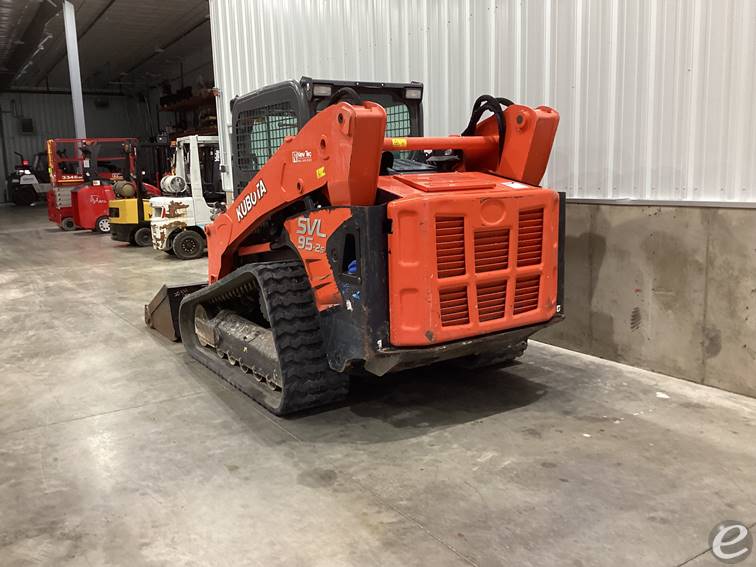

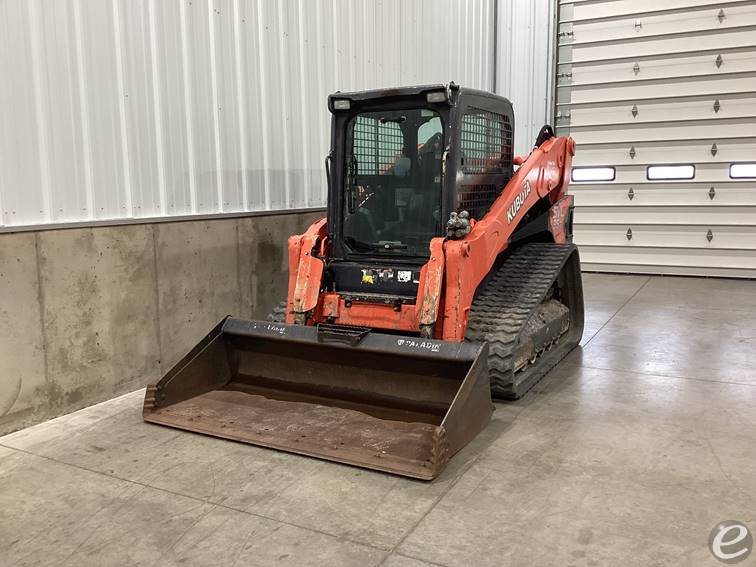

2020 Kubota SVL95 Earth Moving and Construction

$44,950 USD
Contact Information
New Tec, Inc.
3764 US 75 Ave
Sioux Center, Iowa 51250
CONTACT :
Joe or Marlin
PHONE :
FAX :
Stock #:
0020527
YEAR:
2020
Manufacturer:
MODEL #:
SERIAL #:
KBCC0953AK1J49170
CONDITION:
Used
LOCATION:
DESCRIPTION:

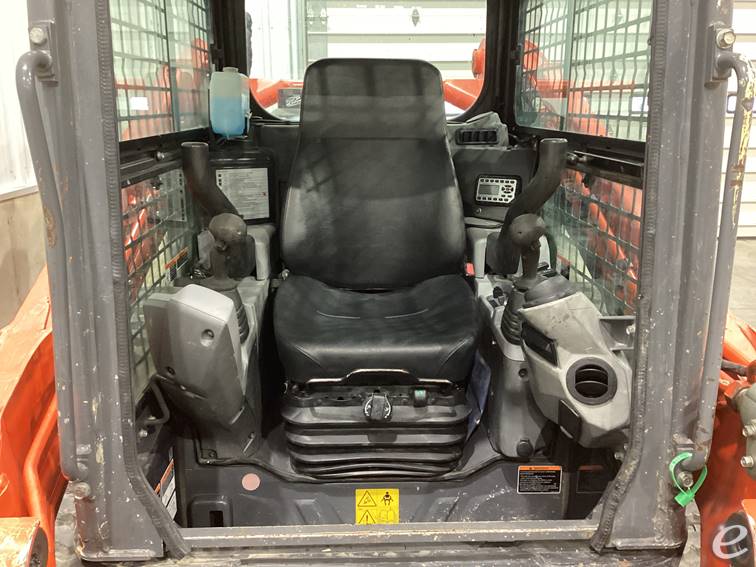

Kubota Engine, 18" Tracks, Vertical Lift, Cab w/ AC, 2 Speed
Equipment Description:
ISO Controls, Aux Hydraulics, Quick Attach, High Flow, 75" Bucket, 1560 Hours
  • Engine
    • Model: Kubota V3800-CR-Turbo
    • Type: 4-cylinder, turbocharged, diesel engine
    • Displacement: 3.8 L (230 cu. in.)
    • Gross Power: 96.4 HP (72.0 kW)
    • Rated Speed: 2400 RPM
    • Fuel Tank Capacity: 28 gal (106 L)
  • Dimensions
    • Overall Length with Bucket: 144.4 in (3670 mm)
    • Overall Width: 77.2 in (1962 mm)
    • Height to Top of Cab: 83.0 in (2110 mm)
    • Ground Clearance: 11.5 in (292 mm)
  • Performance
    • Operating Weight: 11,299 lbs (5125 kg)
    • Tipping Load: 9,143 lbs (4147 kg)
    • Breakout Force: 7,961 lbs (3611 kg)
    • Travel Speed: Low - 4.9 mph (7.9 km/h), High - 7.3 mph (11.8 km/h)
  • Hydraulic System
    • Hydraulic Flow (Standard): 23.1 GPM (87.5 L/min)
    • Hydraulic Pressure: 3,553 psi (245 bar)
    • Hydraulic Flow (High Flow): 40.0 GPM (151.4 L/min)
  • Undercarriage
    • Track Width: 17.7 in (450 mm)
    • Length of Track on Ground: 59.8 in (1519 mm)
  • Operating Specifications
    • Bucket Capacity: 0.48-0.75 yd³ (0.37-0.57 m³)
    • Lifting Capacity: 3,200 lbs (1451 kg)
    • Lifting Capacity at 500mm: 4,200 lbs (1905 kg)
  • Other Features
    • Cab: Enclosed with optional air conditioning
    • Seat: Suspension seat available
    • Loader Arms: Vertical lift path
