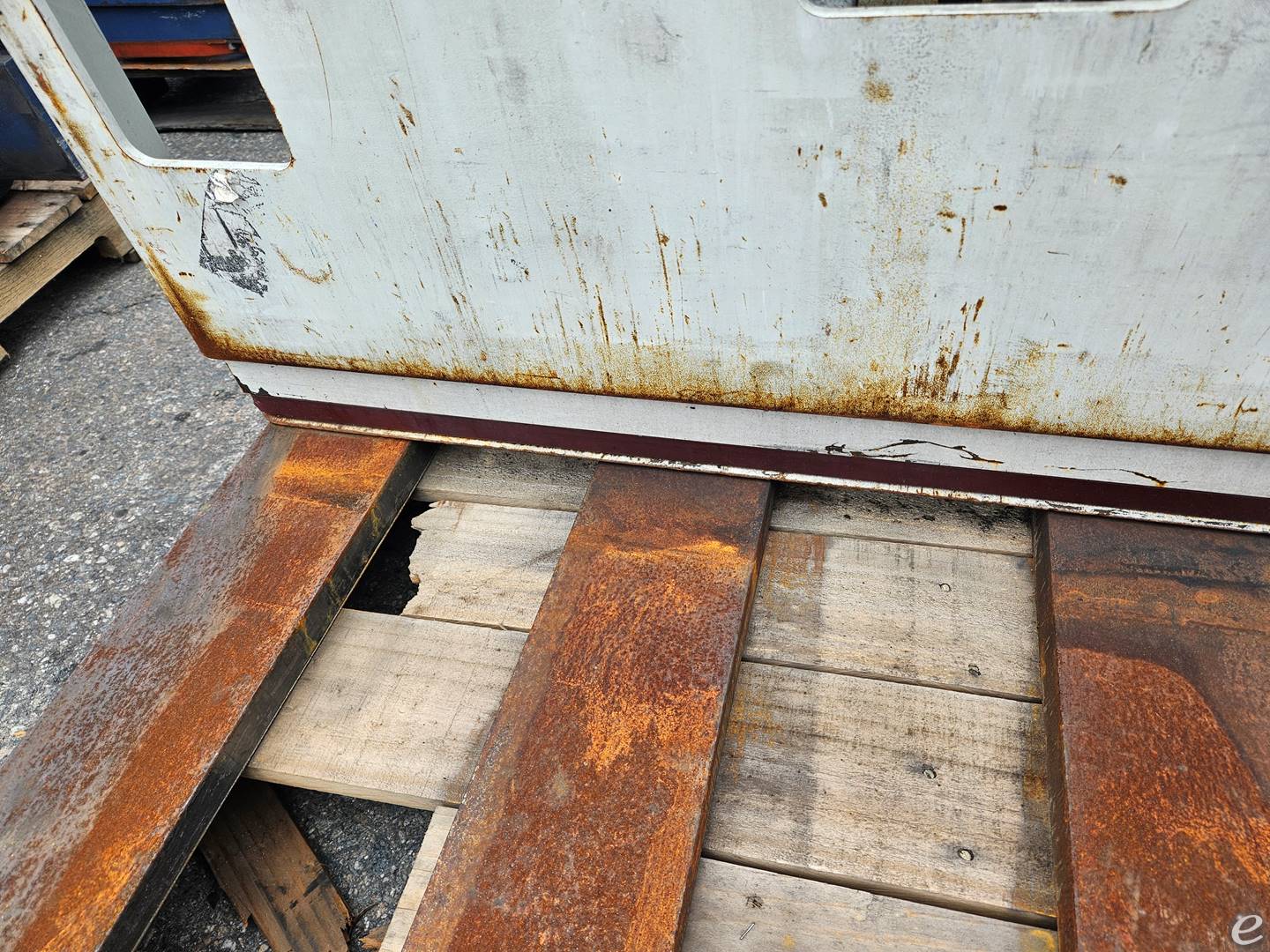

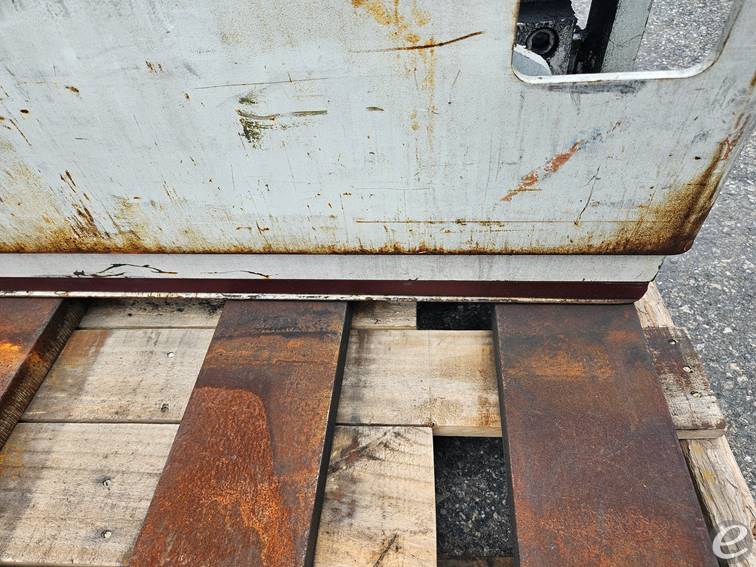

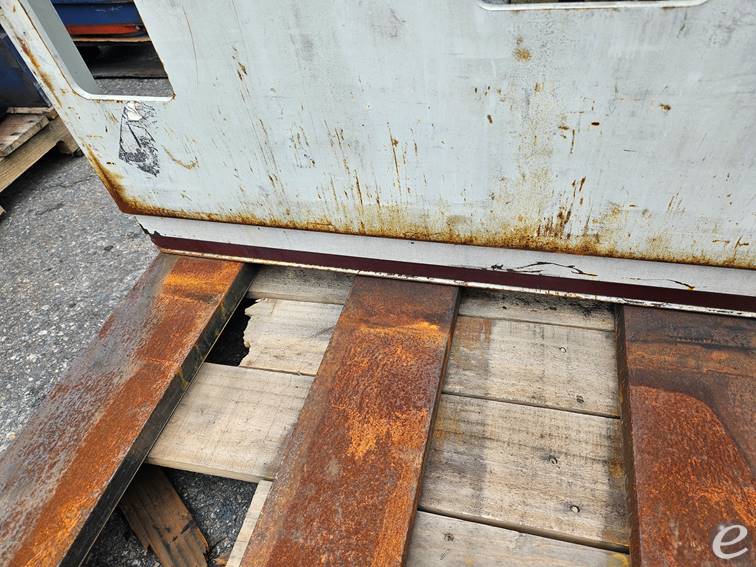

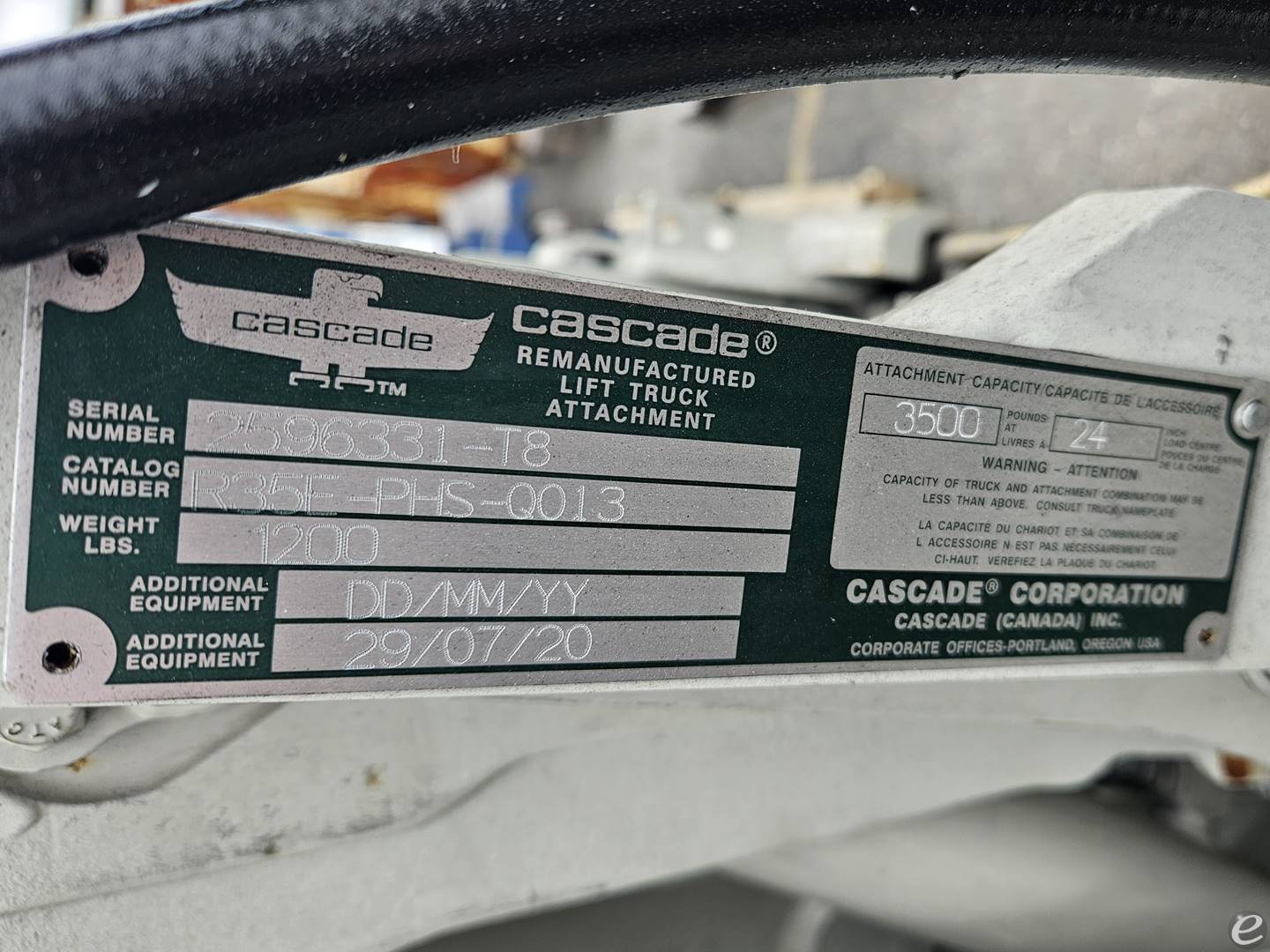

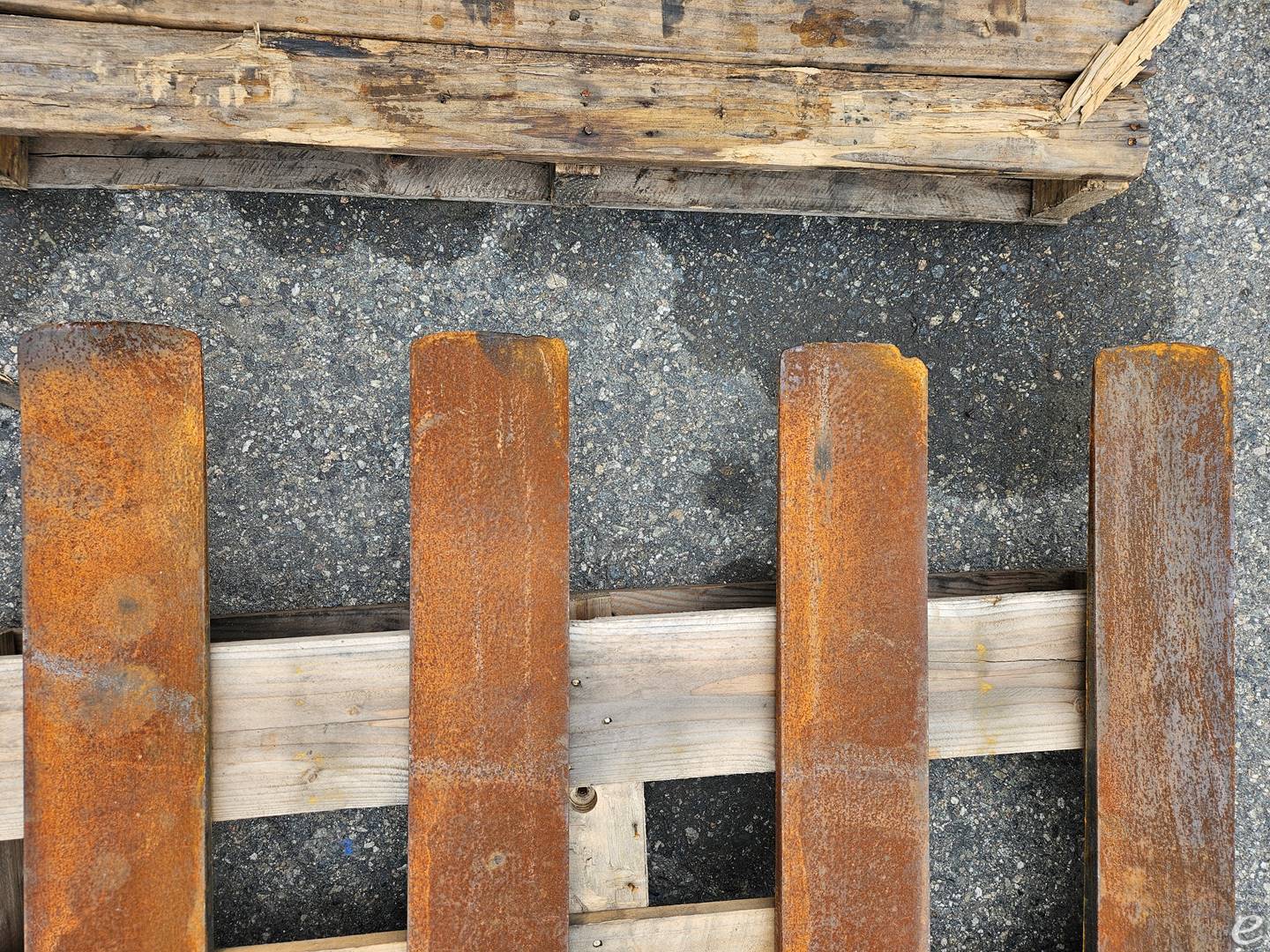

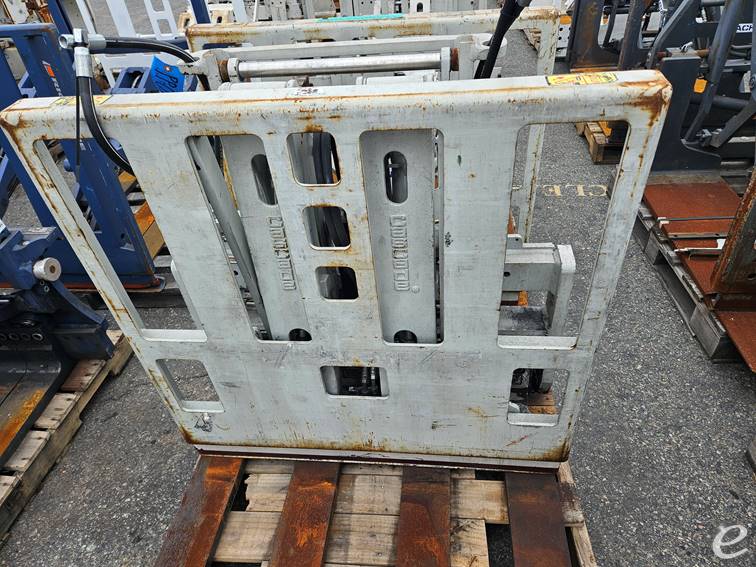

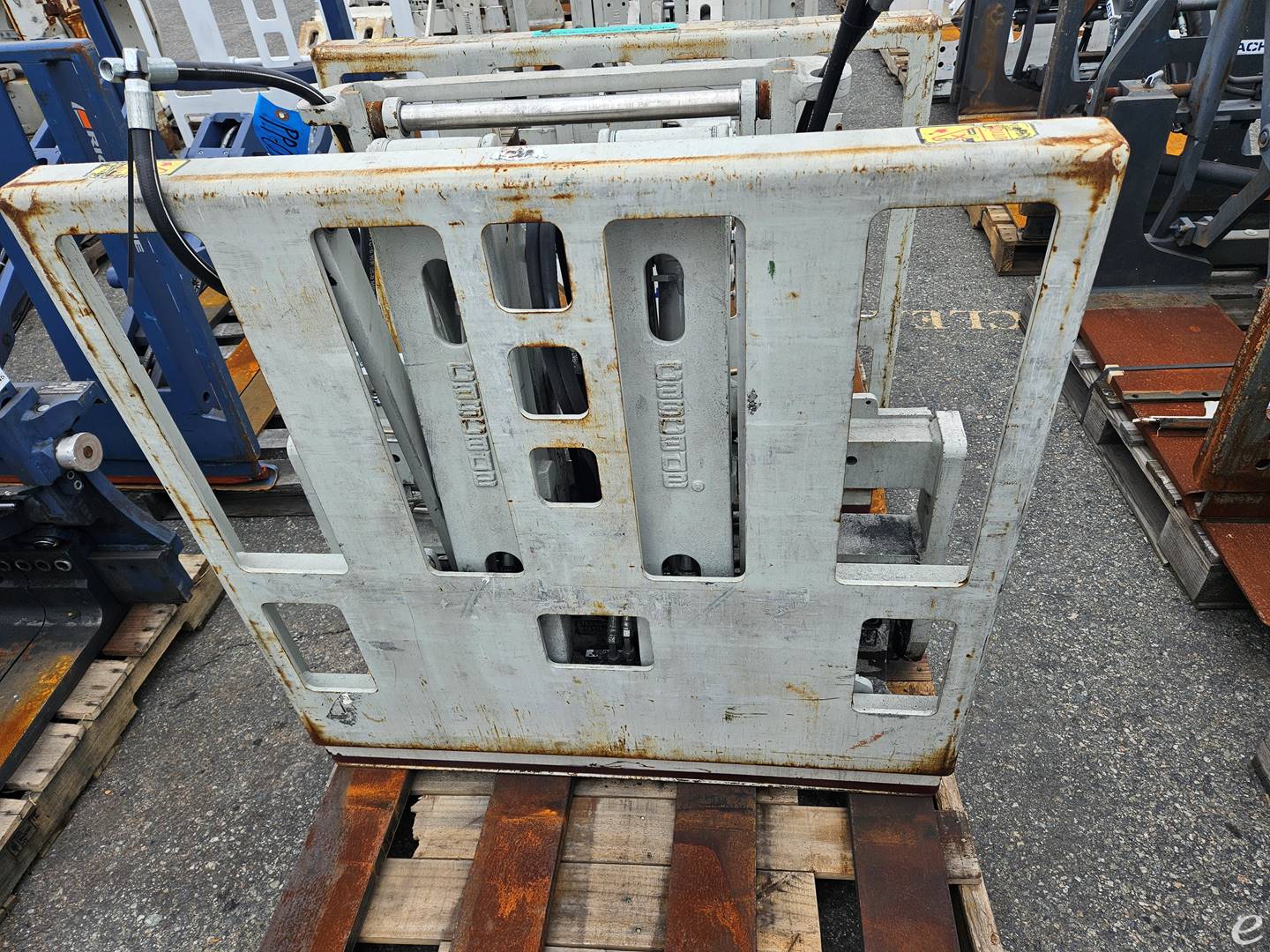

Cascade Mark 55 Push/Pull - 3500 lbs capacity 48" L x 10" W Platens - Split Fork - Inner=5" Outer=5" Class 2 Capacity 3500 lbs. @ 24 inch Load Center Estimated Weight 1200 lbs. Effective Thickness 7.6 inches Frame Width 40 INCHES Horizontal Center of Gravity 8.2 inches Overall Height 40.3 inches Hydraulic Features: Operation: The Sideshift and Push/Pull functions are actuated Hydraulic Features directly by the truck's 3rd and 4th hydraulic hand levers. To operate Hydraulic Features Platen Adjust, the unit is sidshifted fully to one side whereby the Hydraulic Features Sequence Valve will then divert the hydraulic flow to the Platen Adjust function Inside Platen Spacing 7 inches in to in Inner Platen Width 5 inches Min Truck Carriage Width Req 36 inches Mounting Type Quick Disconnect Lower Hooks Mounting Class Class II Outside Platen Spacing 28 inches to 40 inches Outer Platen Width 5 inches Platen Size 48 inches Long x 1.5 inches Thick Product Function Sequence Valve for Platen Adjust Product Function Ext. Sideshift Platen Adjust Required Truck Aux Functions 2 Stroke 50 inches Vertical Center of Gravity 9.9 inches
