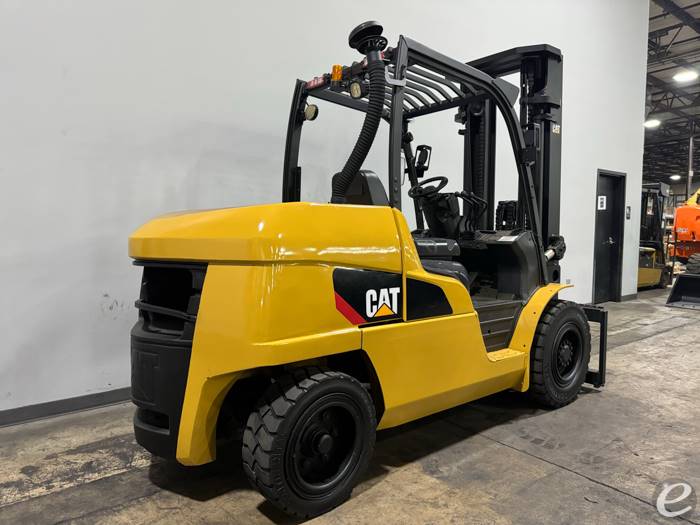

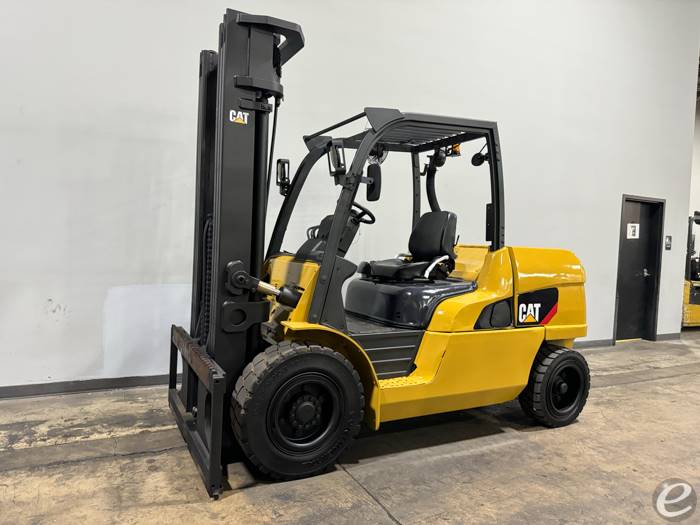

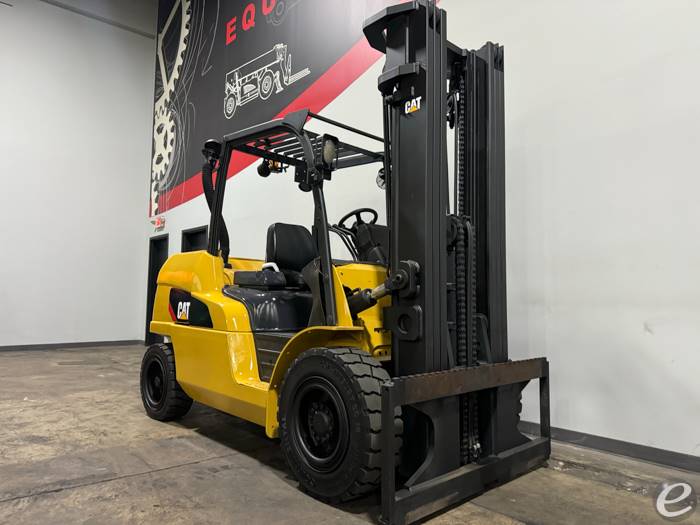

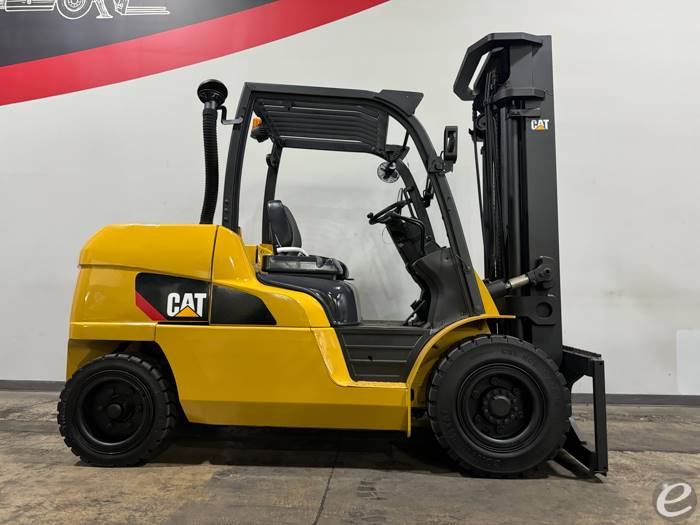

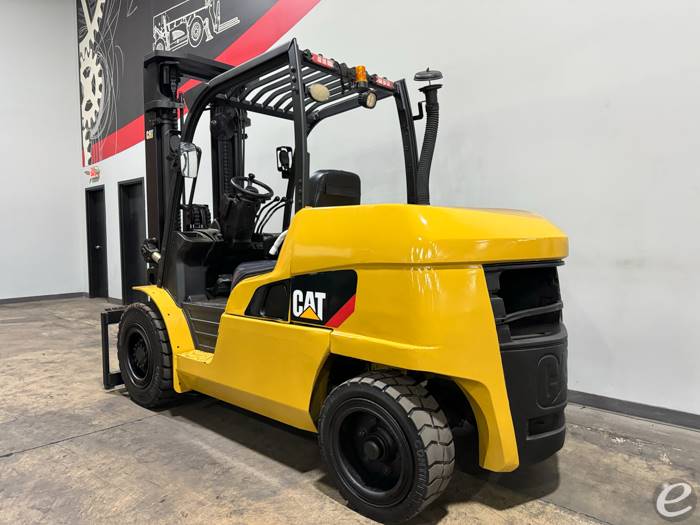

2015 Diesel Cat DP55N1 Pneumatic Tire 4 Wheel Sit Down

Call for price
Contact Information
Illinois Lift Equipment
640 Industrial Dr
Cary, Illinois 60013
CONTACT :
John Hellyer
PHONE :
Stock #:
14213
YEAR:
2015
Manufacturer:
MODEL #:
CAPACITY:
12000
FUEL:
Diesel
MAST TYPE:
Three Stage
MAST HEIGHT:
104 / 219 in
CONDITION:
Used
LOCATION:
DESCRIPTION:
12000LB CAPACITY 3 STAGE MAST 104" LOWERED HEIGHT 219" MAX
Equipment Description:
12000LB CAPACITY 3 STAGE MAST 104" LOWERED HEIGHT 219" MAX LIFT HEIGHT DIESEL FUEL PNEUMATIC TIRES 3 WAY HYDRAULICS PLUMBED TO CARRIAGE FORKS
  • General Specifications
    • Model: Cat DP55N1
    • Type: Diesel Pneumatic Tire Forklift

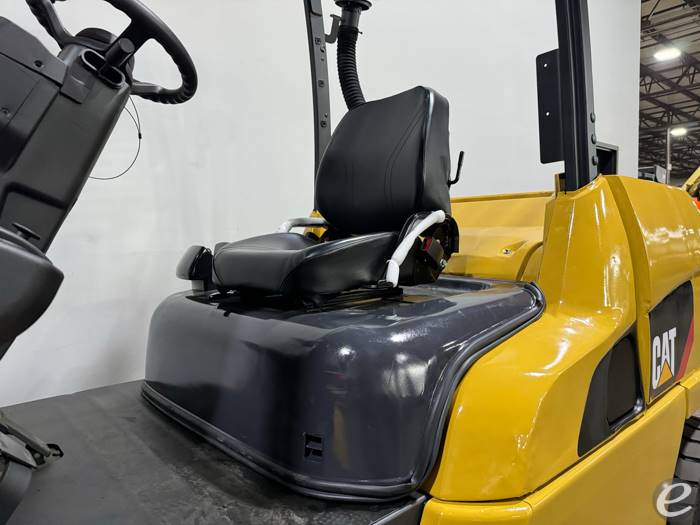

    • Operator Type: Seated Rider
    • Capacity: 5,500 kg (12,125 lbs)
  • Engine
    • Engine Model: S6S-T
    • Engine Type: 4-Cycle Diesel
    • Number of Cylinders: 6
    • Bore & Stroke: 94 mm x 120 mm (3.7 in x 4.7 in)
    • Displacement: 4.996 L (305 in³)
    • Rated Power: 81 kW (109 hp) @ 2300 rpm
  • Performance
    • Maximum Travel Speed (Loaded): 27 km/h (16.8 mph)
    • Gradeability (Loaded): 28%
    • Lifting Speed (Loaded): 0.48 m/s (94 ft/min)
  • Dimensions
    • Overall Length (Without Forks): 4,050 mm (159.4 in)
    • Overall Width: 1,995 mm (78.5 in)
    • Height to Top of Overhead Guard: 2,600 mm (102.4 in)
  • Chassis
    • Wheelbase: 2,500 mm (98.4 in)
    • Ground Clearance (Minimum Under Mast): 210 mm (8.3 in)

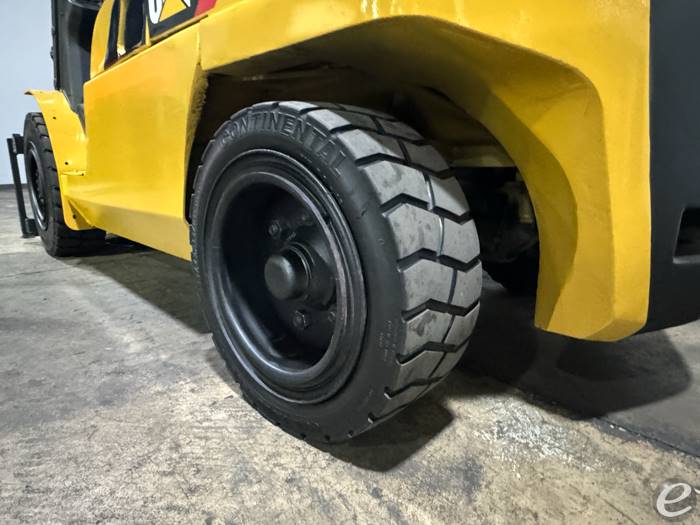

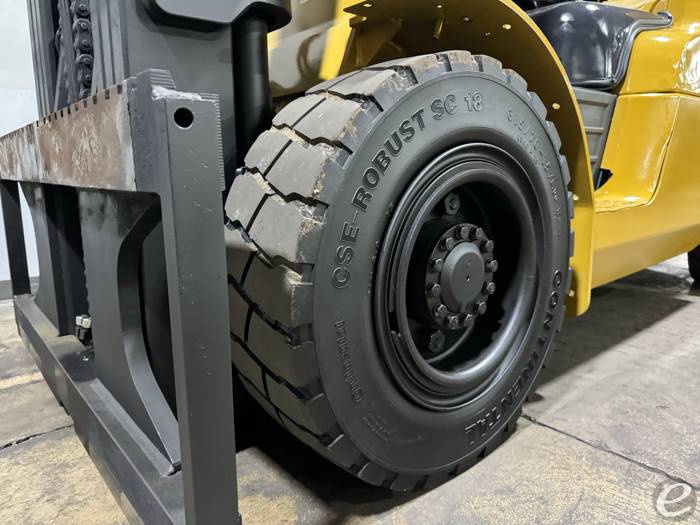

    • Tires: Pneumatic
    • Front Tires Size: 8.25-15-14PR
    • Rear Tires Size: 8.25-15-14PR
  • Hydraulics
    • Hydraulic System Pressure: 17.5 MPa (2,538 psi)
  • Additional Features

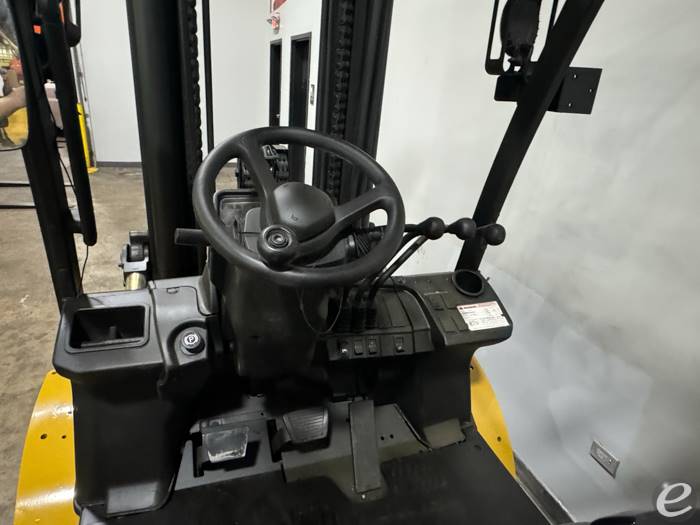

    • Steering: Full Hydrostatic Power Steering
    • Brakes: Fully Hydraulic Wet Disc
    • Fuel Tank Capacity: 110 L (29.1 gal)
