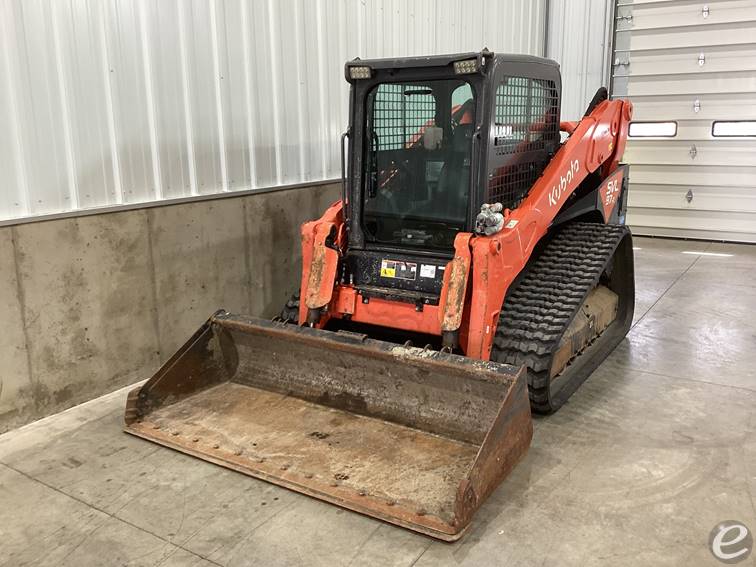

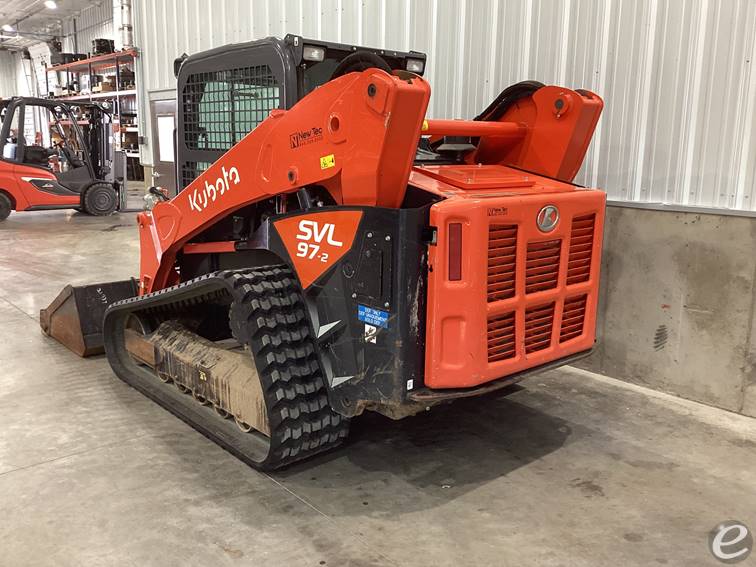

2022 Kubota SVL97-2HFC Earth Moving and Construction

$59,950 USD
Contact Information
New Tec, Inc.
3764 US 75 Ave
Sioux Center, Iowa 51250
CONTACT :
Joe or Marlin
PHONE :
FAX :
Stock #:
0020437
YEAR:
2022
Manufacturer:
MODEL #:
SERIAL #:
KBCZ064CLM1L67138
CONDITION:
Used
DESCRIPTION:
Kubota Engine, 96.4hp, Cab w/ AC, High Flow, 17.7" Tracks
Equipment Description:
Hydraulic Quick Coupler, ISO Controls, 2 Speed, Rear View Camera, 14 Pin Coupler/Multi Function Control Handle, 1711 Hours
  • Engine
    • Model: V3800-CR-TE4
    • Type: 4-cylinder, turbocharged, common rail system, direct injection
    • Displacement: 230 cu in. (3769 cc)
    • Gross Power: 96.4 HP (72 kW) @ 2400 RPM
    • Net Power: 92 HP (68.6 kW) @ 2400 RPM
    • Fuel Tank Capacity: 28 gal (106 L)
  • Performance
    • Rated Operating Capacity: 3200 lbs (1451 kg) @ 35% tipping load
    • Tipping Load: 9143 lbs (4147 kg)
    • Breakout Force (Bucket): 7961 lbs (3611 kg)
    • Breakout Force (Lift Arm): 6234 lbs (2828 kg)
    • Travel Speed: 5.0 - 7.3 mph (8.0 - 11.8 km/h)
  • Hydraulic System
    • Auxiliary Hydraulic Flow: 23.1 GPM (87.4 L/min)
    • High Flow Auxiliary Hydraulic Flow: 40 GPM (152 L/min)
    • Hydraulic Pressure: 3553 psi (245 bar)
  • Dimensions
    • Overall Length with Bucket: 145.5 in (3695 mm)
    • Overall Height: 83.9 in (2130 mm)
    • Overall Width: 77.2 in (1960 mm)
    • Ground Clearance: 11.5 in (292 mm)
    • Track Width: 17.7 in (450 mm)
    • Track Gauge: 49 in (1245 mm)
  • Operational Weight
    • Operating Weight: 11129 lbs (5050 kg)
  • Features

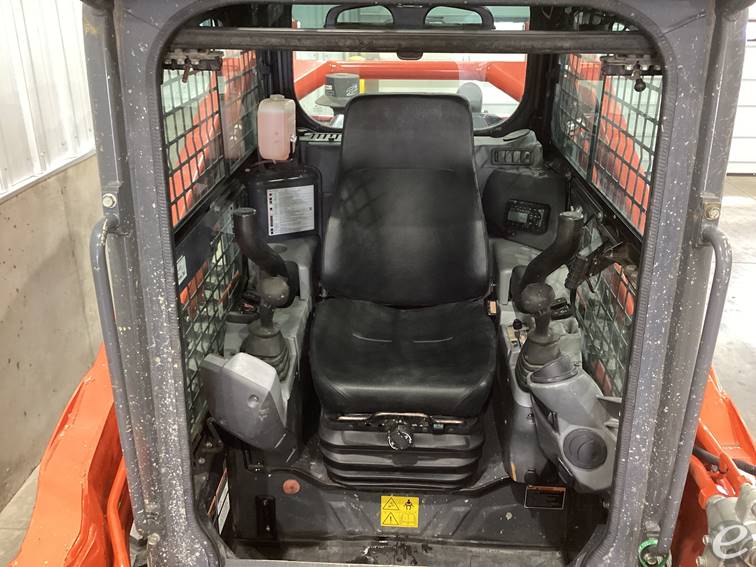

    • Cabin with Air Conditioning and Heater
    • Comfortable Suspension Seat
    • Load Sensing Hydraulic System
    • Advanced Multifunction Control
