Equipment Description
48x48 Pads Class 2 Side Shifting 3500 lbs @ 24" LC CAPACITY . . . . . . . . . . 3500 lbs. @ 24 in. load center MOUNTING . . . . . . . . . . . . . . . . . . . . . ITA II & III LOWER HOOK . . . . . . . . . . . . . . . . . . . . . bolt-on B FRAME WIDTH . . . . . . . . . . . . . . . . . . . . 41.0 in. H ARM HEIGHT . . . . . . . . . . . . . . . . . . . . . 48.0 in. L ARM LENGTH . . . . . . . . . . . . . . . . . . . . 48.0 in. T ARM THICKNESS . . . . . . . . . . . . . . 2.13 in. at pivot O MINIMUM OPENING . . . . . . . . . . . . . . . . . 21.38 in. O MAXIMUM OPENING . . . . . . . . . . . . . . . . 77.5 in. A HOOK SPREAD . . . . . . . . . . . . . . . . . . . 29.0 in. WEIGHT . . . . . . . . . . . . . . . . . . . . . . . 1550 lbs. LL LOST LOAD . . . . . . . . . . . . . . . . . . . . . 5.88 in. HCG HORIZONTAL CG . . . . . . . . . . . . . . . . . . . 15.8 in. VCG VERTICAL CG . . . . . . . . . . . . . . . . . . . . . 12.2 in. LATERAL CG . . . . . . . . . . . . 10.6 in. @ maximum shift MAXIMUM OFFSET . . . . . . . . . . . . . . . . . 14.03 in. HYDRAULICS . . . . . . . . . . . . . . . . . . Side Shifting HYDRAULICS . . . . . . . . . . . . . . . . . . Flow Divider RECOMMENDED PRESSURE . . . . . . . . . . . 2250 psi MAXIMUM PRESSURE . . . . . . . . . . . . . . . 2400 psi MINIMUM FLOW . . . . . . . . . . . . . . . . . . 12.0 gpm RECOMMENDED FLOW . . . . . . . . . . . . . . 16.0 gpm MAXIMUM FLOW . . . . . . . . . . . . . . . . . . 20.0 gpm OPTION . . . . . . . . . . . . . . . . . . armor plate system
Spec Sheet
  • Model Number: LC35H-10-3AC-AP
  • Manufacturer: Rightline
  • Type: Attachment
  • Subtype: Carton Clamps
  • General Specifications
    • Attachment Type: Carton Clamp
    • Hydraulic Function: 3rd Function
    • Clamping Force: 1,000 - 1,750 lbs
    • Arm Design: Full-Pad Contact
    • Mounting Type: Quick-Change
  • Dimensions
    • Overall Width: 36 - 40 inches
    • Overall Height: Approximately 48 inches
    • Clamp Opening Range: 8 inches to 60 inches
    • Arm Length: Varies
    • Weight: Approximately 1,200 lbs
  • Performance
    • Maximum Load Capacity: 3,500 lbs
    • Pressure Range: 2,000 - 2,400 psi
    • Hydraulic Flow: 10-15 GPM
  • Construction
    • Material: High-strength Steel
    • Finish: Powder-coated for Corrosion Resistance
    • Bearing System: High-Durability Bearings
  • Operational Features
    • Control Lever: Ergonomic Design for Ease of Use
    • Visibility: High Visibility from Operator Seat
    • Adjustability: Adjustable Clamping Pressure
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.

2023 Rightline LC35H-10-3AC-AP

carton clamps

$9,900 USD
Instant Quote Eligible Listing - CLICK HERE!
ATTACHCO
CONTACT INFO
Name:
Andrew Forde
Phone:
310-308-9893
Website:
ATTACHCO

ADDRESS
ATTACHCO
665 W Cowles St
Long Beach , California 90813
ATTRIBUTES
STOCK #:
CC-239
YEAR:
2023
Manufacturer:
Rightline
MODEL #:
LC35H-10-3AC-AP
CAPACITY:
3500
CLASS:
II
SUBCATEGORY:
Carton Clamps
SERIAL #:
234442
CONDITION:
Used
LOCATION:
California [90813]
DESCRIPTION:

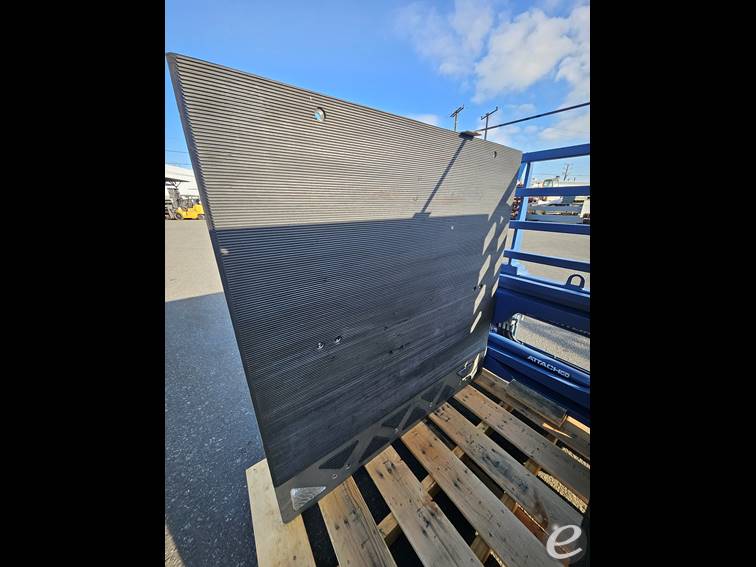

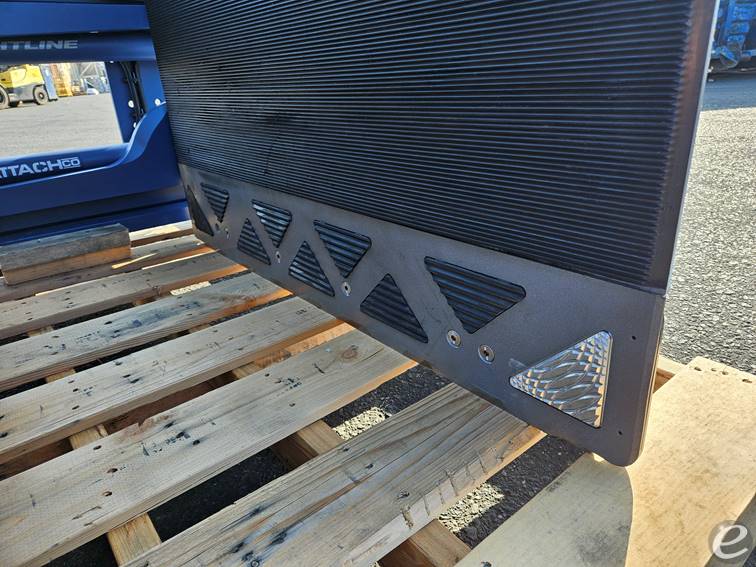

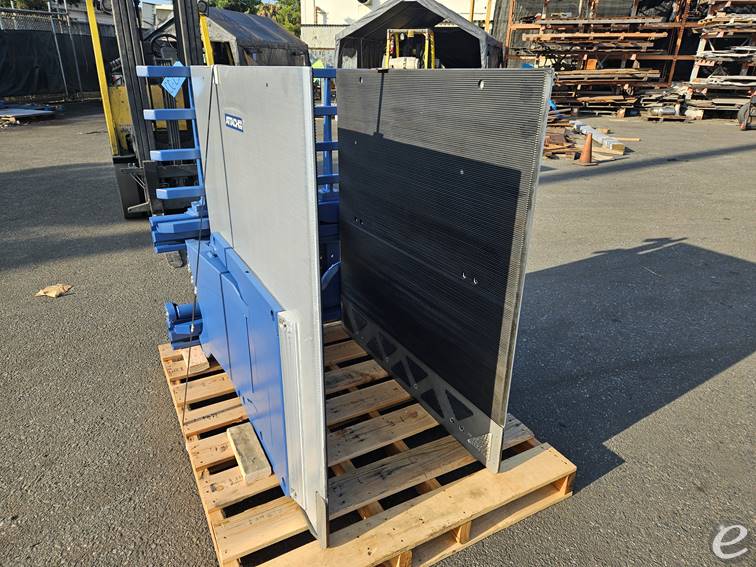

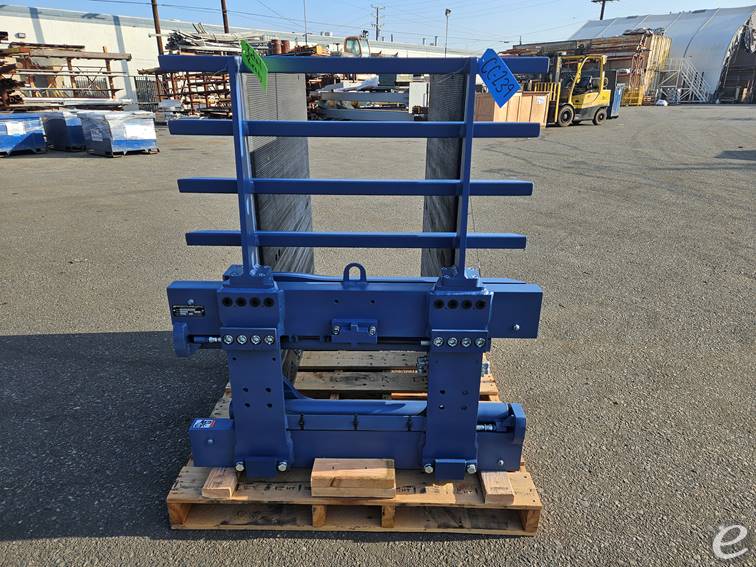

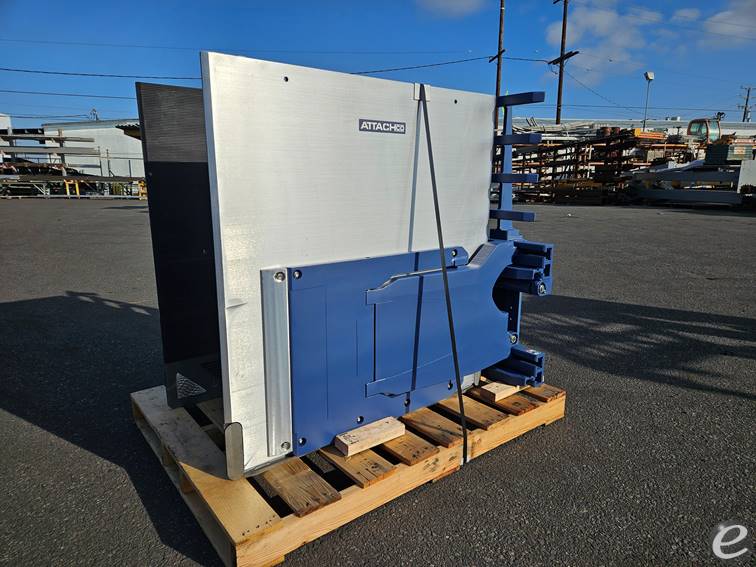

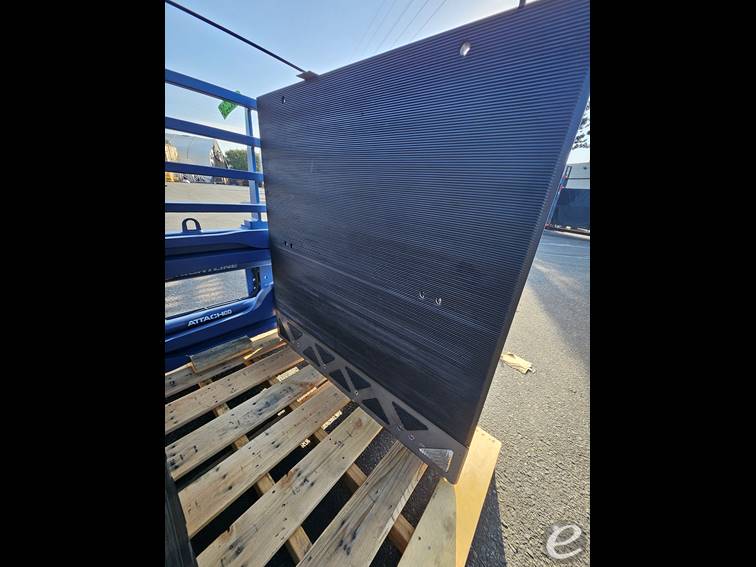

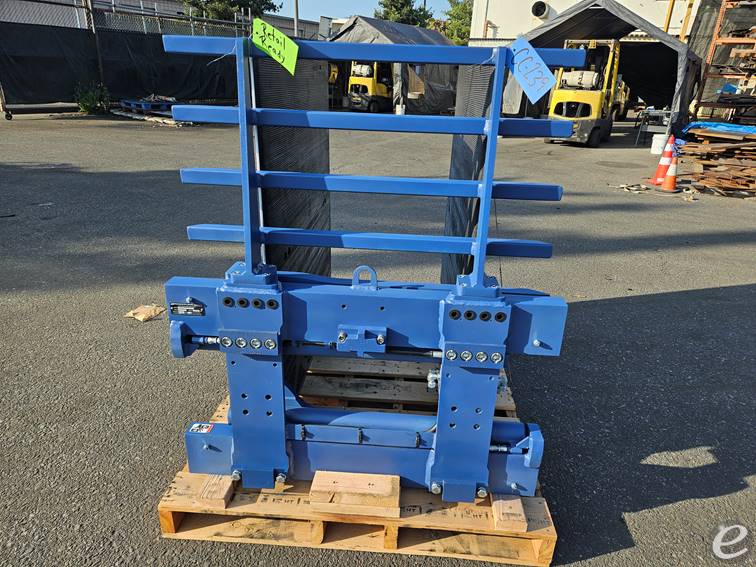

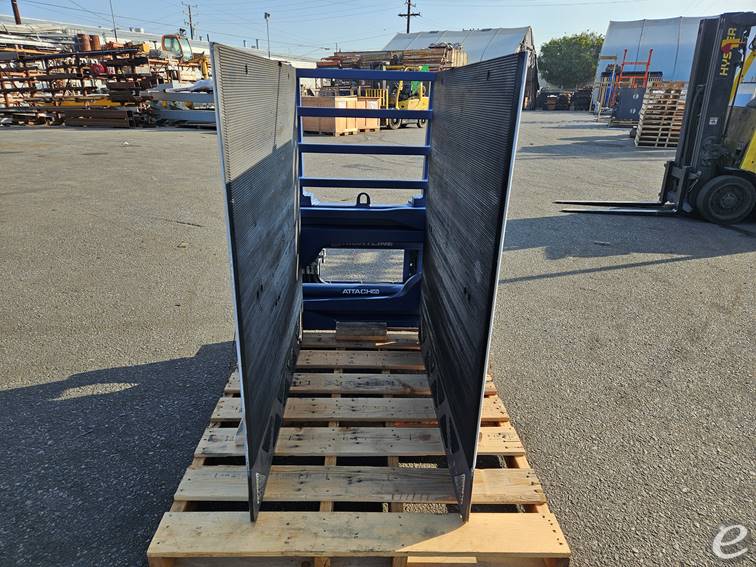

3500 lbs Capacity Side Shifting 48x48 Pads w/ Armor Guard
POST DATE:
3/13/2025
Equipment Description
48x48 Pads Class 2 Side Shifting 3500 lbs @ 24" LC CAPACITY . . . . . . . . . . 3500 lbs. @ 24 in. load center MOUNTING . . . . . . . . . . . . . . . . . . . . . ITA II & III LOWER HOOK . . . . . . . . . . . . . . . . . . . . . bolt-on B FRAME WIDTH . . . . . . . . . . . . . . . . . . . . 41.0 in. H ARM HEIGHT . . . . . . . . . . . . . . . . . . . . . 48.0 in. L ARM LENGTH . . . . . . . . . . . . . . . . . . . . 48.0 in. T ARM THICKNESS . . . . . . . . . . . . . . 2.13 in. at pivot O MINIMUM OPENING . . . . . . . . . . . . . . . . . 21.38 in. O MAXIMUM OPENING . . . . . . . . . . . . . . . . 77.5 in. A HOOK SPREAD . . . . . . . . . . . . . . . . . . . 29.0 in. WEIGHT . . . . . . . . . . . . . . . . . . . . . . . 1550 lbs. LL LOST LOAD . . . . . . . . . . . . . . . . . . . . . 5.88 in. HCG HORIZONTAL CG . . . . . . . . . . . . . . . . . . . 15.8 in. VCG VERTICAL CG . . . . . . . . . . . . . . . . . . . . . 12.2 in. LATERAL CG . . . . . . . . . . . . 10.6 in. @ maximum shift MAXIMUM OFFSET . . . . . . . . . . . . . . . . . 14.03 in. HYDRAULICS . . . . . . . . . . . . . . . . . . Side Shifting HYDRAULICS . . . . . . . . . . . . . . . . . . Flow Divider RECOMMENDED PRESSURE . . . . . . . . . . . 2250 psi MAXIMUM PRESSURE . . . . . . . . . . . . . . . 2400 psi MINIMUM FLOW . . . . . . . . . . . . . . . . . . 12.0 gpm RECOMMENDED FLOW . . . . . . . . . . . . . . 16.0 gpm MAXIMUM FLOW . . . . . . . . . . . . . . . . . . 20.0 gpm OPTION . . . . . . . . . . . . . . . . . . armor plate system
