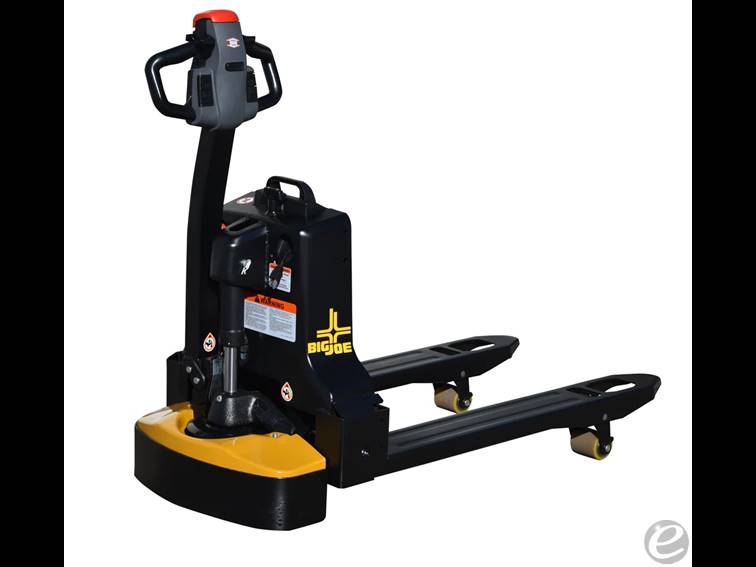

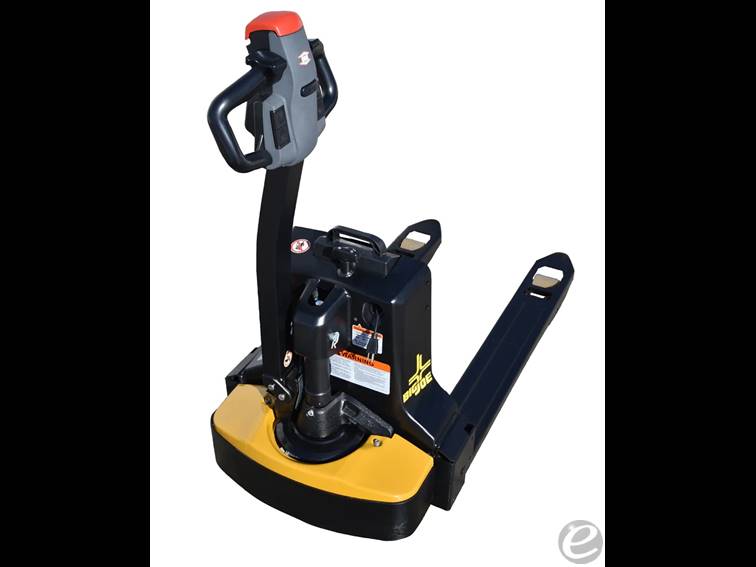

2024 Big Joe LPT33

electric walkie pallet jack

$4,175 USDNew
CONTACT INFO
Name:
Melissa Machin
Phone:
Website:

ADDRESS
Dade Lift
12612 NW S. River Drive
MiamiFlorida 33178
ATTRIBUTES
STOCK #:
LPT33
YEAR:
2024
Manufacturer:
MODEL #:
CAPACITY:
3300
FUEL:
Electric
MAST TYPE:
Six inch lift (walkie)
MAST HEIGHT:
3 / 6 in
SIDE SHIFTER:
No
CONDITION:
New
HOUR METER:
1
LOCATION:
Florida [33178]
DESCRIPTION:
New Walk Behind Electric Pallet Truck 3,300 lb. capacity
POST DATE:
2/27/2025
Equipment Description
The LPT33 Features: The LPT33 Lithium Pallet Truck Features: • Up to 2 hours of run-time per charge • Ergonomic handle with reversing switch, horn and dual “butterfly” • Thumb controls are intuitive and allow for safe, accurate operation • The unique Easy Exchange battery system functions like common cordless hand tools • Strong permanent magnet drive motor • Battery discharge indicator • Key switch to limit access to approved personnel The LPT33 Specifications: • Vehicle Type Lithium Pallet Truck • Capacity 3,300lbs. @ 24” load center • Power 24 volt electric with transistor controller • Max Lift Height 7.5” • Collapsed Height 3.25" • Fork Dimensions 27” W x 48” L standard • Vehicle Dimensions See product information sheet • Turning Radius See product information sheet • Travel Speed & Lift See product information sheet • Battery Compartment Easy exchange lithium ion battery • Battery Capacity 24-volt 20AH rechargeable • Charger 110V plug-in internal
  • General Information
    • Model Number: LPT33
    • Manufacturer: Big Joe
    • Type: Forklift
    • Subtype: Electric Walkie Pallet Jack
  • Dimensions
    • Overall Length: 63 inches
    • Overall Width: 28 inches
    • Height to Top of Handle: 48 inches
    • Fork Width: 27 inches
    • Fork Length: Varies
    • Fork Thickness: 2 inches
    • Load Wheel Diameter: 3 inches
    • Steer Wheel Diameter: 8 inches
  • Performance
    • Load Capacity: 3,300 lbs
    • Travel Speed: 3.4 mph (loaded)
    • Travel Speed: 3.6 mph (unloaded)
    • Turning Radius: 50 inches
    • Gradeability (loaded): 6%
    • Gradeability (unloaded): 10%
  • Powertrain
    • Motor: 24V Electric
    • Drive Motor Power: 1.34 hp
    • Lift Motor Power: 0.55 hp
  • Battery
    • Battery Voltage: 24V
    • Battery Capacity: 85 Ah
    • Battery Weight: 180 lbs
  • Additional Features
    • Controller Type: MOSFET
    • Power Steering: No
    • Braking System: Regenerative and Electromagnetic
    • Drive Type: Stand-on
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
