Equipment Description:

1 Hour

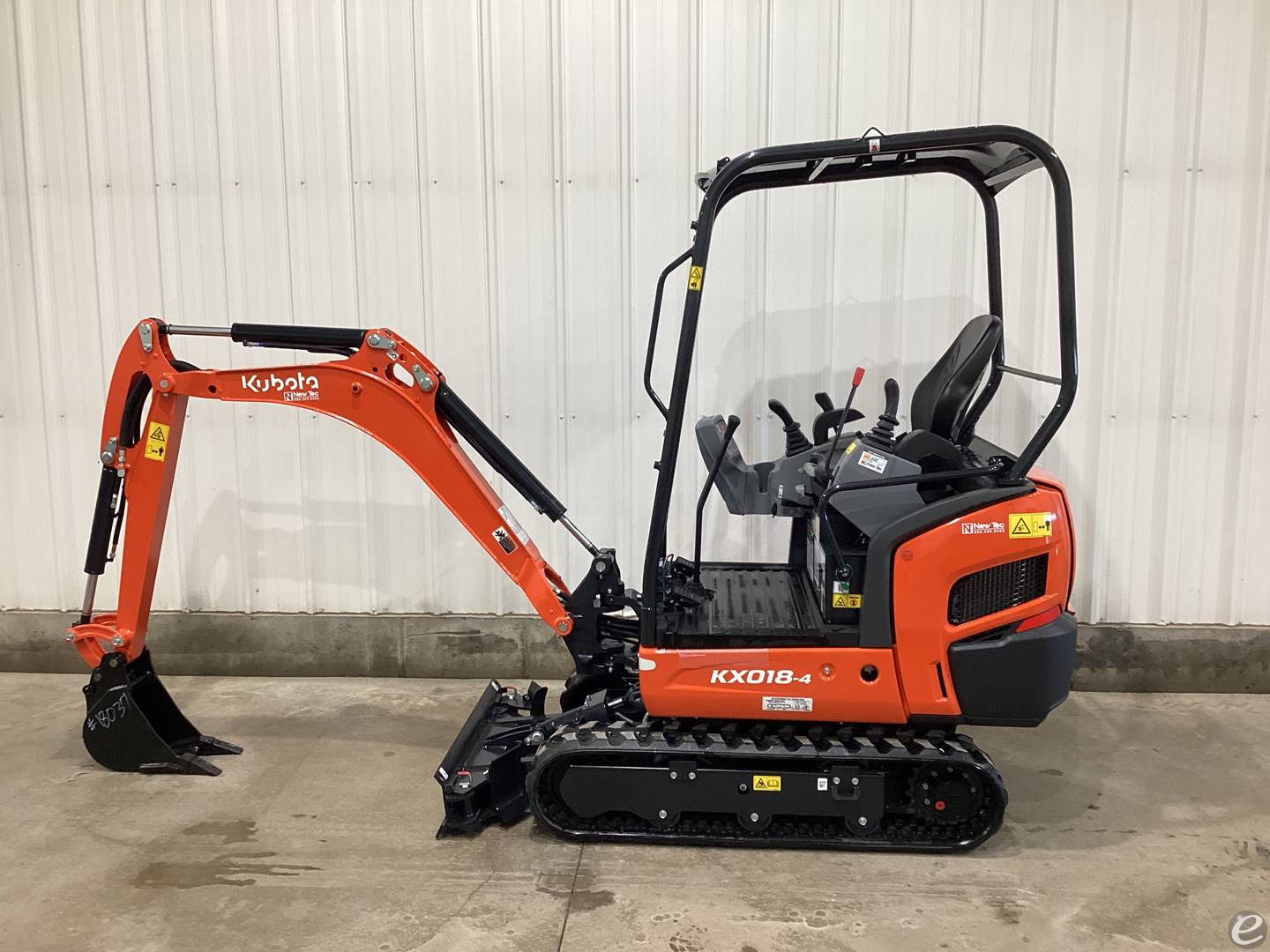

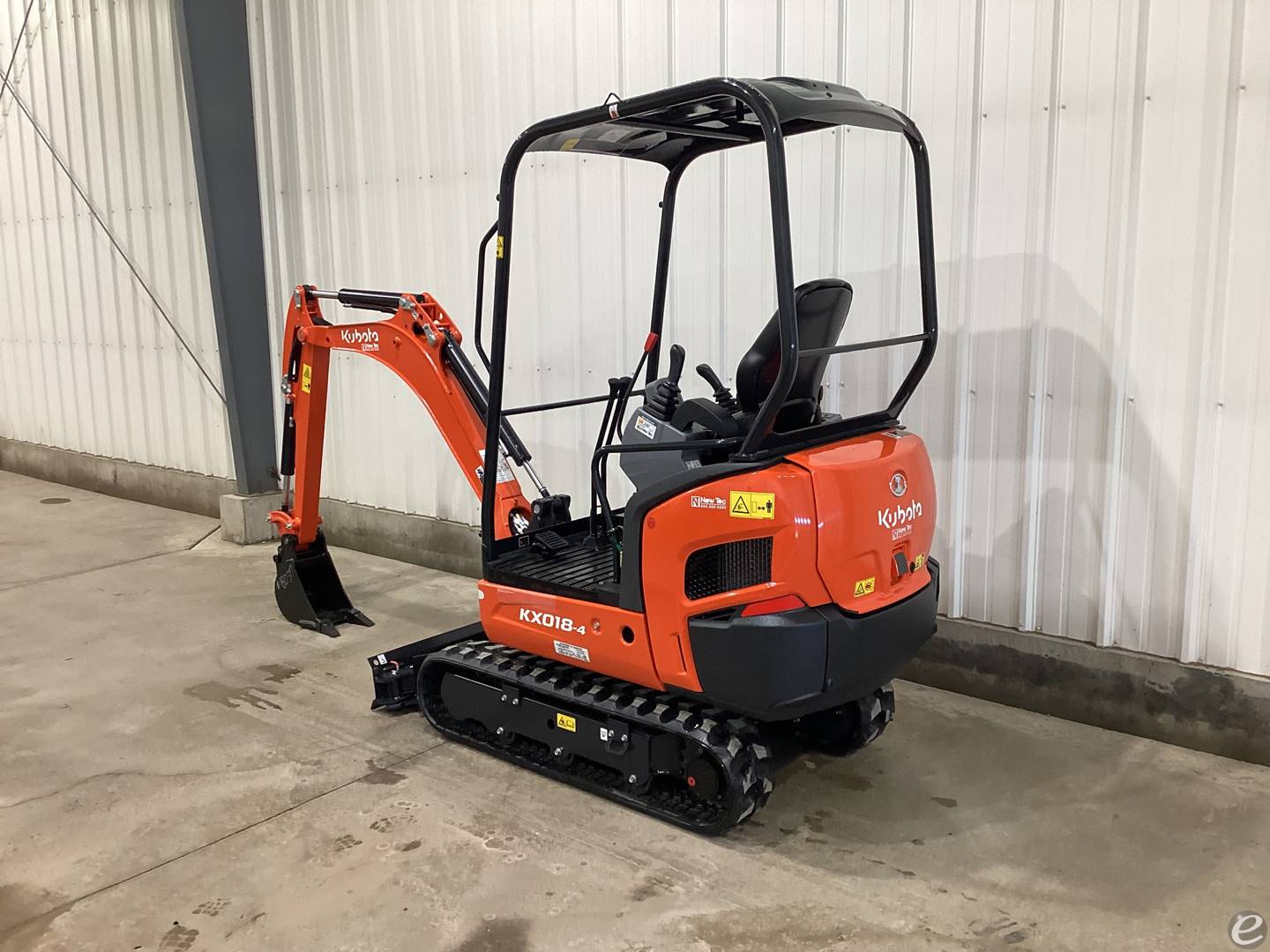

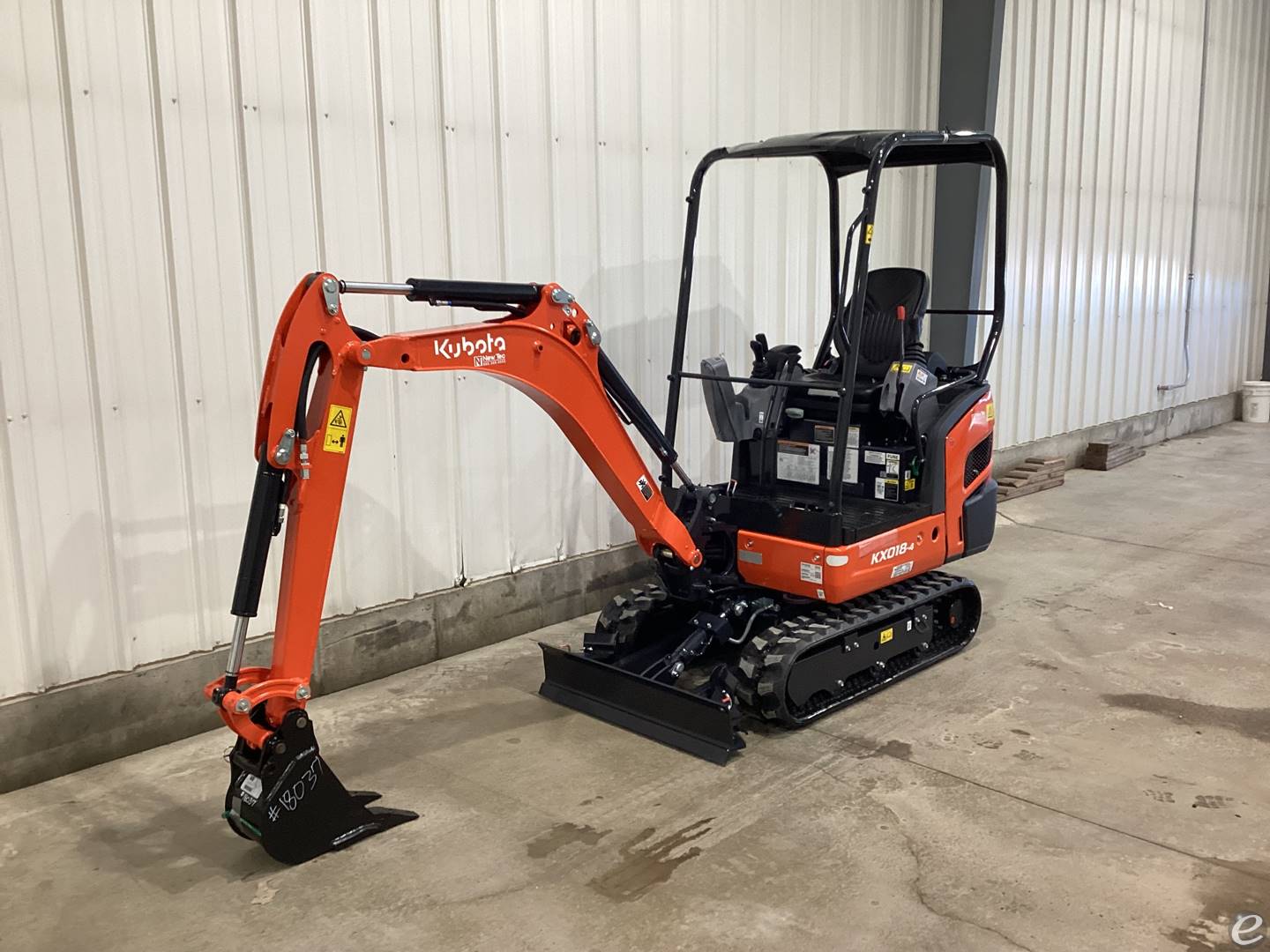

2024 Kubota KX018-4R1 Earth Moving and Construction

Call for priceNew

Contact Information

New Tec, Inc.
3764 US 75 Ave
Sioux Center, Iowa 51250

CONTACT :

Joe or Marlin

PHONE :

866-369-0505

FAX :

712-439-0507

Stock #:

0018036

YEAR:

2024

Manufacturer:

Kubota

MODEL #:

KX018-4R1

SUBCATEGORY:

Earth Moving and Construction

SERIAL #:

KBCGF15CJPZL48015

CONDITION:

New

LOCATION:

Iowa [51301]

DESCRIPTION:

Kubota Engine, Canopy Rubber 9" Tracks, 9" & 12" Buckets

Equipment Description:

1 Hour

This product was posted on 8/21/2024

Engine Specifications
- Engine Model: Kubota D902
- Engine Type: Liquid-cooled, 3-cylinder diesel
- Displacement: 54.8 cu. in. (898 cc)
- Gross Power: 16.1 HP (12.0 kW) @ 2300 rpm
- Net Power: 15.2 HP (11.3 kW) @ 2300 rpm
- Fuel Tank Capacity: 5 gal (19 L)
Dimensions and Weight
- Operating Weight: 3,748 lbs (1,700 kg)
- Overall Length: 12 ft 238 in (3750 mm)
- Overall Width: 3 ft 3 in (990 mm)
- Overall Height: 7 ft 7 in (2,355 mm)
- Track Width: 9 in (230 mm)
Performance
- Travel Speed (Low / High): 1.4 / 2.7 mph (2.2 / 4.3 km/h)
- Ground Clearance: 5.7 in (145 mm)
- Maximum Digging Height: 12 ft 10 in (3910 mm)
- Maximum Dumping Height: 9 ft 1 in (2760 mm)
- Maximum Digging Depth: 7 ft 5 in (2260 mm)
- Maximum Vertical Digging Depth: 5 ft 11 in (1810 mm)
- Minimum Tail Swing Radius: 2 ft 9 in (850 mm)
Hydraulic System
- Pump Capacity: 7.3 + 7.3 + 3.3 GPM (27.6 + 27.6 + 12.5 L/min)
- Hydraulic Pressure: 2,560 psi (17,700 kPa)
Features
- ROPS canopy
- Digital panel with automatic idle
- Two-speed travel
- Auxiliary hydraulics
- Adjustable track width
