C & B Material Handling LLC St Rose, Louisiana
749 miles away
Overview
Spec Sheet
Shipping/Freight

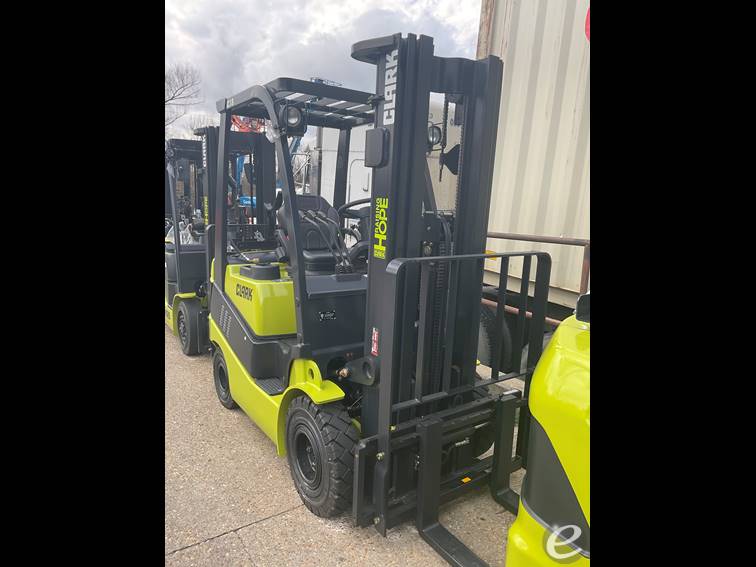

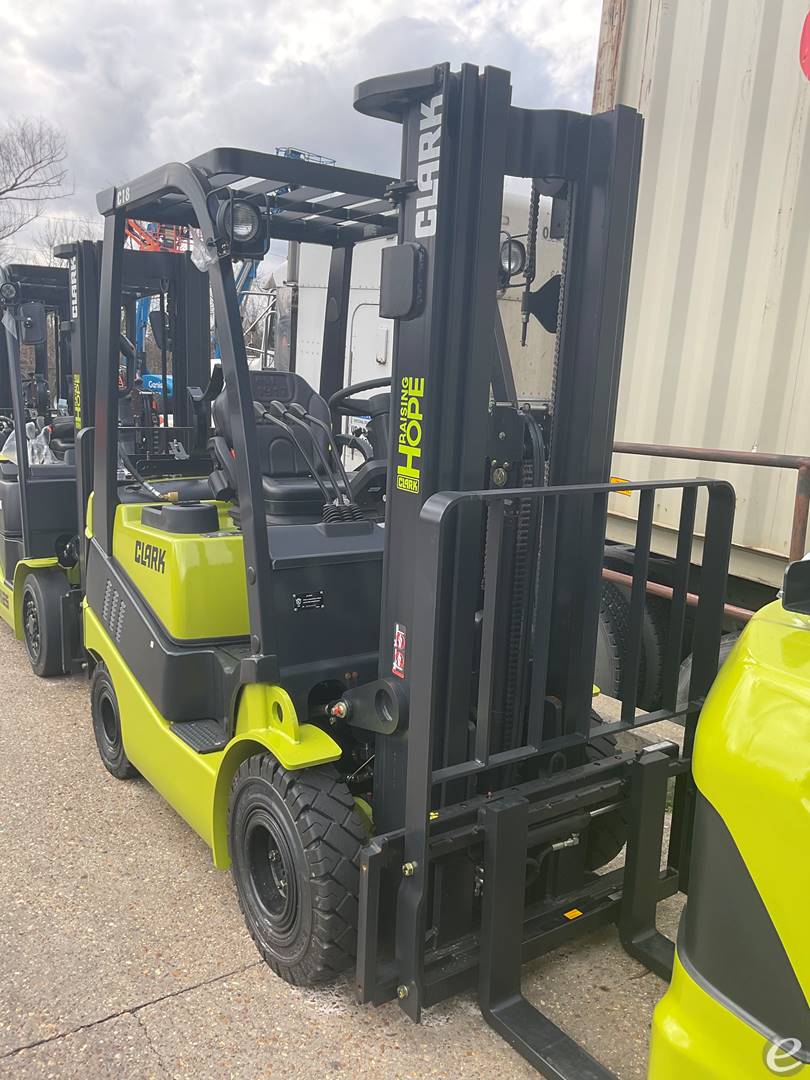

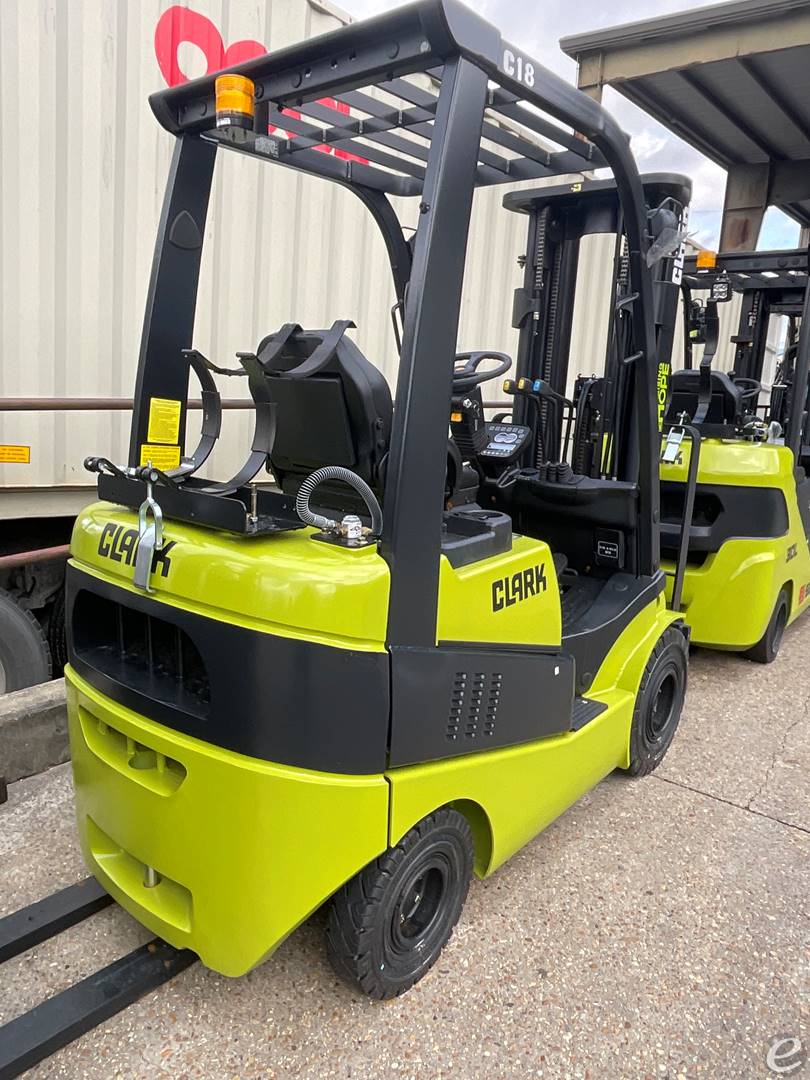

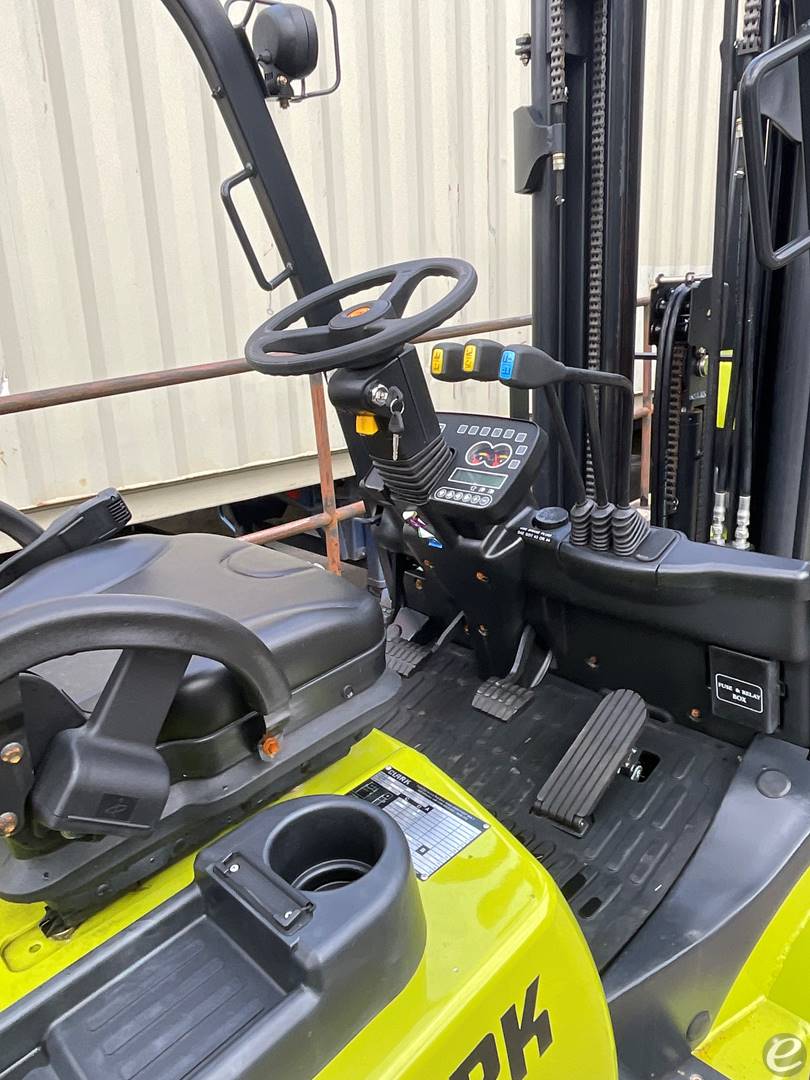

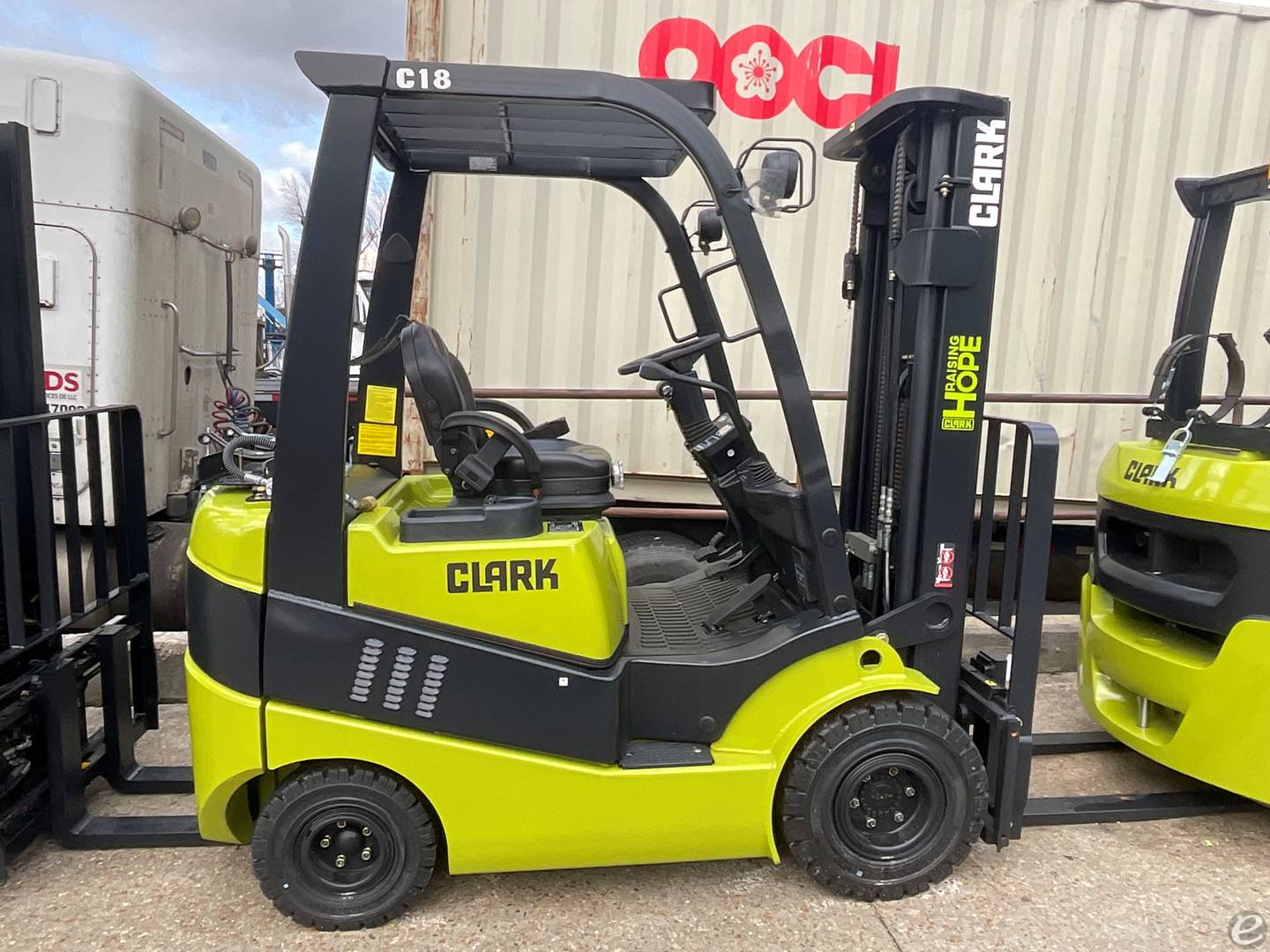

2023 LP Gas Clark C18 Pneumatic Tire 4 Wheel Sit Down

Call for priceNew
Contact Information
CONTACT :
Brandon McClendon
PHONE :
Stock #:
310418
YEAR:
2023
Manufacturer:
MODEL #:
CAPACITY:
3500
FUEL:
LP Gas
MAST TYPE:
Three Stage
MAST HEIGHT:
188 in
SERIAL #:
P152L-0117-12041VN
SIDE SHIFTER:
Yes
CONDITION:
New
HOUR METER:
2
LOCATION:
DESCRIPTION:
42" forks
Equipment Description:
  • General Specifications
    • Model: Clark C18
    • Type: Internal Combustion Forklift
    • Power Source: LPG (Liquid Petroleum Gas)/Gasoline/Dual Fuel
    • Operator Position: Seated
    • Drive: Counterbalanced
  • Dimensions
    • Overall Length to Fork Face: Approx. 2,722 mm (107.2 inches)
    • Overall Width: Approx. 1,080 mm (42.5 inches)
    • Height to Top of Overhead Guard: Approx. 2,140 mm (84.3 inches)
    • Wheelbase: Approx. 1,600 mm (63 inches)
    • Ground Clearance: Approx. 110 mm (4.3 inches)
  • Capacity and Load
    • Load Capacity: 1,800 kg (3,968 lbs)
    • Load Center: 500 mm (19.7 inches)
    • Maximum Lift Height: Approx. 4,870 mm (191.7 inches)
    • Tilt Angle: Forward 6 degrees / Backward 12 degrees
  • Performance
    • Travel Speed (Full Load): Approx. 17.0 km/h (10.6 mph)
    • Lift Speed (Full Load): Approx. 550 mm/s (21.7 inches/s)
    • Gradeability (Full Load): Approx. 28%
    • Turning Radius: Approx. 1,980 mm (78 inches)
  • Engine
    • Engine Make and Model: Mitsubishi S4S-C61SD
    • Engine Power: Approx. 33.5 kW (45 HP) @ 2,100 rpm
    • Engine Displacement: Approx. 2,659 cc (162 cubic inches)
    • Fuel Tank Capacity: Approx. 33 liters (8.7 gallons)
  • Tires
    • Tire Type: Pneumatic
    • Front Tires: 7.00-12-14PR
    • Rear Tires: 6.00-9-10PR
  • Brakes
    • Service Brakes: Hydraulic
    • Parking Brake: Mechanical
  • Hydraulic System
    • Hydraulic Tank Capacity: Approx. 38 liters (10 gallons)
    • Hydraulic Pressure: Approx. 19.6 MPa (2,843 psi)
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
