2014 LP Gas Cat GLP100VX Pneumatic Tire 4 Wheel Sit Down

$34,950 USD
Contact Information
Illinois Lift Equipment
640 Industrial Dr
Cary, Illinois 60013
CONTACT :
John Hellyer
PHONE :
Stock #:
13824
YEAR:
2014
Manufacturer:
MODEL #:
CAPACITY:
10000
FUEL:
LP Gas
MAST TYPE:
Three Stage
MAST HEIGHT:
95 / 185 in
SIDE SHIFTER:
No
CONDITION:
Used
LOCATION:
DESCRIPTION:
10000LB CAPACITY, 3 STAGE MAST, 95" LOWERED , 185" RAISED
Equipment Description:
10000LB CAPACITY 3 STAGE MAST 95" LOWERED HEIGHT 185" RAISED HEIGHT LPG FUEL GM VORTEC 4.3L V6 ENGINE DUAL DRIVE PNEUMATIC TIRES 3-WAY HYDRAULICS PLUMBED TO CARRIAGE INTEGRAL SIDESHIFTER LEVER SHIFT AUTOMATIC TRANSMISSION COWL MOUNT HYDRAULIC CONTROLS FORKS INCLUDED
  • Engine Specifications
    • Engine Model: PSI 4.3L V6
    • Fuel Type: LP Gas
    • Power: 95 HP (71 kW) at 2400 RPM
    • Peak Torque: 232 lb-ft (315 Nm) at 1400 RPM
    • Displacement: 4.3 liters
  • Performance Specifications
    • Load Capacity: 10,000 lbs (4536 kg)
    • Max Travel Speed (Unladen): 11.9 mph (19.1 km/h)
    • Lift Speed (Laden): 104 ft/min (0.52 m/s)
    • Lowering Speed (Laden): 103 ft/min (0.52 m/s)
    • Drawbar Pull: 5619 lb (25,000 N)
  • Dimensions and Weight
    • Overall Length (to fork face): 148.0 inches (3760 mm)
    • Overall Width: 55.5 inches (1410 mm)
    • Overall Height (standard mast lowered): 88 inches (2235 mm)
    • Wheelbase: 77 inches (1955 mm)
    • Turning Radius: 98 inches (2490 mm)
    • Service Weight: 14,696 lbs (6665 kg)
  • Tire and Wheel Details
    • Tires: Pneumatic

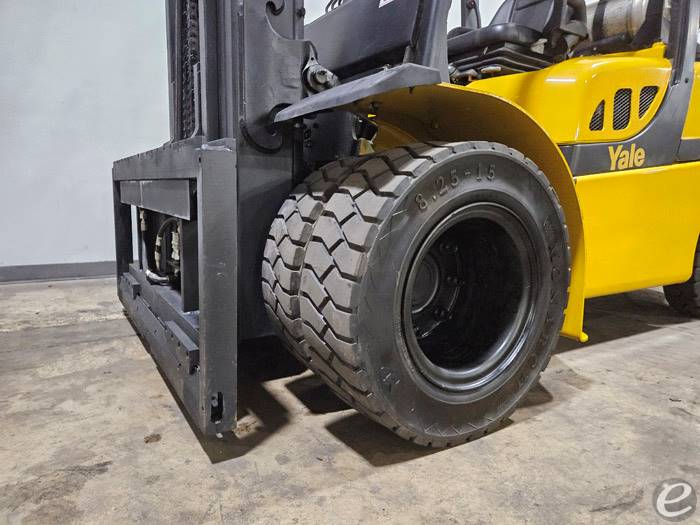

    • Front Tire Size: 8.25-15

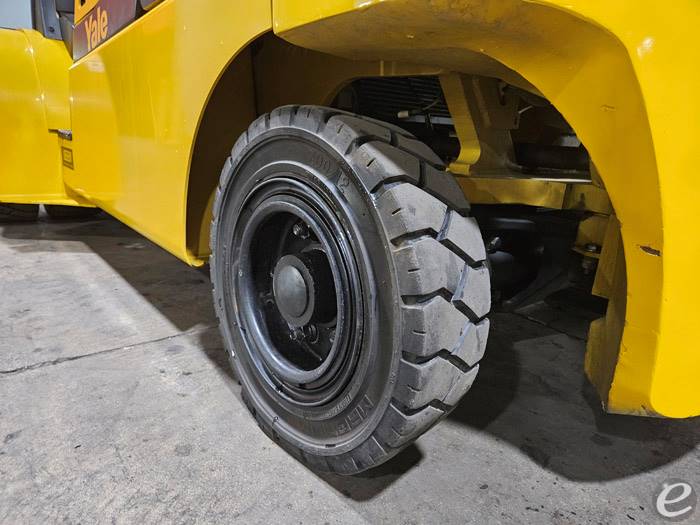

    • Rear Tire Size: 7.00-12
    • Number of Wheels: 4
  • Hydraulic System
    • Main Pressure: 2320 psi (160 bar)
    • Pump Type: Gear type
  • Transmission Specifications
    • Type: Powershift
    • Number of Speeds: 1 forward / 1 reverse
  • Braking System
    • Service Brake: Hydraulic
    • Parking Brake: Hand operated
  • Other Features

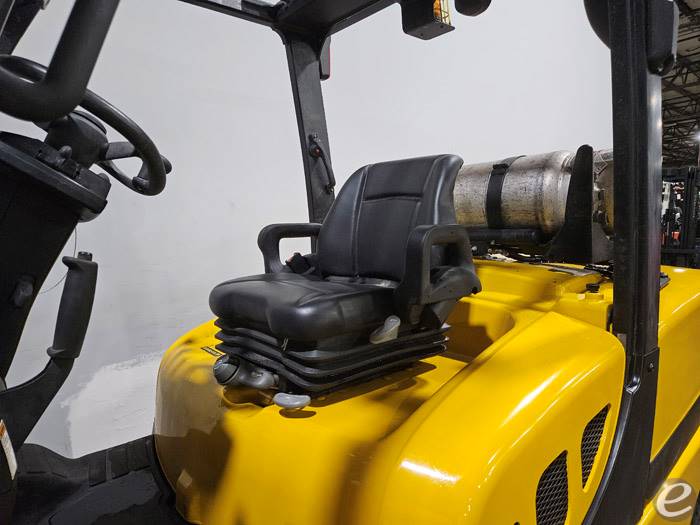

    • Operator Type: Sit-down
    • Steering: Hydraulic power steering
    • Fork Dimensions: 2 inches x 6 inches x 48 inches
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
