Equipment Description:

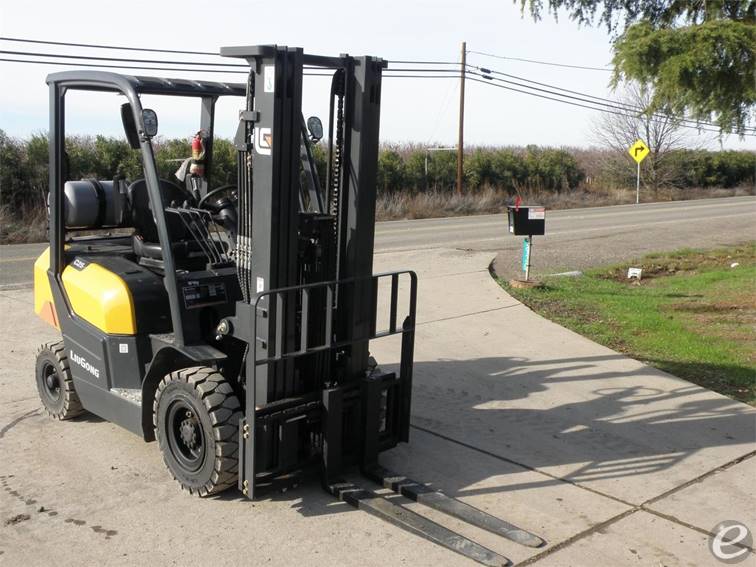

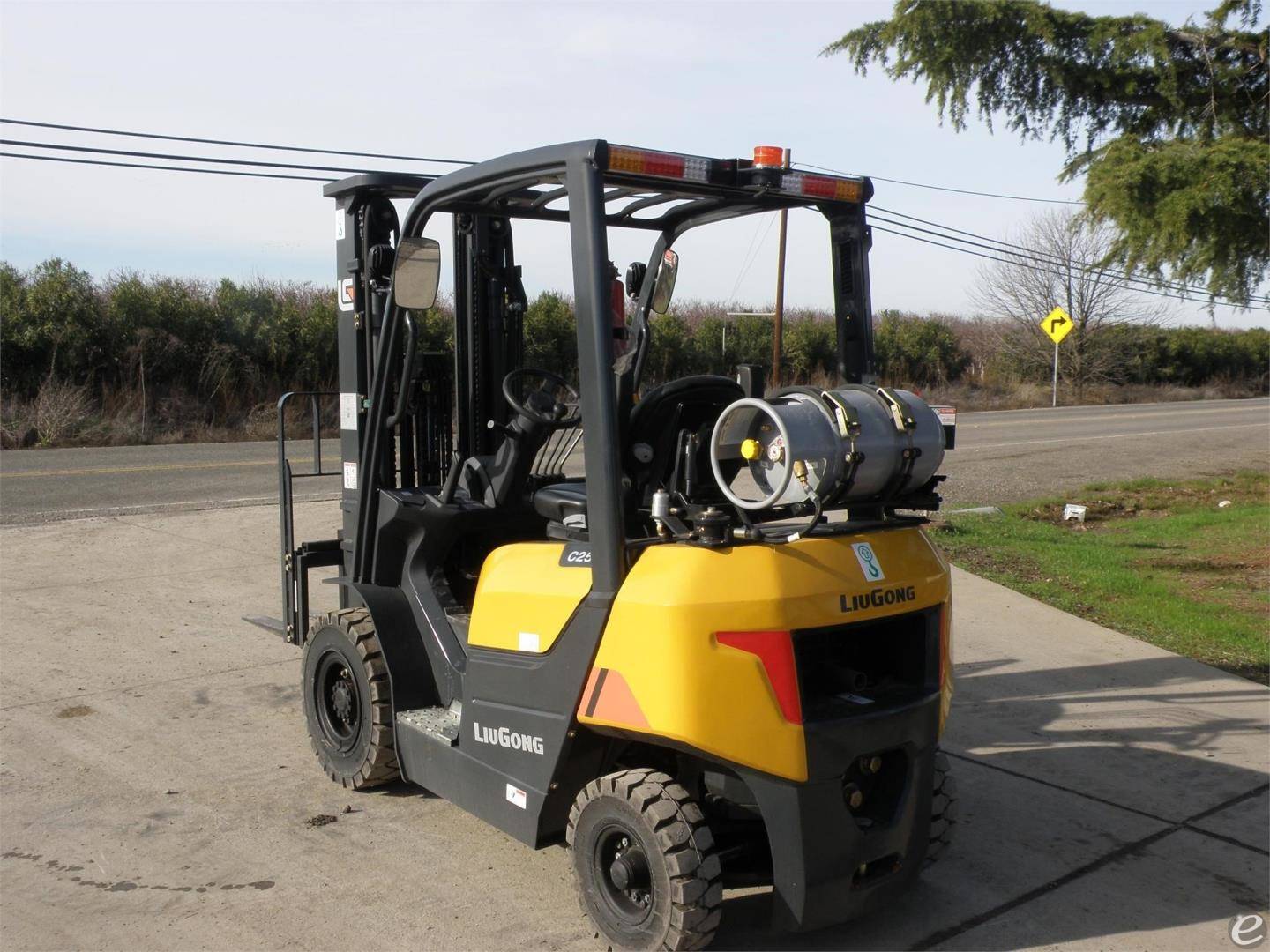

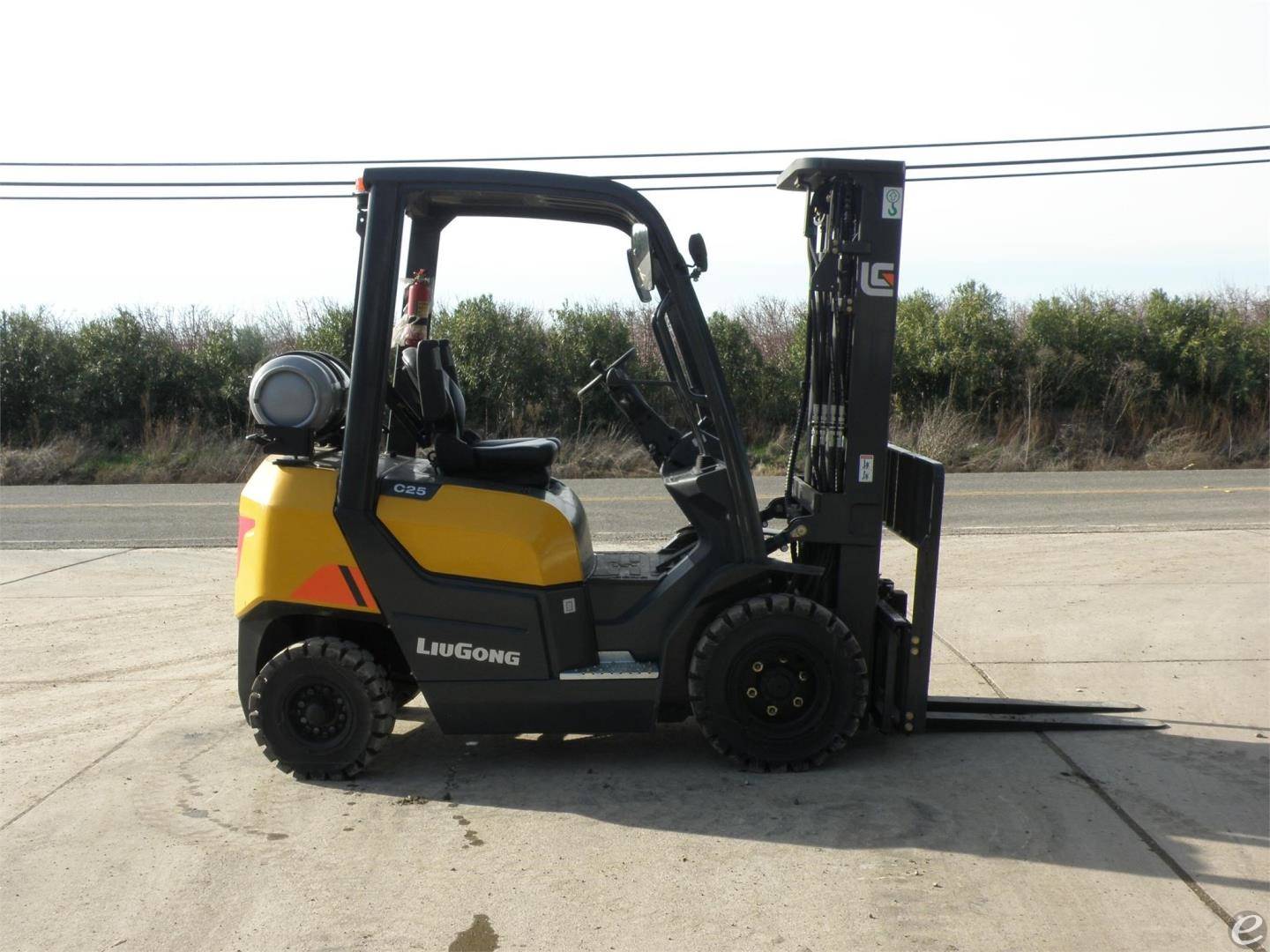

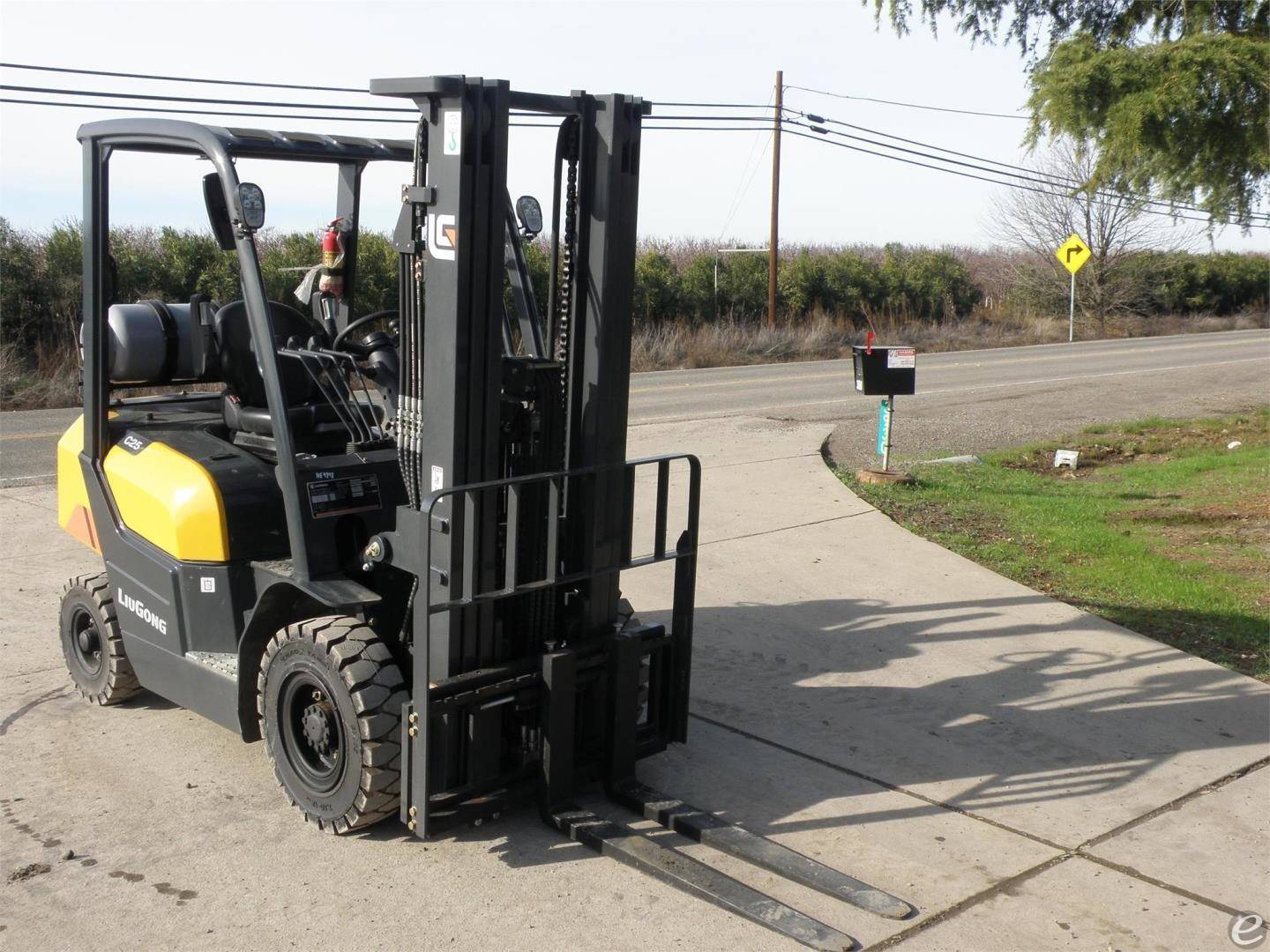

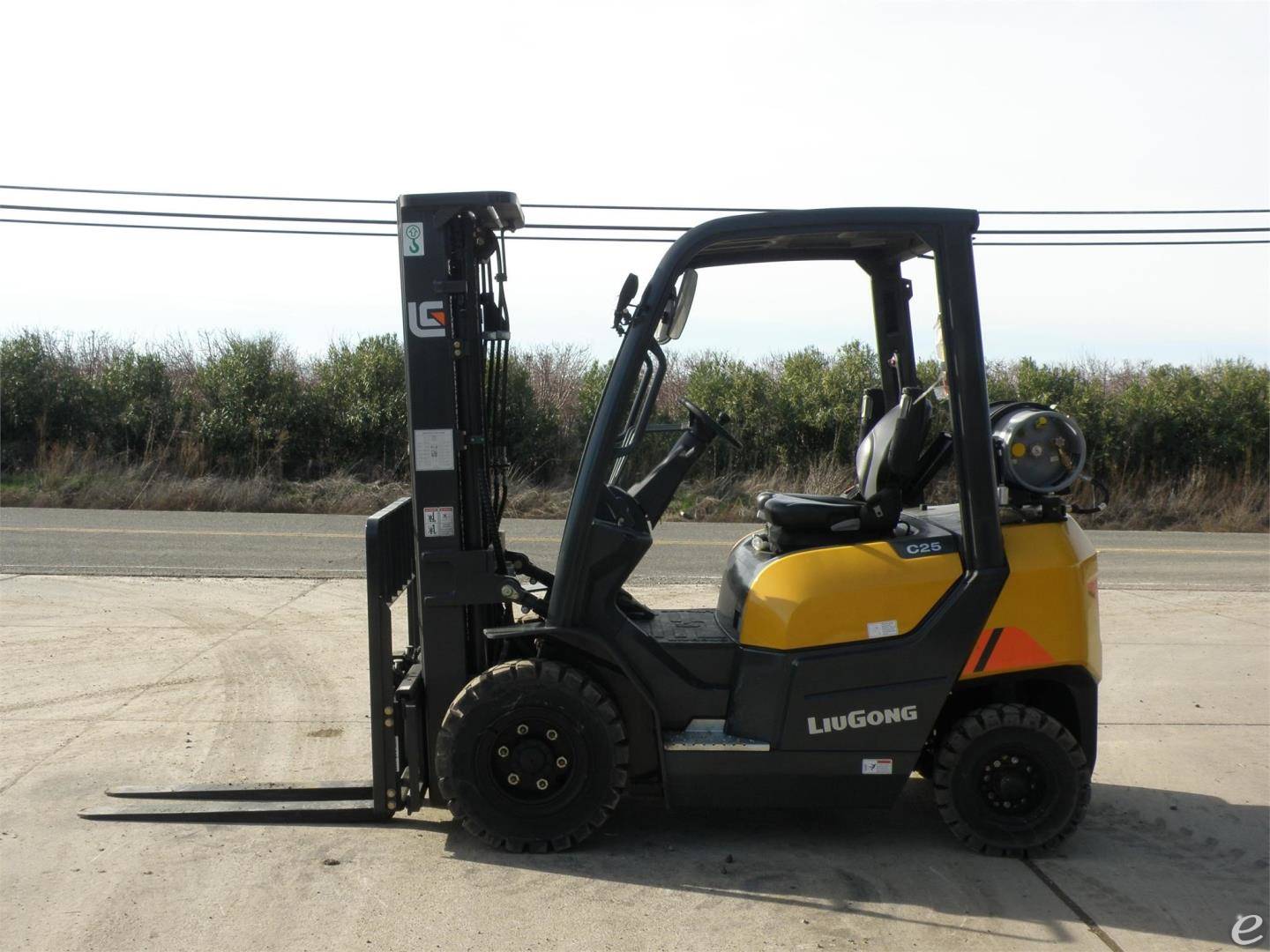

2024 Liugong CLG2025G Pneumatic Tire 4 Wheel Sit Down

Call for priceNew

Contact Information

Hamre Equipment Co. Inc.
3930 Esplanade
Chico, California 95973

CONTACT :

Lee Hamre

PHONE :

FAX :

Stock #:

HE 4343

YEAR:

2024

Manufacturer:

MODEL #:

SUBCATEGORY:

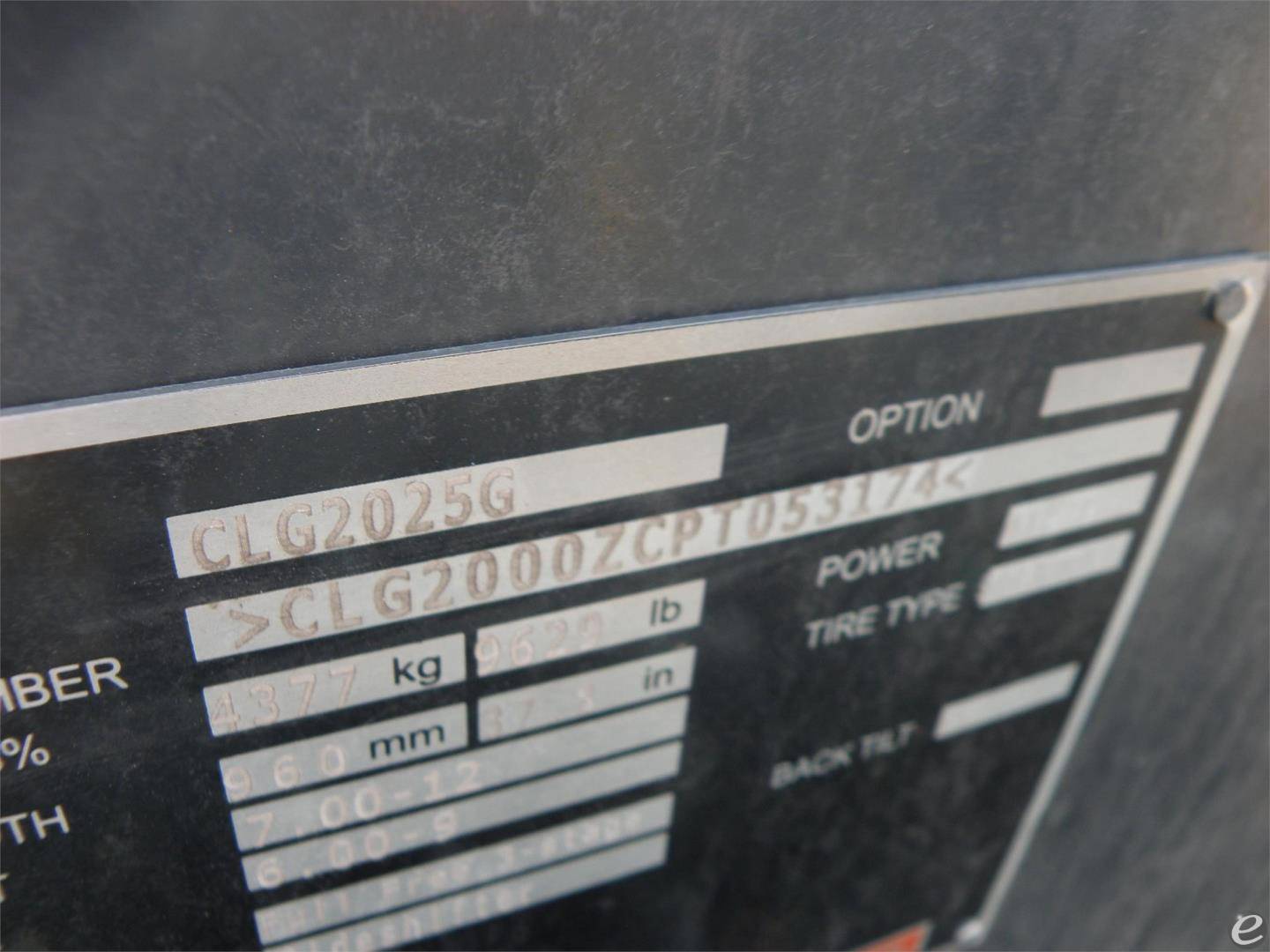

SERIAL #:

CLG2000ZCPT053174

CONDITION:

New

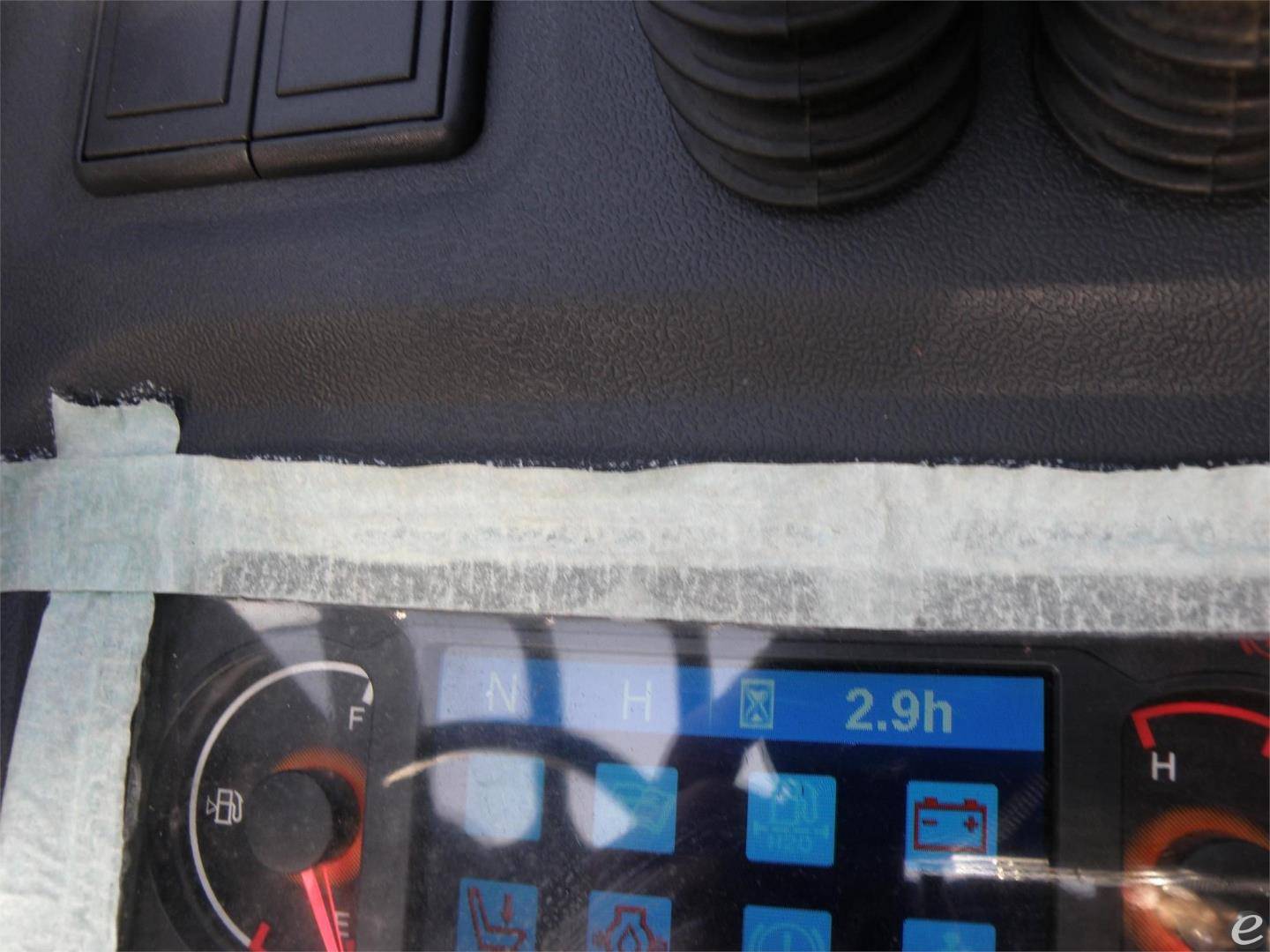

HOUR METER:

2.9

LOCATION:

Equipment Description:

This product was posted on 10/8/2024

Capacity and Performance
- Load Capacity: 2,500 kg
- Load Center: 500 mm
- Mast Type: Standard
- Lifting Height: 3,000 mm
- Free Lift Height: 145 mm
- Travel Speed (with/without load): 17/19 km/h
- Lifting Speed (with/without load): 530/540 mm/s
- Gradeability (with/without load): 18/20%
Dimensions
- Overall Length: 3,580 mm
- Overall Width: 1,150 mm
- Overall Height (mast lowered): 2,185 mm
- Overall Height (mast extended): 4,235 mm
- Turning Radius: 2,330 mm
- Fork Dimensions: 1070x120x40 mm
Engine
- Engine Model: GCT K25
- Power Output: 37.4 kW @ 2,700 rpm
- Fuel Type: LPG/Gasoline
- Number of cylinders: 4
- Displacement: 2.5 L
Chassis and Tires
- Tire Type: Pneumatic
- Front Tires: 7.00-12-12PR
- Rear Tires: 6.00-9-10PR
- Wheelbase: 1,640 mm
Brakes
- Service Brake: Hydraulic
- Parking Brake: Mechanical Lever
Hydraulic System
- Pump Capacity: 13 L/min
- Relief Pressure: 18.5 MPa
Features
- Standard Adjustable Steering Wheel
- Standard Comfortable Seat with Safety Belt
- Standard Overhead Guard
