Equipment Description:

45' PLATFORM HEIGHT 51' WORK HEIGHT 25' MAX HORIZONTAL REACH 4X4 500LB CAPACITY ON-BOARD CHARGER

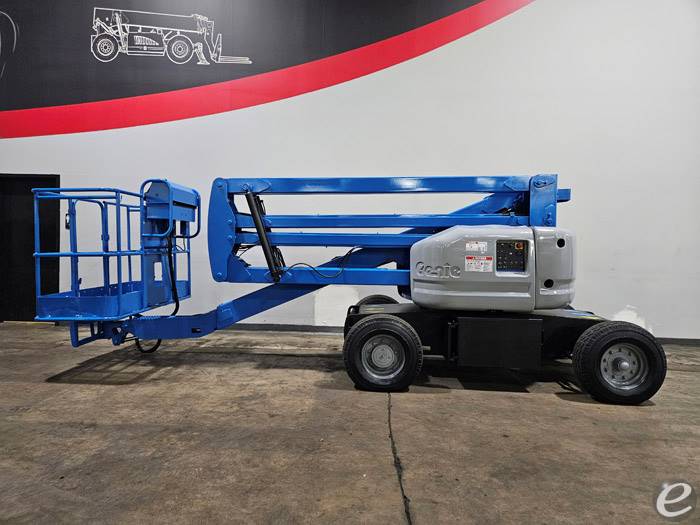

2004 DC Power Genie Z45/25DC Articulated Boom

$14,450 USD

Instant Quote Eligible Listing - CLICK HERE!

Contact Information

Illinois Lift Equipment
640 Industrial Dr
Cary, Illinois 60013

CONTACT :

John Hellyer

PHONE :

224-404-3255

Stock #:

13404

YEAR:

2004

Manufacturer:

Genie

MODEL #:

Z45/25DC

Drive:

4WD

SUBCATEGORY:

Articulated Boom

Height:

45 ft

FUEL:

DC Power

CONDITION:

Used

LOCATION:

Illinois [60013]

DESCRIPTION:

45' PLATFORM HEIGHT 51' WORK HEIGHT 25' MAX HORIZONTAL REACH

Equipment Description:

45' PLATFORM HEIGHT 51' WORK HEIGHT 25' MAX HORIZONTAL REACH 4X4 500LB CAPACITY ON-BOARD CHARGER

This product was posted on 11/8/2024

Overview

Model: Genie Z-45/25DC
Type: Articulating Boom Lift
Power Source: Electric

Dimensions

Maximum Working Height: 51 ft 10 in
Maximum Platform Height: 45 ft 10 in
Maximum Horizontal Reach: 25 ft 1 in
Up and Over Clearance: 23 ft

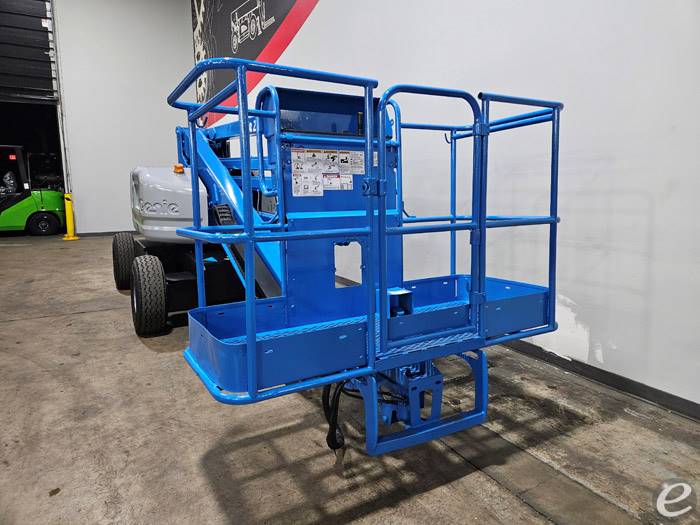

Platform Dimensions: 5 ft 8 in x 2 ft 6 in
Overall Length: 18 ft 2 in
Overall Width: 5 ft 10 in
Overall Height (stowed): 6 ft 9 in
Wheelbase: 6 ft 5 in
Ground Clearance: 9 in

Performance

Lift Capacity: 500 lbs
Turntable Rotation: 355° non-continuous
Turntable Tailswing: Zero
Drive Speed (stowed): 3.0 mph
Drive Speed (raised): 0.68 mph
Gradeability: 30%
Turning Radius (inside): 6 ft 7 in
Turning Radius (outside): 14 ft 6 in

Power

Power Source: 48V DC
Battery Capacity: 8 x 6V, 340 Ah
Charger: 25 A, 48V DC Onboard Smart Charger

Features

Articulating Boom with Telescopic Upper Boom
Zoned Electric Traction Controls for Enhanced Precision
Proportional Joystick Controls
Self-Leveling Platform
Drive Enable System
AC Wiring to Platform
Horn, Hour Meter, Tilt Alarm

Additional Specifications

Weight: 15,354 lbs
Noise Level: 70 dBA
