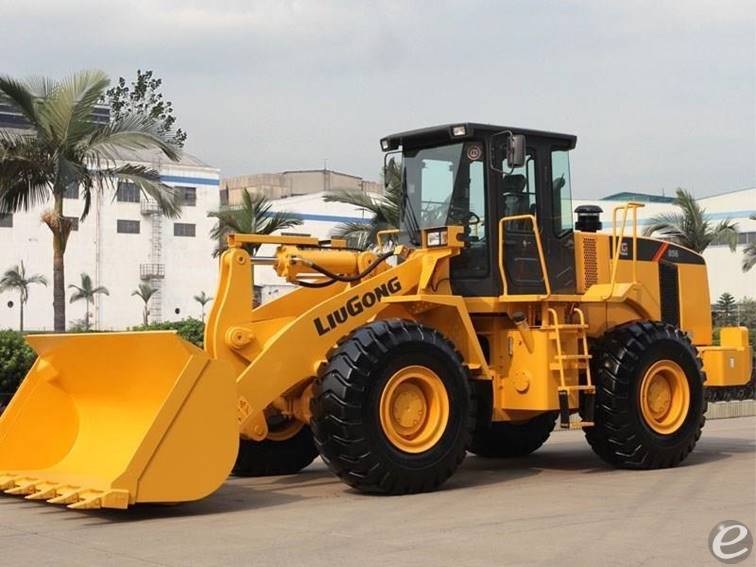

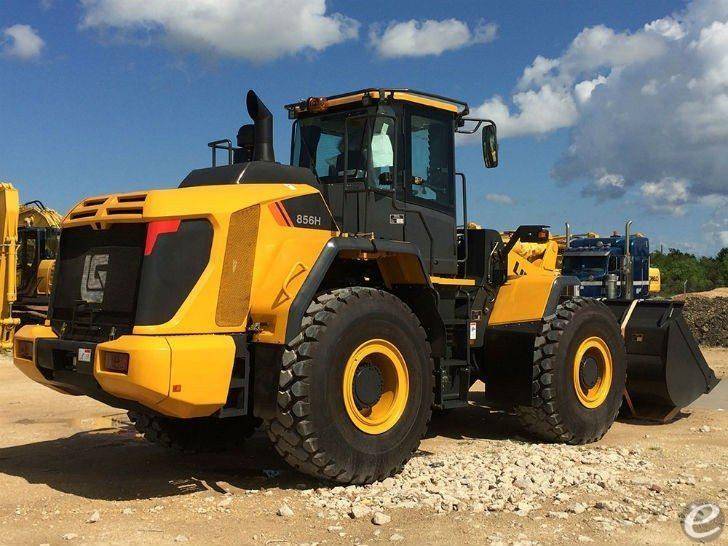

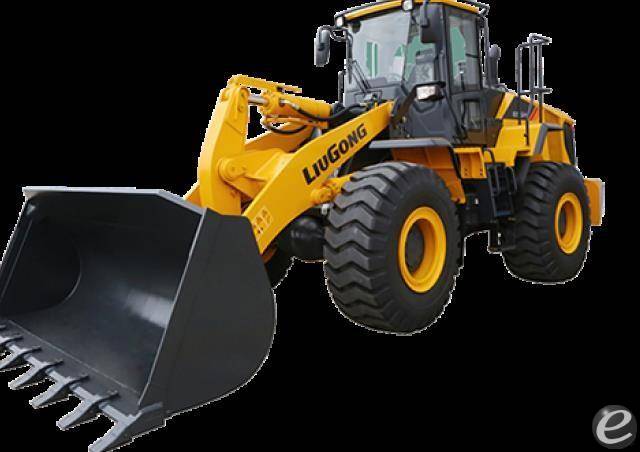

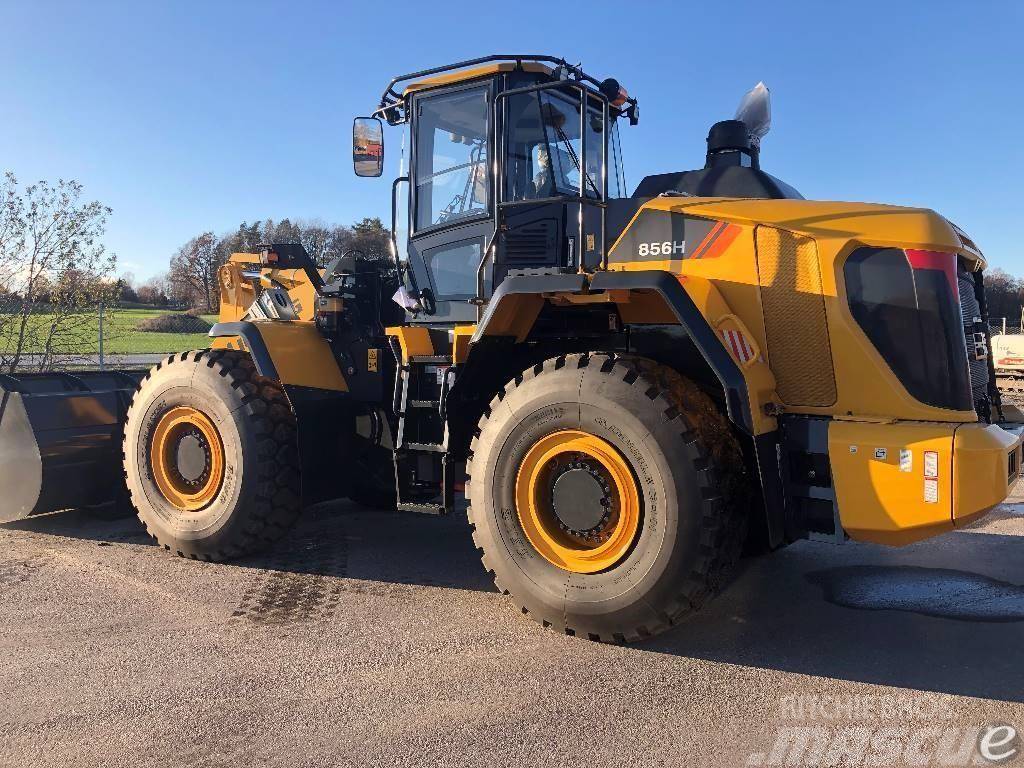

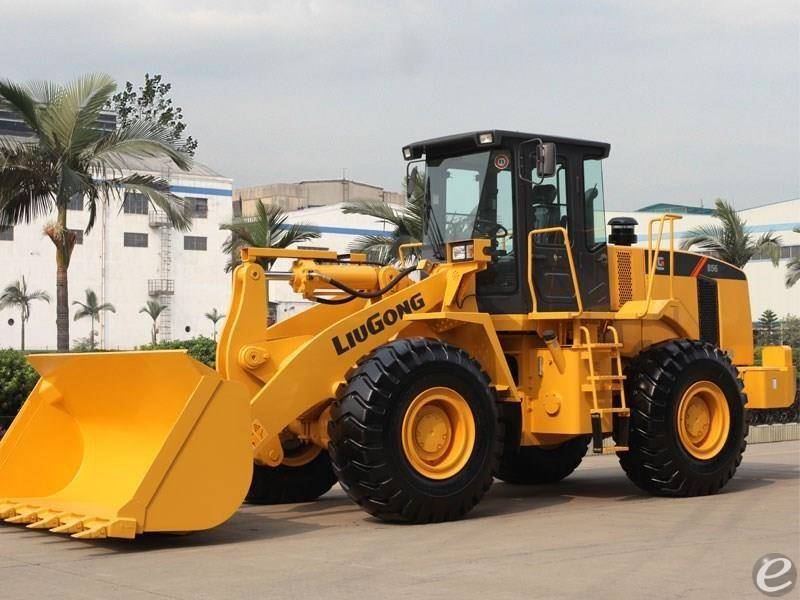

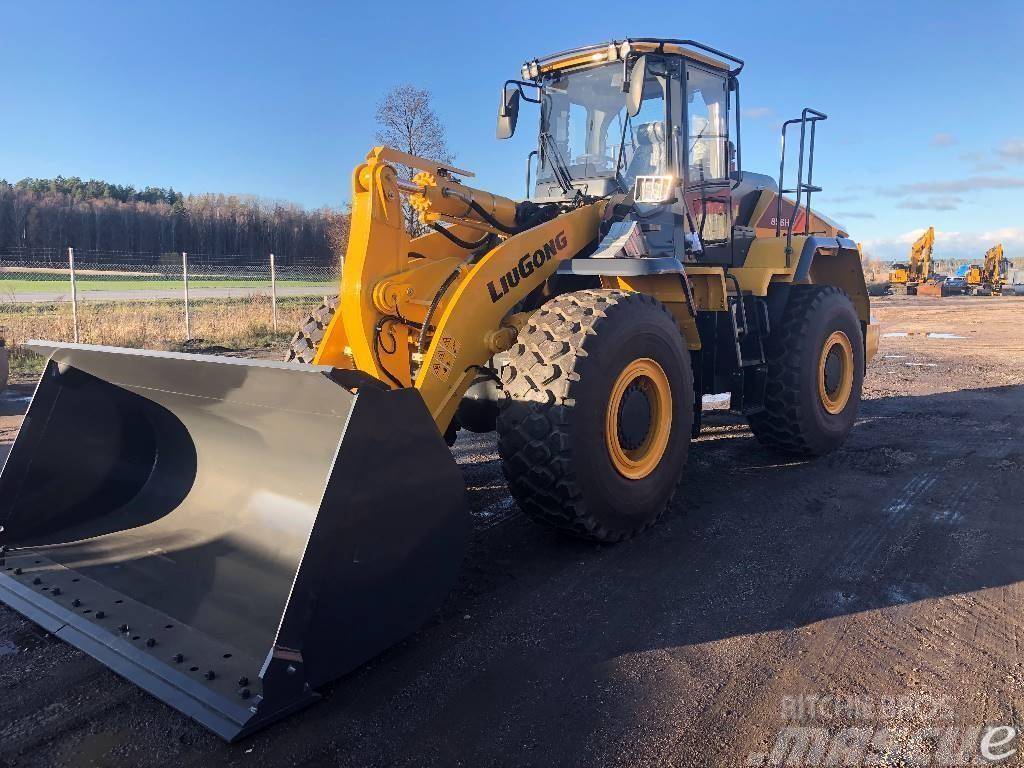

2023 Liugong 856HV Earth Moving and Construction

Call for priceNew
Contact Information
CONTACT :
Lee Hamre
PHONE :
FAX :
Stock #:
HE 4303
YEAR:
2023
Manufacturer:
MODEL #:

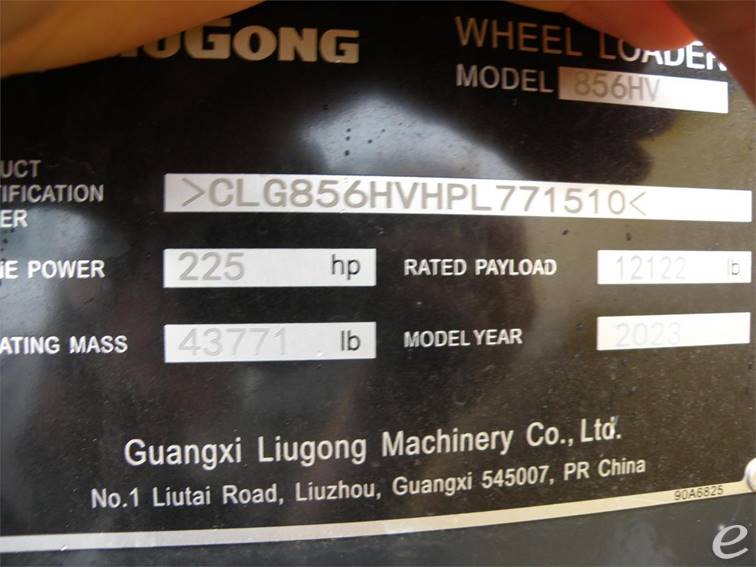

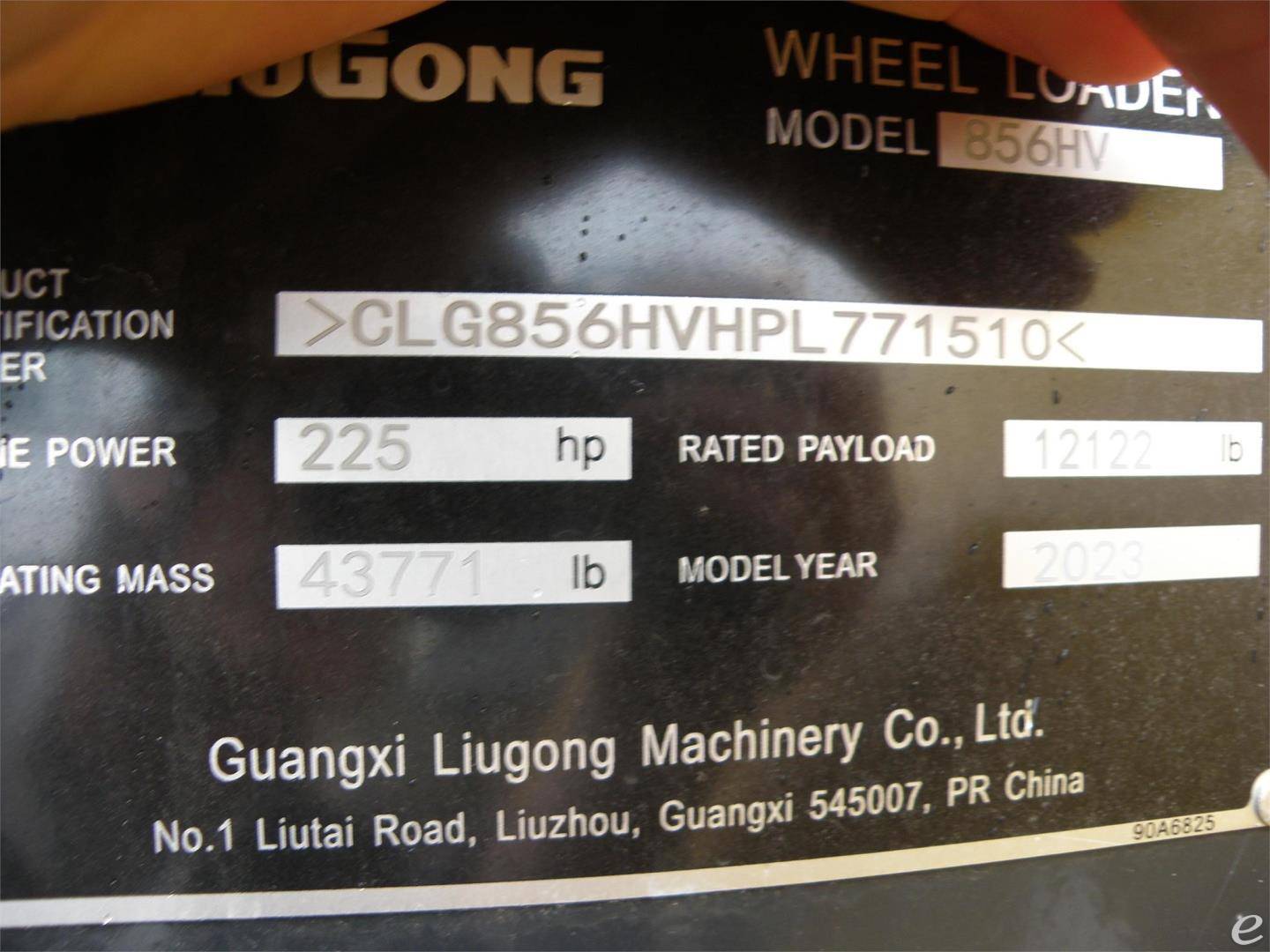

SERIAL #:
CLG856HVHPL771510
CONDITION:
New

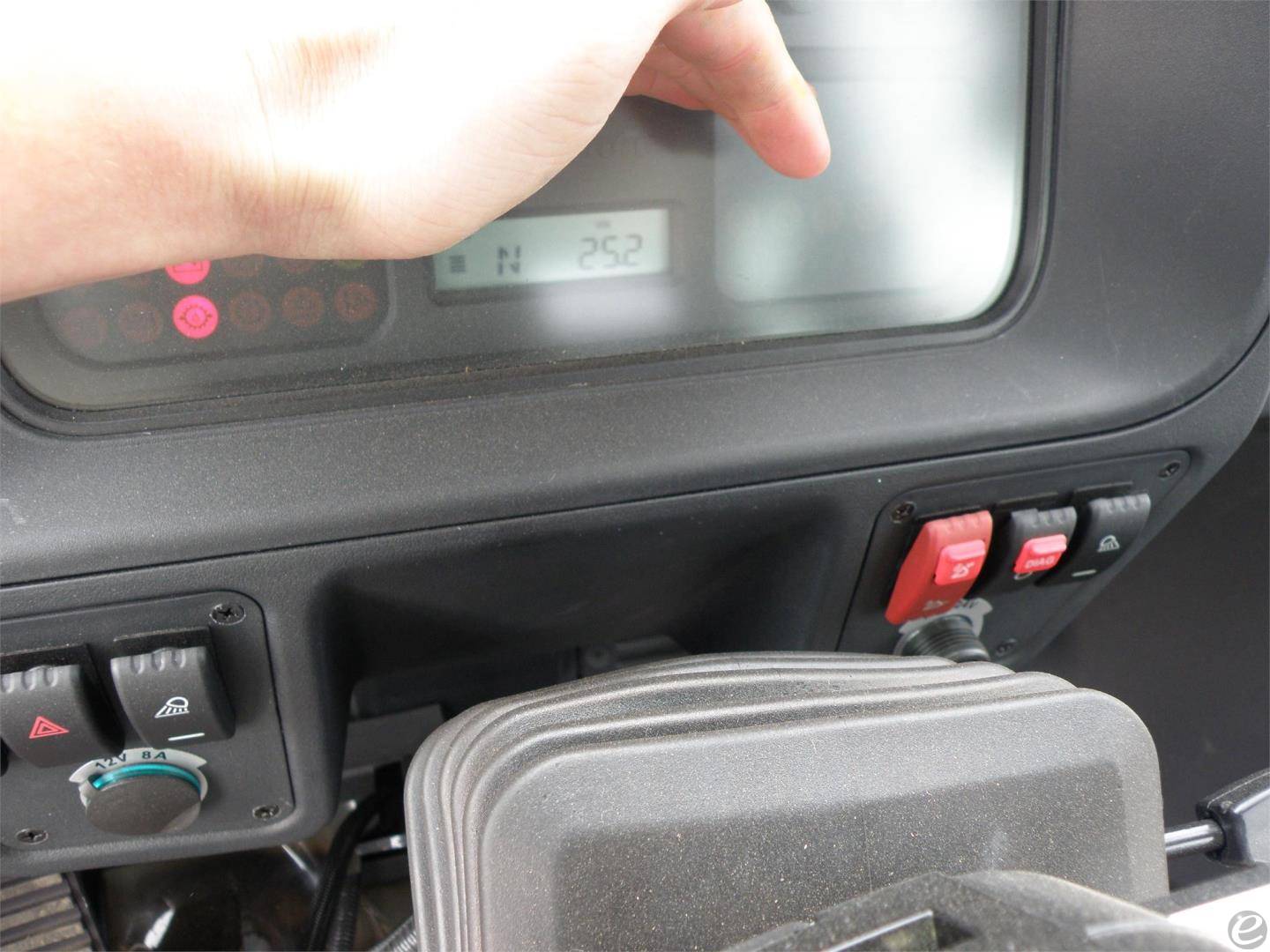

HOUR METER:
25.2
LOCATION:
Equipment Description:
  • Engine Specifications
    • Model: Cummins 6LT9.3
    • Type: Turbocharged, water-cooled, 4-stroke
    • Power Output: 220 HP (164 kW) @ 2,200 rpm
    • Displacement: 9.3 liters
    • Maximum Torque: 980 Nm @ 1,300-1,500 rpm
    • Fuel System: Electronically controlled with high-pressure common rail
  • Operating Specifications
    • Operating Weight: Approximately 18,900 kg
    • Rated Load Capacity: 5,000 kg
    • Bucket Capacity: 3.0 m³ to 4.5 m³
    • Bucket Breakout Force: 172 kN
    • Dump Clearance at Maximum Lift: 3,200 mm
  • Transmission
    • Type: ZF 4WG200
    • Transmission Type: Countershaft type, power shift, planetary gears
    • Number of Gears: 4 forward, 3 reverse
    • Maximum Speed: 38 km/h
  • Axles
    • Main Drive Type: Heavy-duty caliper disc brake with air-over-hydraulic control
    • Differential: Limited slip
  • Hydraulic System
    • System Type: Load-sensing hydraulic system
    • Hydraulic Cycle Time: 10.1 seconds
    • Main Pump Type: Variable displacement piston pump
    • Hydraulic Flow Rate: 240 L/min
  • Steering
    • Type: Load-sensing and articulating
    • Steering Angle: 38° each direction
    • Minimum Turning Radius: 6,050 mm
  • Brakes
    • Service Brake: Hydraulic apply, oil disc
    • Parking Brake: Drum-type, spring applied and air released
  • Dimensions
    • Overall Length: 8,300 mm
    • Overall Width: 2,910 mm
    • Overall Height: 3,465 mm
    • Wheelbase: 3,250 mm
    • Ground Clearance: 450 mm
  • Other Features
    • Operator Environment: Fully enclosed ROPS/FOPS cab
    • Tyres: 23.5-25
    • Air Conditioning: Standard
