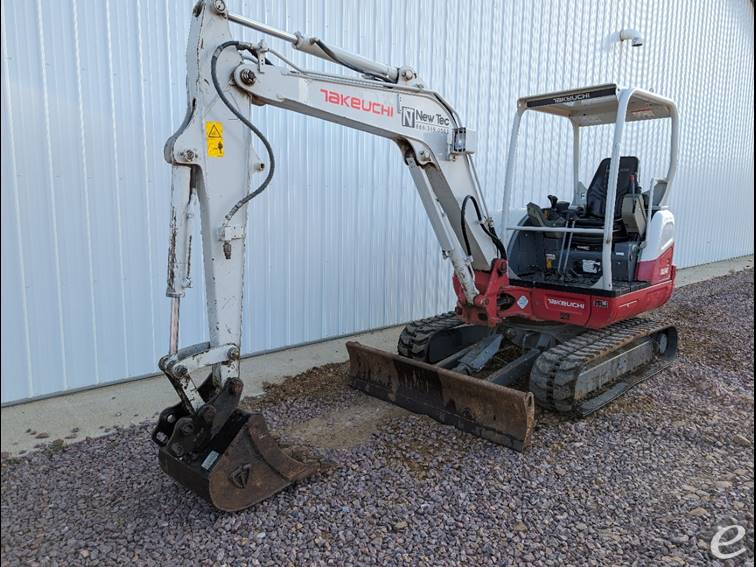

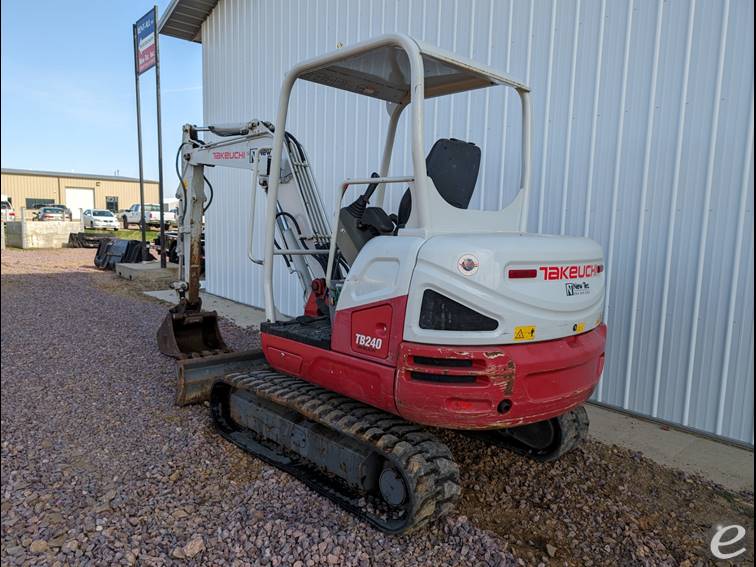

2018 Takeuchi TB240 Earth Moving and Construction

$34,950 USD
Contact Information
New Tec, Inc.
3764 US 75 Ave
Sioux Center, Iowa 51250
CONTACT :
Joe or Marlin
PHONE :
FAX :
Stock #:
0020127
YEAR:
2018
Manufacturer:
MODEL #:
SERIAL #:
124003674
CONDITION:
Used
DESCRIPTION:
Yanmar Diesel Engine Quick Coupler, Aux Hyd
Equipment Description:
24" tooth bucket, 14" Track, 1189 Hours
  • General Information
    • Operating Weight: 4,035 kg (8,900 lbs)
    • Bucket Capacity: 0.048 m³ (1.7 cu ft)
    • Digging Depth: 3,365 mm (11 ft 0.5 in)
    • Max Dump Height: 3,850 mm (12 ft 7.6 in)
  • Dimensions
    • Overall Length: 5,180 mm (17 ft)
    • Overall Width: 1,740 mm (5 ft 8.5 in)
    • Height: 2,540 mm (8 ft 4 in)
    • Ground Clearance: 300 mm (11.8 in)
    • Track Length on Ground: 1,960 mm (6 ft 5.2 in)
  • Engine
    • Manufacturer: Yanmar
    • Model: 4TNV88
    • Type: Diesel, 4-Cylinder
    • Displacement: 2,190 cc (133.6 cu in)
    • Horsepower: 35.8 kW (48 HP) at 2,400 RPM
    • Fuel Tank Capacity: 68 liters (18 gal)
  • Hydraulic System
    • Hydraulic Pump Type: Variable Displacement
    • Max Auxiliary Flow: 72.6 l/min (19.2 gal/min)
    • Hydraulic Pressure: 20.6 MPa (2,990 psi)
  • Performance
    • Travel Speed - High: 5 km/h (3.1 mph)
    • Travel Speed - Low: 2.9 km/h (1.8 mph)
    • Arm Digging Force: 20.9 kN (4,700 lbf)
    • Bucket Digging Force: 34.2 kN (7,690 lbf)
  • Undercarriage
    • Shoe Width: 300 mm (12 in)
    • Ground Pressure: 34.2 kPa (4.98 psi)
  • Features

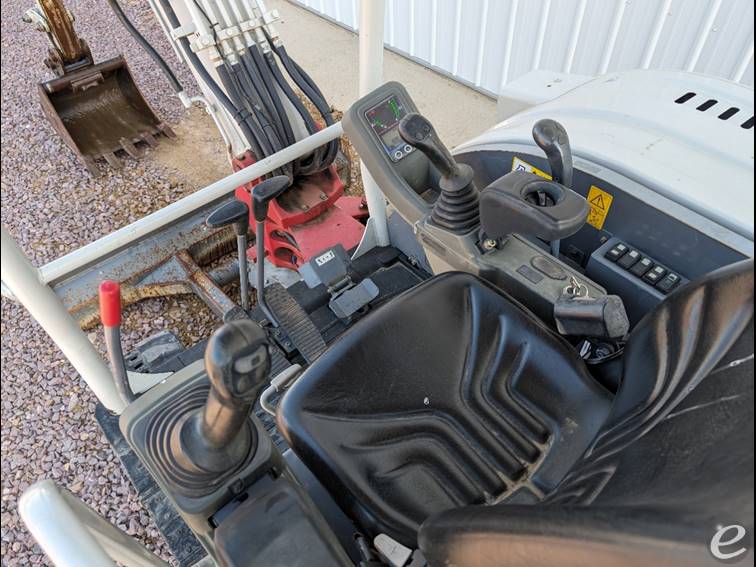

    • Enclosed Cab with Heat and A/C
    • Hydraulic Quick Hitch
    • Pattern Change Valve for ISO and SAE
    • Two-speed Travel
