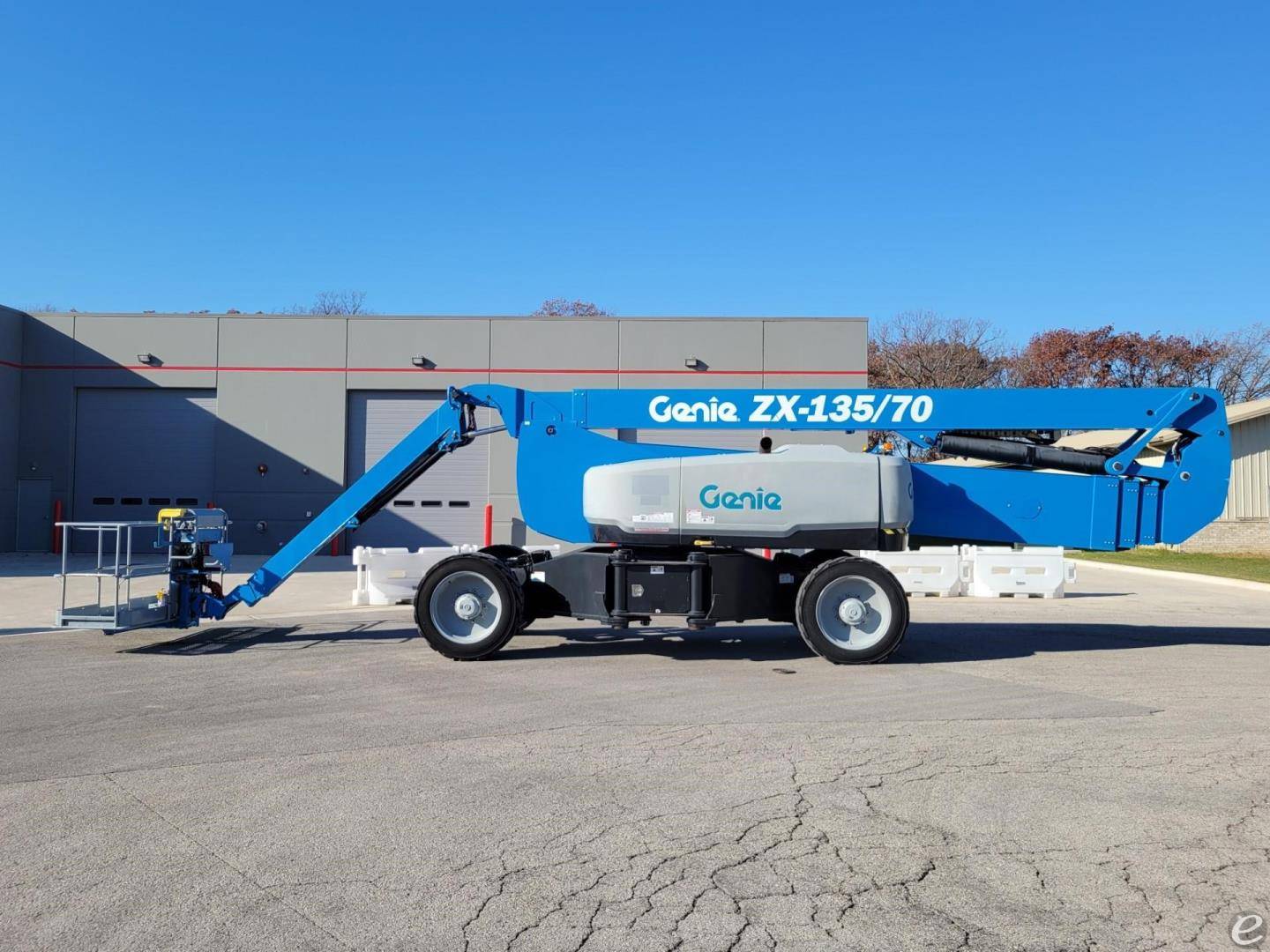

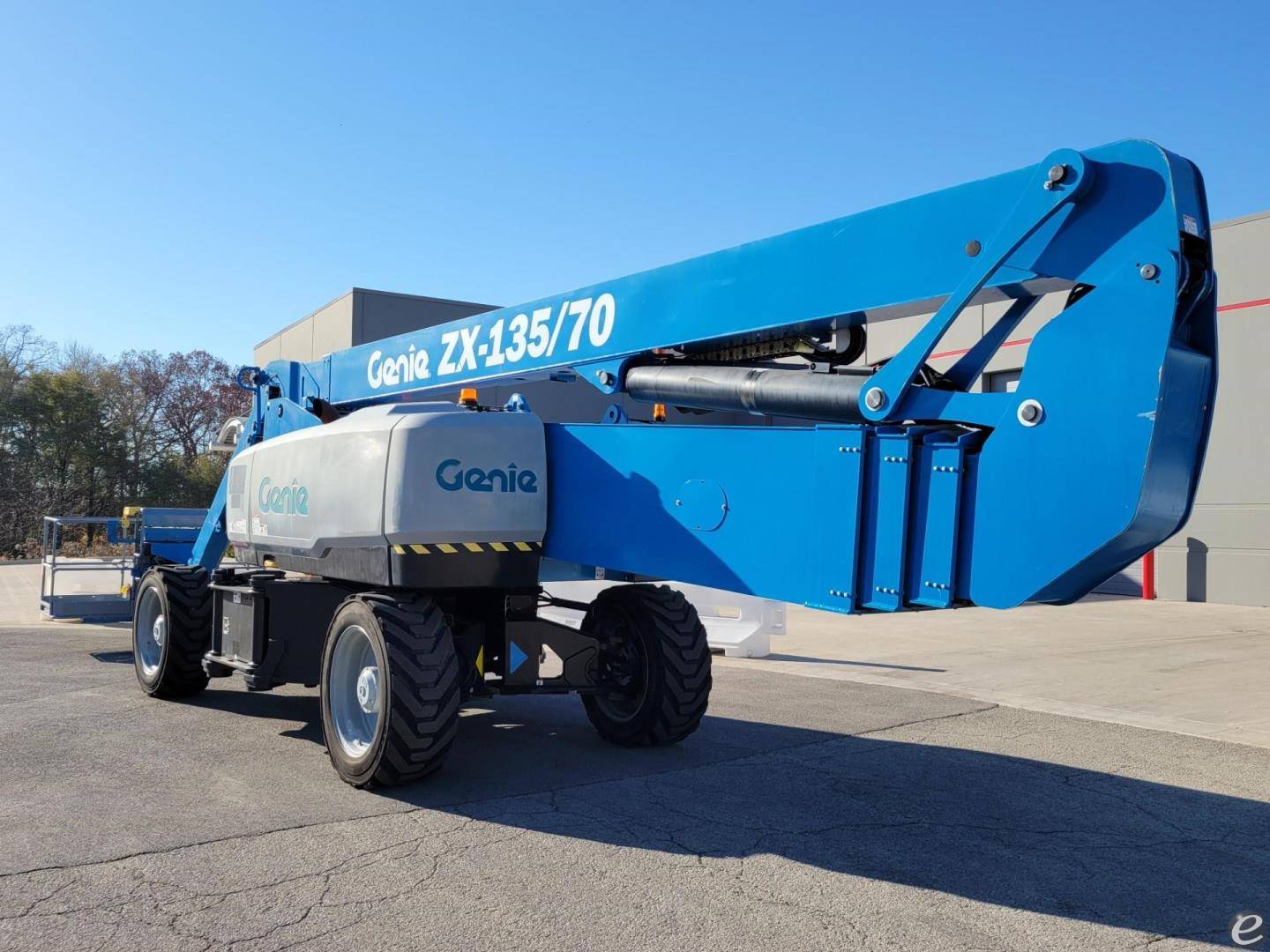

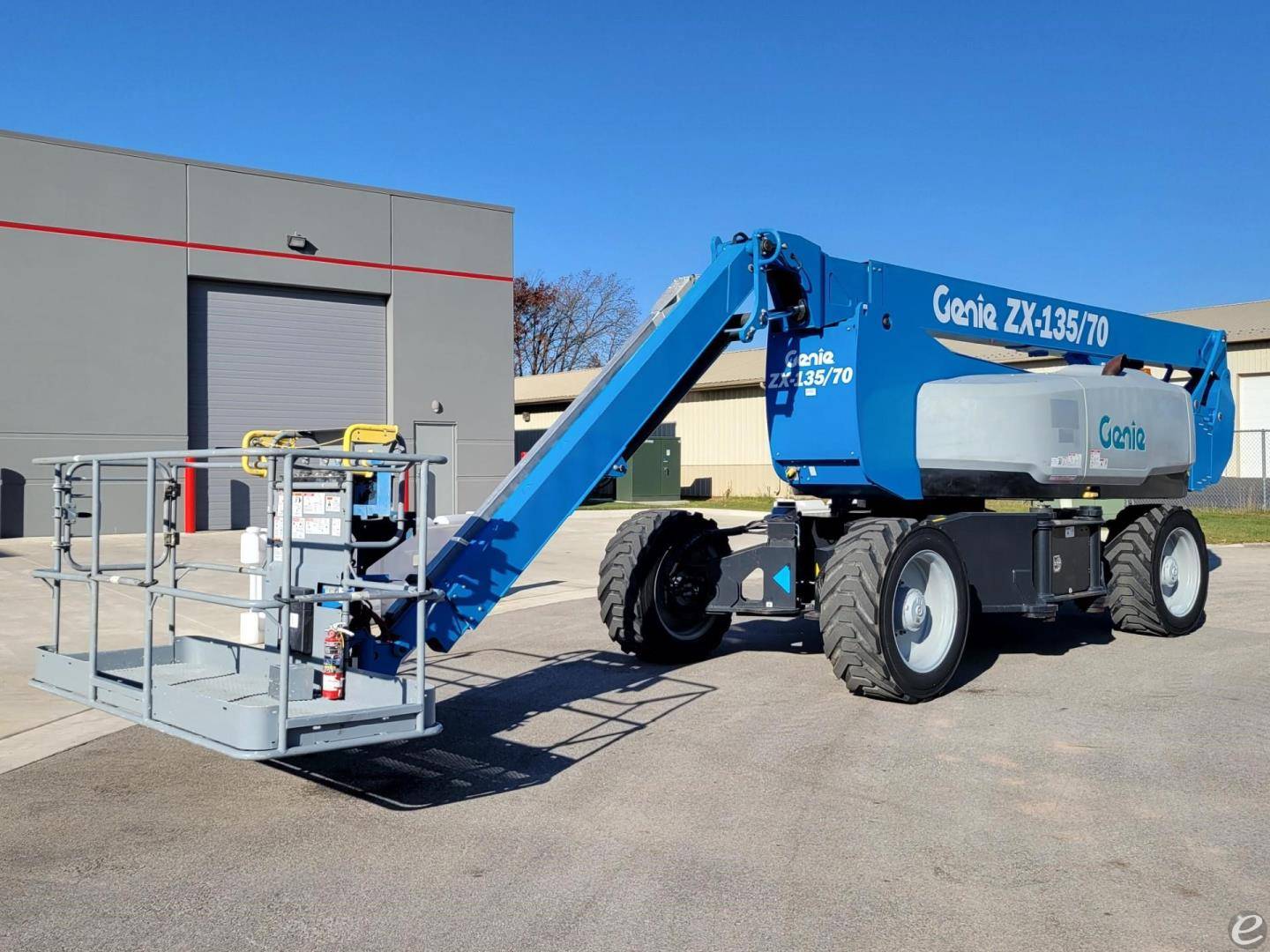

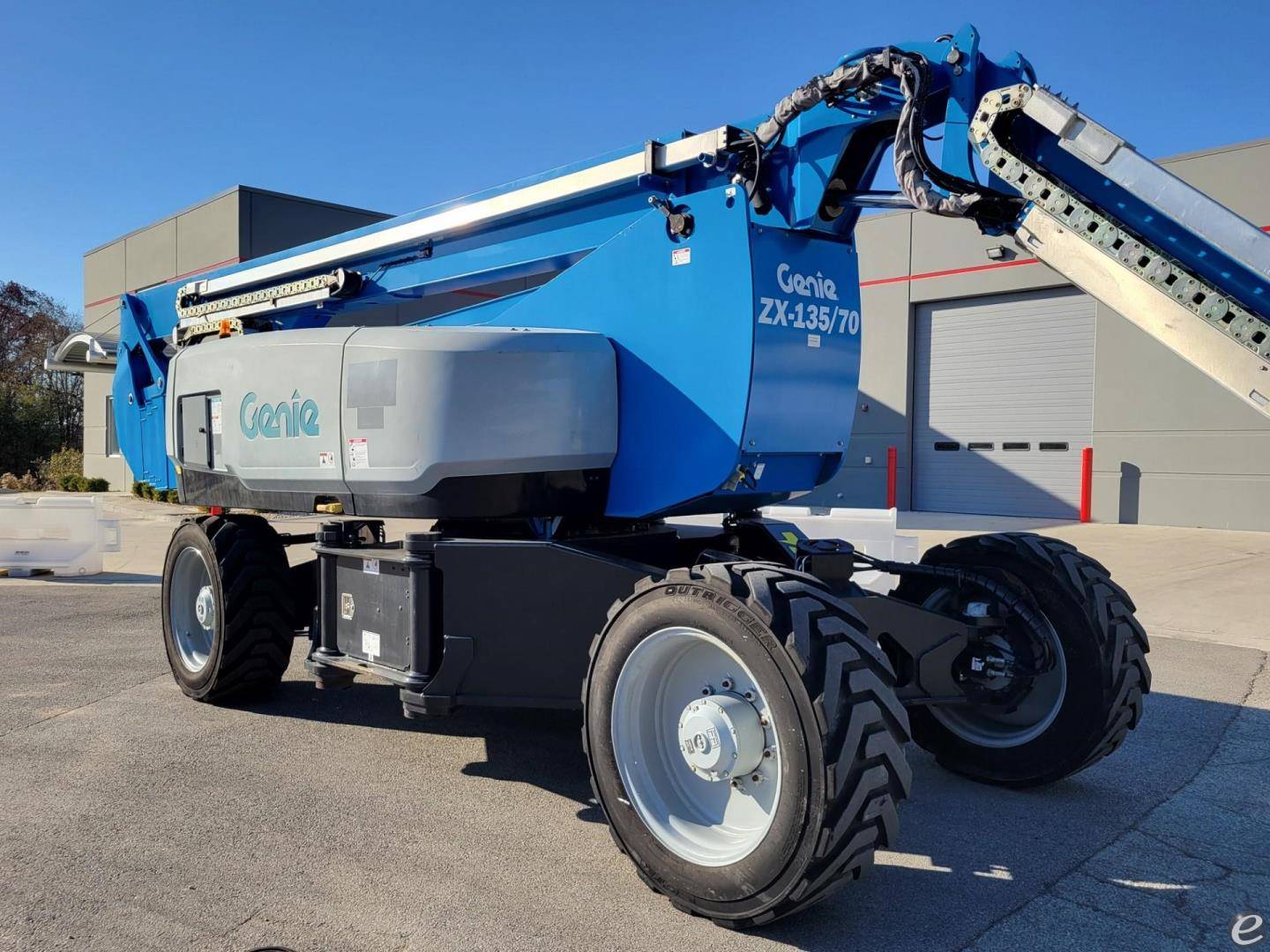

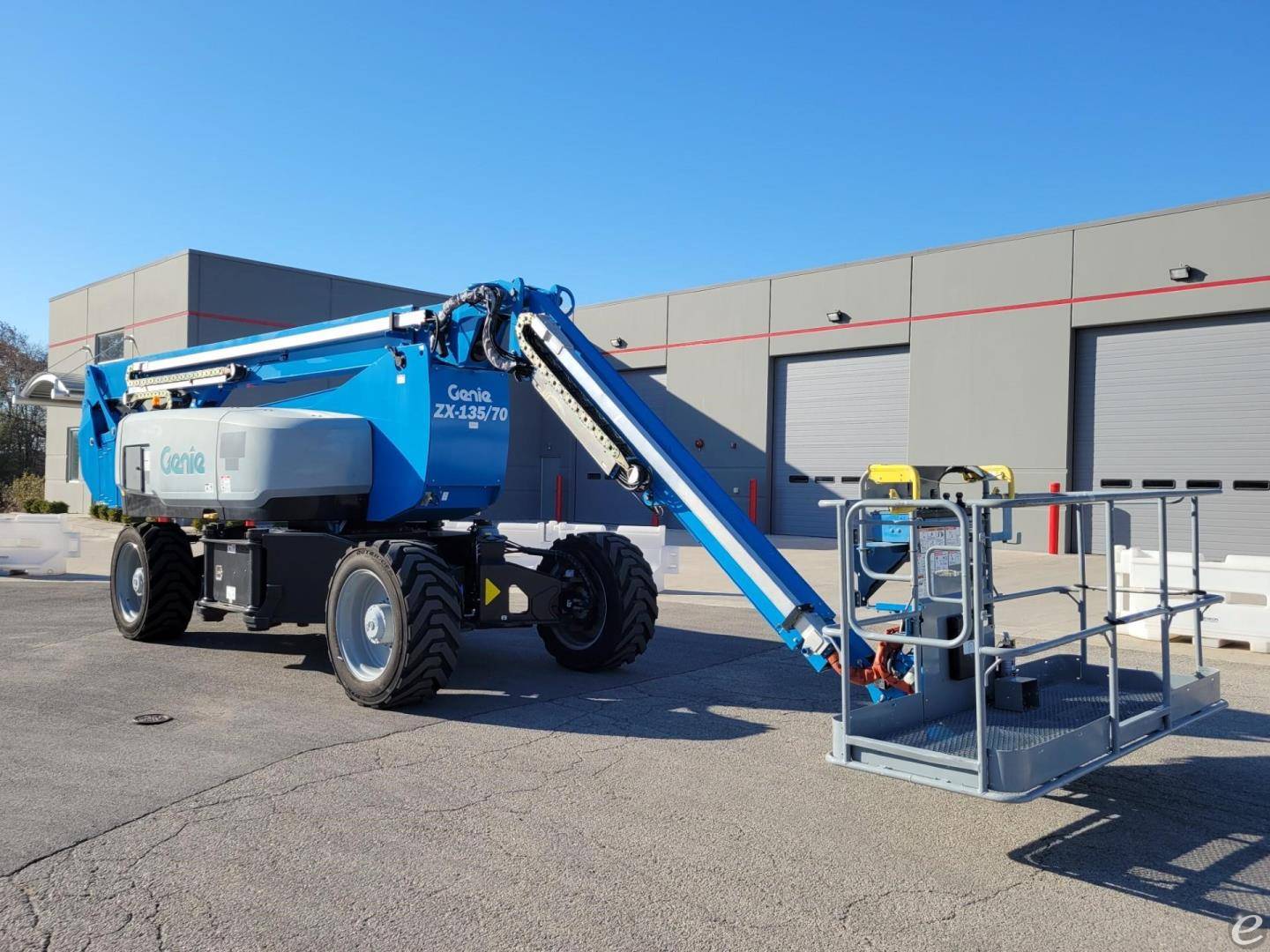

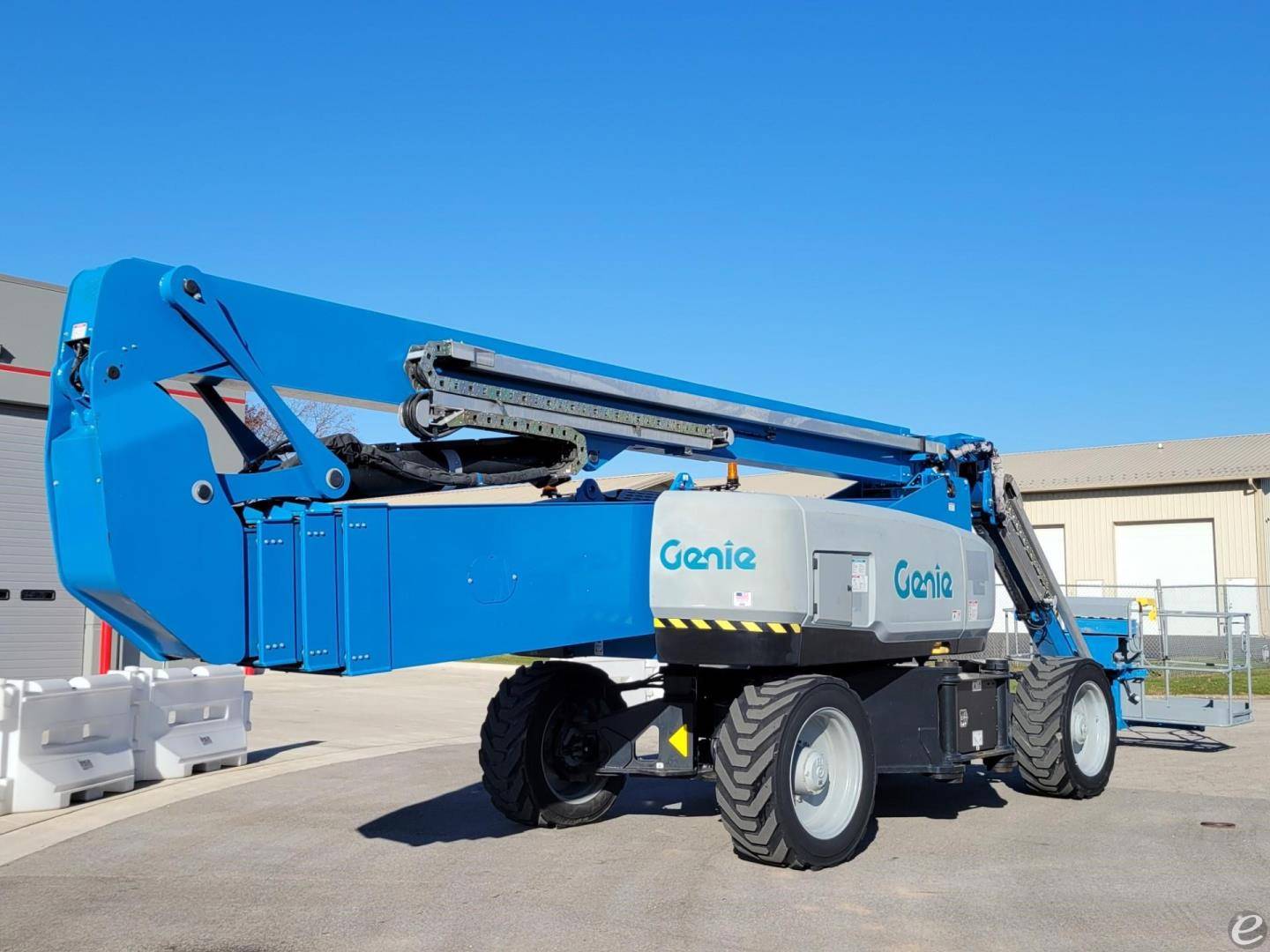

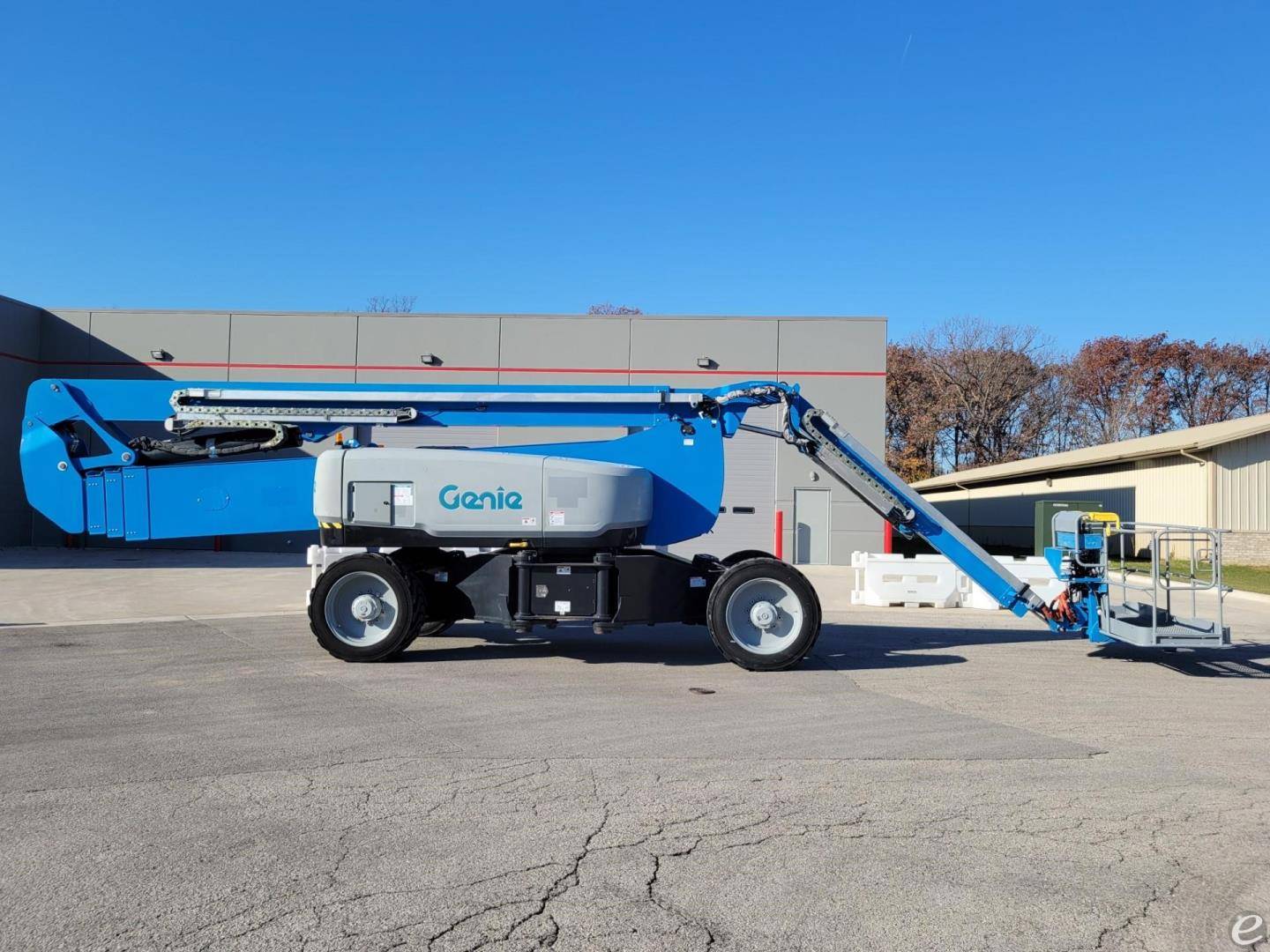

2019 Diesel Genie ZX135/70 Telescopic Boom

Call for price
Contact Information
CONTACT :
Justin Cyrnek
PHONE :
FAX :
Stock #:
Z1310
YEAR:
2019
Manufacturer:
MODEL #:
Drive:
4WD
SUBCATEGORY:
Height:
135 ft
FUEL:
Diesel
SERIAL #:
ZX135H-4350
CONDITION:
Used
HOUR METER:
1155
LOCATION:
Equipment Description:

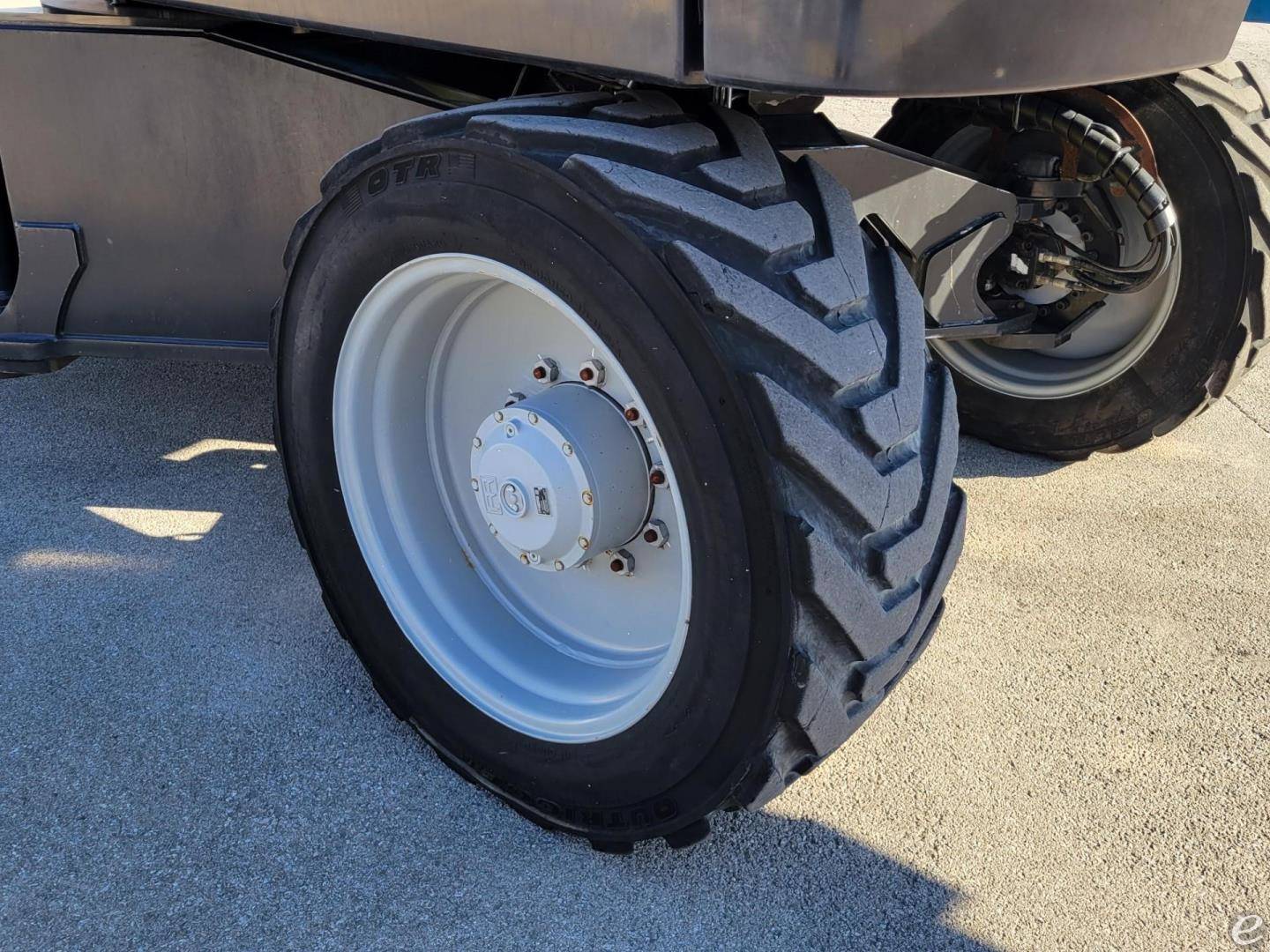

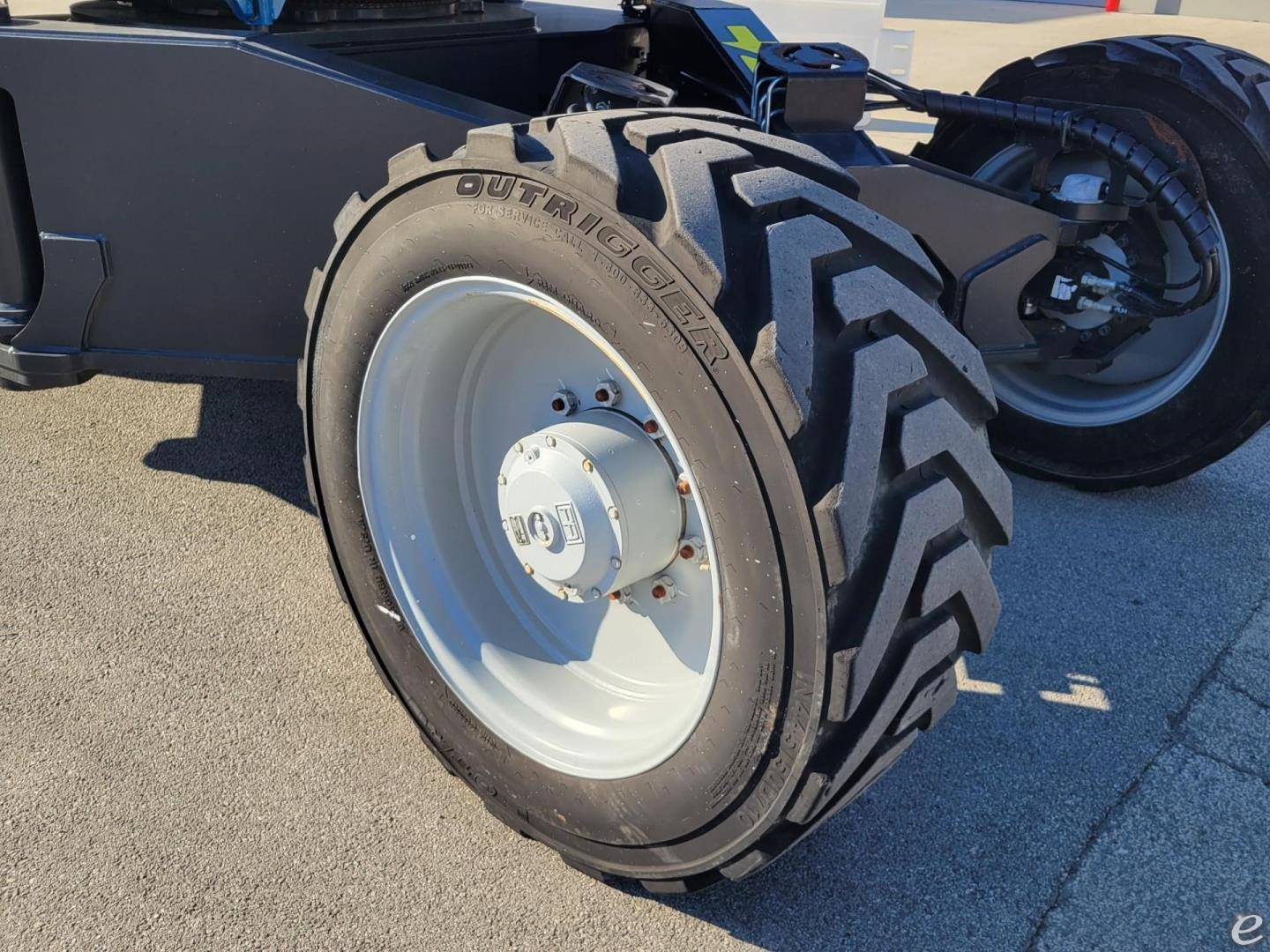

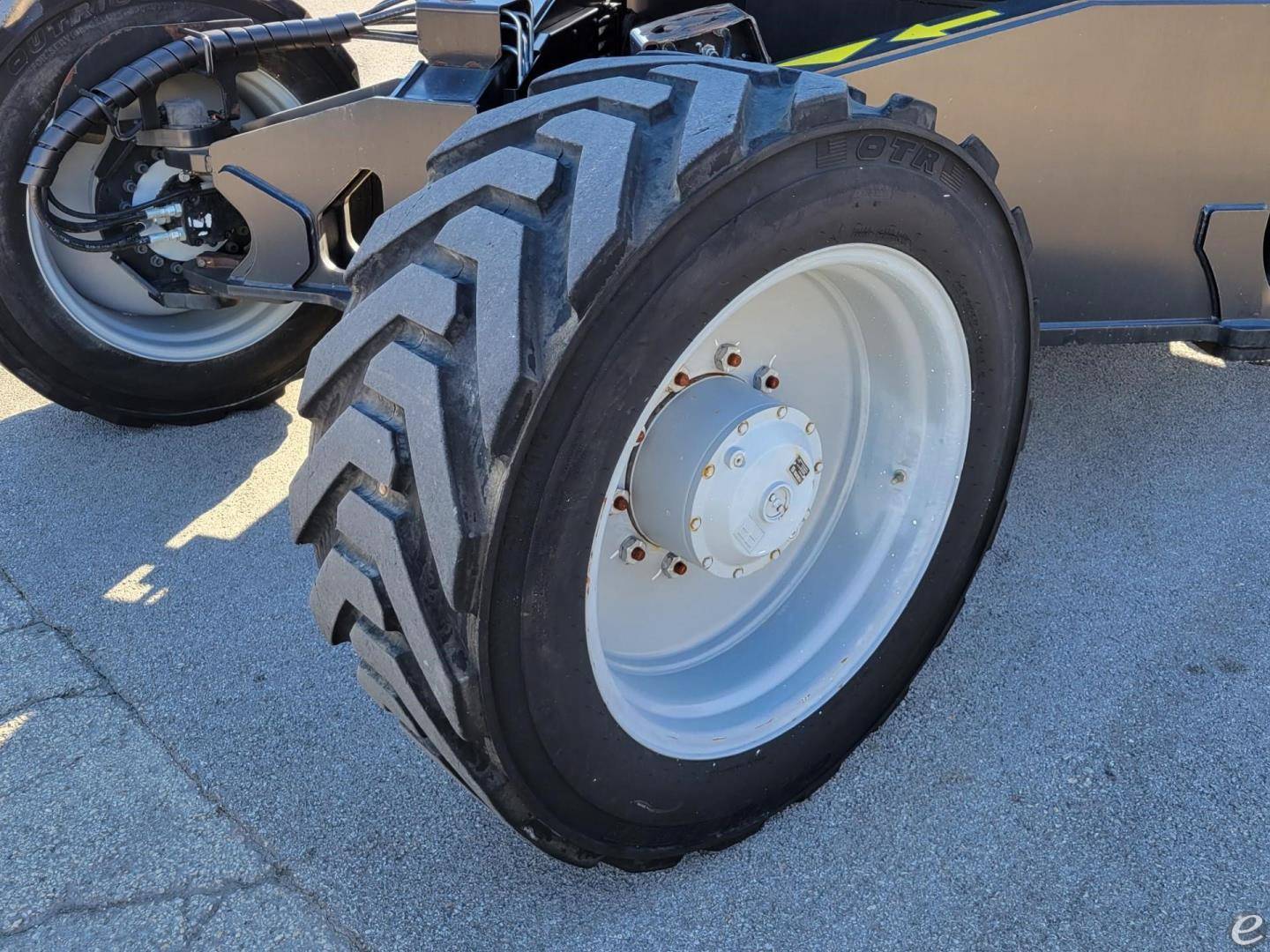

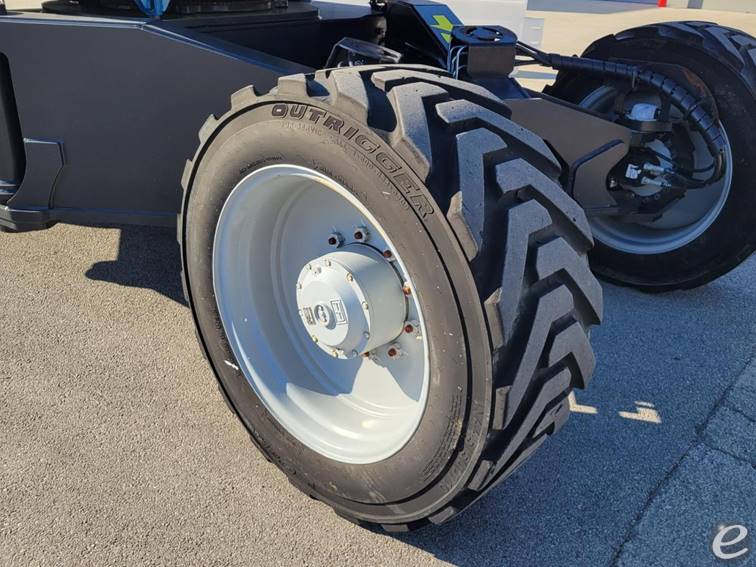

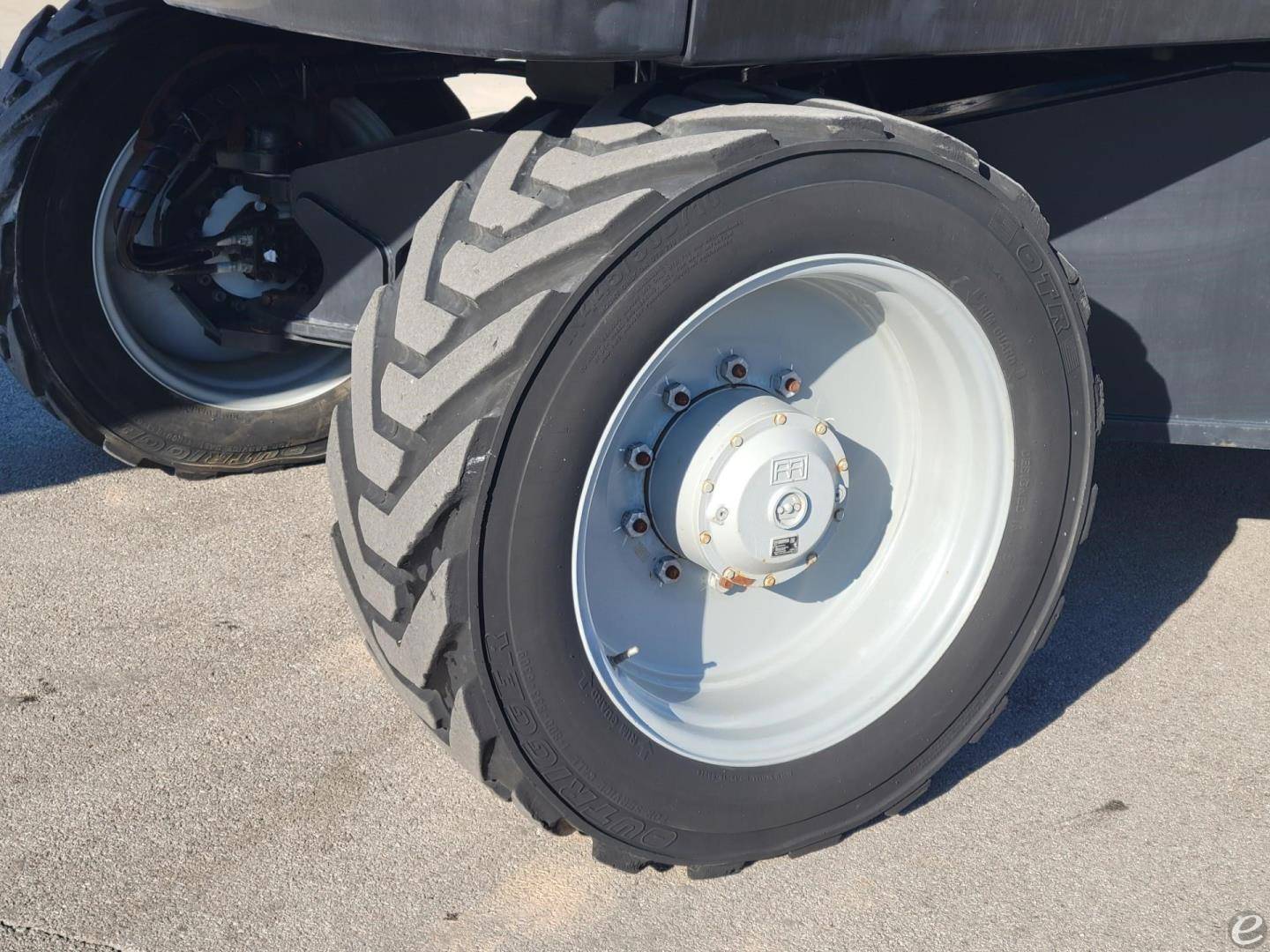

4X4 DEUTZ DIESEL 135′ PLATFORM HEIGHT 141′ WORKING HEIGHT 69′ HORIZONTAL REACH 600 LB CAPACITY EXTENDABLE AXLE FOAM FILLED TIRES ONBOARD GENERATOR ARTICULATING READY TO WORK CONTACT US FOR COMPETITIVE FREIGHT RATES!
  • General Specifications:
    • Model: Genie ZX135/70
    • Type: Articulated Boom Lift
    • Maximum Working Height: 141 ft (43.15 m)
    • Maximum Horizontal Reach: 69 ft 9 in (21.26 m)
    • Up and Over Clearance: 75 ft 6 in (23.01 m)
    • Platform Capacity: 600 lbs (272 kg)
  • Dimensions:
    • Length - Stowed: 37 ft 7 in (11.46 m)
    • Width - Stowed: 8 ft 2 in (2.49 m)
    • Height - Stowed: 10 ft (3.05 m)
    • Wheelbase: 12 ft 6 in (3.81 m)
  • Drive and Steering:
    • Drive Speed - Stowed: 3.4 mph (5.5 km/h)
    • Drive Speed - Raised: 0.68 mph (1.1 km/h)
    • Steering Type: 4-wheel
    • Turn Radius - Inside: 7 ft 6 in (2.29 m)
    • Turn Radius - Outside: 19 ft 11 in (6.07 m)
  • Power Source:
    • Power Source: Diesel Engine

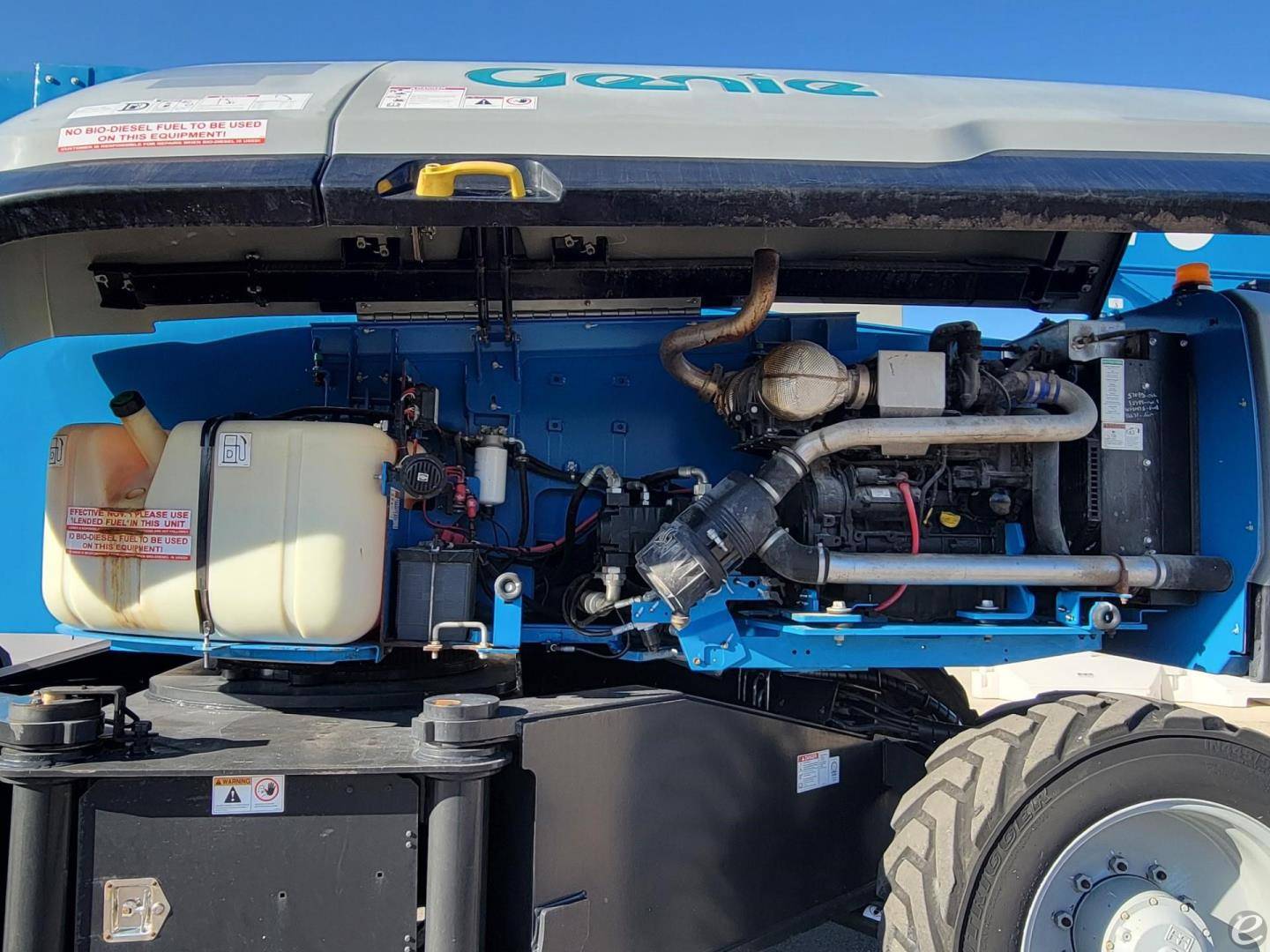

    • Engine: Deutz TD2.9 L4 74 hp (55.4 kW)
    • Fuel Tank Capacity: 40 gal (151.4 L)
  • Operational Specifications:
    • Gradeability: 45%
    • Platform Rotation: 160 degrees
    • Vertical Jib Rotation: 110 degrees
    • Horizontal Jib Rotation: 400 degrees (non-continuous)
  • Weight:
    • Operating Weight: 44,900 lbs (20,366 kg)
  • Additional Features:

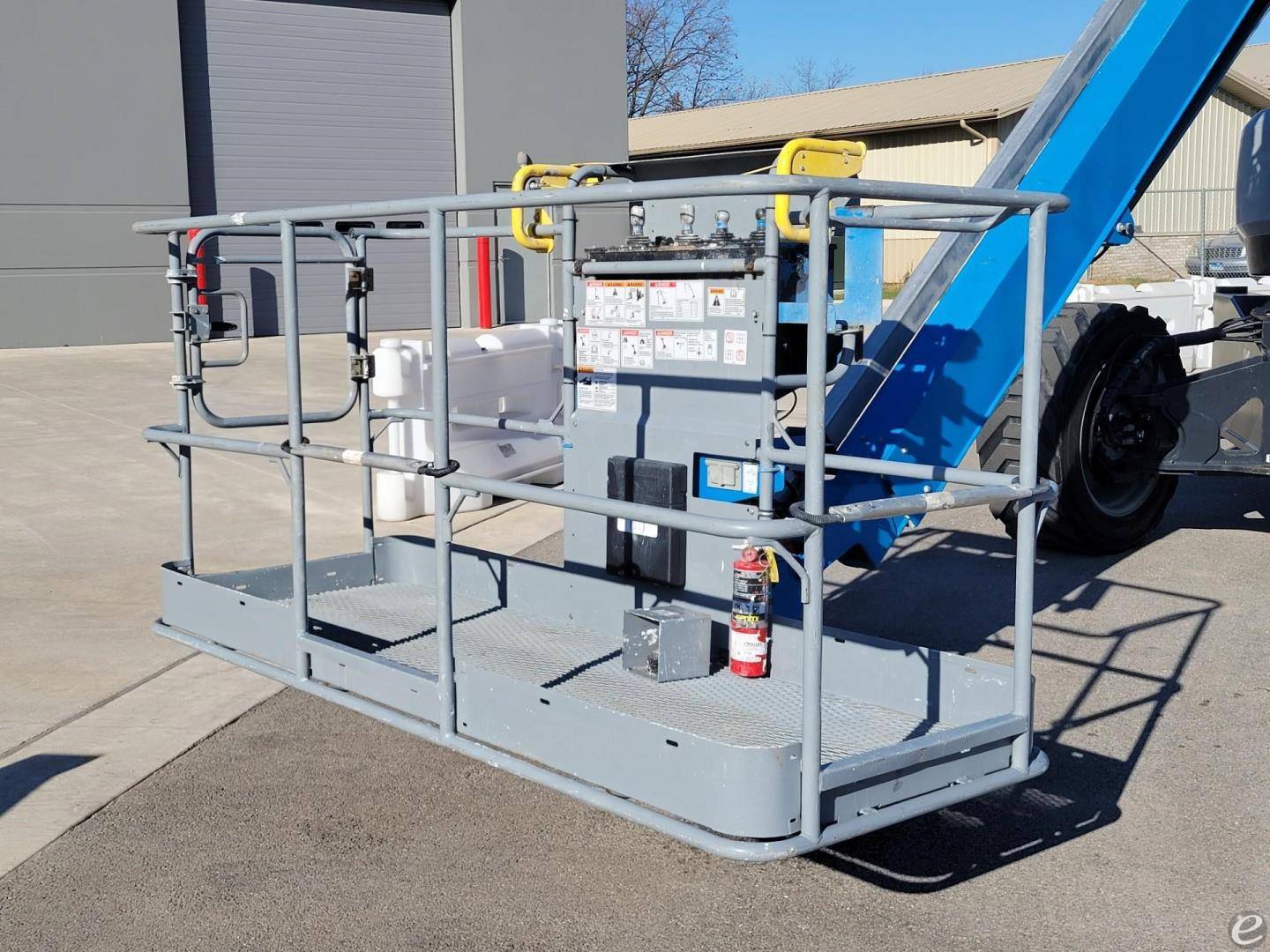

    • Standard 8 ft (2.44 m) platform
    • 4-wheel drive and 4-wheel steer for better maneuverability
    • Oscillating axle for rough terrain
    • AC power to platform
