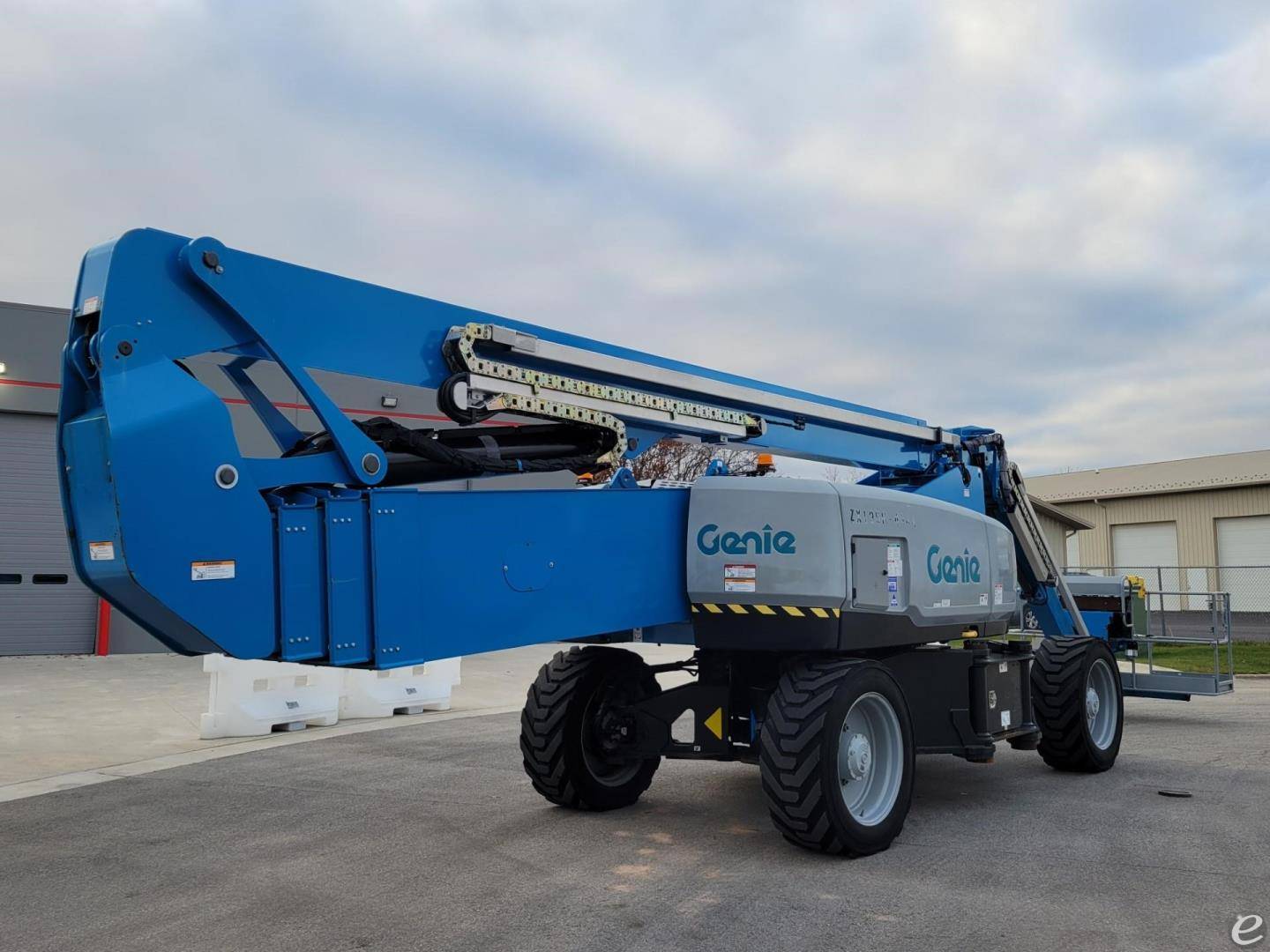

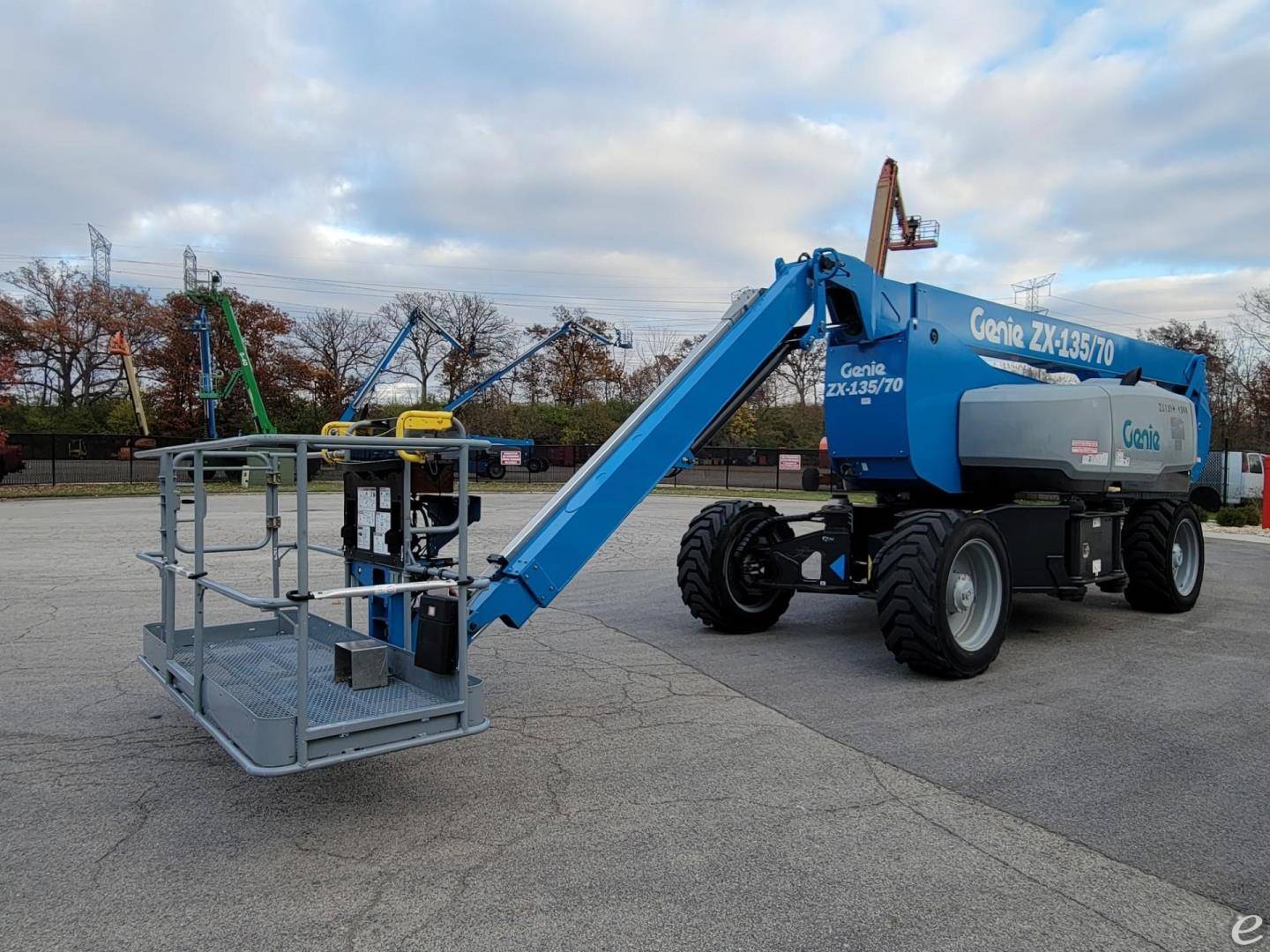

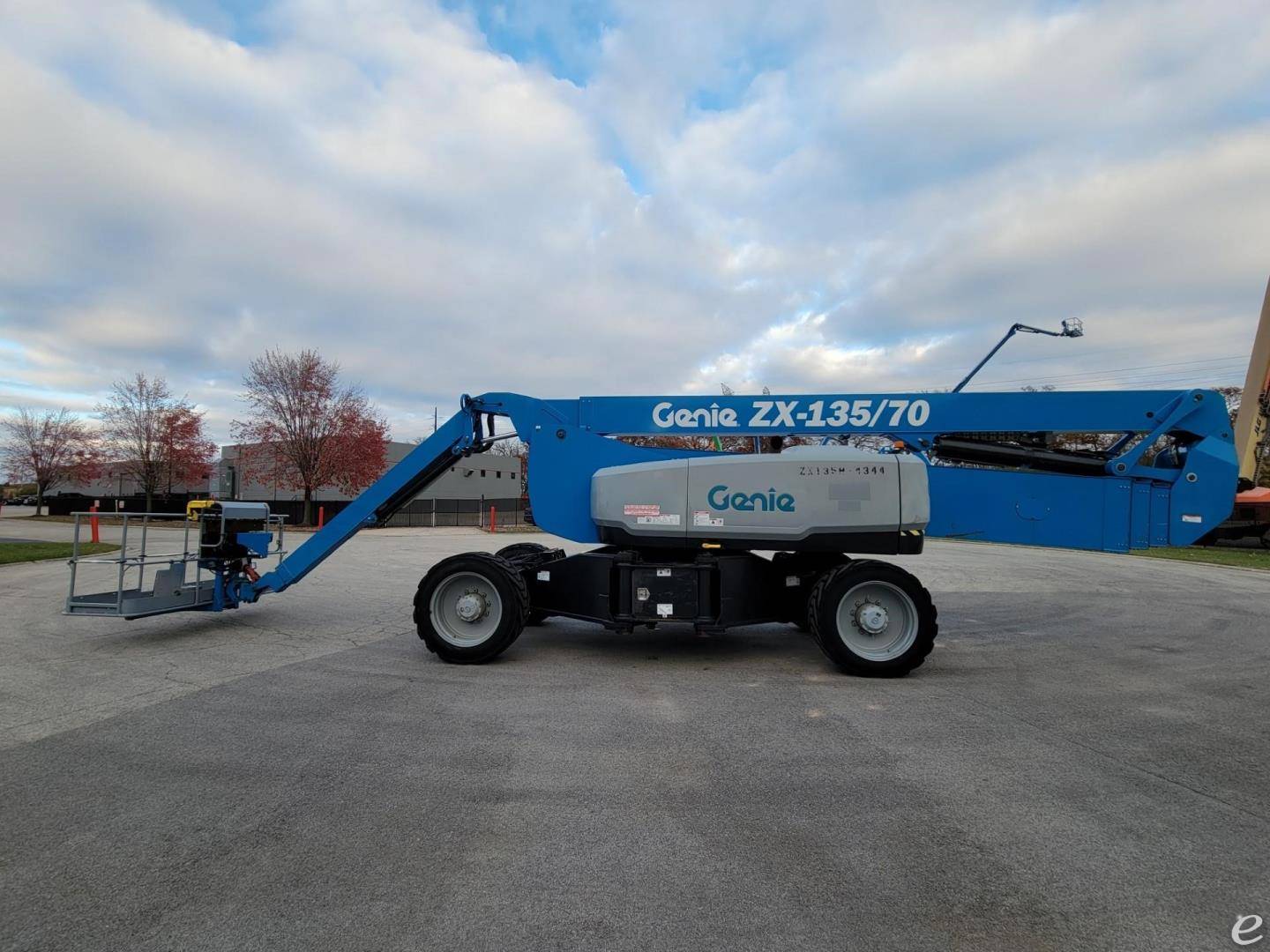

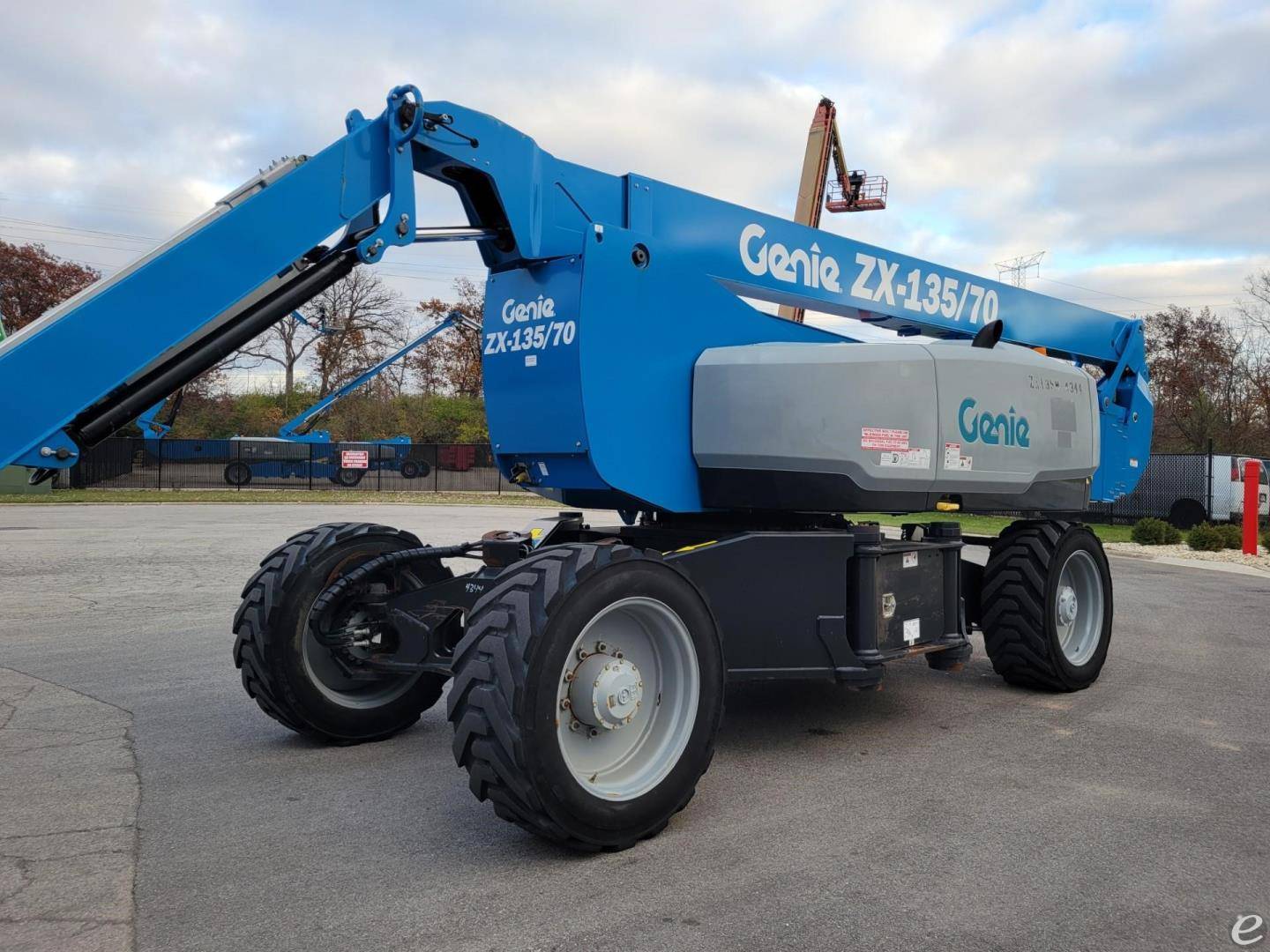

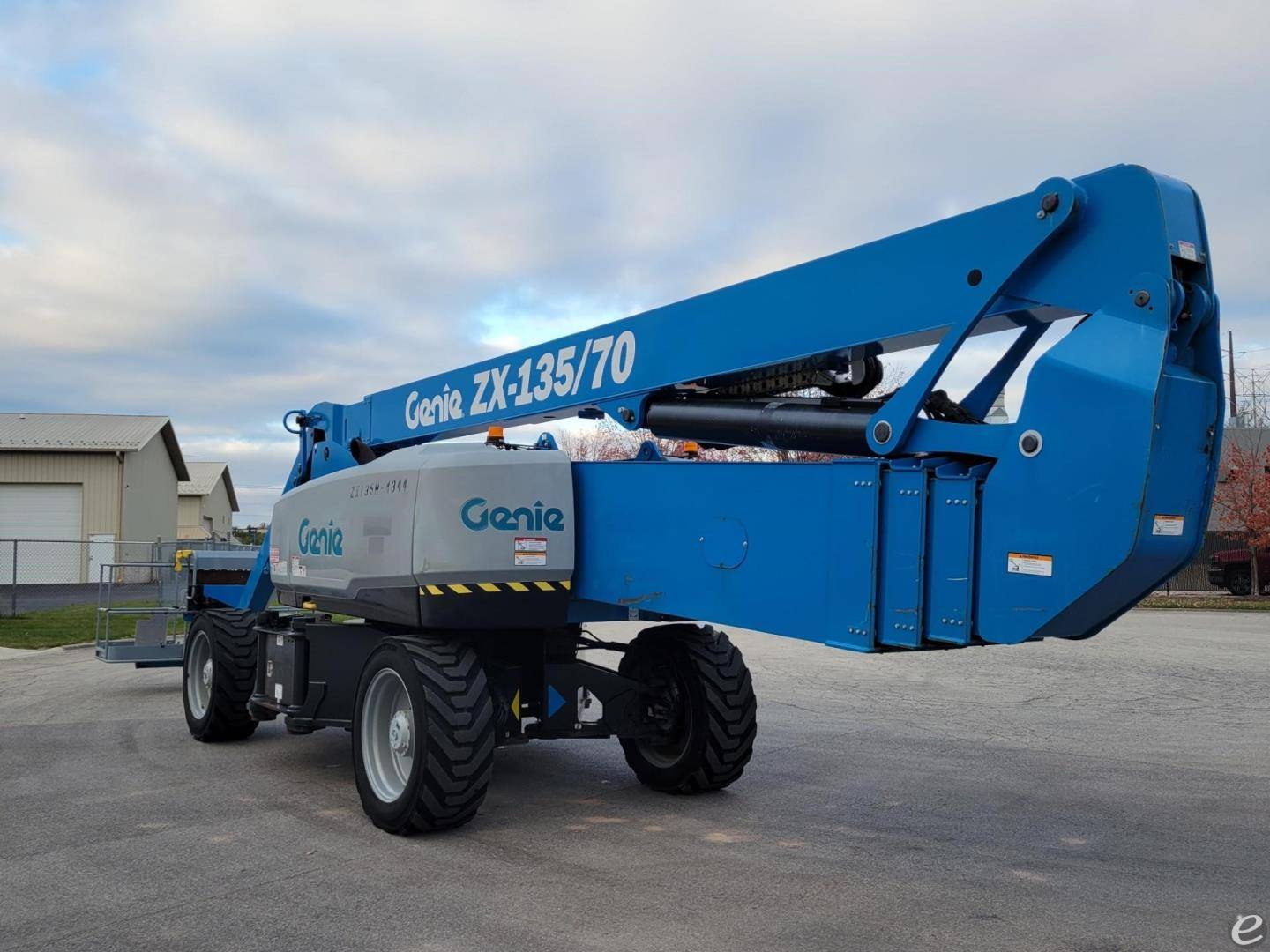

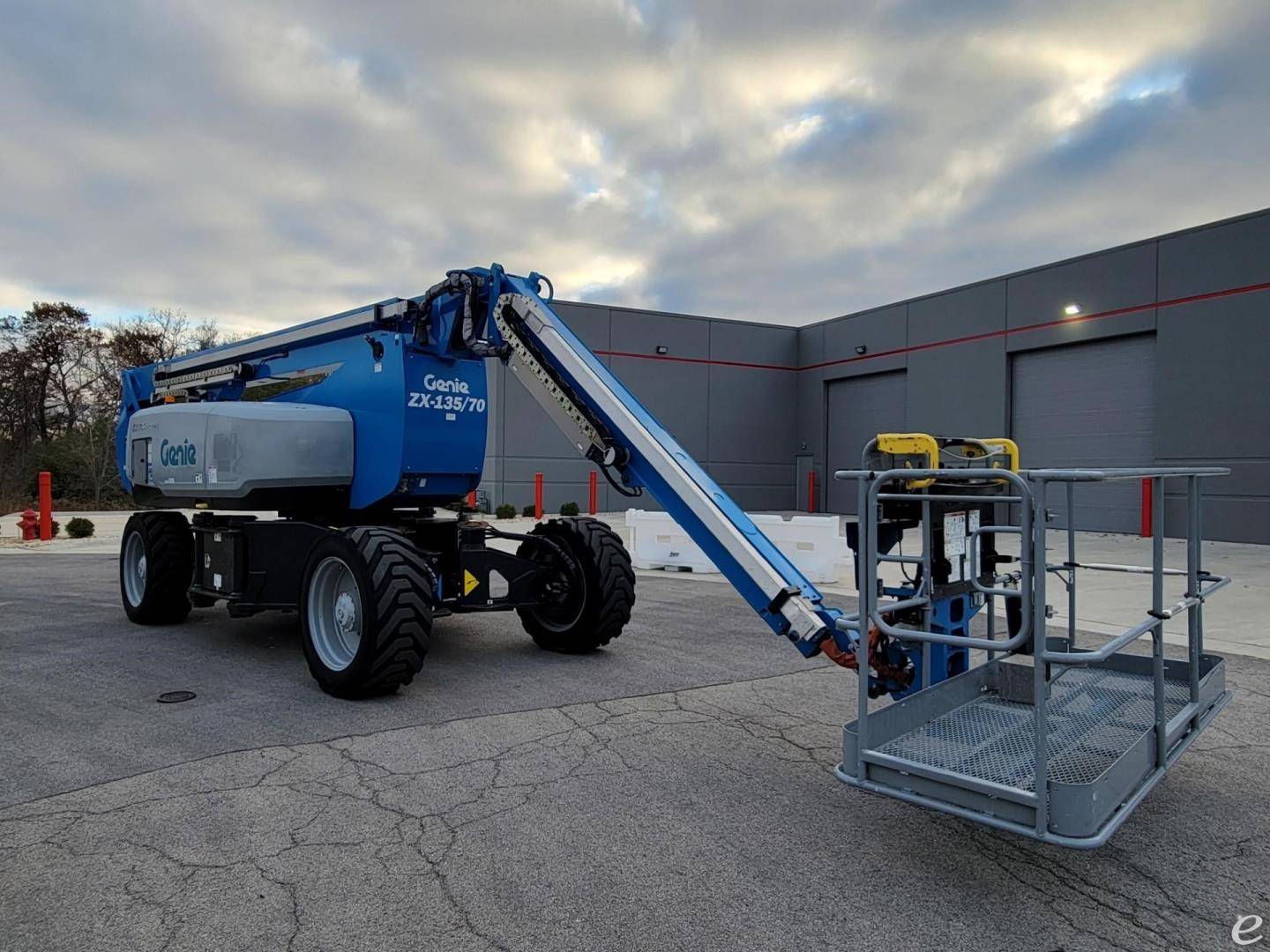

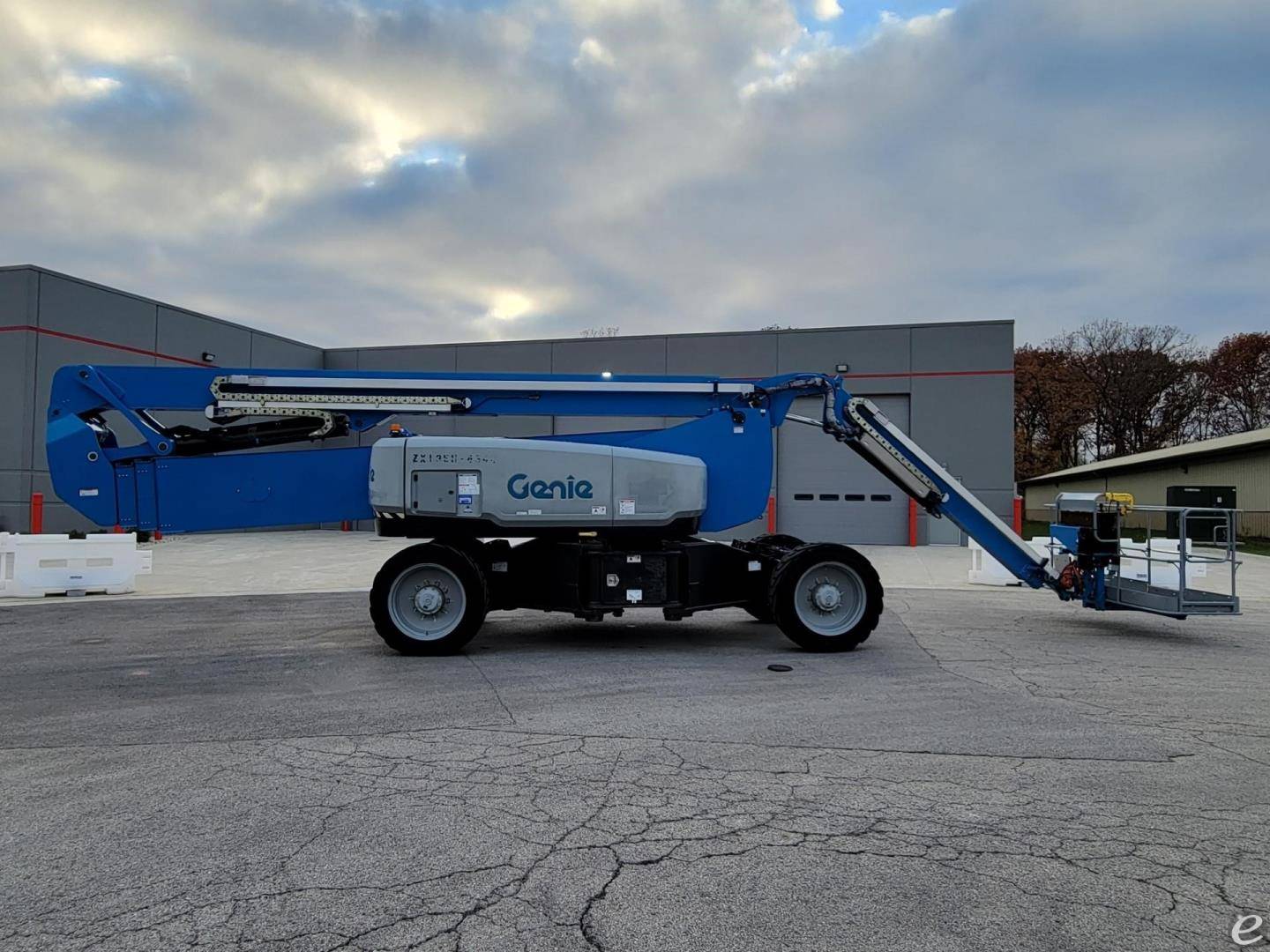

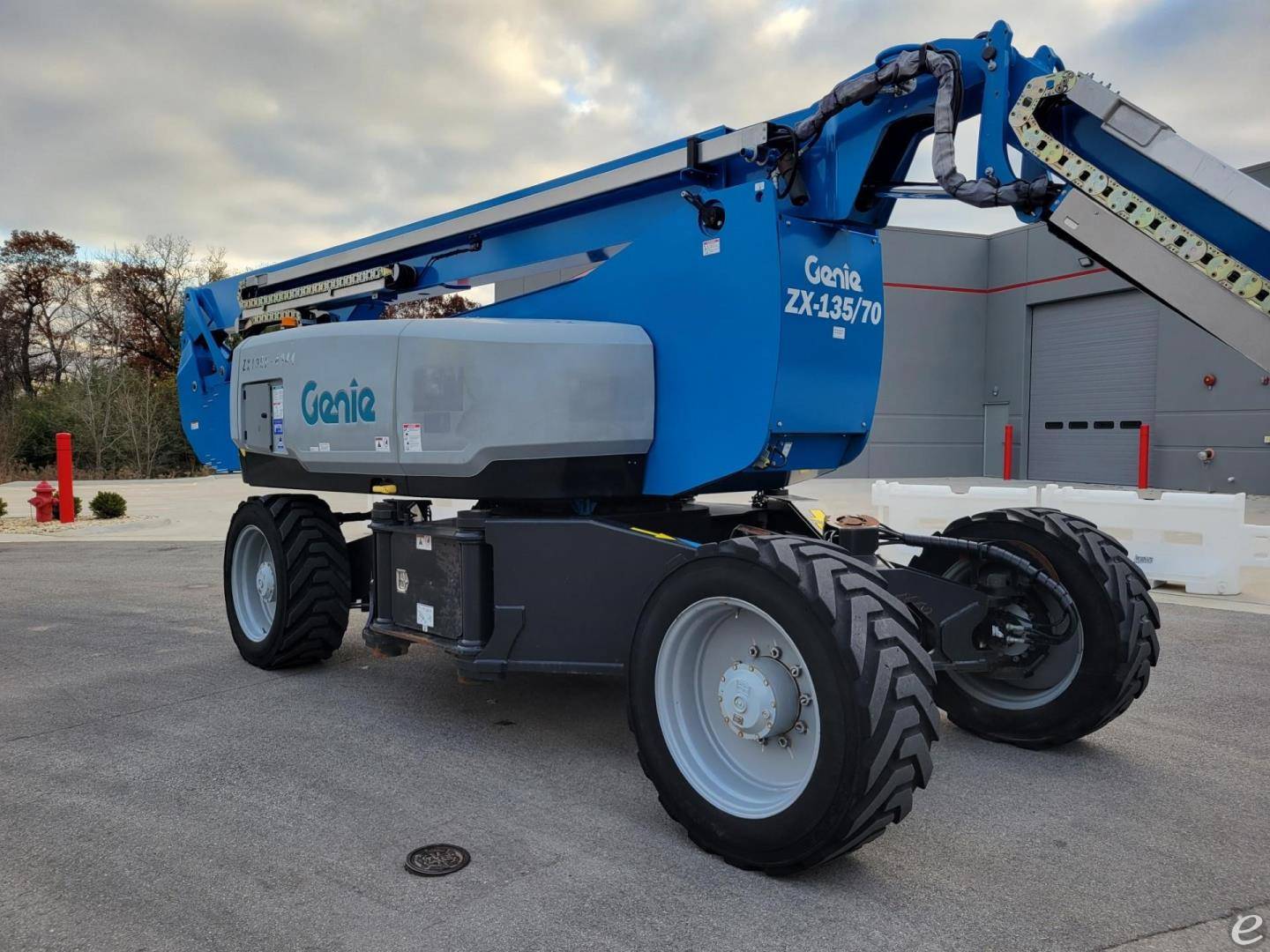

2019 Genie ZX135/70

diesel telescopic boom

Call for price
Chicago Industrial Equipment
CONTACT INFO
Name:
Justin Cyrnek
Phone:

ADDRESS
Chicago Industrial Equipment
600 Oakwood Ct
RockdaleIllinois 60436
ATTRIBUTES
STOCK #:
Z1309
YEAR:
2019
Manufacturer:
MODEL #:
Drive:
4WD
SUBCATEGORY:
Height:
135 ft
FUEL:
Diesel
SERIAL #:
ZX135H-4344
CONDITION:
Used
HOUR METER:
1397
LOCATION:
Illinois [60436]
POST DATE:
2/13/2025
Equipment Description

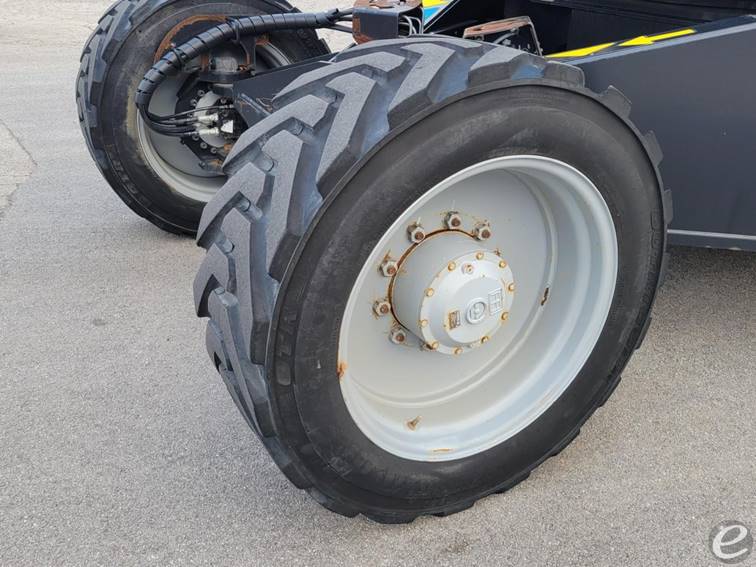

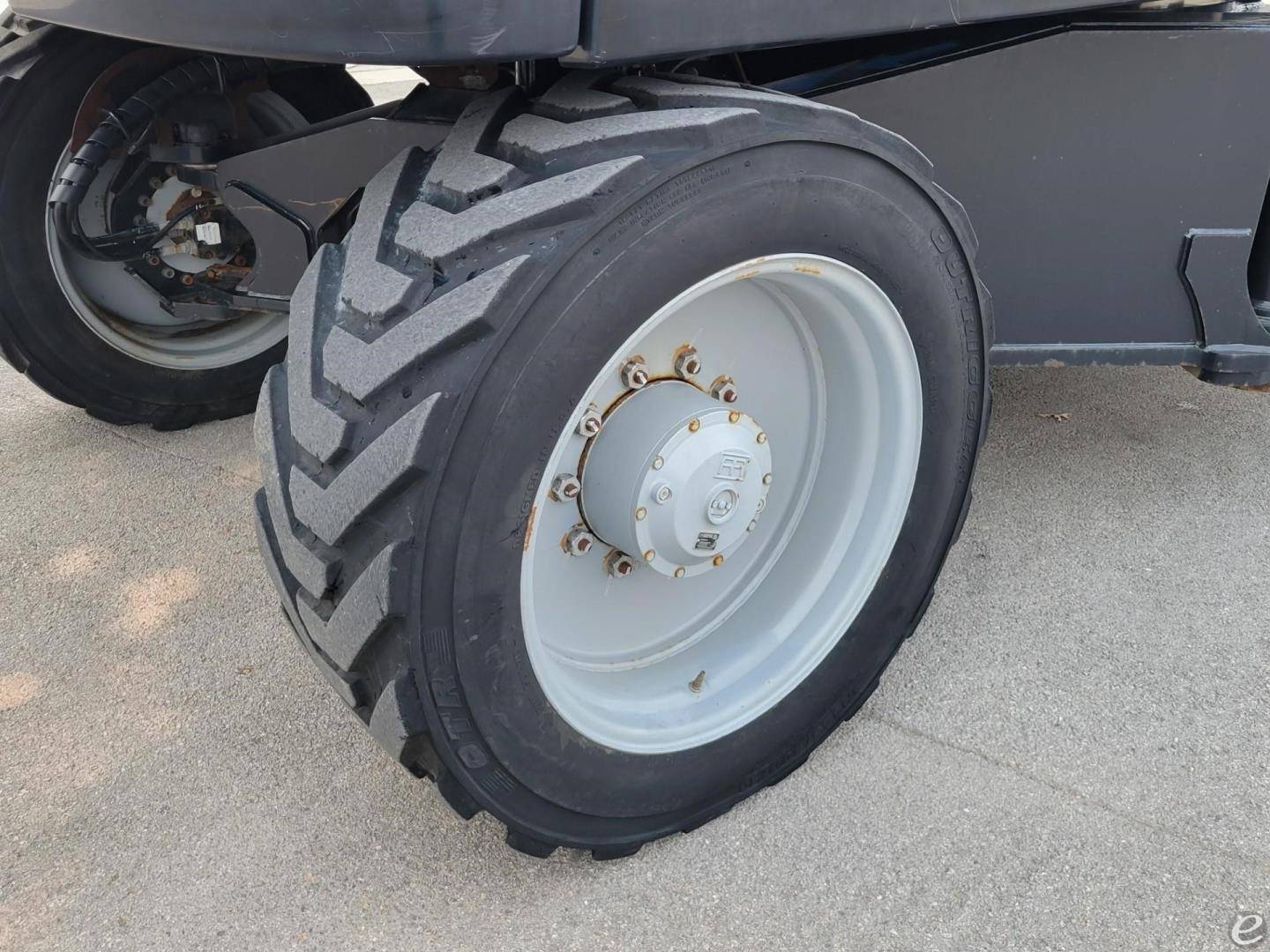

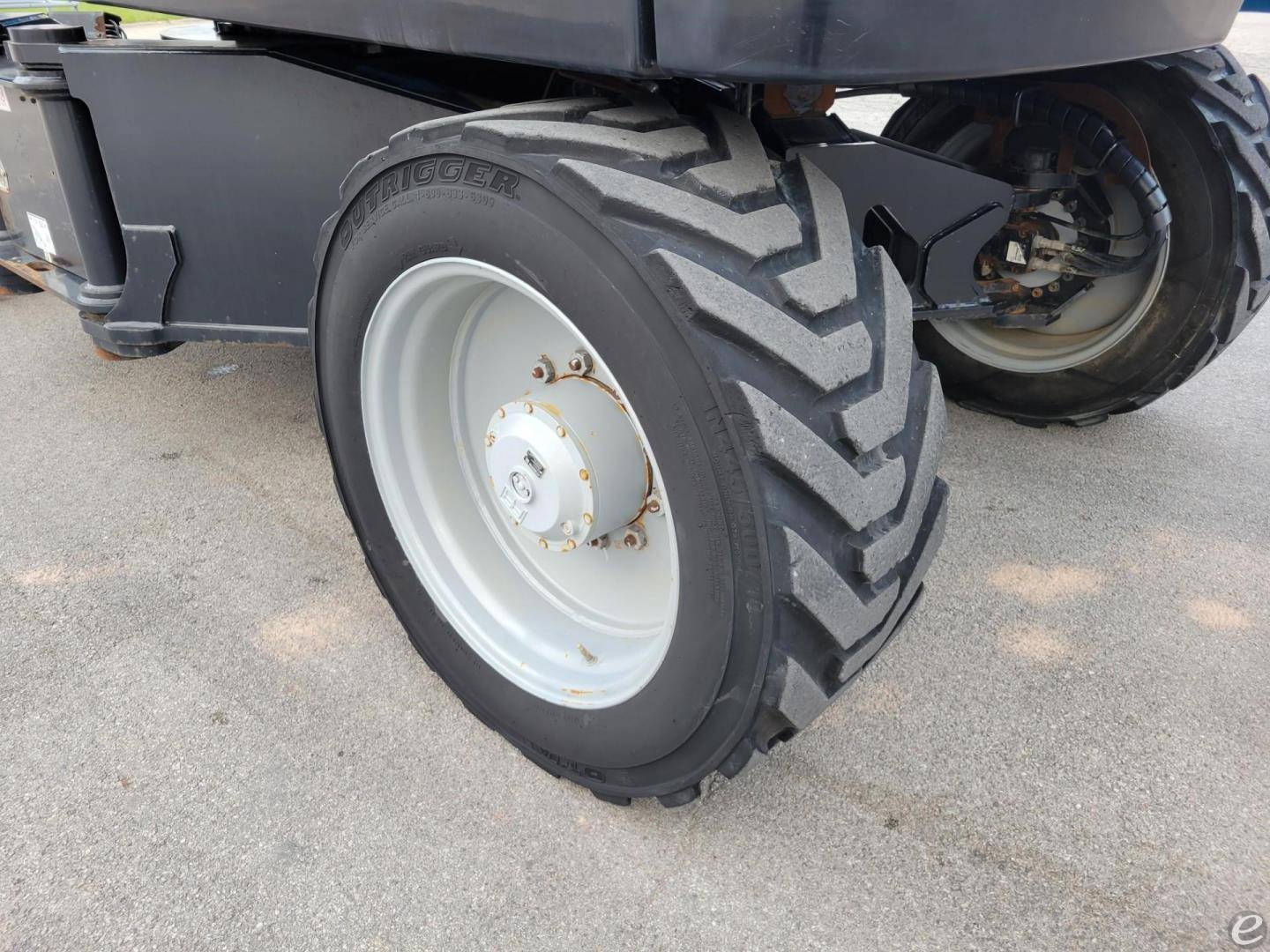

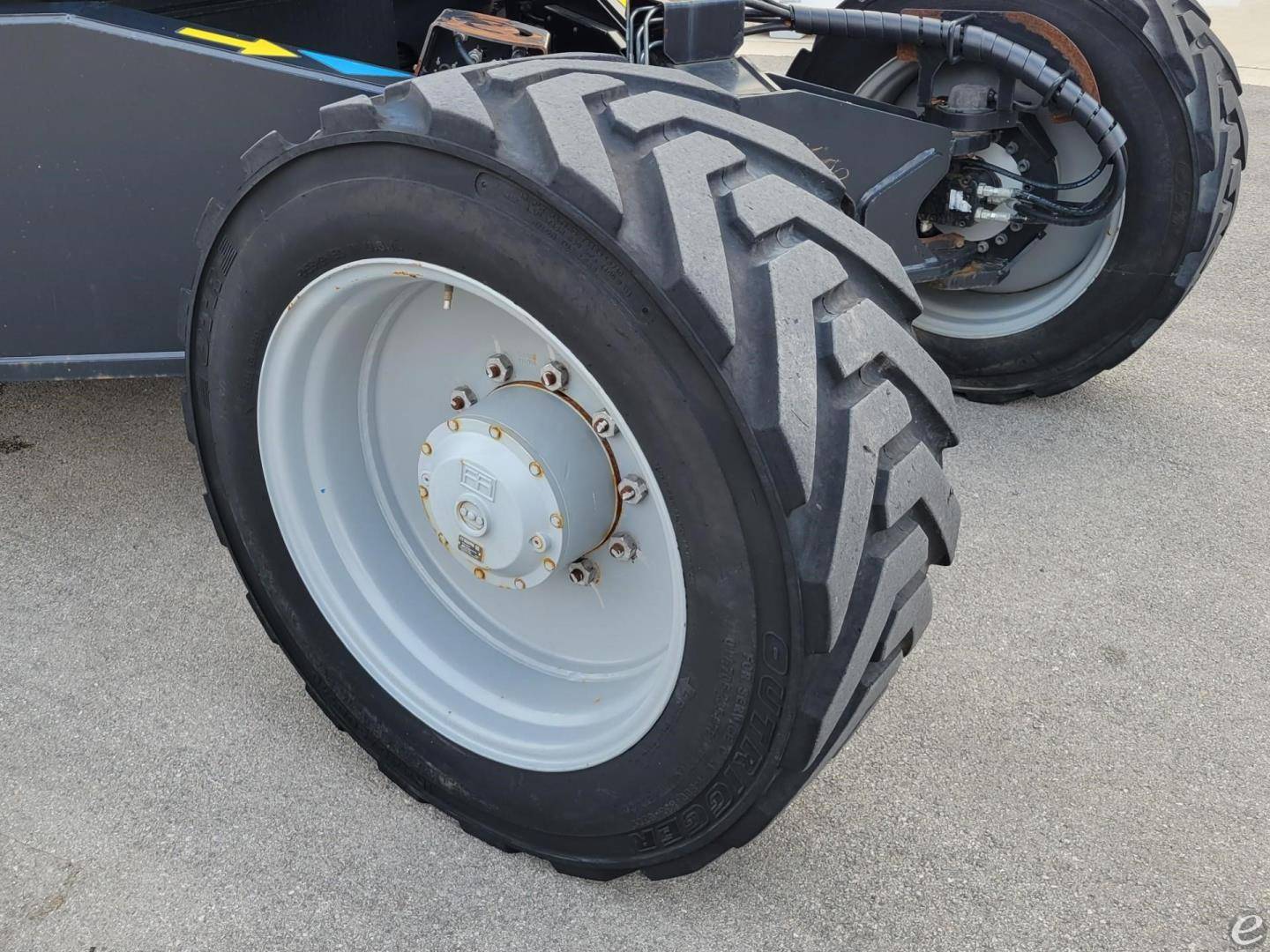

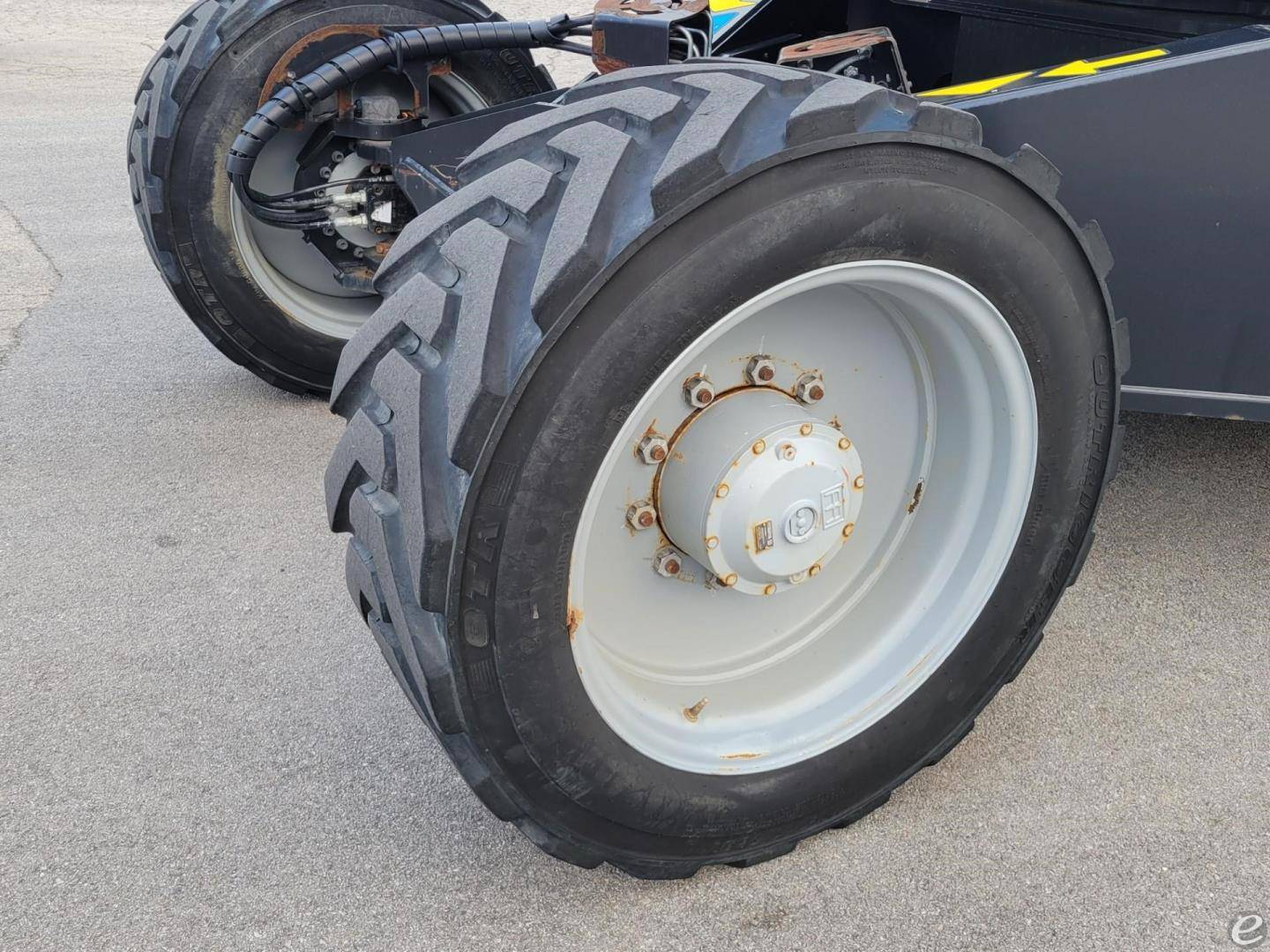

4X4 DEUTZ DIESEL 135′ PLATFORM HEIGHT 141′ WORKING HEIGHT 69′ HORIZONTAL REACH 600 LB CAPACITY EXTENDABLE AXLE FOAM FILLED TIRES ONBOARD GENERATOR ARTICULATING READY TO WORK CONTACT US FOR COMPETITIVE FREIGHT RATES!
  • Model Number: ZX135/70
  • Manufacturer: Genie
  • Type: Boom Lift
  • Subtype: Telescopic Boom
  • Fuel Type: Diesel
  • Dimensions
    • Width: 8 ft
    • Length: 43 ft 6 in (without jib); varies with jib extended
    • Height (stowed): 10 ft
    • Wheelbase: 12 ft 6 in
  • Weight
    • Operational Weight: 44,900 lbs
  • Performance
    • Platform Capacity: 600 lbs (unrestricted) / 1,000 lbs (restricted)
    • Horizontal Reach: 69 ft 9 in
    • Up and Over Clearance: 75 ft 6 in
    • Turning Radius (inside): 16 ft 6 in
    • Turning Radius (outside): 26 ft 6 in
    • Drive Speed (stowed): 3.0 mph
    • Drive Speed (raised or extended): 0.68 mph
    • Jib Length: 12 ft 8 in
    • Jib Articulation: 110°
    • Gradeability: 45%
    • Raise/Lower Time: approximately 185 seconds
  • Power

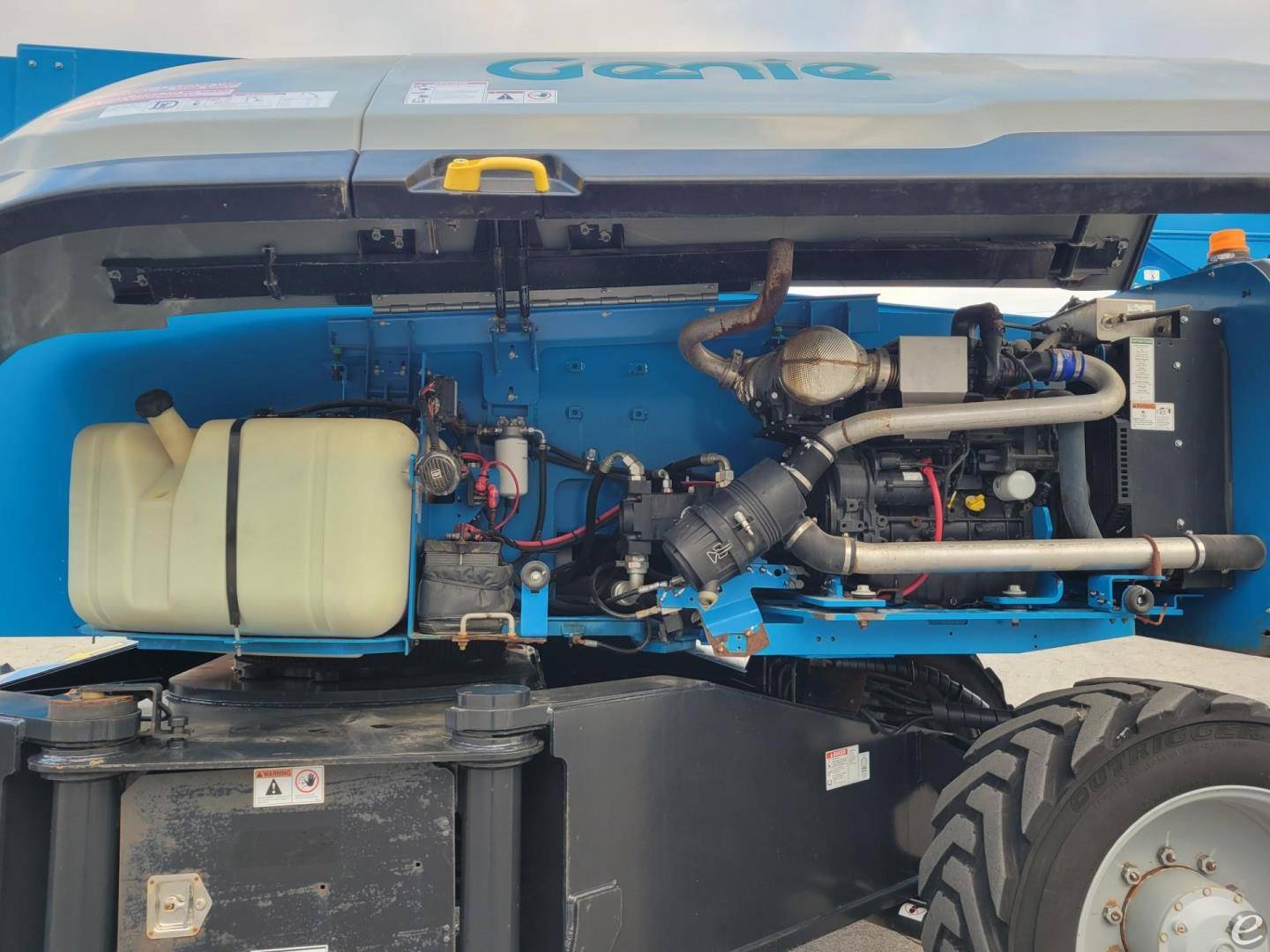

    • Engine: Deutz TD2.9L4 74 HP (diesel)
    • Fuel Tank Capacity: 50 gallons
    • Hydraulic Tank Capacity: 90 gallons
  • Other Features
    • 4-Wheel Drive
    • Oscillating Axle
    • 360° Continuous Rotation Turntable
    • Self-leveling Platform
    • Multiple Steering Modes: Front Wheel, Crab, Coordinated
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
