Equipment Description:

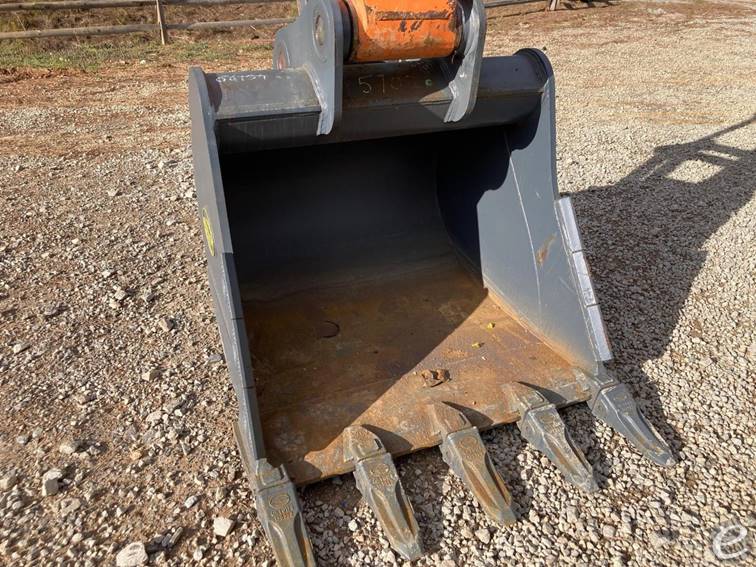

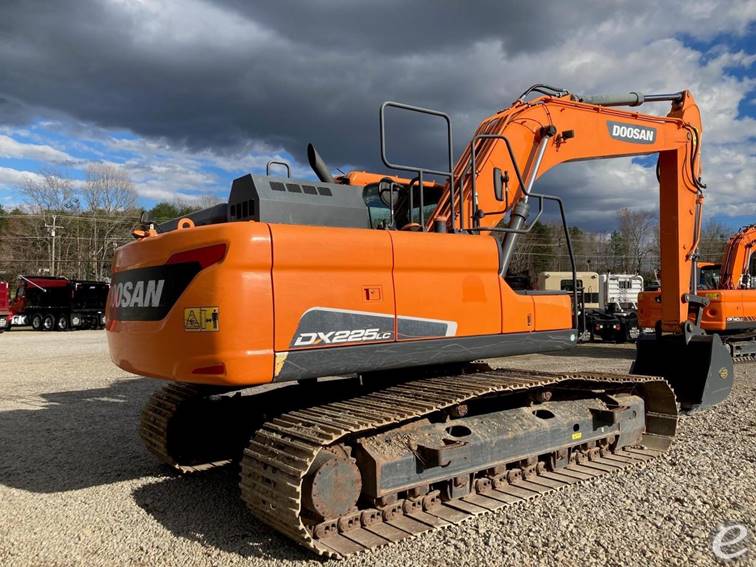

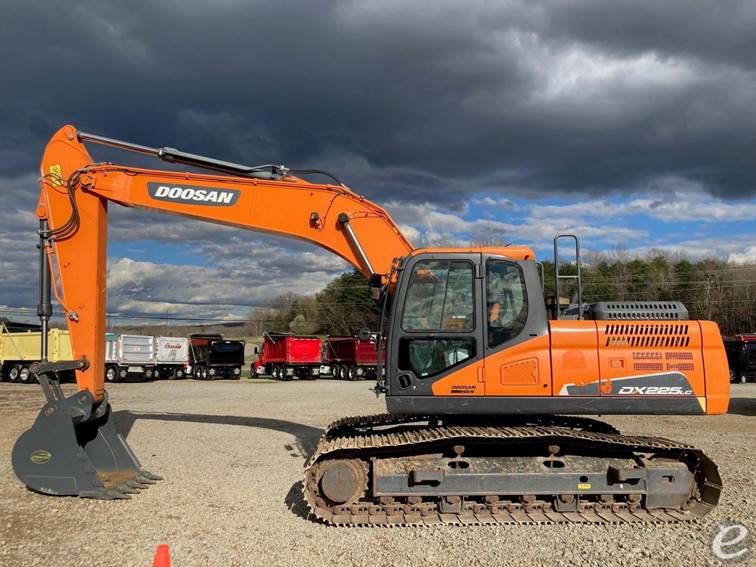

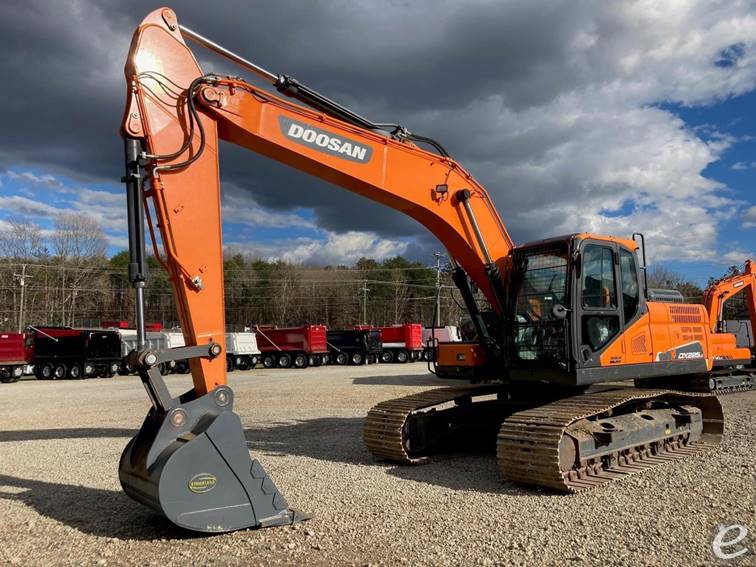

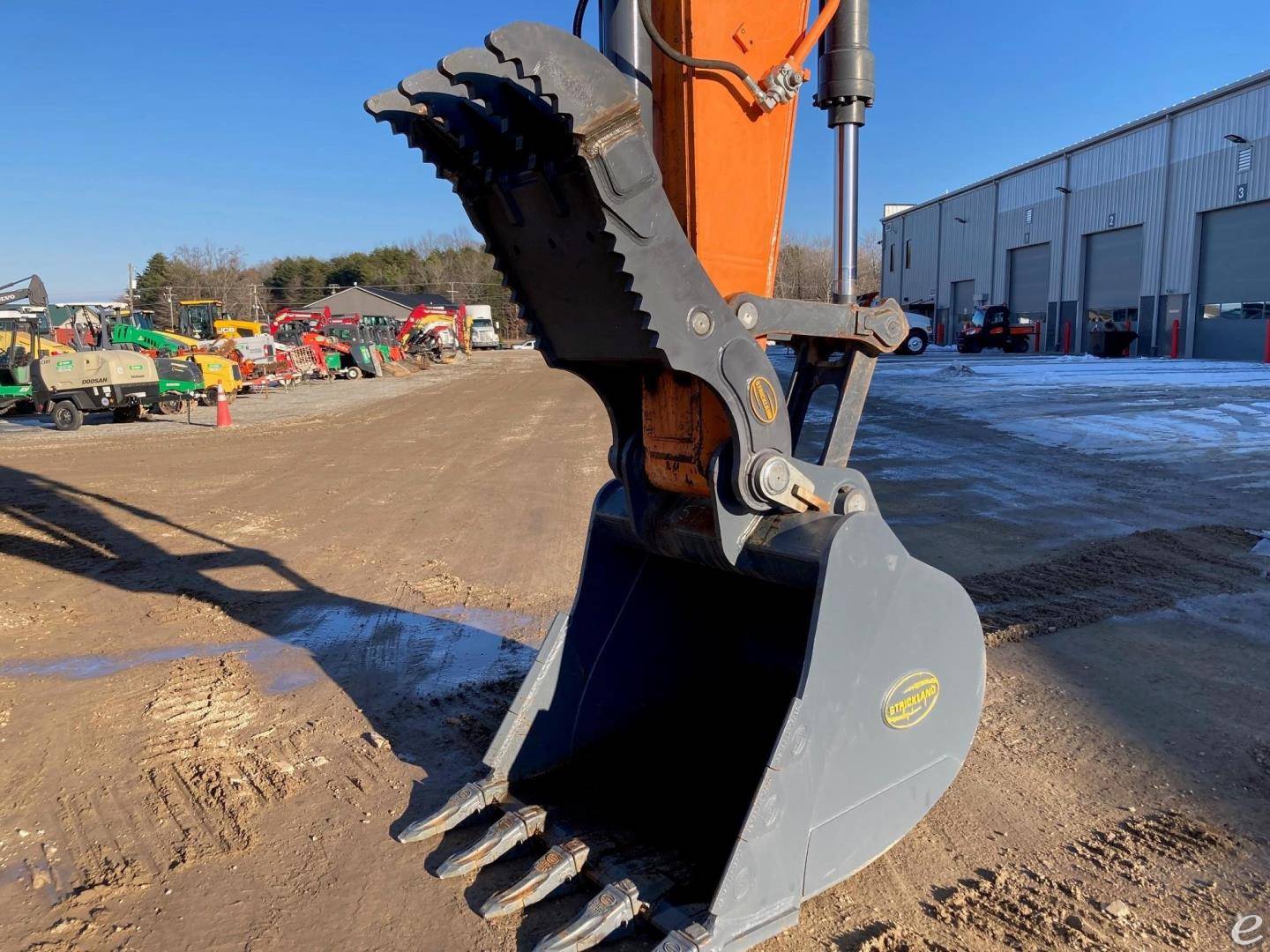

Crawler Excavator, Cab, Heat, A/C, AM/FM, 31.5" Pads, 9'7" Stick, Front Window Cage, New 48" Strickland Bucket, IN SERVICE DATE 11/30/22, REMAINING FACTORY WARRANTY

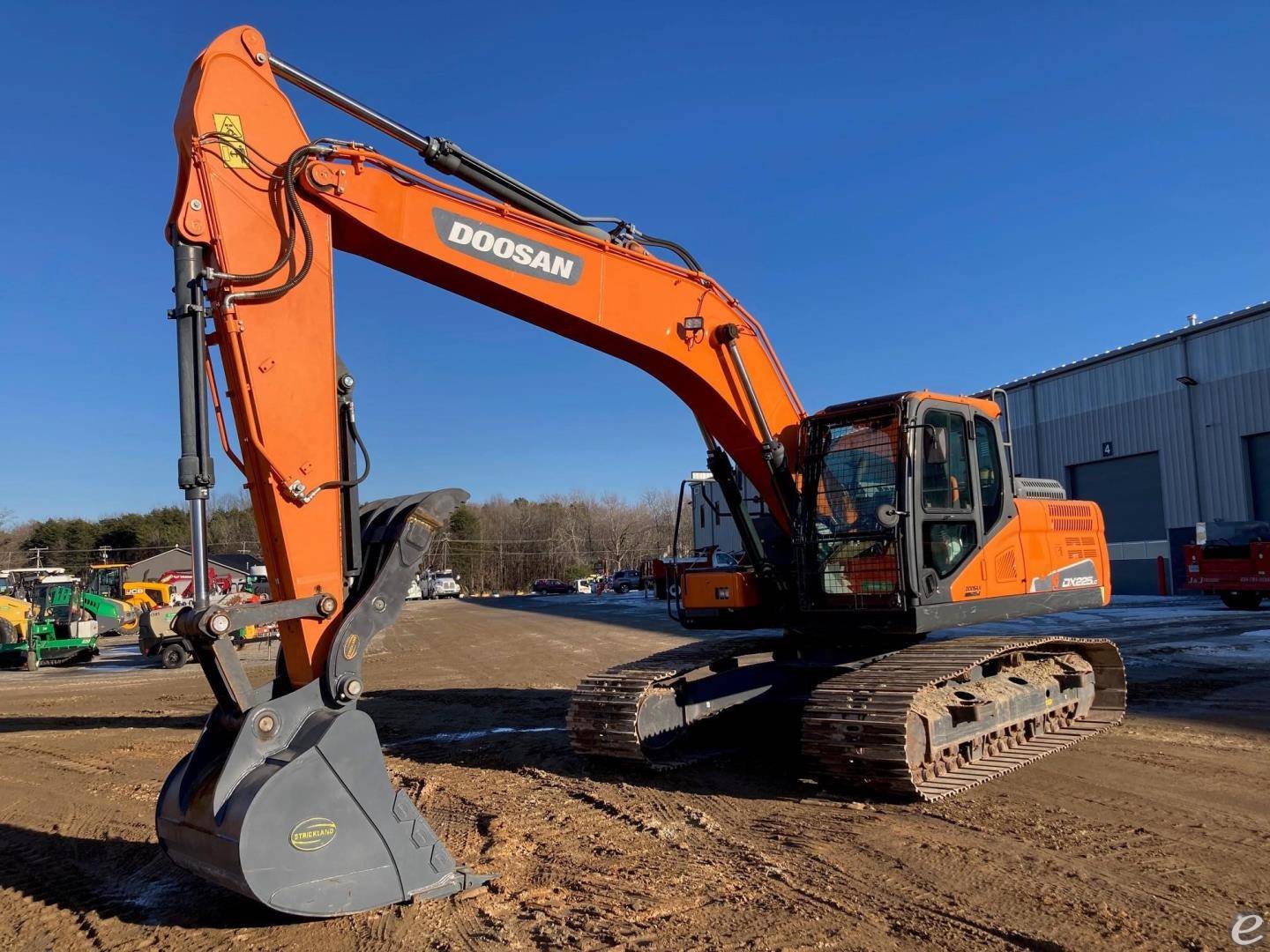

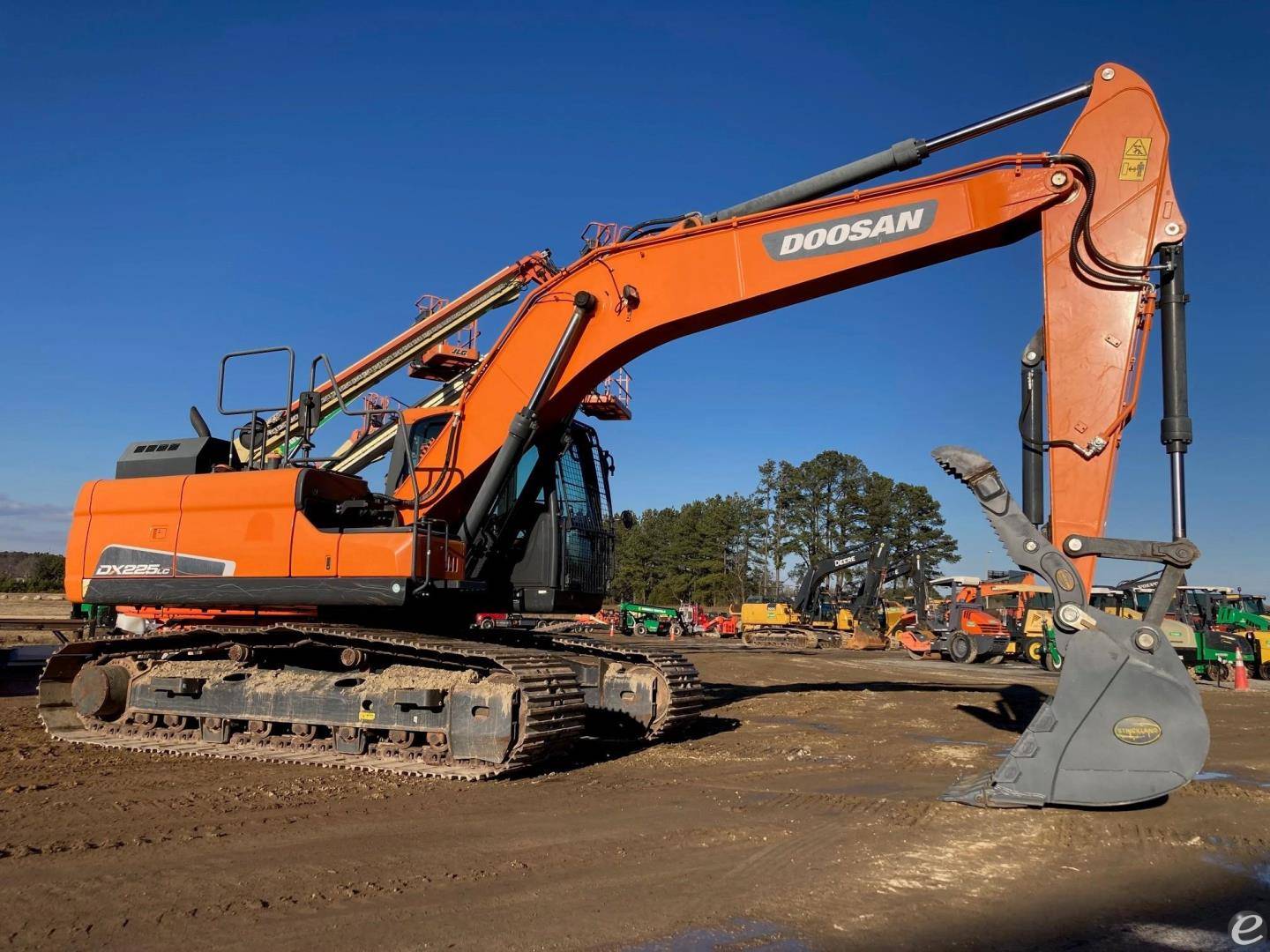

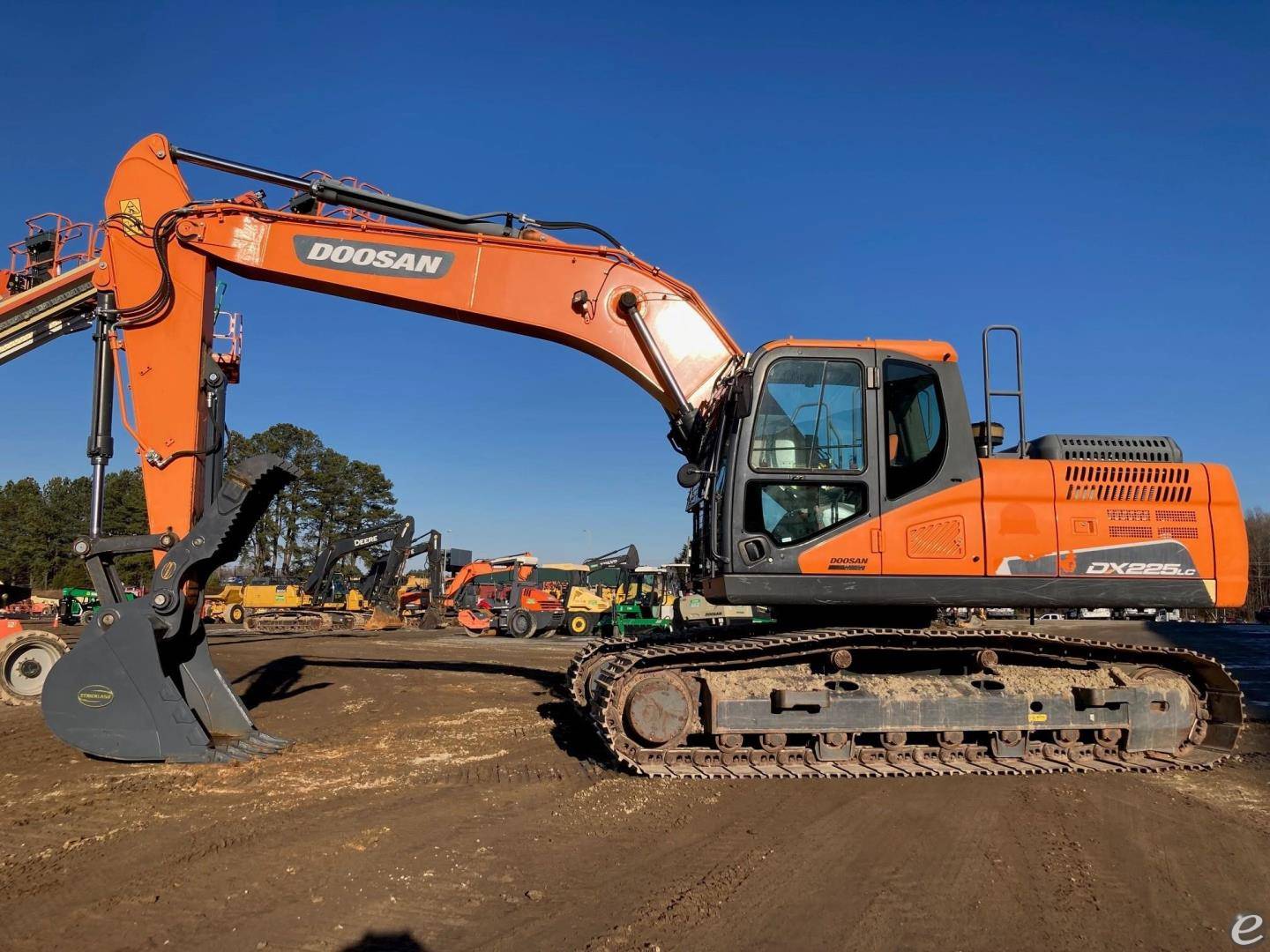

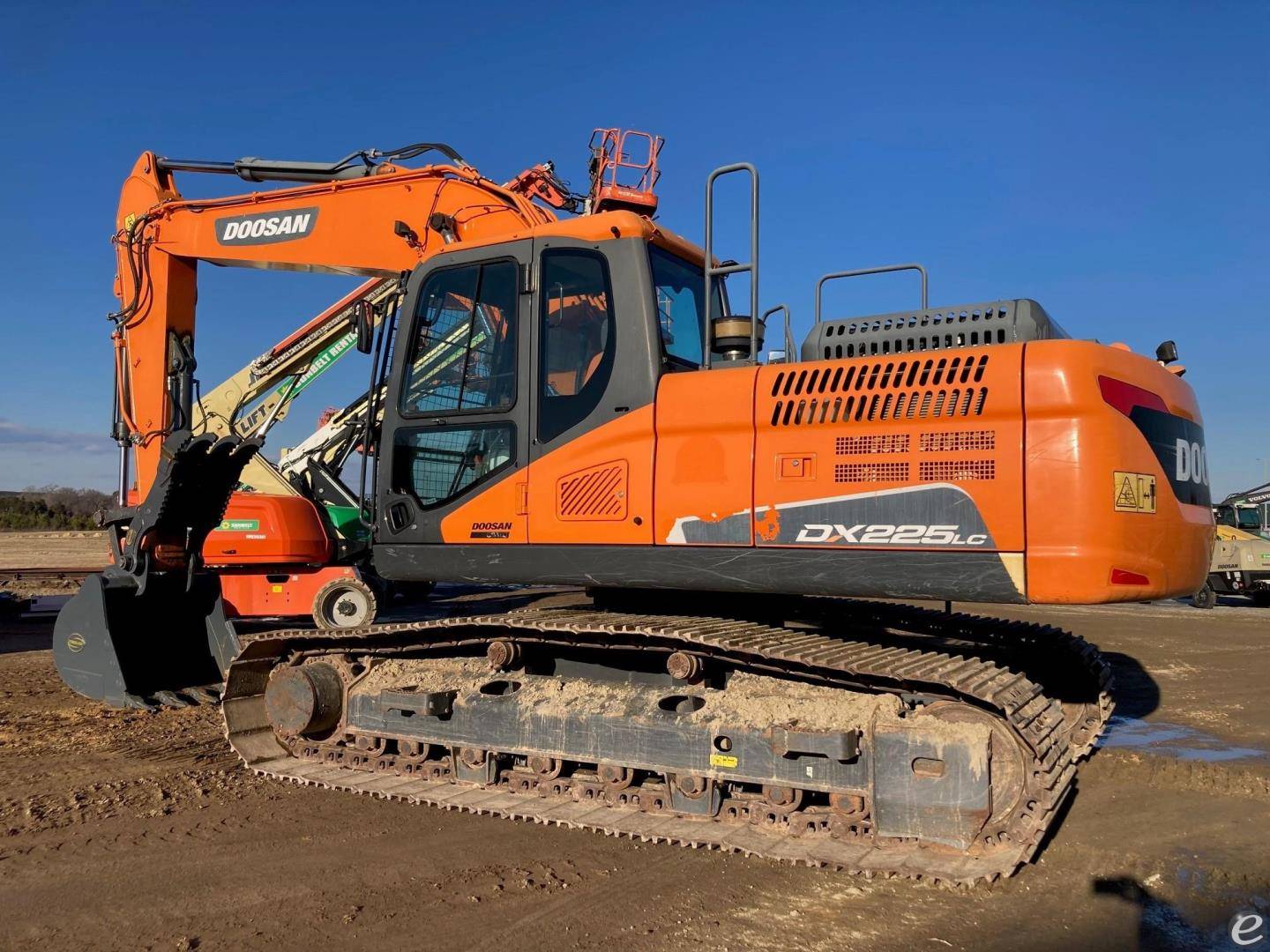

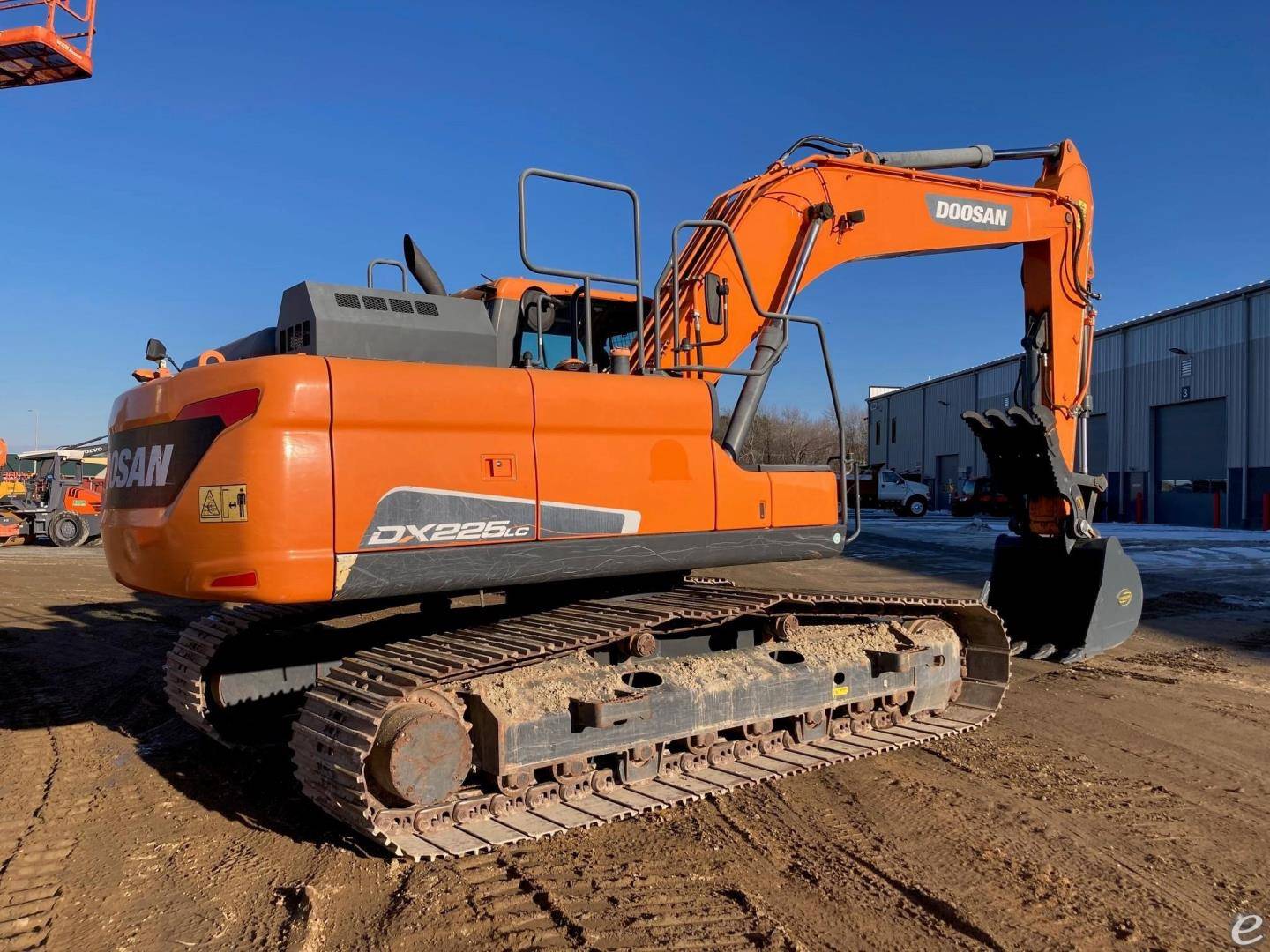

2020 Doosan DX225 LC-5 Earth Moving and Construction

Name: 2020 Doosan DX225 LC-5
Brand: Doosan
SKU: L0002798
Price: 129900 USD
Availability: InStock

$129,900 USD

Instant Quote Eligible Listing - CLICK HERE!

Contact Information

J&J Truck Sales, Inc.
11453 US Hwy. 29
Chatham, Virginia 24531

CONTACT :

Forrest Dodson

PHONE :

434-215-0641

Stock #:

L0002798

YEAR:

2020

Manufacturer:

Doosan

MODEL #:

DX225 LC-5

SUBCATEGORY:

Earth Moving and Construction

MAST HEIGHT:

11 / 30 in

SERIAL #:

DHKCEBBUKL0002798

CONDITION:

Used

HOUR METER:

914

LOCATION:

Virginia [24531]

Equipment Description:

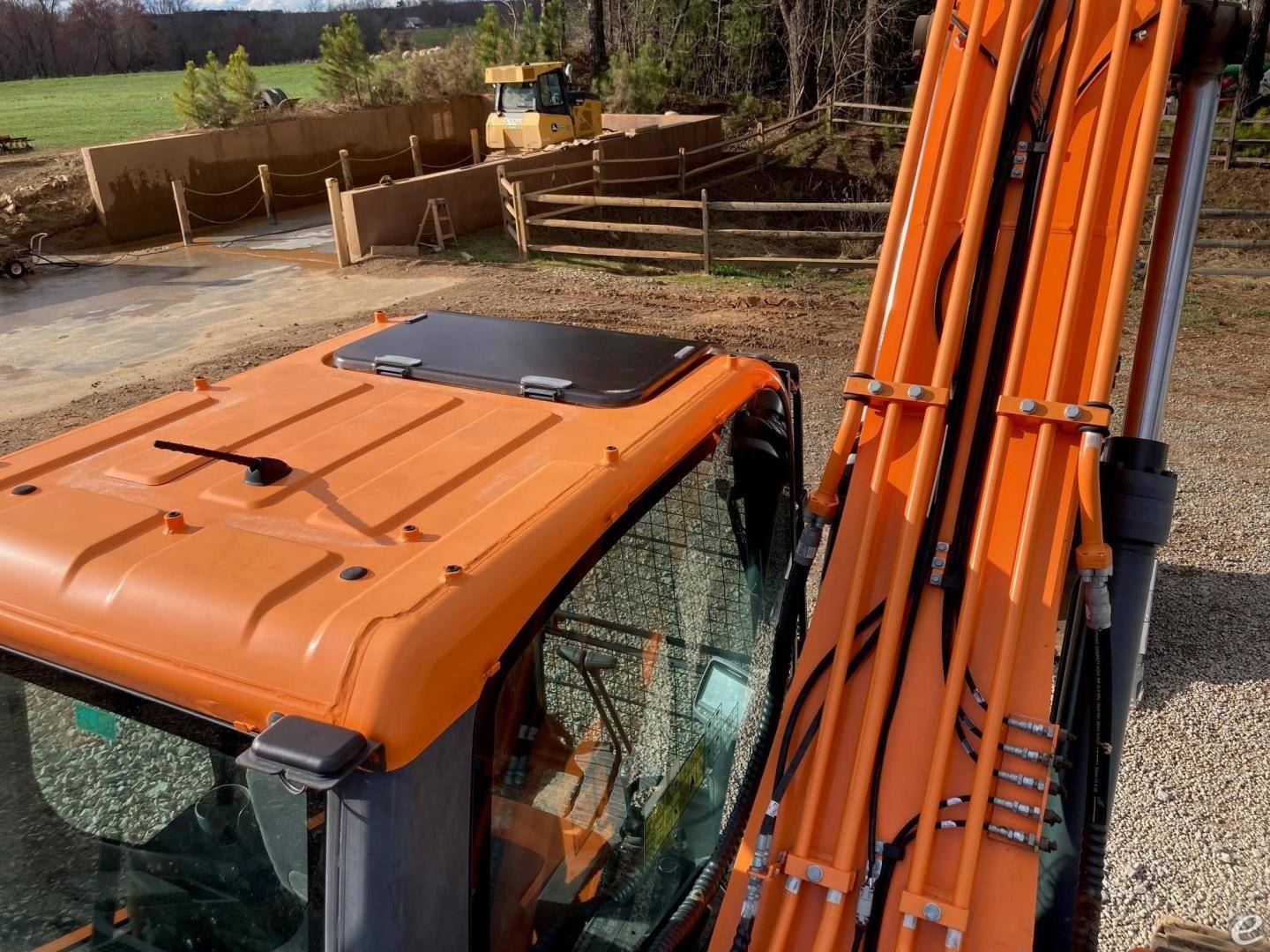

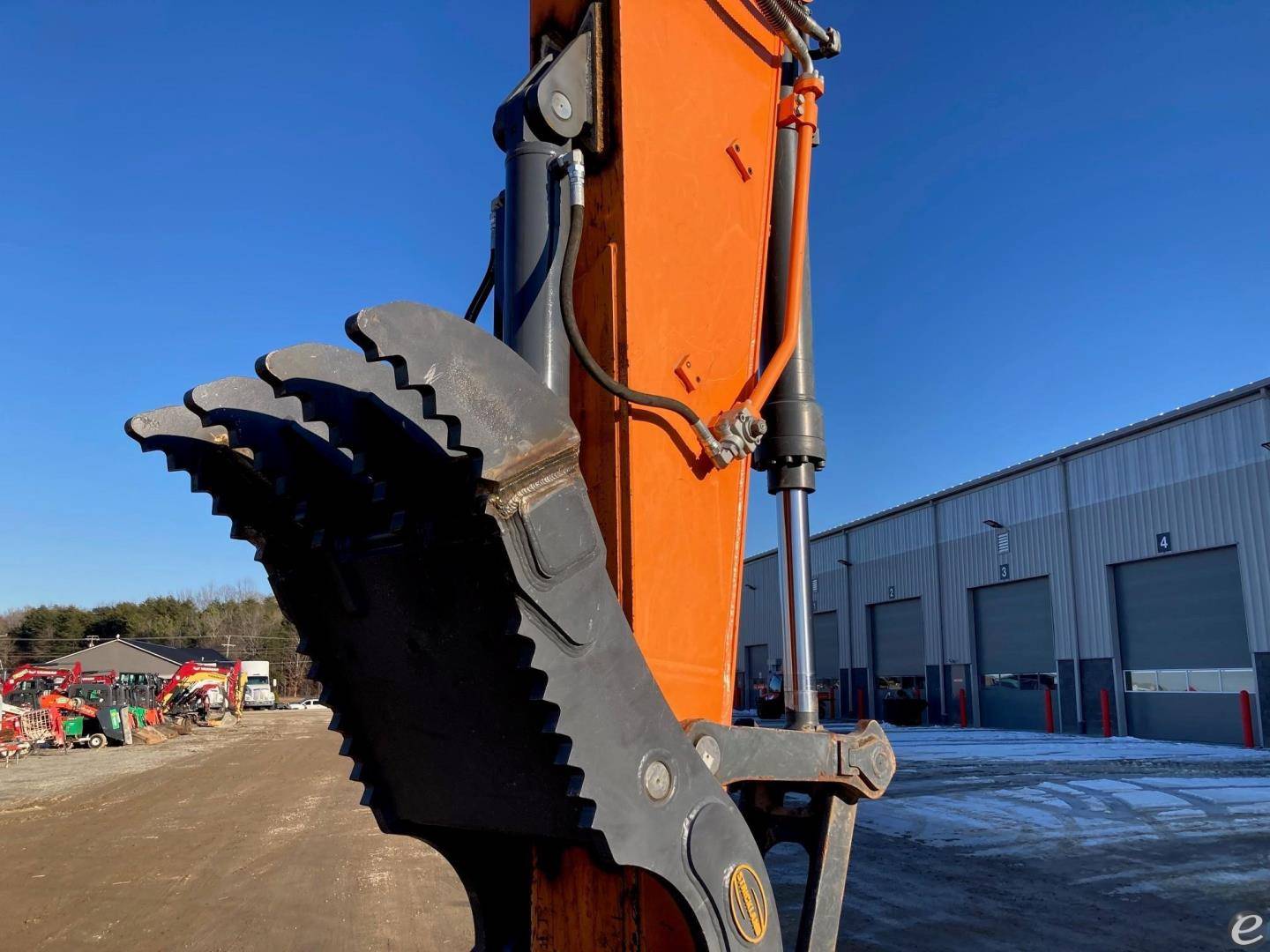

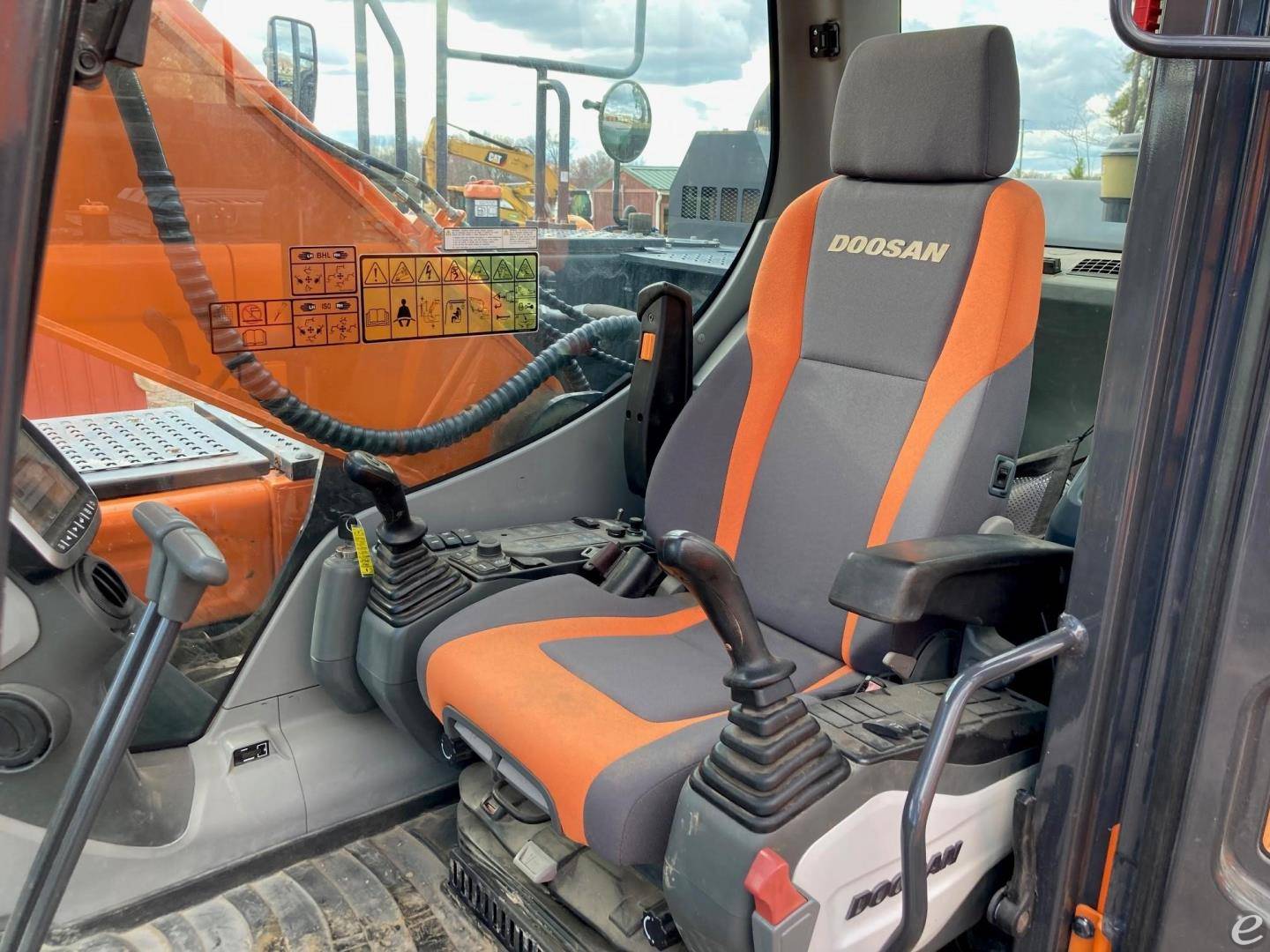

Crawler Excavator, Cab, Heat, A/C, AM/FM, 31.5" Pads, 9'7" Stick, Front Window Cage, New 48" Strickland Bucket, IN SERVICE DATE 11/30/22, REMAINING FACTORY WARRANTY

This product was posted on 11/12/2024

Operating Weight

Approximately 23,800 kg (52,470 lbs)

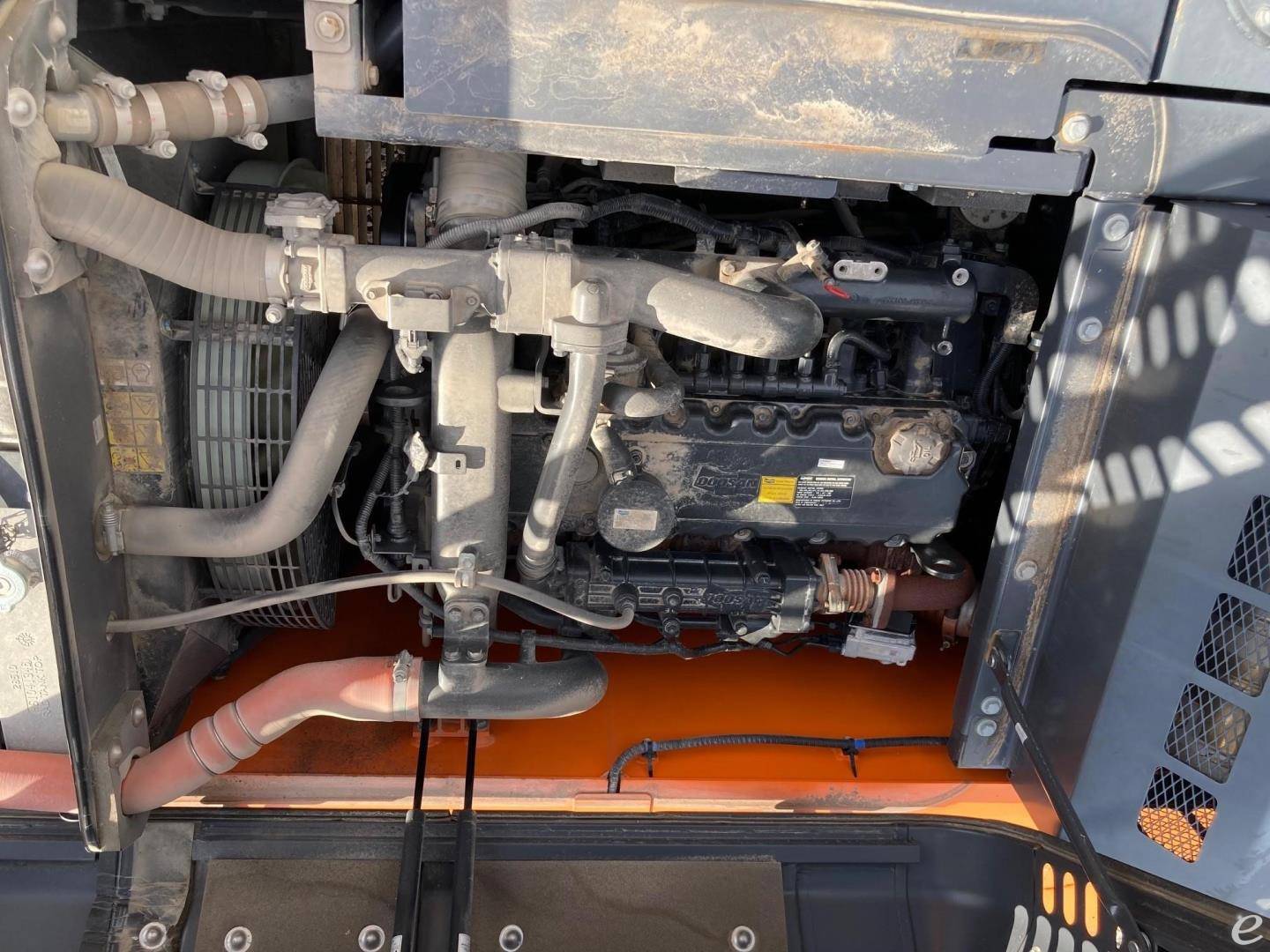

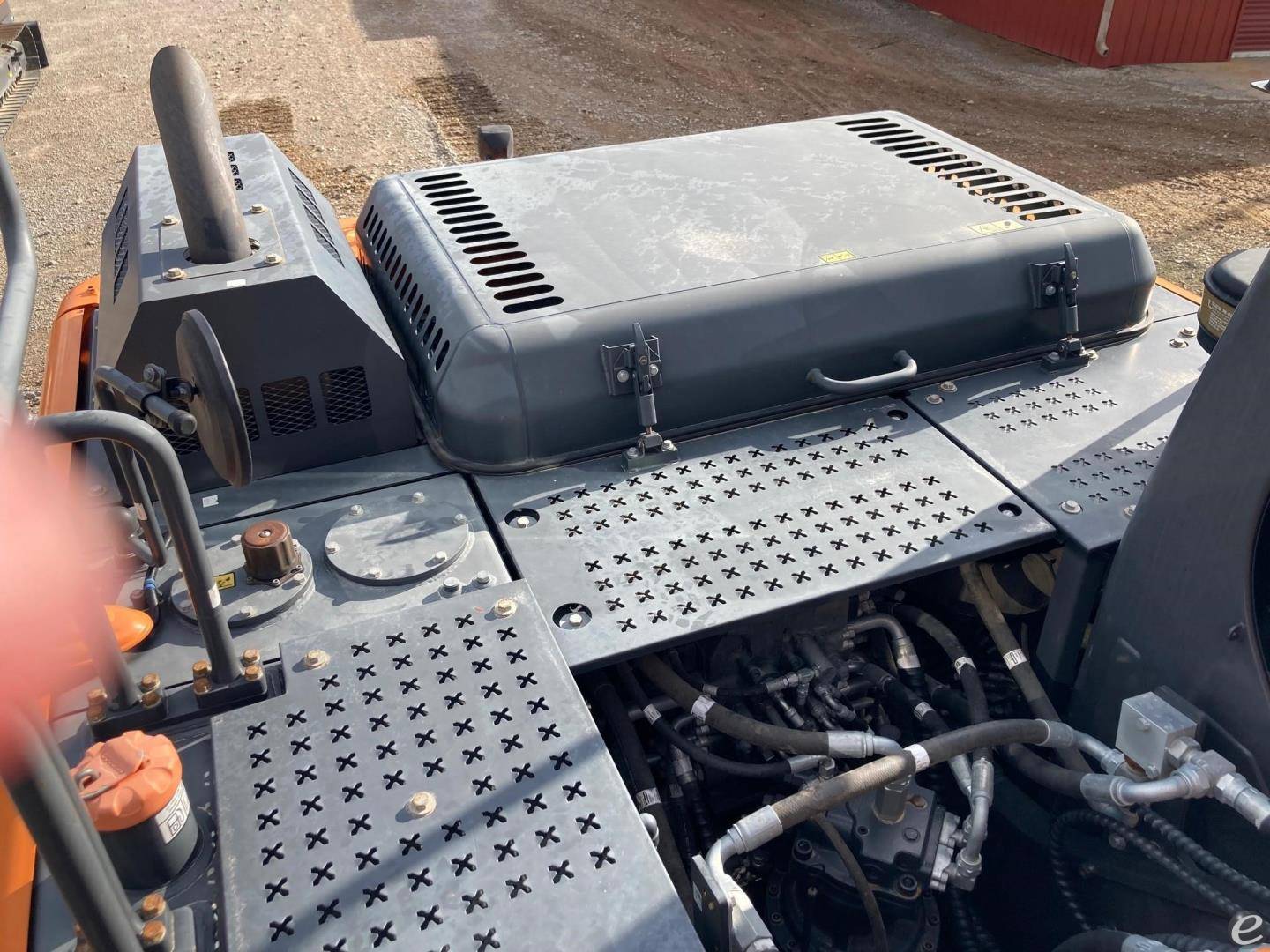

Engine

Make: Doosan
Model: DL06P
Type: 6 Cylinder, 4-Cycle, Water-Cooled, Diesel Engine
Emissions: EPA Tier 4 Final
Gross Power: 124 kW (166 HP) @ 1,800 rpm
Net Power: 121 kW (162 HP) @ 1,800 rpm
Displacement: 5.9 liters

Hydraulic System

Main Pumps: Two variable displacement axial piston pumps
Maximum Flow Rate: 2 x 211 L/min (2 x 55.7 gal/min)
Relief Valve Pressure: 34.3 MPa (4,980 psi)

Performance

Maximum Travel Speed: 5.5 km/h (3.4 mph)
Maximum Drawbar Pull: 21,300 kgf (46,958 lbf)
Bucket Digging Force: 15,200 kgf (33,510 lbf)
Arm Digging Force: 11,000 kgf (24,250 lbf)

Dimensions

Total Length: 9,495 mm (31 ft 2 in)
Total Width (with standard tracks): 2,990 mm (9 ft 10 in)
Cab Height: 2,960 mm (9 ft 9 in)
Tail Swing Radius: 2,750 mm (9 ft)
Ground Clearance: 480 mm (1 ft 6 in)

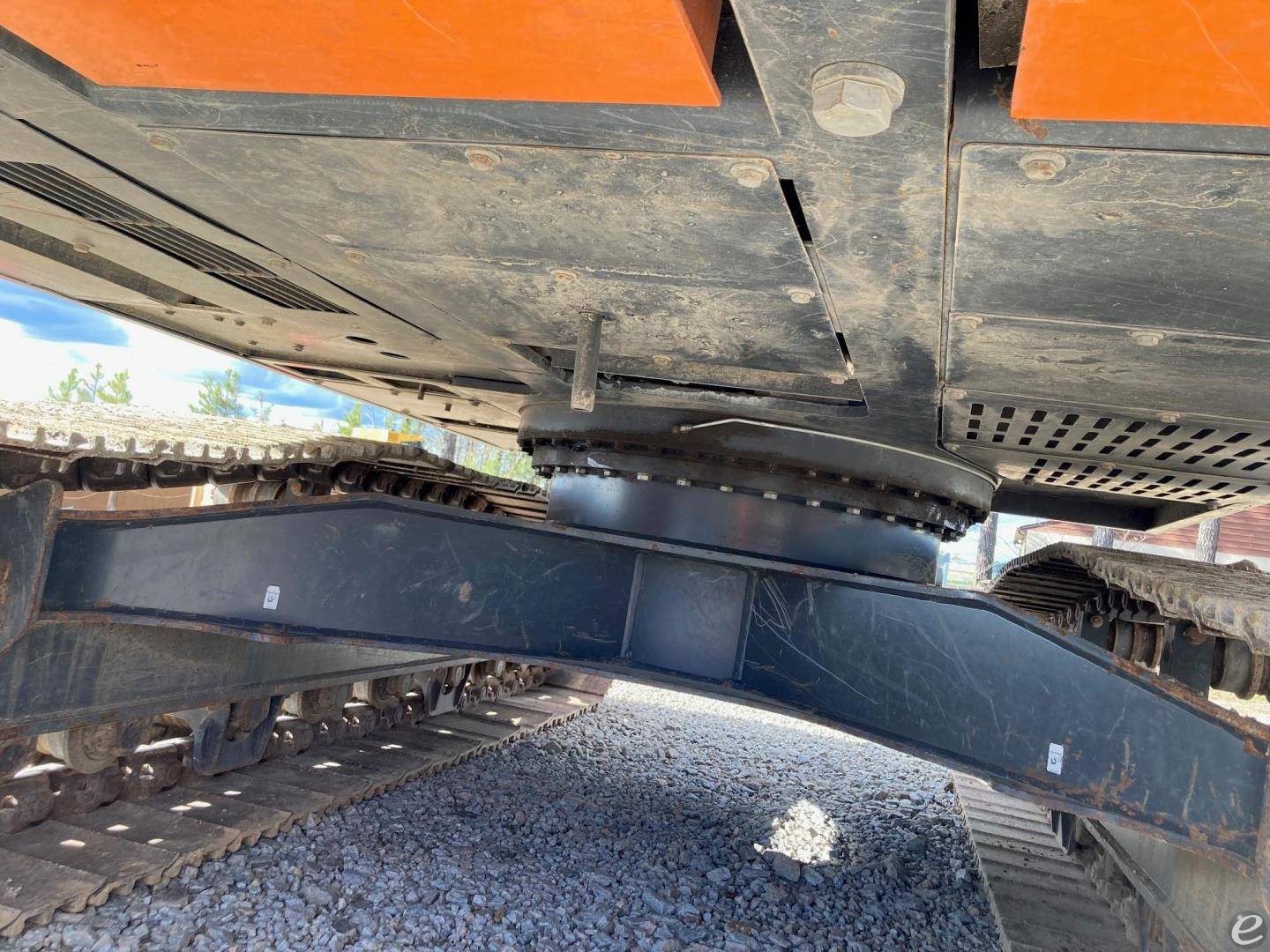

Undercarriage

Number of Track Rollers (each side): 9
Track Shoe Width (Standard): 600 mm (24 in)

Fuel and Fluid Capacities

Fuel Tank Capacity: 400 liters (105.7 gal)
Hydraulic System: 248 liters (65.5 gal)
Hydraulic Tank: 140 liters (37 gal)
Engine Oil: 25 liters (6.6 gal)

Other Features

Advanced Filtration System
Improved Cab Comfort and Ergonomics
Enhanced Visibility
Multiple Working Modes
