Equipment Description:

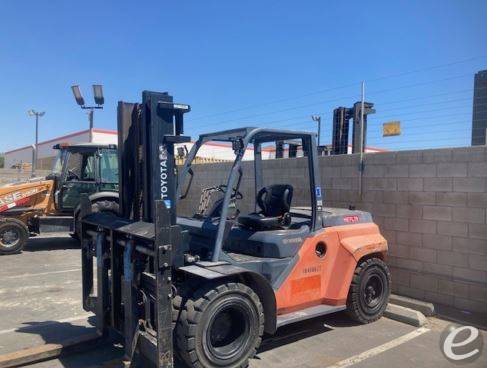

2016 Diesel Toyota 8FD70U Pneumatic Tire 4 Wheel Sit Down

Call for price

Contact Information

Select Equipment Sales
6911 8th St
Buena Park, California 90620

CONTACT :

Sales Dept.

PHONE :

FAX :

Stock #:

U230820

YEAR:

2016

Manufacturer:

MODEL #:

CAPACITY:

15000

FUEL:

Diesel

SUBCATEGORY:

MAST TYPE:

Two Stage

MAST HEIGHT:

120 in

SIDE SHIFTER:

Yes

CONDITION:

Used

HOUR METER:

2597

LOCATION:

DESCRIPTION:

Standard 120 Mast, 96" Forks, S/S-FP

Equipment Description:

This product was posted on 10/30/2024

General Specifications
- Model: 8FD70U
- Manufacturer: Toyota
- Type: Diesel Pneumatic Tire Forklift
- Capacity: 15,500 lbs (7,000 kg)
- Load Center: 24 inches (600 mm)
Engine Specifications
- Engine Model: Toyota 1KD
- Engine Type: 4-cylinder diesel
- Displacement: 3.0 liters
- Rated Power: 91 HP (68 kW) at 2,400 RPM
- Max Torque: 352 Nm at 1,700 RPM
Dimensions
- Overall Length (without forks): 161.6 inches (4,104 mm)
- Overall Width: 83.9 inches (2,130 mm)
- Overall Height (with overhead guard): 107.5 inches (2,730 mm)
- Wheelbase: 92.5 inches (2,350 mm)
- Ground Clearance: 8.7 inches (220 mm) at the mast
Mast Specifications
- Mast Type: Duplex or Triplex available
- Lift Height: Up to 236 inches (6,000 mm) depending on mast type
- Free Lift: Up to 87 inches (2,200 mm) depending on mast type
- Fork Length: Standard 48 inches (1,219 mm)
Performance Specifications
- Maximum Travel Speed: 17.7 mph (28.5 km/h) unladen
- Lift Speed: 98 ft/min (0.5 m/s) unladen
- Gradeability: 38.2% unladen
- Turning Radius: 118.1 inches (3,000 mm)
Tire Specifications
- Tire Type: Pneumatic
- Front Tires: 8.25-15-14PR
- Rear Tires: 8.25-15-14PR
Hydraulic System
- Hydraulic Pressure: 227 bar
- Hydraulic Tank Capacity: 18.5 gallons (70 liters)
Fuel System
- Fuel Capacity: 25 gallons (95 liters)
- Fuel Type: Diesel
Comfort Features
- Adjustable Steering Column
- Suspension Seat
- Clear View Mast
