Equipment Description:

Factory Enclosed CAB w/ AC & HEAT, Outriggers/Stabilizers, CAT Diesel Engine, Pneumatic Tires, 4WD, Crab-Steering, Work Lights, Auxiliary Hydraulics, Quick-Coupler, QC Carriage w/ Forks, CAT Fleet Maintained

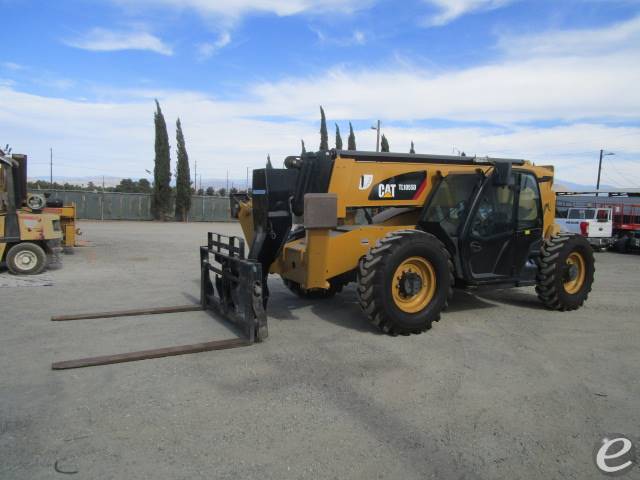

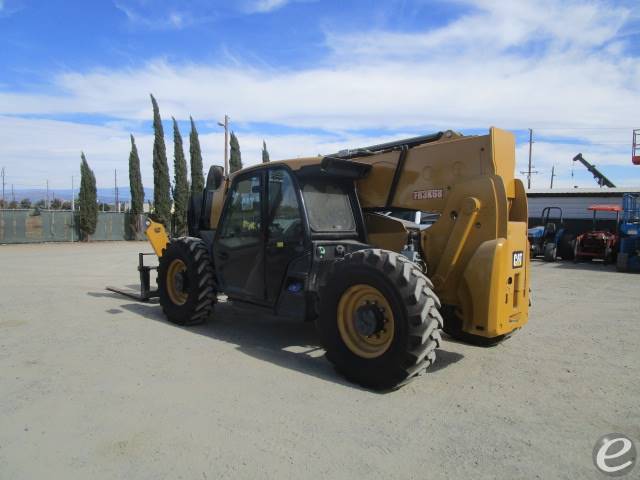

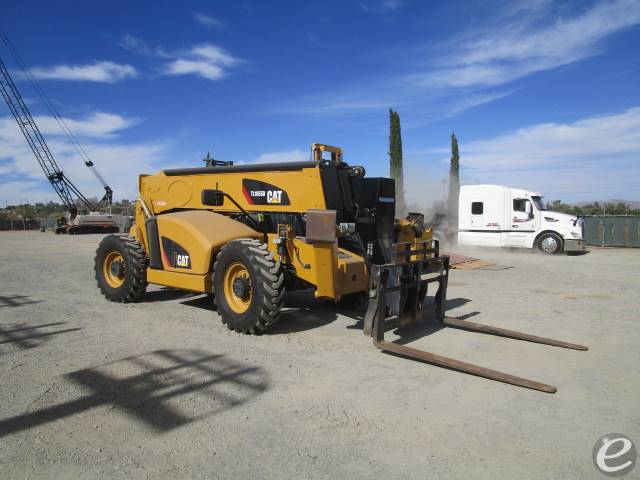

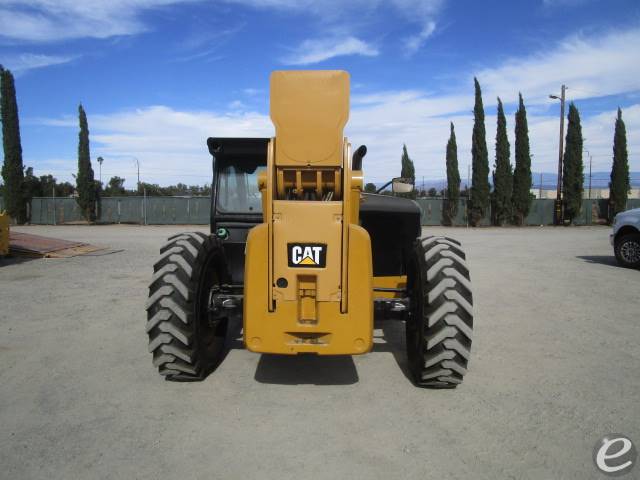

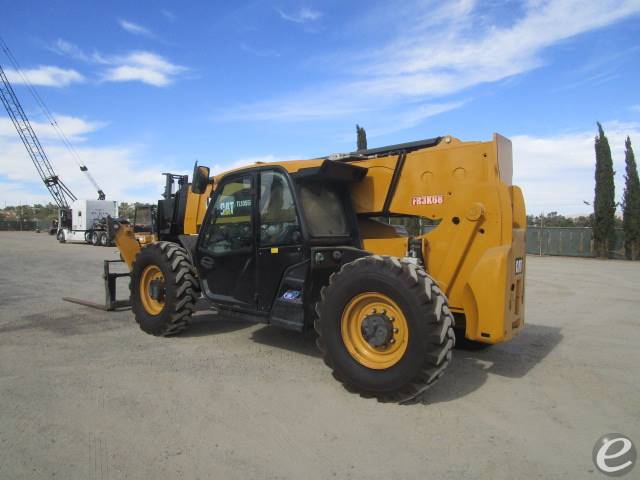

2015 Diesel Cat TL1055D Telehandlers (Telescopic Mast)

Call for priceFor Rent

Contact Information

Supreme Forklift & Equipment
3695 E Apache Trail Suite 1
Apache Junction, Arizona 85119

CONTACT :

Sales Dept.

PHONE :

480-660-4508

Stock #:

YEAR:

2015

Manufacturer:

Cat

MODEL #:

TL1055D

POWER:

Diesel

Height:

55 ft

CAPACITY:

10000

CONDITION:

Rental

HOUR METER:

2223

LOCATION:

N/A

Equipment Description:

This product was posted on 11/4/2024

General Specifications
- Operating Weight: Approximately 36,330 lbs (16,473 kg)
- Maximum Lift Capacity: 10,000 lbs (4,536 kg)
- Maximum Lift Height: 55 ft (16.7 m)
- Maximum Forward Reach: 42 ft (12.8 m)
Engine
- Engine Model: Cat C4.4 ACERT
- Gross Power: 142 hp (106 kW)
- Engine Displacement: 269 in³ (4.4 L)
- Emissions: Meets U.S. EPA Tier 4 Final/EU Stage IV emission standards
Drivetrain
- Transmission Type: Power Shift
- Number of Gears: 4 forward and 3 reverse
- Drive System: 4x4
Hydraulic System
- System Type: Load Sensing
- Maximum Pump Flow: 43 gal/min (162 L/min)
- System Pressure: 3,625 psi (250 bar)
Dimensions
- Overall Length: 22.8 ft (6,940 mm)
- Overall Height: 8.5 ft (2,600 mm)
- Overall Width: 8.2 ft (2,500 mm)
- Wheelbase: 11.9 ft (3,620 mm)
- Ground Clearance: 1.5 ft (450 mm)
Performance
- Turn Radius (Over Tires): 12.9 ft (3,920 mm)
- Drawbar Pull: 22,815 lbs (101.5 kN)
- Travel Speed: 20 mph (32 km/h)
Fuel System
- Fuel Tank Capacity: 50 gal (189 L)
