Equipment Description:

5000LB CAPACITY 3 STAGE MAST 84" LOWERED 189" RAISED LPG FUEL PNEUMATIC TIRES SIDE SHIFT FORKS INCLUDED

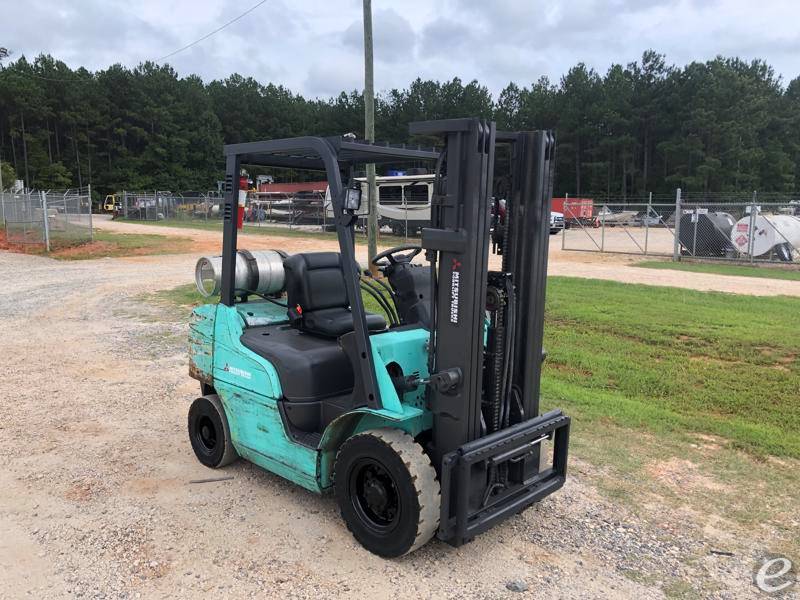

2010 LP Gas Mitsubishi FG25N Pneumatic Tire 4 Wheel Sit Down

Call for priceFor Rent

Contact Information

Supreme Forklift & Equipment
3695 E Apache Trail Suite 1
Apache Junction, Arizona 85119

CONTACT :

Sales Dept.

PHONE :

Stock #:

YEAR:

2010

Manufacturer:

MODEL #:

CAPACITY:

5000

FUEL:

LP Gas

SUBCATEGORY:

MAST TYPE:

Three Stage

MAST HEIGHT:

84 / 189 in

SIDE SHIFTER:

Yes

CONDITION:

Rental

HOUR METER:

1040

LOCATION:

N/A

Equipment Description:

5000LB CAPACITY 3 STAGE MAST 84" LOWERED 189" RAISED LPG FUEL PNEUMATIC TIRES SIDE SHIFT FORKS INCLUDED

This product was posted on 10/24/2024

General Specifications
- Model: Mitsubishi FG25N
- Type: Internal Combustion Forklift
- Power: Gasoline
- Operator Type: Seated Rider
- Load Capacity: 5,000 lbs (2,268 kg)
Engine Specifications
- Engine Model: Mitsubishi 4G63
- Engine Type: 4-cylinder, Liquid-cooled
- Displacement: 2.4 L
- Rated Output (SAE Net): 50 HP
Dimensions
- Overall Length (with forks): 139 inches
- Overall Width: 45 inches
- Overall Height (Overhead Guard): 85 inches
- Fork Length: 42 inches
Performance
- Maximum Forward Speed: 11.8 mph
- Gradeability: 37% (at no load)
- Lift Speed: 118 ft/min (unloaded)
Tire Information
- Front Tires: 21x7-15
- Rear Tires: 16x6-8.25
- Tire Type: Pneumatic
Weight and Capacity
- Service Weight: 8,740 lbs
- Max Drawbar Pull: 3,245 lbs
Hydraulic System
- Hydraulic Pressure: 2,559 psi
- Hydraulic Tank Capacity: 12 gallons
