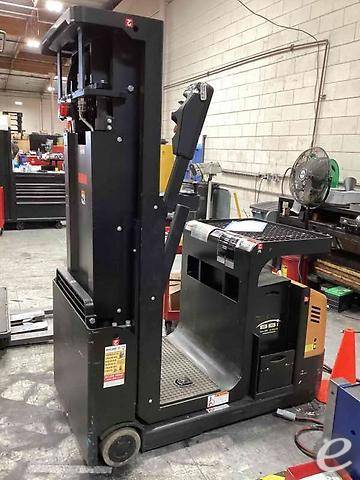

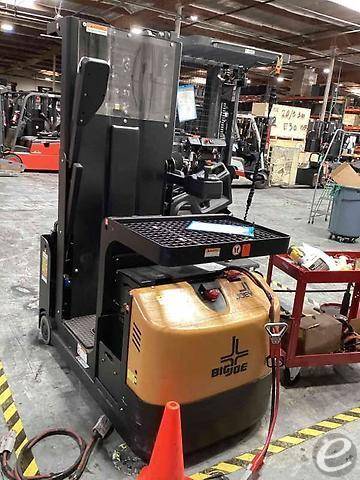

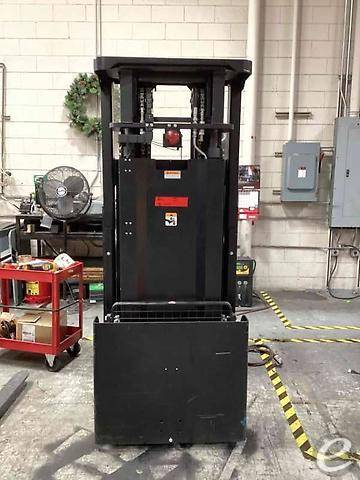

2021 Electric Big Joe J1-192

$20,998 USDNew
Contact Information
Big Joe Handling Systems
25932 Eden Landing Rd
Hayward, California 94545
CONTACT :
Sales Dept
PHONE :
Stock #:
226151
YEAR:
2021
Manufacturer:
MODEL #:
CAPACITY:
1000
FUEL:
Electric
MAST TYPE:
Three Stage
MAST HEIGHT:
83.5 / 192 in
SERIAL #:
2301100053
SIDE SHIFTER:
Yes
CONDITION:
New
HOUR METER:
1
LOCATION:
Equipment Description:
Big Joe Joey Stock Selector. 192" lift height 24 Volt steel clad system , Ergo pacakge 1,000lb. total vehicle capacity • 500lb. front tray, 300lb. operator, 200lb rear tray • LCD dash display with selectable travel settings and diagnostics • Electronic power steering with infinitely variable speed control • Finger tip controls integrated into retractable vehicle guardrails • Premium steel I-beam mast construction and unitized steel frame
  • Model: Big Joe J1-192
  • Type: Task Support Vehicle
  • Capacity:
    • Load Capacity: 500 lbs
    • Operator Capacity: 275 lbs
  • Lift Specifications:
    • Maximum Lift Height: 192 inches
    • Lowered Height: 78 inches
  • Dimensions:
    • Overall Length: 60 inches
    • Overall Width: 29.5 inches
    • Overall Height: 78 inches (lowered), 236 inches (raised)
    • Platform Dimensions: 22 x 23 inches
  • Weight:
    • Truck Weight: Approximately 1,285 lbs
  • Speed:
    • Travel Speed: 3.0 mph (loaded/unloaded)
    • Lift/Lower Speed: 12 seconds (unloaded)
  • Power System:
    • Battery: 24V Maintenance-Free AGM Batteries
    • Charger: Built-in 110V Charger
  • Tires/Wheels:
    • Drive Tire: Polyurethane
    • Load Wheels: Polyurethane
  • Turning Radius:
    • Turning Radius: 52 inches
  • Brakes:
    • Electromagnetic Brakes
  • Special Features:
    • Integrated Control Handle
    • Proportional Controls for Lift/Drive
    • Emergency Power Disconnect
    • Onboard Diagnostics
