Supreme Forklift & Equipment Apache Junction, Arizona
1638 miles away
Overview
Spec Sheet
Shipping/Freight

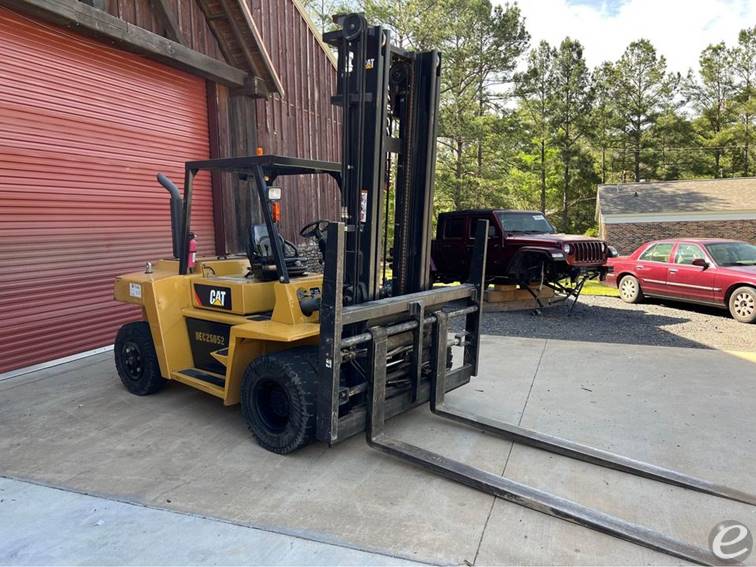

2014 Diesel Cat DP70E Pneumatic Tire 4 Wheel Sit Down

Call for priceFor Rent
Contact Information
Supreme Forklift & Equipment
3695 E Apache Trail Suite 1
Apache Junction, Arizona 85119
CONTACT :
Sales Dept.
PHONE :
Stock #:
YEAR:
2014
Manufacturer:
MODEL #:
CAPACITY:
15500
FUEL:
Diesel
MAST TYPE:
Two Stage
MAST HEIGHT:
128 in
SIDE SHIFTER:
Yes
CONDITION:
Rental
HOUR METER:
1290
LOCATION:
N/A
Equipment Description:
15500lb Lift Capacity 128"/179" Two Stage Mast 4 Way Lever Hydraulics Fork Positioner Sideshift 96" Forks
  • Engine Specifications
    • Model: Mitsubishi S6S
    • Type: Diesel, 4-Stroke
    • Cylinder: 6
    • Displacement: 4.996 L
    • Maximum Power: 123 HP (91.7 kW) @ 2300 rpm
  • Performance Specifications
    • Load Capacity: 15,500 lbs (7,000 kg)
    • Drive Speed: 13.7 mph (22 km/h) unloaded
    • Lift Speed: 92.5 ft/min (0.47 m/s) unloaded
    • Gradeability: 31% loaded
  • Dimensions and Weights
    • Overall Length: 156.5 inches (3,976 mm)
    • Overall Width: 78.7 inches (2,000 mm)
    • Height to top of Overhead Guard: 105.9 inches (2,689 mm)
    • Wheelbase: 93.5 inches (2,375 mm)
    • Weight: 21,605 lbs (9,800 kg) without load
  • Hydraulic System
    • Max Operating Pressure: 2500 psi (175 bar)
    • Hydraulic Tank Capacity: 23.8 gallons (90 liters)
  • Tires
    • Front: 8.25x15-14PR (Pneumatic)
    • Rear: 8.25x15-14PR (Pneumatic)
  • Brakes
    • Service: Hydraulic Actuated
    • Parking: Mechanical Lever
  • Transmission
    • Type: Powershift, 2-speed forward and 2-speed reverse
  • Mast
    • Mast Tilt: 6 degrees forward / 12 degrees backward
    • Maximum Fork Height: 173 inches (4,400 mm)
    • Free Lift Height: 7 inches (180 mm)
