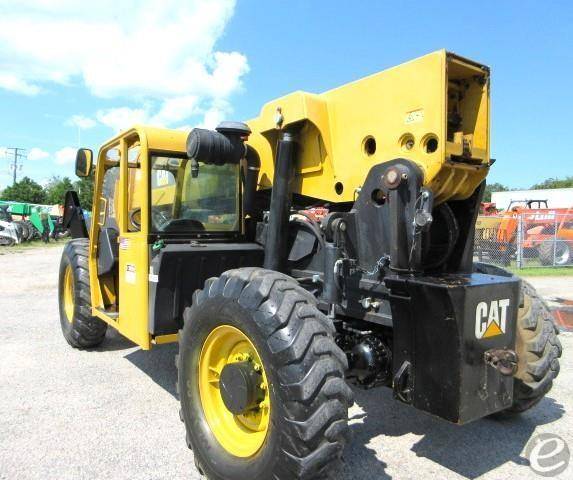

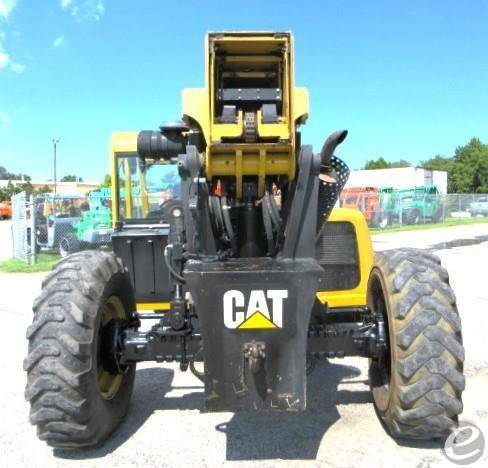

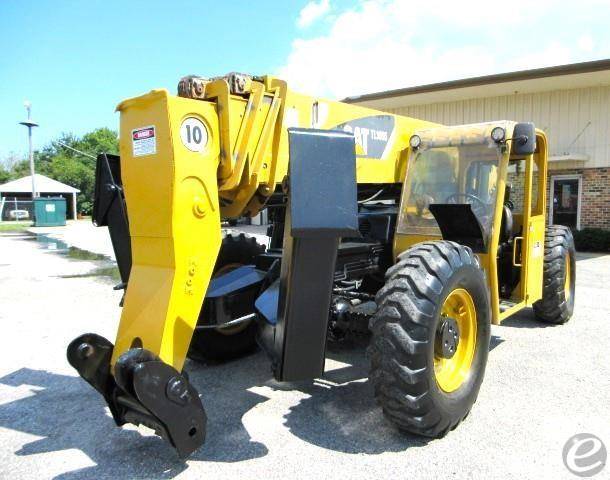

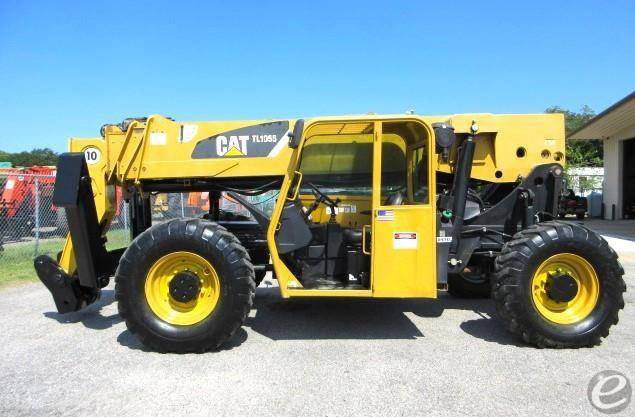

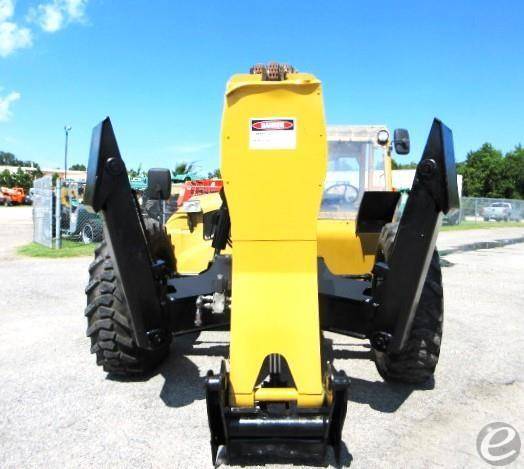

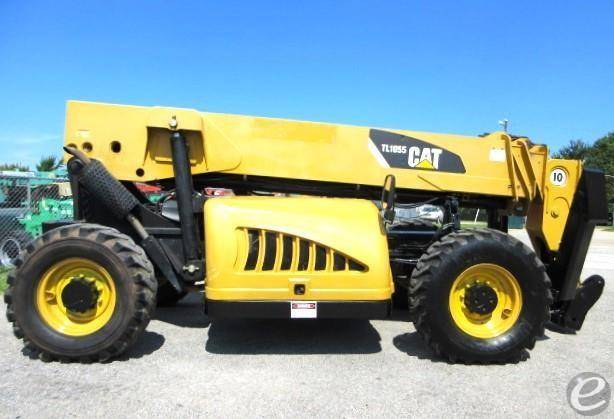

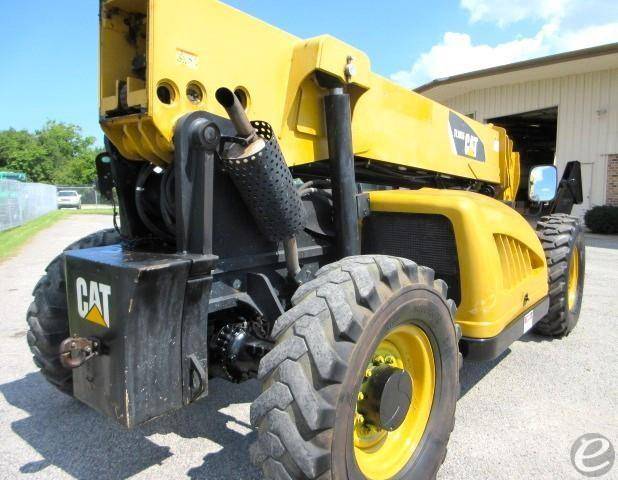

2008 Cat TL1055

Diesel Telehandlers (Telescopic Mast)

$55,000 USD
CONTACT INFO
Name:
Jon Bordeaux
Phone:

ADDRESS
Ironworks Trading Corporation
1160 Harmony Rd
Norfolk, Virginia 23502
ATTRIBUTES
STOCK #:
2594
YEAR:
2008
Manufacturer:
MODEL #:
POWER:
Diesel
Height:
55 ft
CAPACITY:
10000

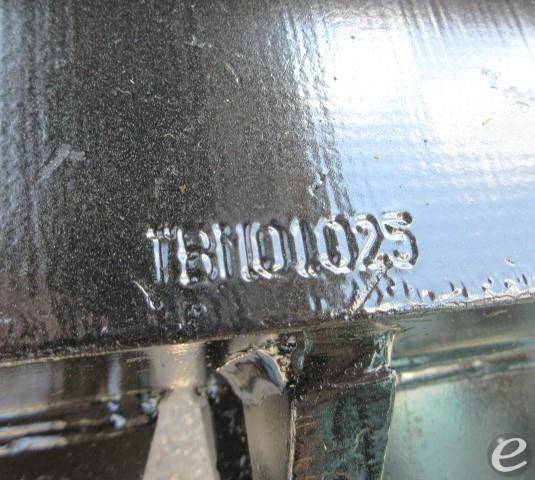

SERIAL #:
TBM01025
CONDITION:
Used

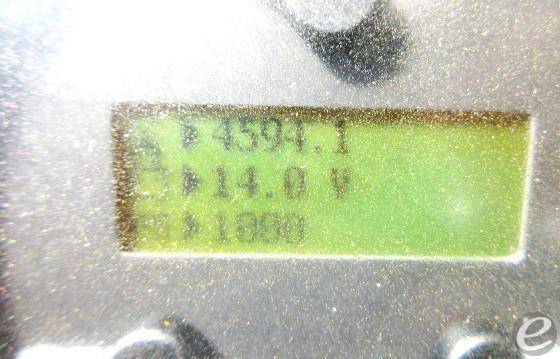

HOUR METER:
4594
LOCATION:
POST DATE:
12/17/2024
Equipment Description

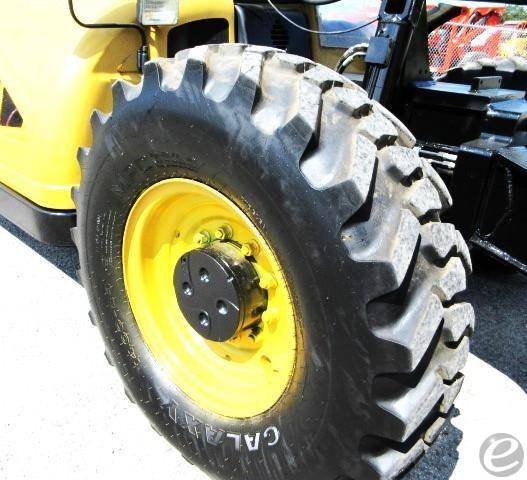

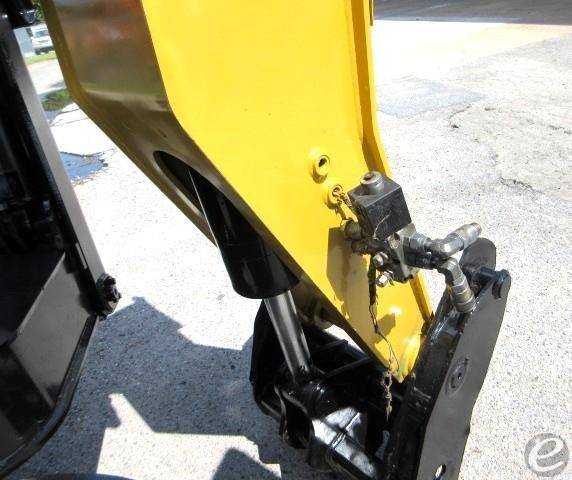

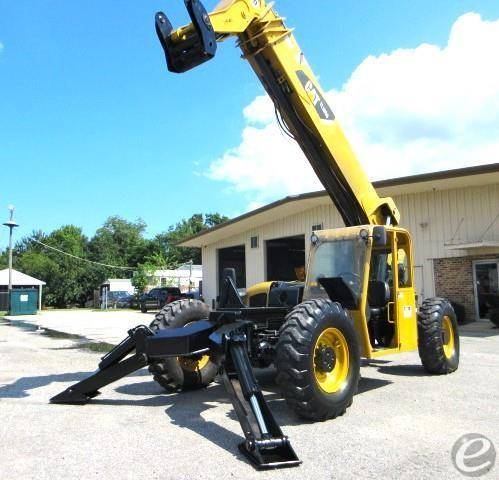

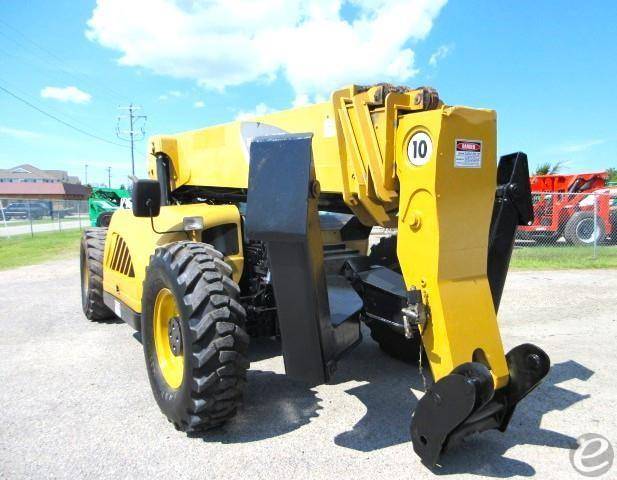

10,000 lb capacity, 55' lift height, 4 wdr, 3 way steer, will come with 48" fork carriage and your choice of forks, auxiliary hydraulics, air tires, Cat diesel engine, 4,594 hours

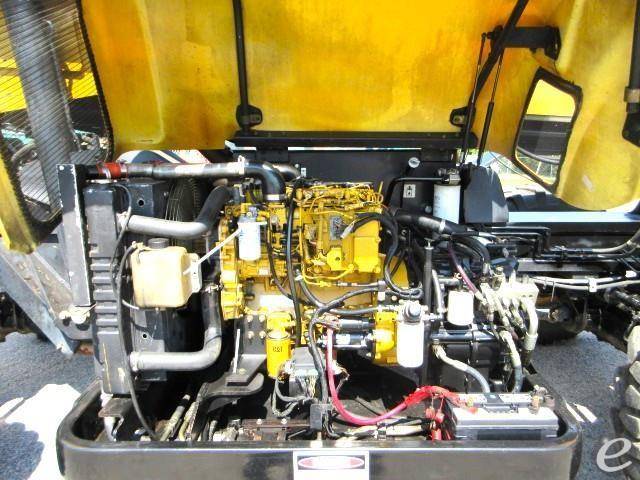

  • Engine
    • Model: Cat C4.4 ACERT
    • Gross Power: 142 hp (106 kW)
    • Net Power: 134 hp (100 kW)
    • Peak Torque: 458 lb-ft (620 Nm)
    • Emissions: Tier 4 Final/Stage IV
  • Weights
    • Operating Weight: 37,451 lb (16,983 kg)
    • Maximum Load Capacity: 10,000 lb (4,536 kg)
  • Dimensions
    • Maximum Lift Height: 54 ft 11 in (16.73 m)
    • Maximum Forward Reach: 42 ft (12.8 m)
    • Overall Length (with Forks): 21 ft 4 in (6.5 m)
    • Overall Width: 8 ft (2.44 m)
    • Overall Height: 8 ft 1 in (2.47 m)
  • Transmission
    • Type: Powershift
    • Forward Gears: 4
    • Reverse Gears: 3
    • Max Forward Speed: 20.7 mph (33.3 km/h)
  • Hydraulic System
    • System Type: Load Sensing
    • Pump Flow: 47.6 gal/min (180 L/min)
    • Operating Pressure: 3,626 psi (25,000 kPa)
  • Steering and Axles
    • Steering Type: 4-Wheel Hydrostatic Steering
    • Oscillating Rear Axle: 8 Degrees

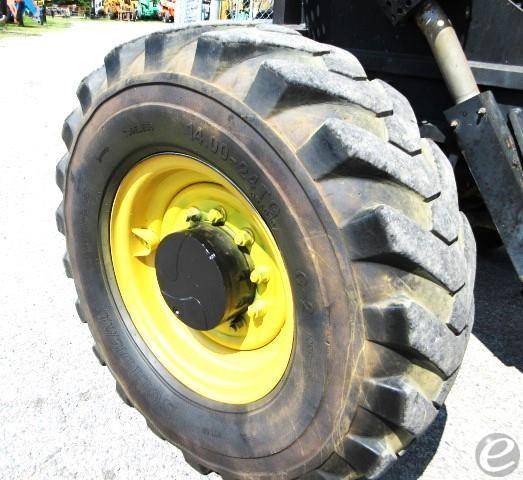

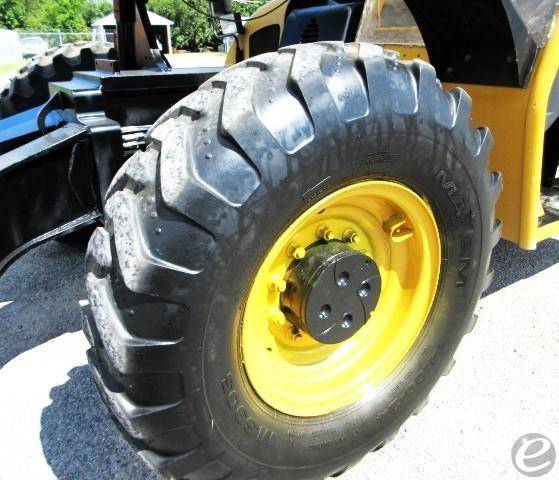

  • Tires

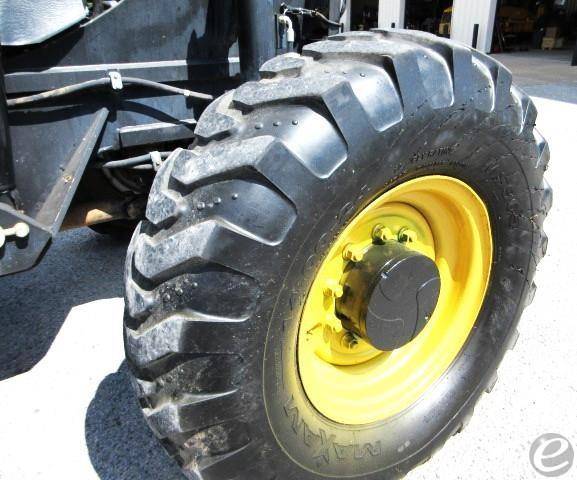

    • Standard Size: 13.00-24 12-ply
  • Brakes
    • Type: Service, Enclosed Wet Disc
    • Parking Brakes: Mechanically Actuated

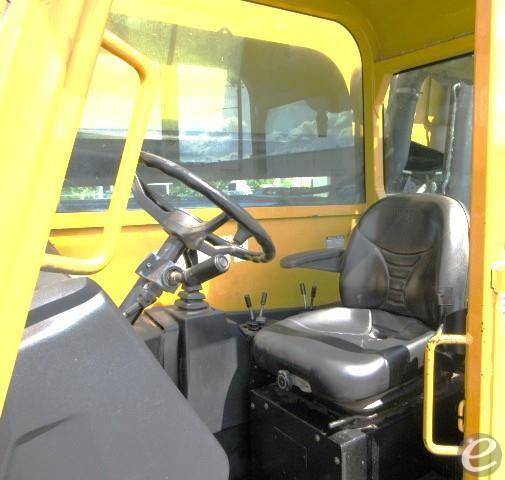

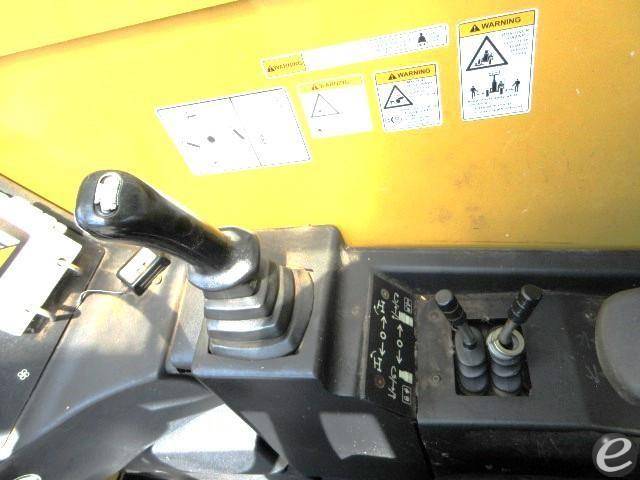

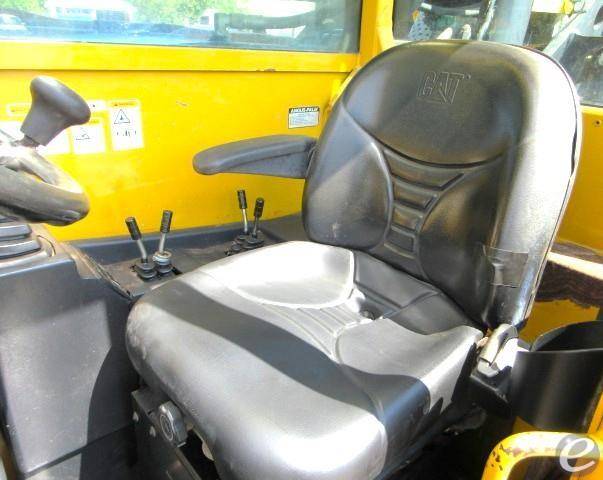

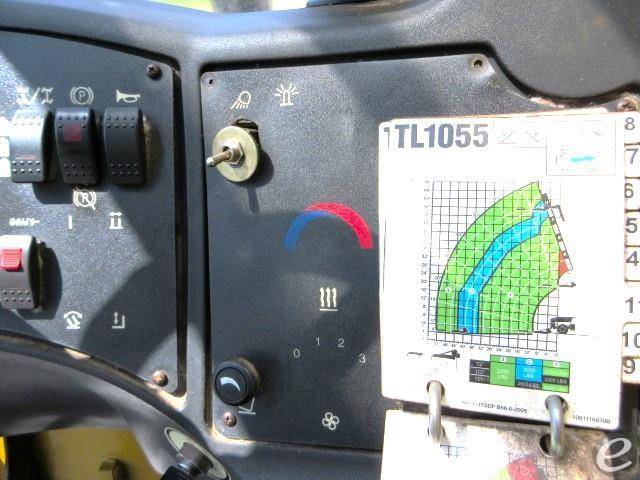

  • Cab
    • ROPS/FOPS Certified
    • Air Conditioning: Optional
