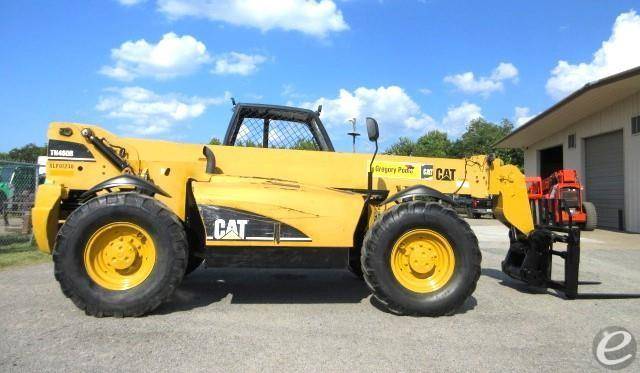

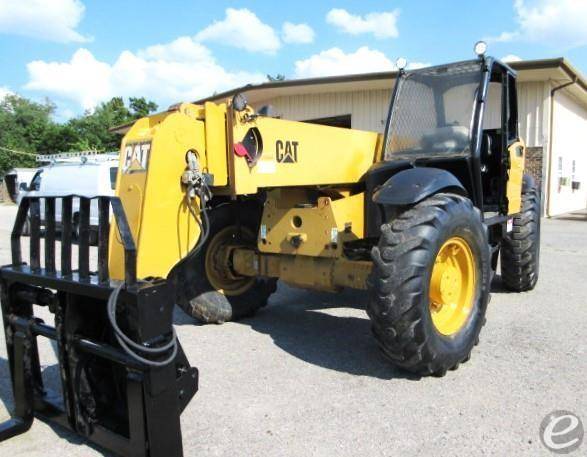

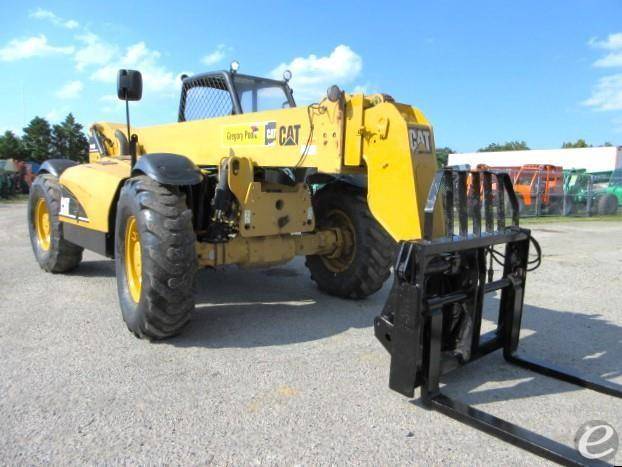

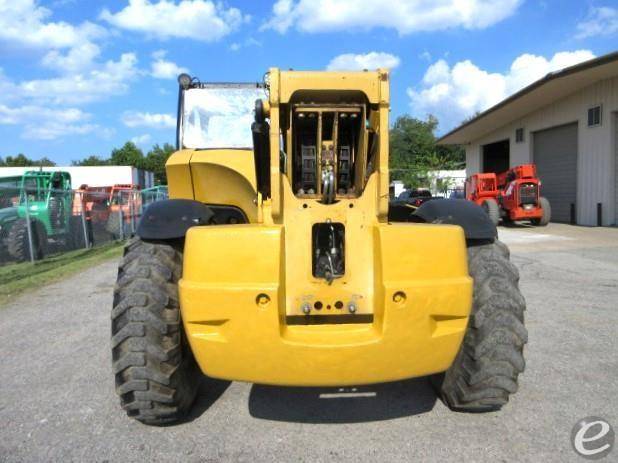

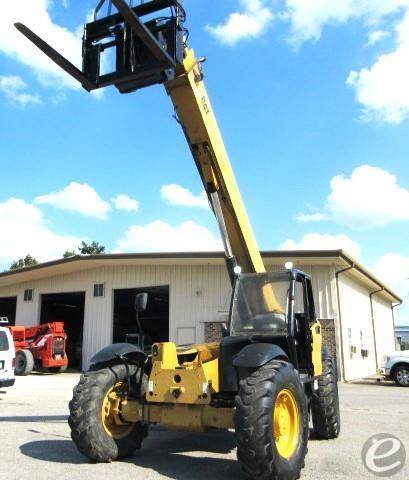

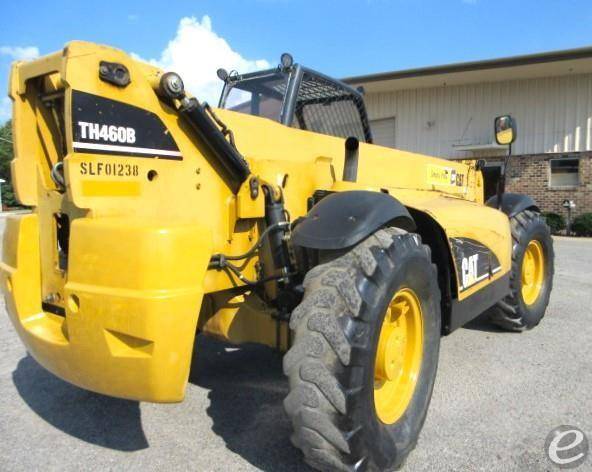

2005 Diesel Cat TH460B Telehandlers (Telescopic Mast)

$35,000 USD
Contact Information
CONTACT :
Jon Bordeaux
PHONE :
FAX :
Stock #:
2596 S
YEAR:
2005
Manufacturer:
MODEL #:
POWER:
Diesel
Height:
44 ft
CAPACITY:
9000

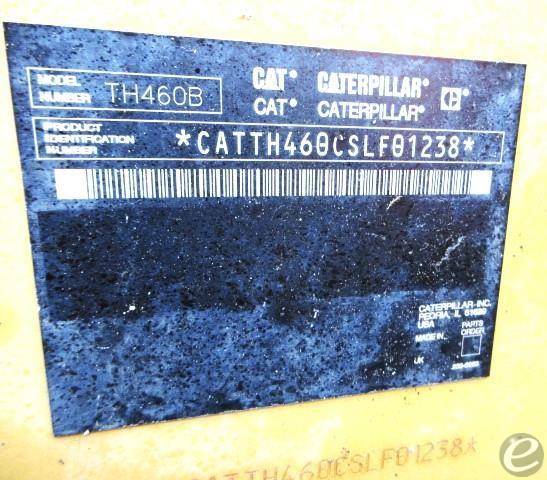

SERIAL #:
CATTH460CSLF01238
CONDITION:
Used
HOUR METER:
8399
LOCATION:
Equipment Description:

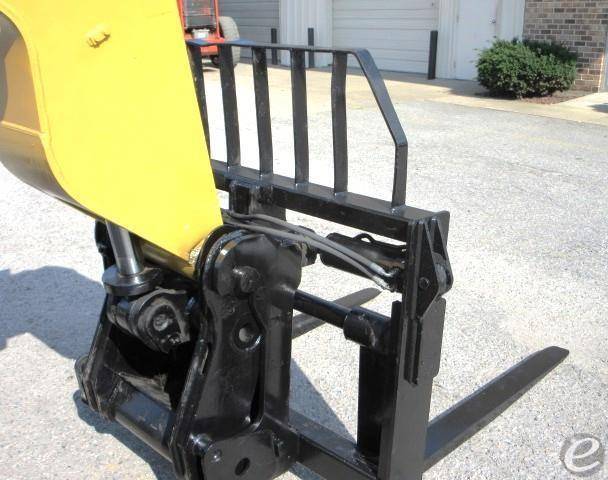

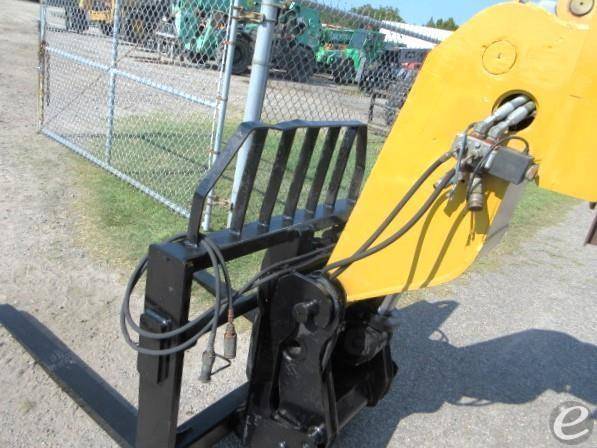

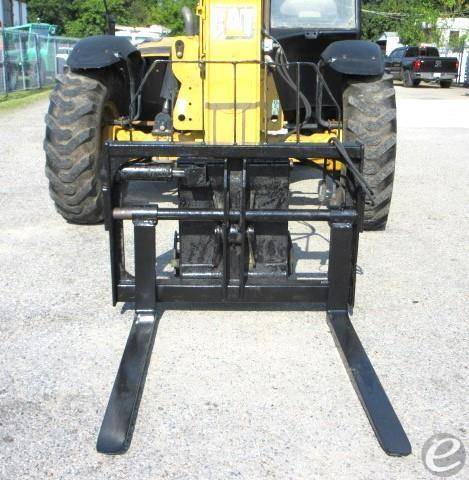

9,000 lb capacity, 44'lift height, auxiliary hydraulics, 4wdr, 3 way steering, 48" fork carriage, 48" forks, air tires, Cat 3054E diesel engine, 8,399 hours

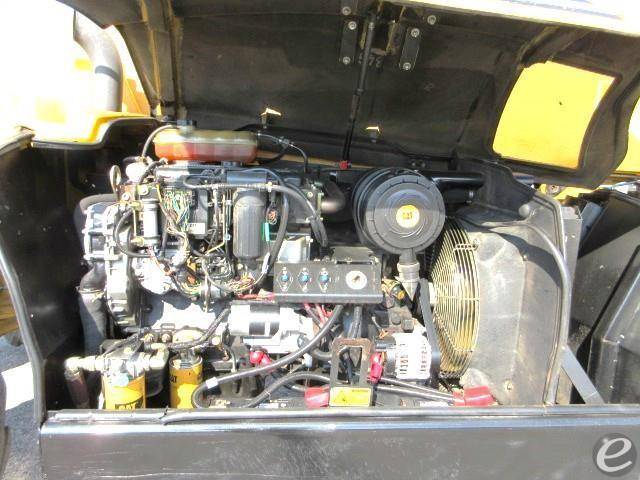

  • Engine
    • Model: Cat® 3054C DIT
    • Net Power: 101 hp (75 kW)
    • Gross Power: 104 hp (77.6 kW)
    • Bore: 4.13 in (105 mm)
    • Stroke: 5 in (127 mm)
    • Displacement: 269 in³ (4.4 L)
  • Operational Specifications
    • Rated Load Capacity: 8,500 lb (3,855 kg)
    • Maximum Lift Height: 23.1 ft (7.06 m)
    • Maximum Forward Reach: 13.8 ft (4.19 m)
    • Turning Radius Over Tires: 12.8 ft (3.9 m)
    • Drawbar Pull: 17,000 lb (75.6 kN)
  • Dimensions
    • Length to Front of Carriage: 17.3 ft (5.28 m)
    • Wheelbase: 10.6 ft (3.23 m)
    • Width Over Tires: 7.8 ft (2.38 m)
    • Height: 8.3 ft (2.53 m)
    • Ground Clearance: 1.5 ft (0.46 m)
  • Weights
    • Operating Weight: 21,014 lb (9,532 kg)

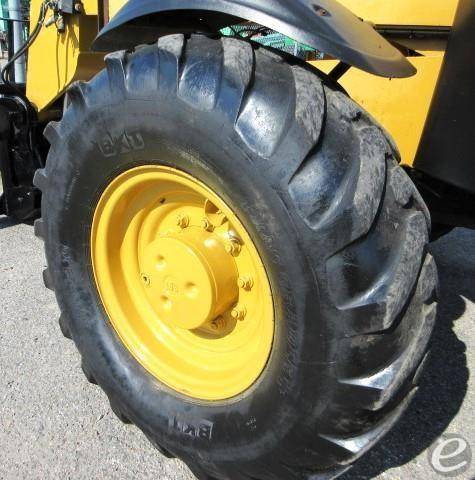

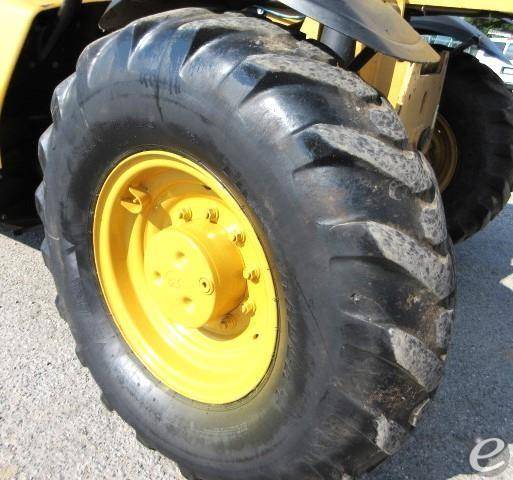

  • Tires

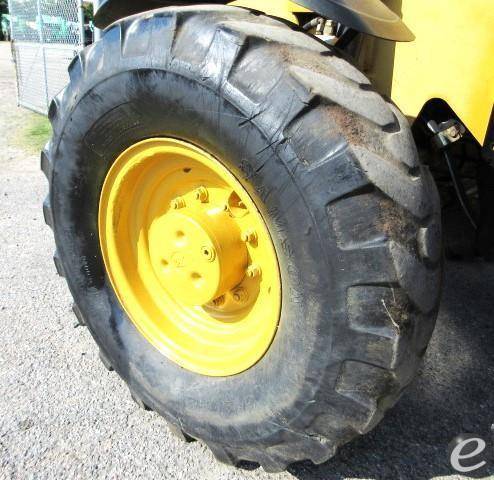

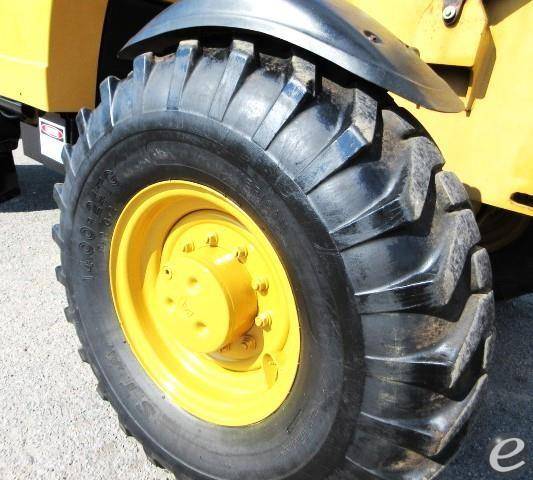

    • Standard Tires: 13.00 x 24
  • Transmission

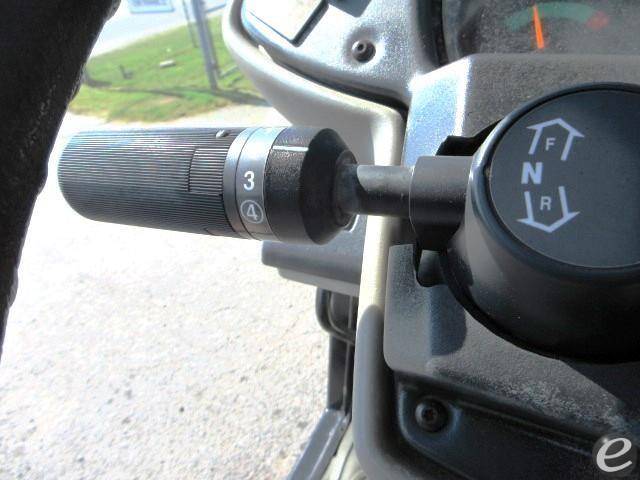

    • Type: Power Shift
    • Forward Gears: 4
    • Reverse Gears: 3
    • Maximum Travel Speed: 20 mph (32 km/h)
  • Hydraulic System
    • System Pressure: 3,626 psi (25,000 kPa)
    • Pump Flow: 32 gal/min (120 L/min)
  • Brakes
    • Service Brakes: Wet Disc
    • Parking Brakes: Mechanical on Transmission
  • Steering
    • Type: Hydraulic
    • Steering Modes: 3 (2-wheel, 4-wheel, crab steer)
