Equipment Description:

Noblelift Scissor Lift • 26' Lift Ht 45" Width • 500LB Load Capacity • 24V Battery Pack W/ Built in Charger • Accessory Power to Platform • View Brochure Here: https://tinyurl.com/3vaw4maj

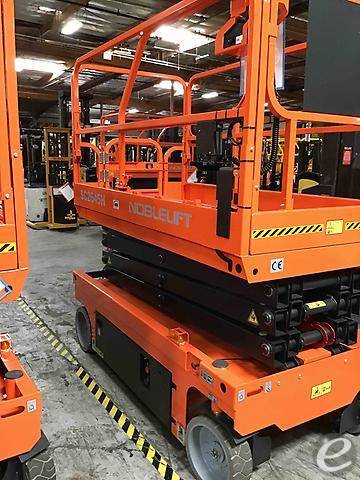

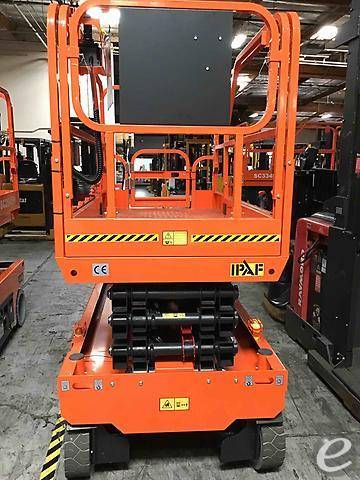

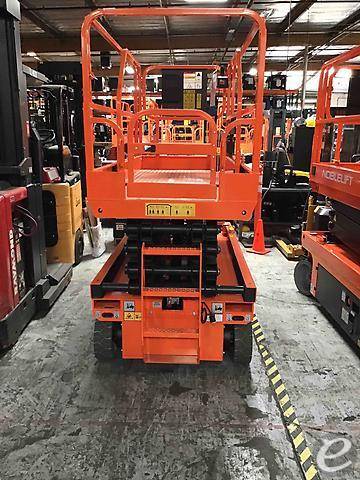

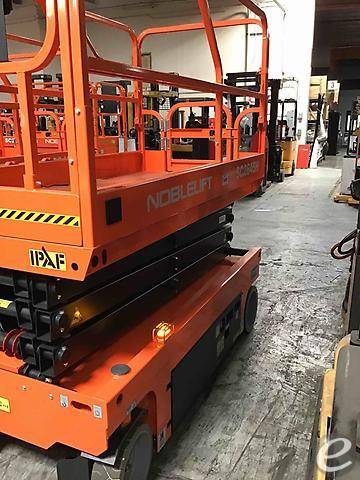

2021 Electric Noblelift SC2645H

$21,500 USD

Instant Quote Eligible Listing - CLICK HERE!

Contact Information

Big Joe Handling Systems
25932 Eden Landing Rd
Hayward, California 94545

CONTACT :

Sales Dept

PHONE :

510-617-1990

Stock #:

227075

YEAR:

2021

Manufacturer:

Noblelift

MODEL #:

SC2645H

Height:

FUEL:

Electric

SERIAL #:

90210300096

CONDITION:

Used

HOUR METER:

LOCATION:

California [94545]

Equipment Description:

Noblelift Scissor Lift • 26' Lift Ht 45" Width • 500LB Load Capacity • 24V Battery Pack W/ Built in Charger • Accessory Power to Platform • View Brochure Here: https://tinyurl.com/3vaw4maj

This product was posted on 12/10/2024

Model: Noblelift SC2645H
Type: Electric Scissor Lift
Lift Capacity: 1,000 lbs (454 kg)
Max Platform Height: 26 ft (7.92 m)
Max Working Height: 32 ft (9.75 m)
Platform Dimensions:
- Length: 89.1 in (2.26 m)
- Width: 45.3 in (1.15 m)
- Extended Platform Length: 113.1 in (2.87 m)
Drive Speed: Up to 3.0 mph (4.8 km/h)
Turning Radius: 74.8 in (1.9 m)

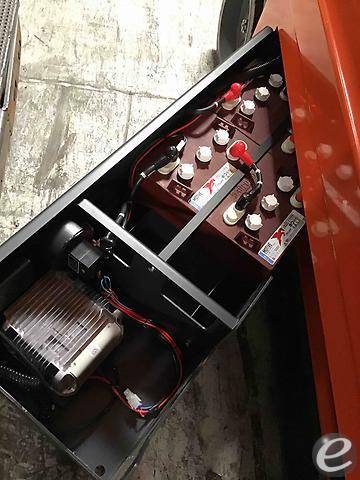

Power Source: 24V DC battery
Batteries: Four 6V 225Ah batteries
Charger: 25A automatic charger
Control System: Proportional control for lift and drive
Drive System: Dual front-wheel hydraulic drive motors
Braking System: Dual rear wheel regenerative breaking and disc brakes
Gradeability: 25%
Weight: 5,400 lbs (2,449 kg)
Overall Height (Stowed): 91.3 in (2.32 m)
Overall Length: 89.8 in (2.28 m)
Tires: Solid non-marking tires
Ground Clearance: 3.54 in (0.09 m)
Hydraulic System:
- Capacity: 7.95 gal (30.1 L)
Standard Features:
- Fold-down guardrails
- Removable platform control box
- Emergency stop button
- Hour meter
- Battery charge indicator
- Horn
- Low voltage alarm
