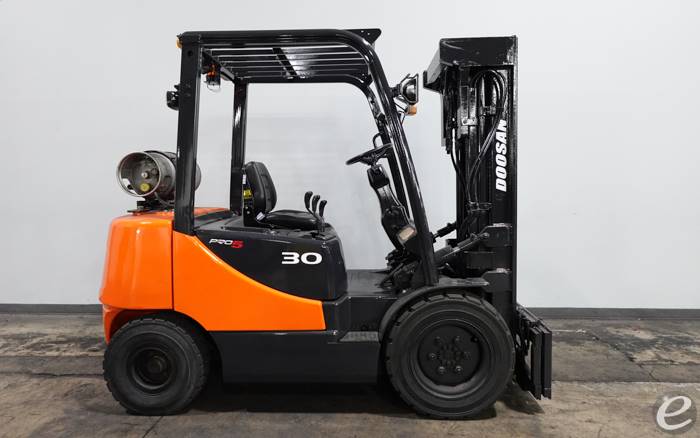

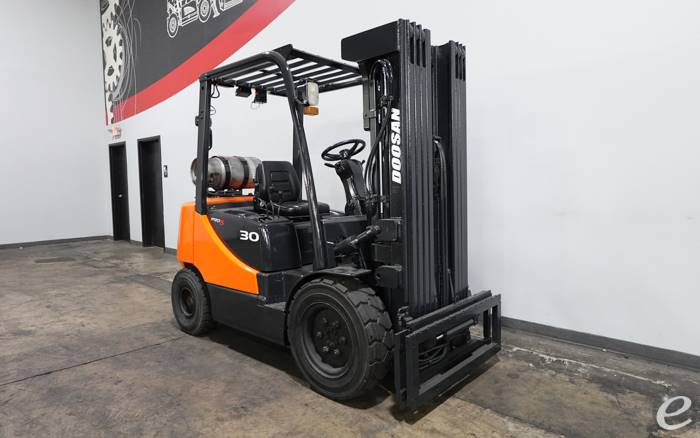

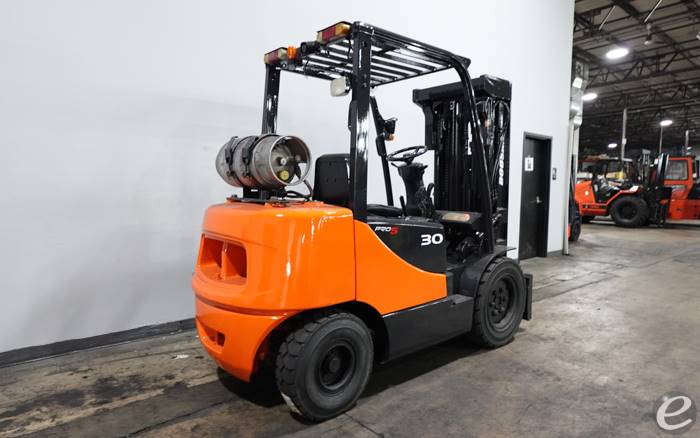

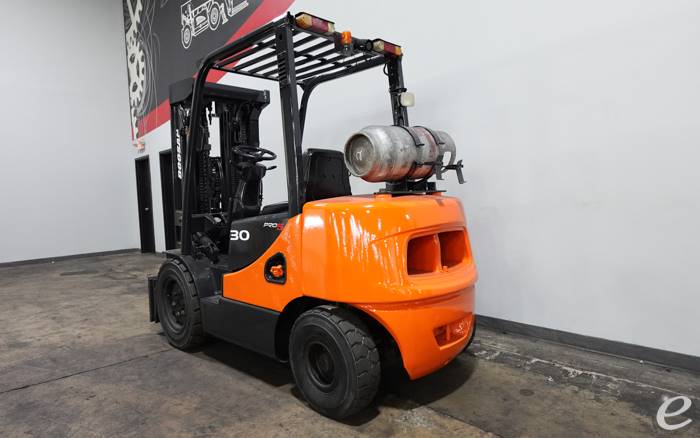

2010 LP Gas Doosan G30P-5 Pneumatic Tire 4 Wheel Sit Down

Call for price
Contact Information
Illinois Lift Equipment
640 Industrial Dr
Cary, Illinois 60013
CONTACT :
John Hellyer
PHONE :
Stock #:
13089
YEAR:
2010
Manufacturer:
MODEL #:
CAPACITY:
6000
FUEL:
LP Gas
MAST TYPE:
Quad Mast
MAST HEIGHT:
84 / 240 in
CONDITION:
Used
LOCATION:
DESCRIPTION:
6000LB CAPACITY 4 STAGE MAST 84" LOWERED 240" RAISED
Equipment Description:
6000LB CAPACITY 4 STAGE MAST 84" LOWERED 240" RAISED LPG FUEL PNEUMATIC TIRES 3 WAY HYDRAULICS FORKS
  • General Specifications
    • Model: Doosan G30P-5
    • Power Type: LPG
    • Operator Type: Seated Rider
    • Capacity: 6,000 lbs (3,000 kg)
    • Load Center: 24 inches
  • Engine Specifications
    • Engine Model: PSI 4.3L
    • Rated Power: 72 hp (54 kW) @ 2,350 rpm
    • Displacement: 4.3L
    • Fuel System: LPG
  • Dimensions and Weight
    • Overall Length (without forks): 107.1 inches
    • Overall Width: 48 inches
    • Overall Height: 85 inches (top of overhead guard)
    • Wheelbase: 70.1 inches
    • Minimum Ground Clearance: 4.7 inches
    • Weight: Approximately 9,520 lbs
  • Performance
    • Maximum Travel Speed: 11.8 mph
    • Lifting Speed (Loaded): 118 feet per minute
    • Lifting Speed (Unloaded): 126 feet per minute
    • Lowering Speed (Loaded): 102 feet per minute
    • Lowering Speed (Unloaded): 98 feet per minute
  • Mast Specifications
    • Standard Mast Type: 2-stage
    • Maximum Fork Height: 118 inches
    • Free Lift Height: 5 inches
    • Overall Lowered Height: 88 inches
    • Tilt Angle: 6 degrees forward and 10 degrees backward
  • Tires
    • Tire Type: Pneumatic
    • Front Tires: 7.00-12
    • Rear Tires: 6.00-9
  • Hydraulics and Brakes
    • Hydraulic System Pressure: 2,750 psi
    • Brake Type: Wet disc brakes
  • Additional Features
    • Operator Presence Sensing System
    • Ergonomic Design with Adjustable Seat
    • Easy-to-Read Integrated Instrument Panel
    • Hydrostatic Power Steering
    • Rear-View Mirrors
