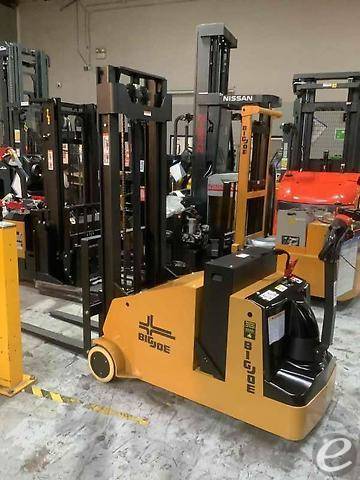

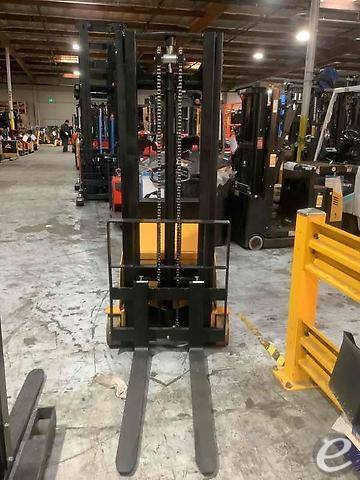

2022 Electric Big Joe CB-22-128 Electric Walkie Straddle Stacker

$17,995 USDNew
Contact Information
Big Joe Handling Systems
25932 Eden Landing Rd
Hayward, California 94545
CONTACT :
Sales Dept
PHONE :
Stock #:
329815
YEAR:
2022
Manufacturer:
MODEL #:
CAPACITY:
2200
FUEL:
Electric
MAST TYPE:
Two Stage
MAST HEIGHT:
83 / 128 in
SERIAL #:
3311600653
SIDE SHIFTER:
Yes
CONDITION:
New
HOUR METER:
7
LOCATION:
Equipment Description:
Big Joe Counterbalance Stacker • 2200 Lbs Capacity • 128" Lifting Height • 24v Battery Pack w/ Built in Charger • Control Handle with Thumb Drive Function • Fingertip Lift and Lower Function • Tilting Carriage • View Specs Here: https://tinyurl.com/msw4avm9
  • Brand: Big Joe
  • Model: CB-22-128
    • Load Capacity: 2,200 lbs
    • Lift Height: 128 inches
    • Fork Dimensions:
      • Fork Length: 42 inches
      • Fork Width: Variable
      • Fork Thickness: 1.5 inches
    • Battery:
      • Battery Type: 24V Lead Acid
      • Battery Capacity: 195 Ah
    • Drive Motor:
      • Type: AC Motor
    • Travel Speed:
      • Loaded: 3.1 mph
      • Unloaded: 3.4 mph
    • Lift Speed:
      • Loaded: 32 fpm
      • Unloaded: 55 fpm
    • Lowering Speed:
      • Loaded: 47 fpm
      • Unloaded: 42 fpm
    • Gradeability:
      • Loaded: 6%
      • Unloaded: 10%
    • Overall Dimensions:
      • Length: 75 inches
      • Width: 32 inches
      • Height: 84 inches
    • Wheelbase: 47 inches
    • Turning Radius: 58 inches
    • Weight: 3,400 lbs (with battery)
