Equipment Description:

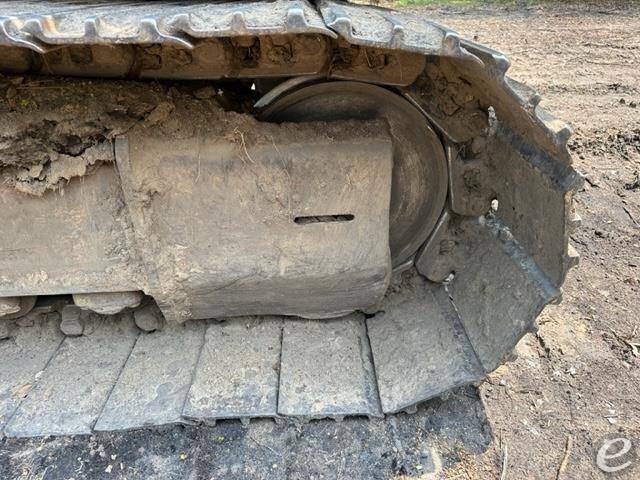

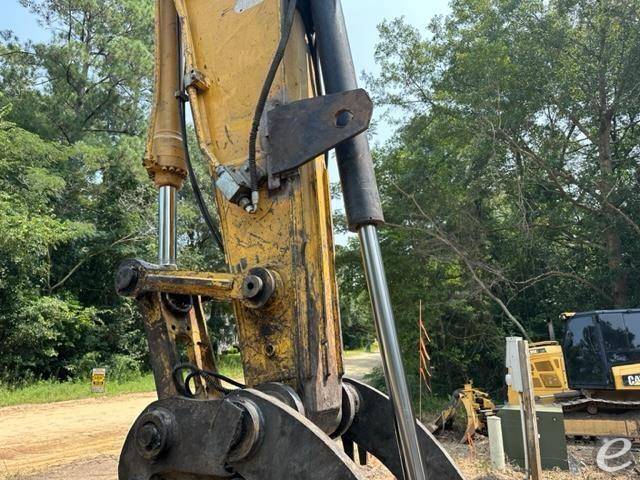

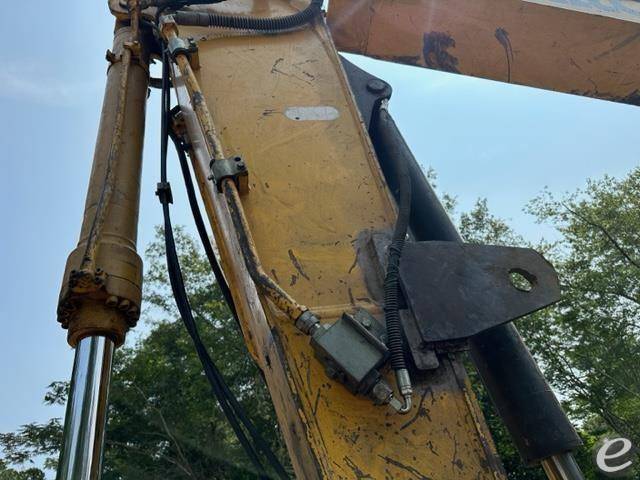

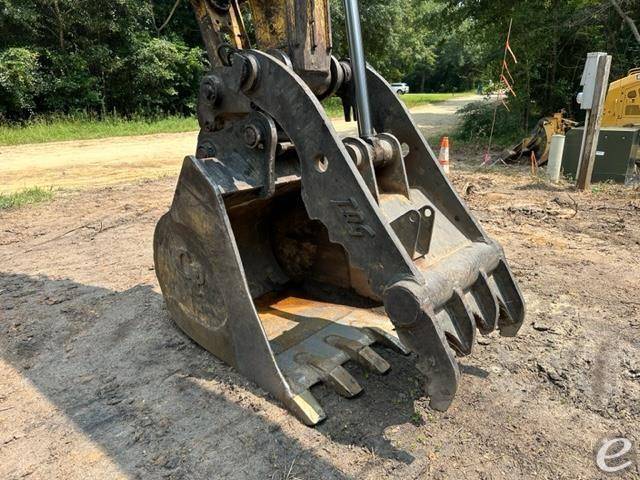

CAB WITH AC, HYDRAULIC THUMB WITH BUCKET, UNDERCARRIAGE AT 60%, NEEDS A LITTLE TLC BUT RUNS GOOD DENIS CIMAF MULCHING HEAD AVAILABLE FOR THIS MACHINE FOR 39,900

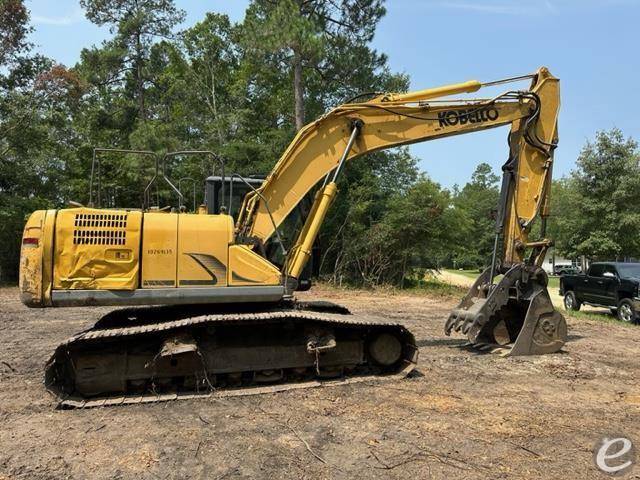

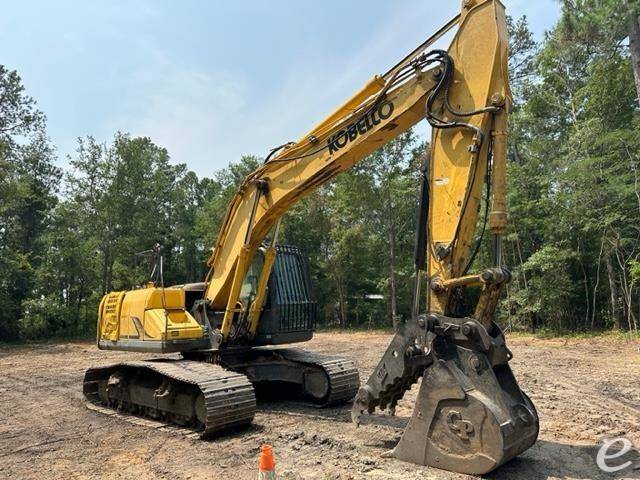

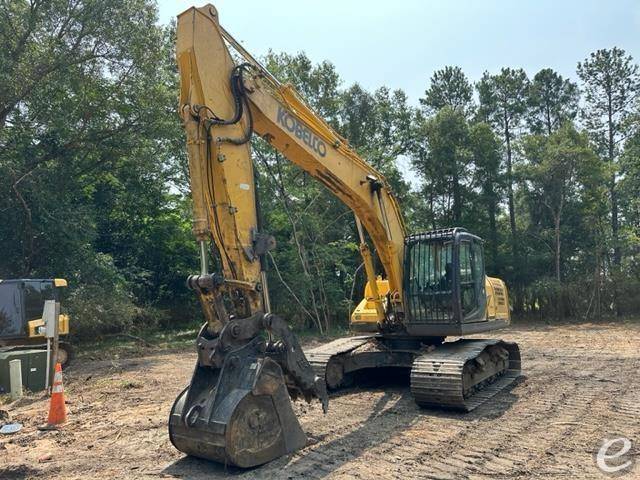

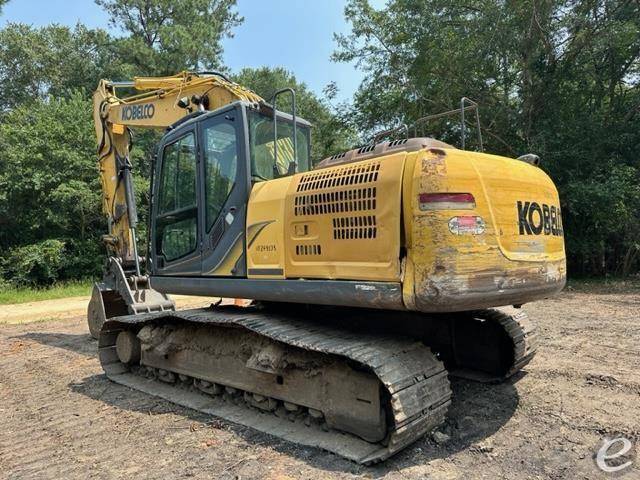

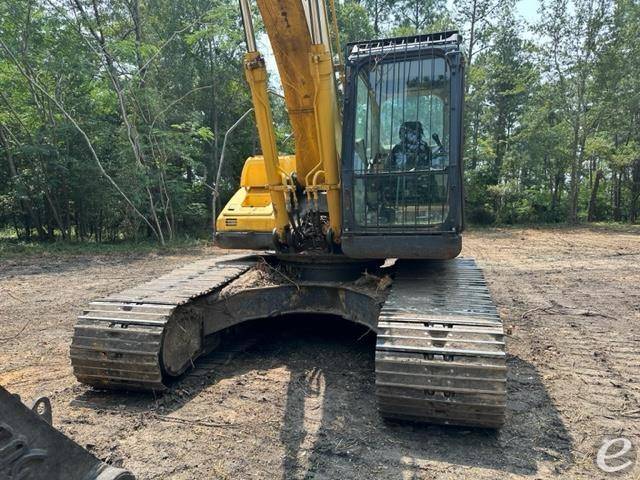

2014 Kobelco SK210 ACERA MARK 9 Earth Moving and Construction

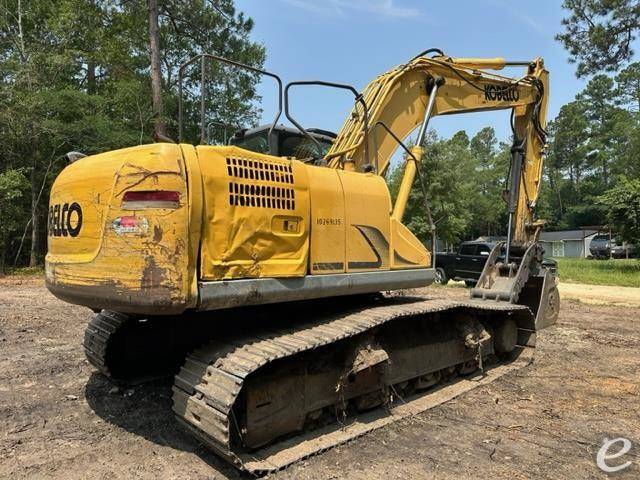

Name: 2014 Kobelco SK210 ACERA MARK 9
Brand: Kobelco
SKU: 14549
Price: 79900 USD
Availability: InStock

$79,900 USD

Instant Quote Eligible Listing - CLICK HERE!

Contact Information

4M Iron
344 Winningham Road,
St. George, South Carolina 29477

CONTACT :

Mike Finley

PHONE :

843-594-0077

Stock #:

14549

YEAR:

2014

Manufacturer:

Kobelco

MODEL #:

SK210 ACERA MARK 9

SUBCATEGORY:

Earth Moving and Construction

CONDITION:

Used

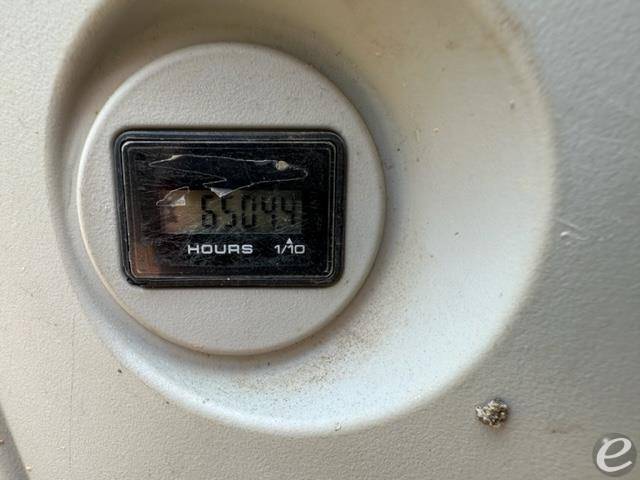

HOUR METER:

6504

LOCATION:

South Carolina [29477]

Equipment Description:

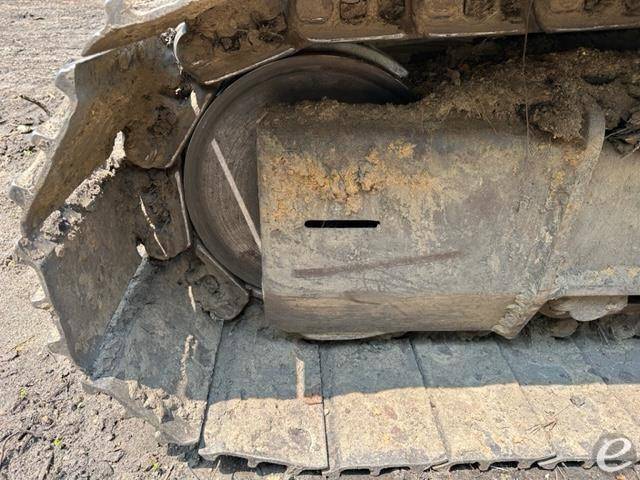

CAB WITH AC, HYDRAULIC THUMB WITH BUCKET, UNDERCARRIAGE AT 60%, NEEDS A LITTLE TLC BUT RUNS GOOD DENIS CIMAF MULCHING HEAD AVAILABLE FOR THIS MACHINE FOR 39,900

This product was posted on 10/28/2024

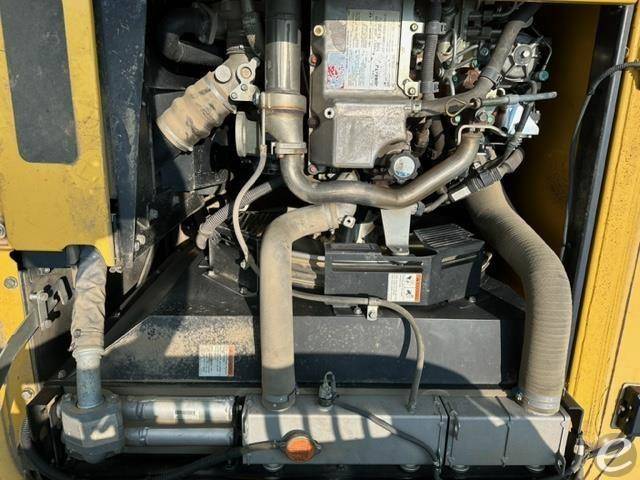

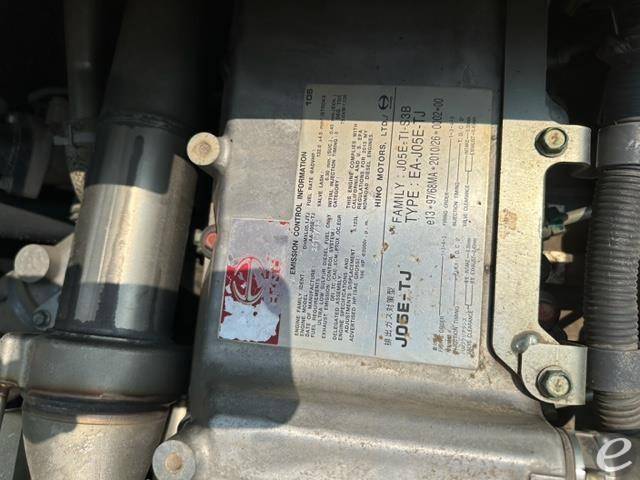

Engine
- Make: Hino
- Model: JO5E-T8
- Type: Diesel, 4-cycle, water-cooled, direct injection
- Net Horsepower: 138 hp (102 kW) at 2,000 rpm
- Displacement: 5.1 L (316 cu in)
- Fuel Tank Capacity: 400 liters (105.7 gallons)
Operating Weight
- Approximate Operating Weight: 21,600 kg (47,619 lbs)
Dimensions
- Overall Length: 9,670 mm (31 ft 8 in)
- Overall Width: 2,990 mm (9 ft 10 in)
- Overall Height: 3,060 mm (10 ft)
- Ground Clearance: 450 mm (17.7 in)

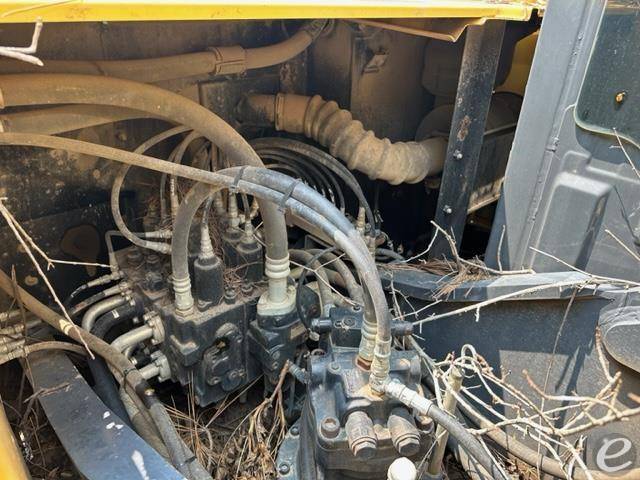

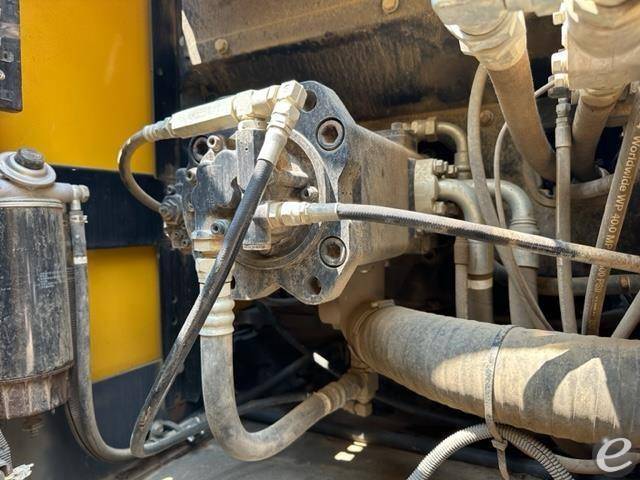

Hydraulic System
- Main Pumps: 2 variable displacement pumps, plus 1 gear pump
- Max Flow: 2 x 234 L/min (61.8 gal/min)
- Relief Valve Setting: 34.3 MPa (3,500 kgf/cm²)
Performance
- Max Digging Depth: 6,670 mm (21 ft 10 in)
- Max Reach at Ground Level: 9,790 mm (32 ft 2 in)
- Max Dumping Height: 7,030 mm (23 ft 1 in)
- Bucket Capacity: 0.8 m³ (1.0 yd³)

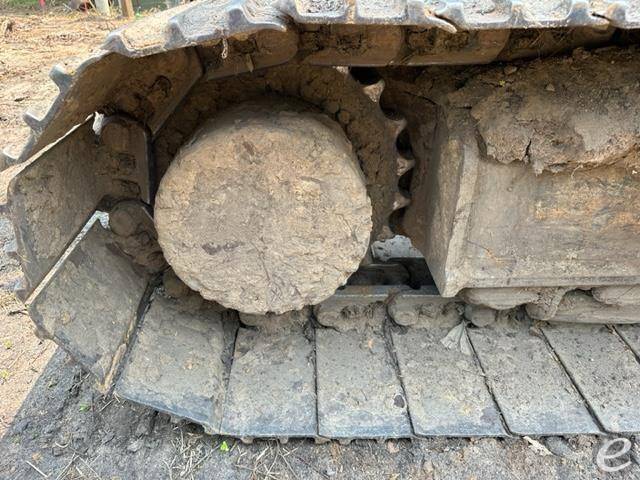

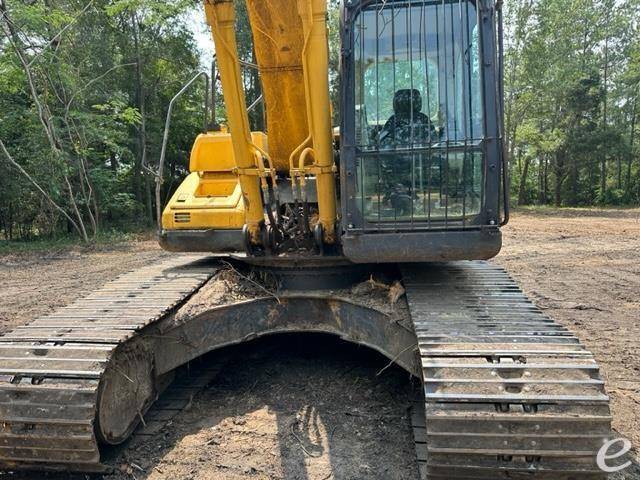

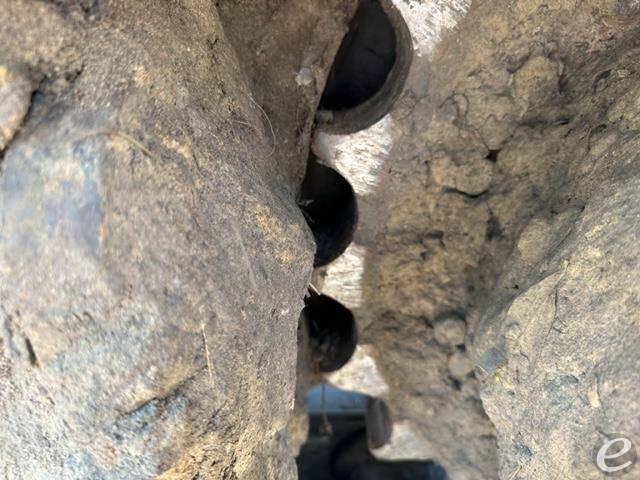

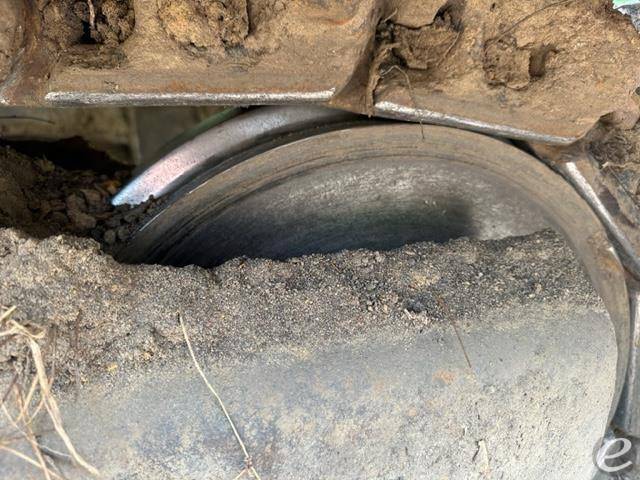

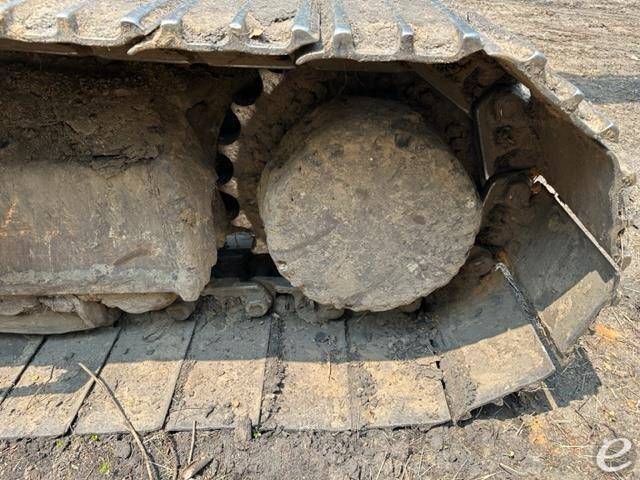

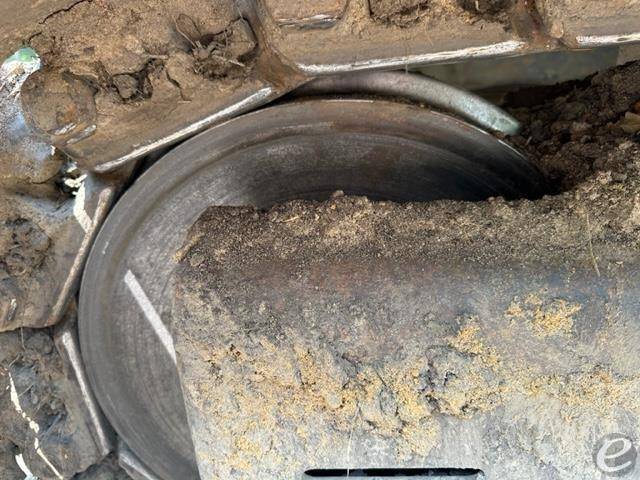

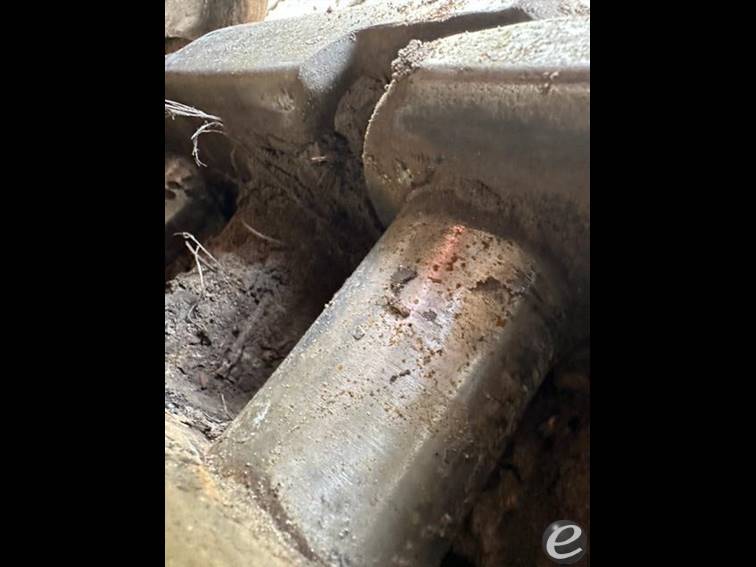

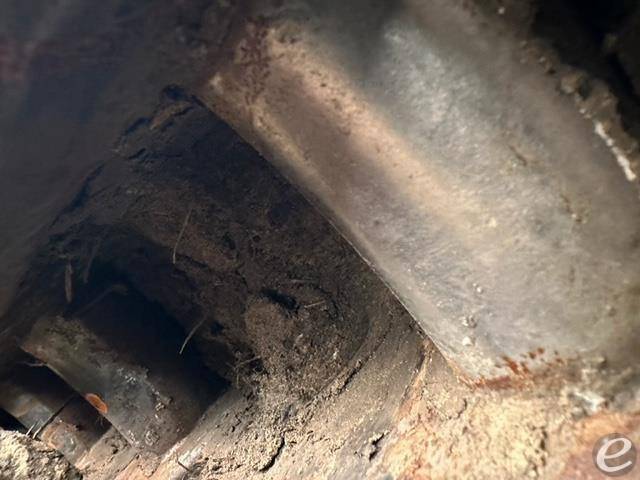

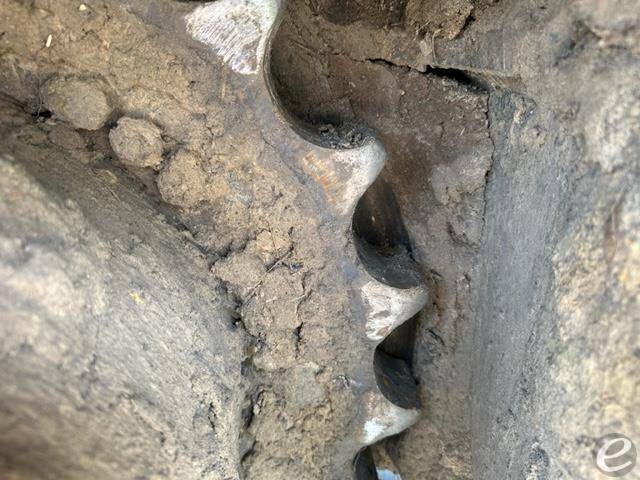

Undercarriage
- Shoe Width: 600 mm (24 in)
- Tumbler Distance: 3,650 mm (11 ft 11 in)
- Total Number of Rollers: 9 each side
- Track Gauge: 2,390 mm (7 ft 10 in)

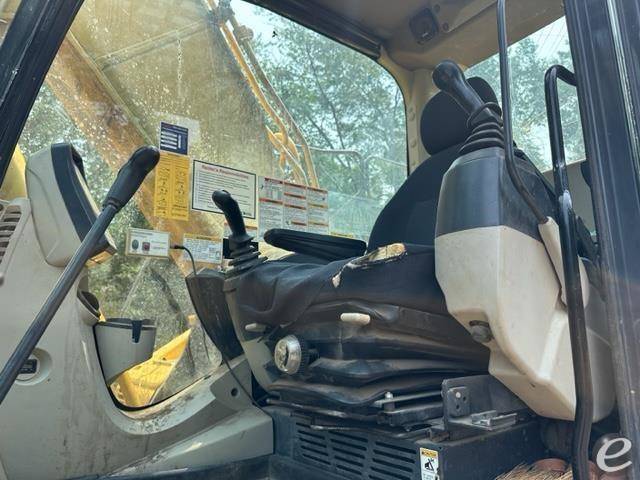

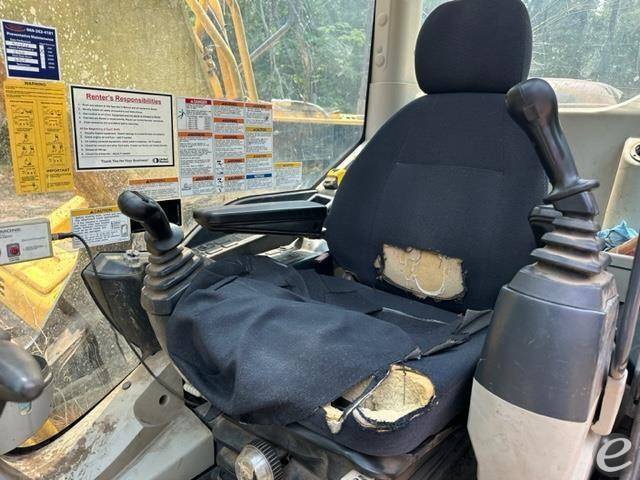

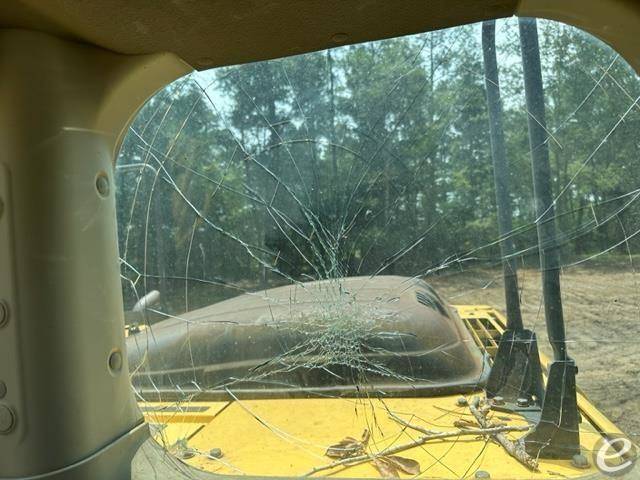

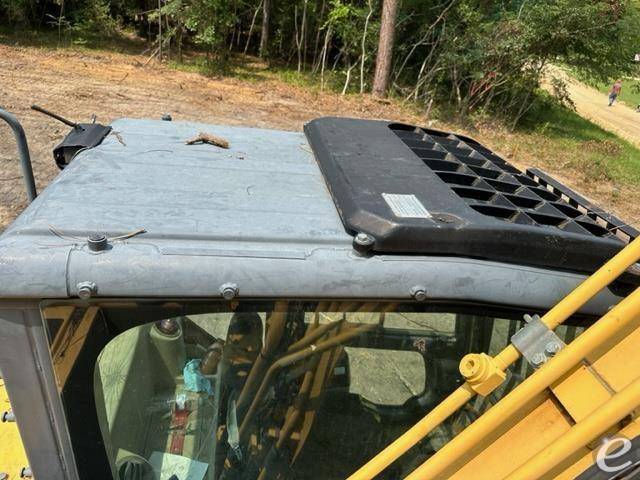

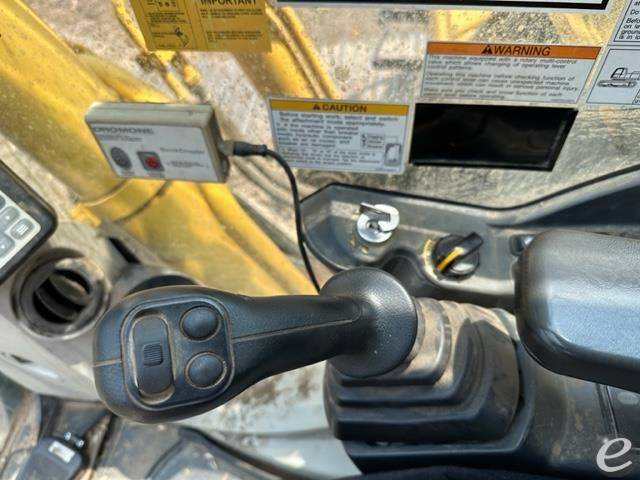

Operator's Cab
- Type: Enclosed with air-conditioning
- ROPS (Roll-Over Protective Structure) compliant
