Equipment Description:

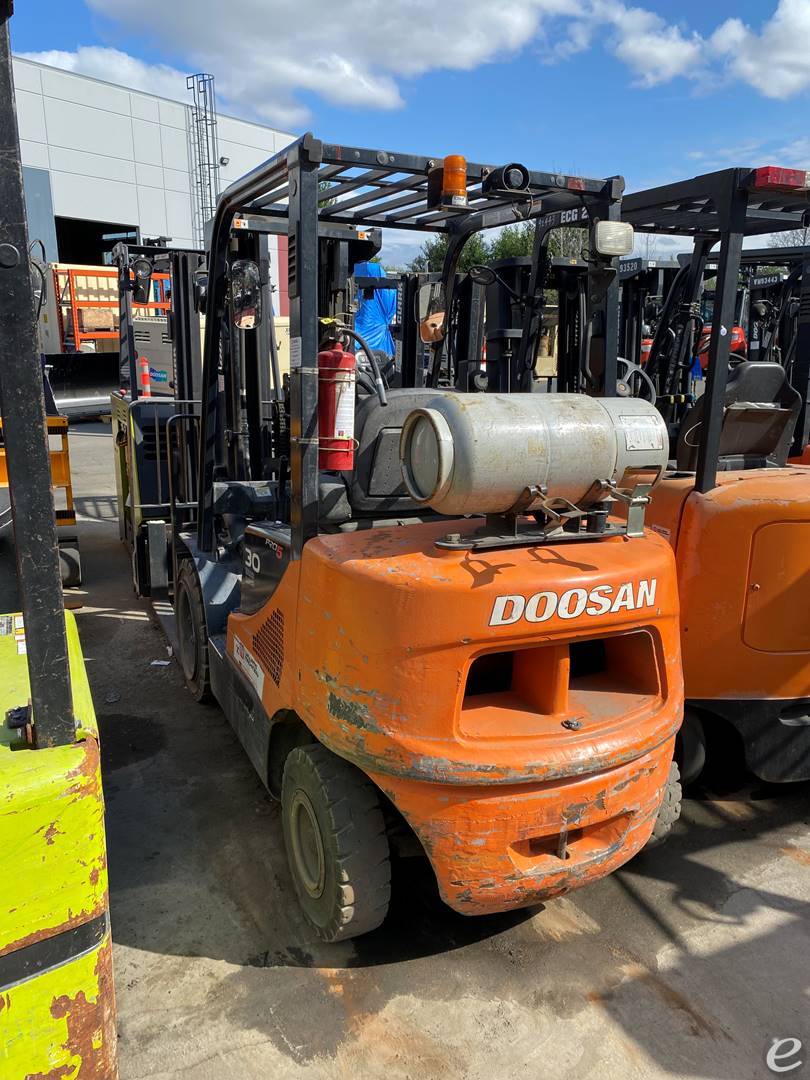

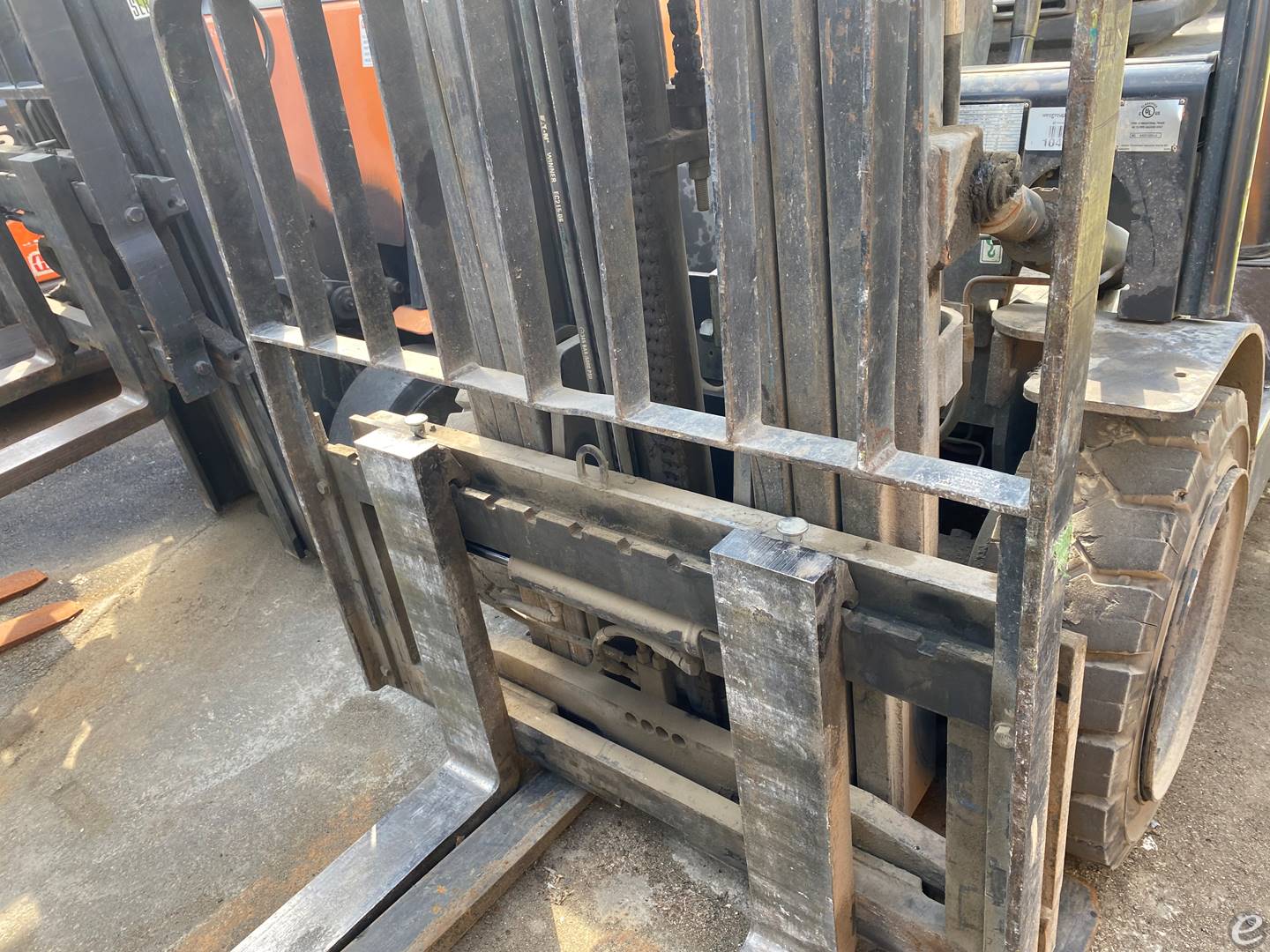

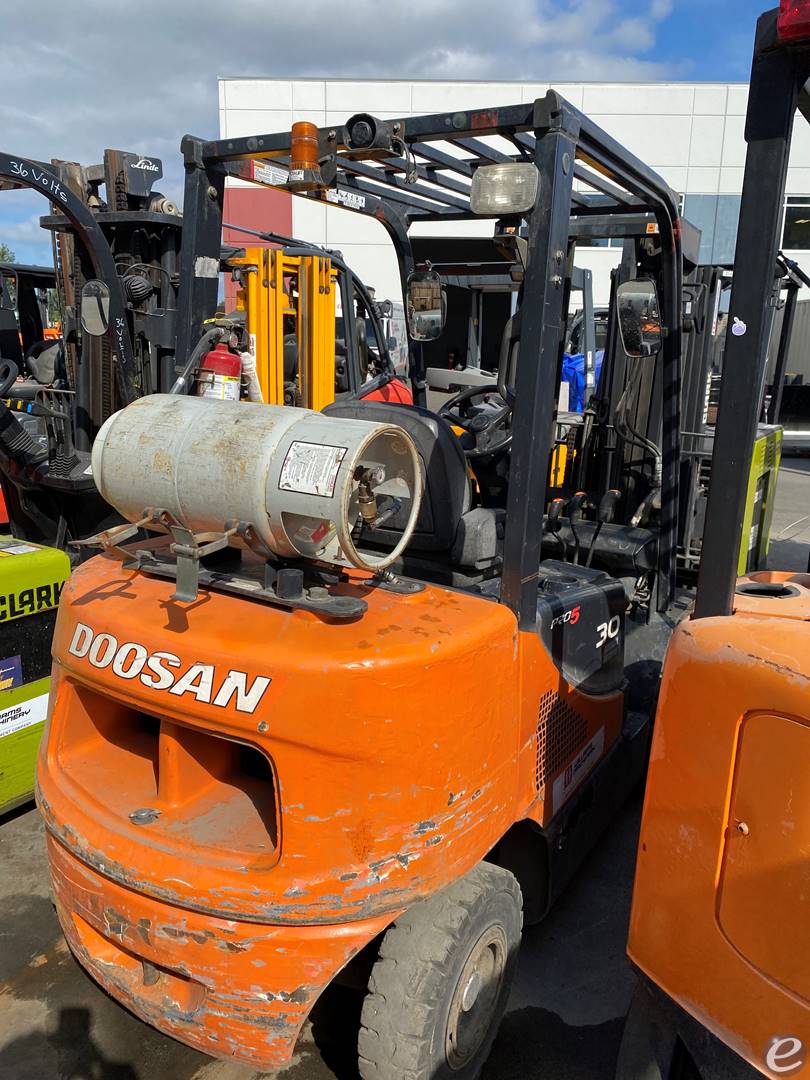

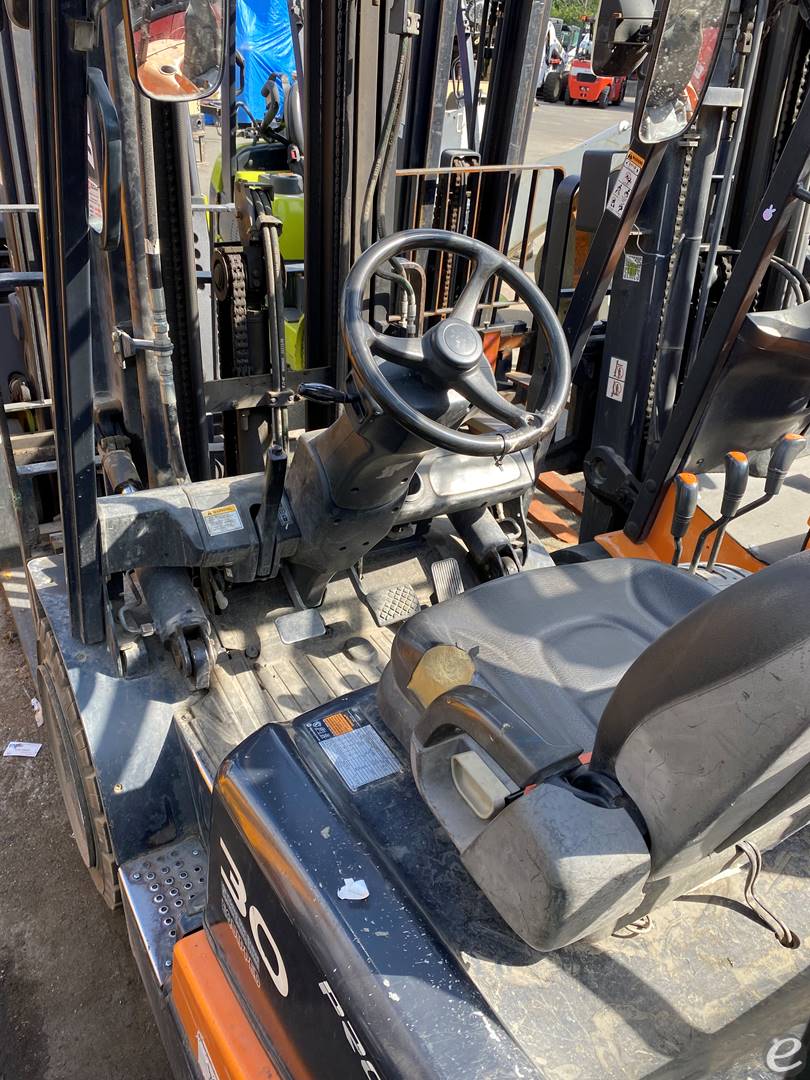

2015 Doosan G30P-5 with 4661 hours. Good running unit.

2015 LP Gas Doosan G30P-5 Pneumatic Tire 4 Wheel Sit Down

Call for price

Contact Information

Wesgroup Equipment LP
0240 Grace Rd
Surrey, British Columbia V3V 3V6

CONTACT :

Cristhian De la Pena

PHONE :

Stock #:

104555

YEAR:

2015

Manufacturer:

MODEL #:

CAPACITY:

6000

FUEL:

LP Gas

SUBCATEGORY:

MAST TYPE:

Three Stage

MAST HEIGHT:

86 / 189 in

SERIAL #:

FGB0K-1290-00127

SIDE SHIFTER:

Yes

CONDITION:

Used

HOUR METER:

4661

LOCATION:

DESCRIPTION:

2015 Doosan G30P-5 with 4661 hours.

Equipment Description:

2015 Doosan G30P-5 with 4661 hours. Good running unit.

This product was posted on 11/29/2024

General Specifications
- Model: Doosan G30P-5
- Power Type: LPG
- Operator Type: Seated Rider
- Capacity: 6,000 lbs (3,000 kg)
- Load Center: 24 inches
Engine Specifications
- Engine Model: PSI 4.3L
- Rated Power: 72 hp (54 kW) @ 2,350 rpm
- Displacement: 4.3L
- Fuel System: LPG
Dimensions and Weight
- Overall Length (without forks): 107.1 inches
- Overall Width: 48 inches
- Overall Height: 85 inches (top of overhead guard)
- Wheelbase: 70.1 inches
- Minimum Ground Clearance: 4.7 inches
- Weight: Approximately 9,520 lbs
Performance
- Maximum Travel Speed: 11.8 mph
- Lifting Speed (Loaded): 118 feet per minute
- Lifting Speed (Unloaded): 126 feet per minute
- Lowering Speed (Loaded): 102 feet per minute
- Lowering Speed (Unloaded): 98 feet per minute
Mast Specifications
- Standard Mast Type: 2-stage
- Maximum Fork Height: 118 inches
- Free Lift Height: 5 inches
- Overall Lowered Height: 88 inches
- Tilt Angle: 6 degrees forward and 10 degrees backward
Tires
- Tire Type: Pneumatic
- Front Tires: 7.00-12
- Rear Tires: 6.00-9
Hydraulics and Brakes
- Hydraulic System Pressure: 2,750 psi
- Brake Type: Wet disc brakes
Additional Features
- Operator Presence Sensing System
- Ergonomic Design with Adjustable Seat
- Easy-to-Read Integrated Instrument Panel
- Hydrostatic Power Steering
- Rear-View Mirrors
