2015 Diesel Cat TL943C Telehandlers (Telescopic Mast)

$104,900 USD
Contact Information
United Lift LLC
300 International Dr. Suite 100
Williamsville, New York 14221
CONTACT :
Arcangelo Capozzolo
PHONE :
FAX :
Stock #:
BF9842359-NLE
YEAR:
2015
Manufacturer:
MODEL #:
POWER:
Diesel
Height:
ft
CAPACITY:
9000
CONDITION:
Used
HOUR METER:
3610
LOCATION:
Equipment Description:

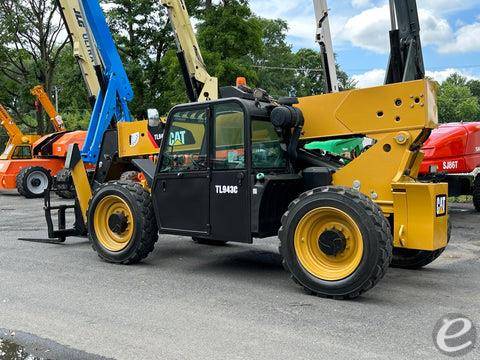

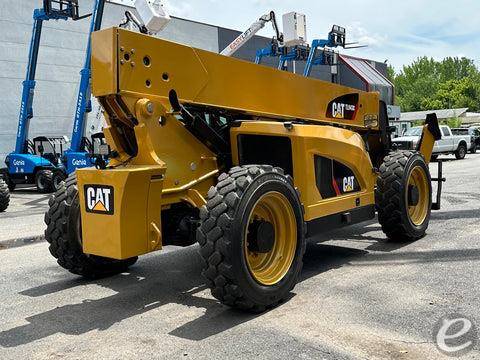

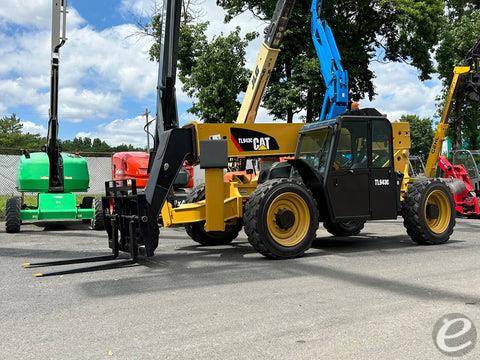

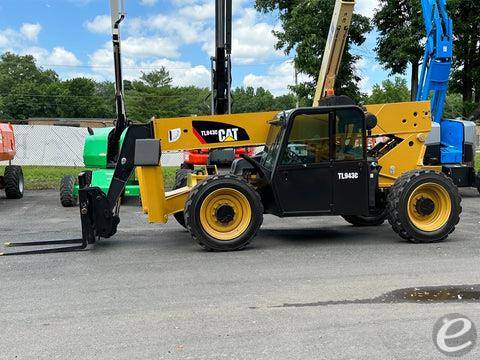

2015 CAT TL943C 9000 LB DIESEL TELESCOPIC FORKLIFT TELEHANDLER PNEUMATIC 4WD ENCLOSED CAB WITH HEAT AND AC OUTRIGGERS 3610 HOURS STOCK # BF9842359-NLE, Capacity: 9,000 LB, Hours: 3,610, Attachment: Outriggers, Cab Enclosure: Yes, Heat and A/C, File #: 139062, Additional Info: Fresh Paint, Fully Serviced, Ready to Work!Hydraulic Carriage Disconnect, 360 Degree Camera
  • Engine
    • Engine Model: Cat C3.4B
    • Gross Power: 111 hp (83 kW)
    • Net Power: 105 hp (78 kW)
    • Displacement: 207 cu in (3.4 l)
    • Bore: 3.9 in (99 mm)
    • Stroke: 4.3 in (110 mm)
  • Weights
    • Operating Weight: 32,000 lbs (14,515 kg)
  • Operating Specifications
    • Rated Load Capacity: 9,000 lbs (4,082 kg)
    • Maximum Lift Height: 43 ft (13.1 m)
    • Maximum Forward Reach: 30 ft (9.14 m)
    • Top Speed: 20 mph (32.2 kph)
    • Turning Radius (over tires): 12 ft (3.66 m)
  • Hydraulic System
    • Type: Load Sensing, Closed Center
    • System Pressure: 3,625 psi (250 bar)
    • Auxiliary Hydraulic Flow: 21 gal/min (80 l/min)
  • Transmission
    • Transmission Type: Power Shift
    • Number of Gears: 4 Forward / 3 Reverse
    • Selectable Work Modes
  • Brakes
    • Service Brakes: Wet Disc Brakes
    • Parking Brake: Spring Applied, Hydraulically Released
  • Fuel and Oil
    • Fuel Tank Capacity: 43 gal (163 l)
    • Hydraulic System Fluid Capacity: 38 gal (144 l)
  • Tires
    • Tires: 370/75-28 Air Filled
  • Dimensions
    • Overall Length: 20 ft (6.09 m)
    • Overall Width: 8 ft (2.44 m)
    • Overall Height: 8 ft (2.44 m)
    • Wheelbase: 11 ft (3.35 m)
    • Ground Clearance: 1.3 ft (0.39 m)
