2022 LP Gas Baoli KBG25 Pneumatic Tire 4 Wheel Sit Down

$35,995 USD
Contact Information
Big Joe Handling Systems
25932 Eden Landing Rd
Hayward, California 94545
CONTACT :
Sales Dept
PHONE :
Stock #:
333641
YEAR:
2022
Manufacturer:
MODEL #:
CAPACITY:
5000
FUEL:
LP Gas
MAST TYPE:
Three Stage
MAST HEIGHT:
87 / 188 in
SERIAL #:
B16010L00524
SIDE SHIFTER:
Yes
CONDITION:
Used
HOUR METER:
574
LOCATION:
Equipment Description:

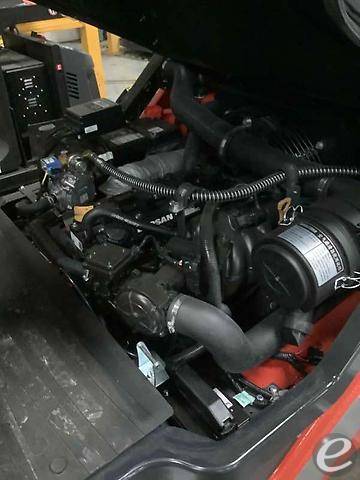

-Baoli 5,000 lb pneumatic forklift -IMPCO K25 Engine Pneumatic tires -Cab configurable, 83" high overhead guard -Entry grip on overhead guard -Left and right external rear-view mirrors -Three individual hydraulic control levers -Three function valve and reeving -Neoprene mounted steer axle -Tilting, adjustable steering column -Comfort suspension seat with orange seat belt -Seatbelt interlock -Rear road lights (brake, reverse, turn signals) -LED twin spotlights forward - OHG-mounted -Reflective silver stripe and rear logo decal -Back-up alarm and strobe light -Swing down LPG bottle bracket -High air intake -Rear pillar assist handle with horn -View Specs Here: https://shorturl.at/pt235
  • Engine
    • Engine Type: LPG/Gasoline
    • Model: Nissan K21
    • Rated Power: 34.5 kW
    • Engine Displacement: 2065 cc
  • Performance
    • Rated Load Capacity: 2500 kg
    • Load Center: 500 mm
    • Maximum Lift Height: 3000 mm
    • Turning Radius: 2170 mm
    • Travel Speed (loaded/unloaded): 18/19 km/h
  • Dimensions
    • Overall Length (with forks): 3605 mm
    • Overall Width: 1150 mm
    • Overall Height (mast lowered): 2095 mm
    • Overall Height (mast extended): 4265 mm
    • Wheelbase: 1600 mm
  • Weights
    • Operating Weight: 3700 kg
    • Axle Load (front/rear, without load): 1480/2220 kg
    • Axle Load (front/rear, with load): 5100/1100 kg
  • Chassis
    • Tire Type: Pneumatic
    • Front Tires: 7.00-12-12PR
    • Rear Tires: 6.00-9-10PR
    • Track Front: 970 mm
    • Track Rear: 970 mm
    • Minimum Ground Clearance: 135 mm
  • Mast
    • Standard Mast Tilt (forward/backward): 6/12 degrees
    • Free Lift (standard mast): 150 mm
  • Hydraulic System
    • Hydraulic Oil Tank Capacity: 65 liters
    • Hydraulic Pressure: 18 MPa
  • Fuel and Capacity
    • LPG Tank Capacity: Standard Cylinders
    • Fuel Tank Capacity: 50 liters
