Equipment Description:

Factory Enclosed CAB (Less Door), Outriggers/Stabilizers, CAT Diesel Engine, Solid BOSS Tires, 4WD, Crab-Steering, Fenders, Work Lights, Auxiliary Hydraulics, QC Carriage w/ Forks, CAT Fleet Maintained

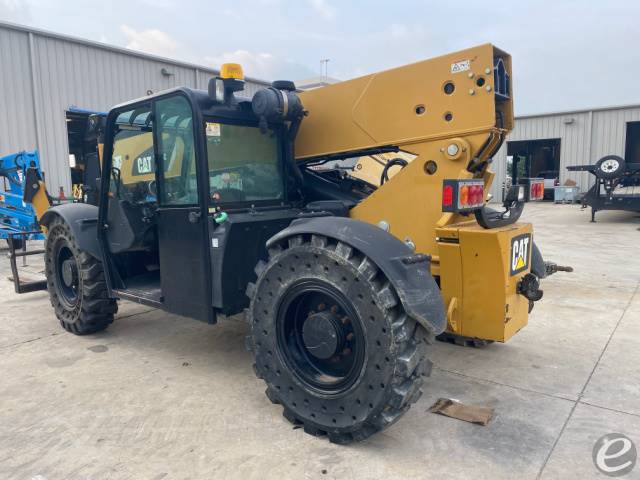

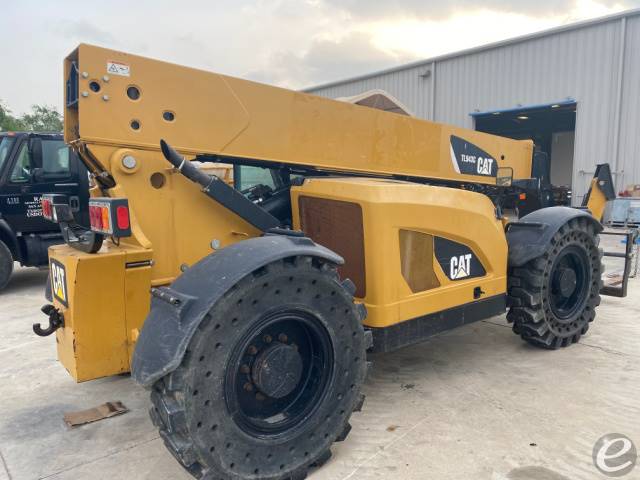

2013 Diesel Cat TL943C

Call for priceFor Rent

Contact Information

Supreme Forklift & Equipment
3695 E Apache Trail Suite 1
Apache Junction, Arizona 85119

CONTACT :

Sales Dept.

PHONE :

480-660-4508

Stock #:

YEAR:

2013

Manufacturer:

Cat

MODEL #:

TL943C

POWER:

Diesel

Height:

43 ft

CAPACITY:

9000

CONDITION:

Rental

HOUR METER:

2518

LOCATION:

N/A

DESCRIPTION:

$1235 A MONTH WITH APPROVED CREDIT

Equipment Description:

This product was posted on 12/26/2024

Engine

Engine Model: Cat C3.4B
Gross Power: 111 hp (83 kW)
Net Power: 105 hp (78 kW)
Displacement: 207 cu in (3.4 l)
Bore: 3.9 in (99 mm)
Stroke: 4.3 in (110 mm)

Weights

Operating Weight: 32,000 lbs (14,515 kg)

Operating Specifications

Rated Load Capacity: 9,000 lbs (4,082 kg)
Maximum Lift Height: 43 ft (13.1 m)
Maximum Forward Reach: 30 ft (9.14 m)
Top Speed: 20 mph (32.2 kph)
Turning Radius (over tires): 12 ft (3.66 m)

Hydraulic System

Type: Load Sensing, Closed Center
System Pressure: 3,625 psi (250 bar)
Auxiliary Hydraulic Flow: 21 gal/min (80 l/min)

Transmission

Transmission Type: Power Shift
Number of Gears: 4 Forward / 3 Reverse
Selectable Work Modes

Brakes

Service Brakes: Wet Disc Brakes
Parking Brake: Spring Applied, Hydraulically Released

Fuel and Oil

Fuel Tank Capacity: 43 gal (163 l)
Hydraulic System Fluid Capacity: 38 gal (144 l)

Tires

Tires: 370/75-28 Air Filled

Dimensions

Overall Length: 20 ft (6.09 m)
Overall Width: 8 ft (2.44 m)
Overall Height: 8 ft (2.44 m)
Wheelbase: 11 ft (3.35 m)
Ground Clearance: 1.3 ft (0.39 m)
