Equipment Description:

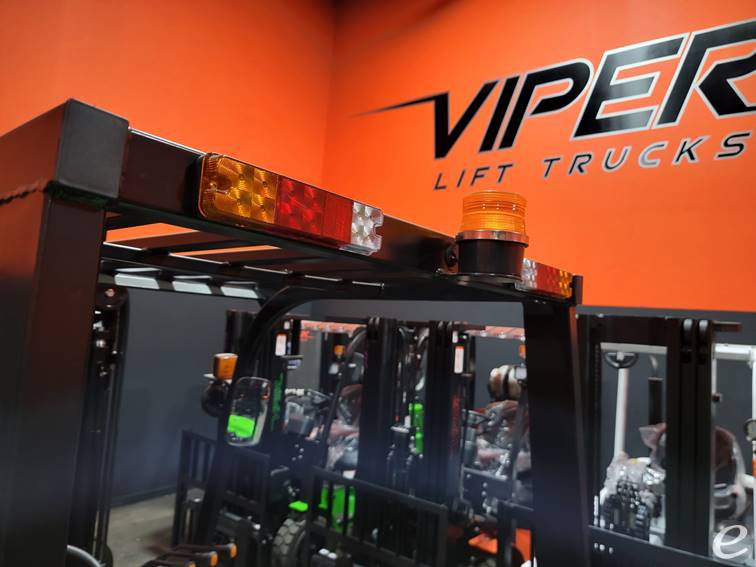

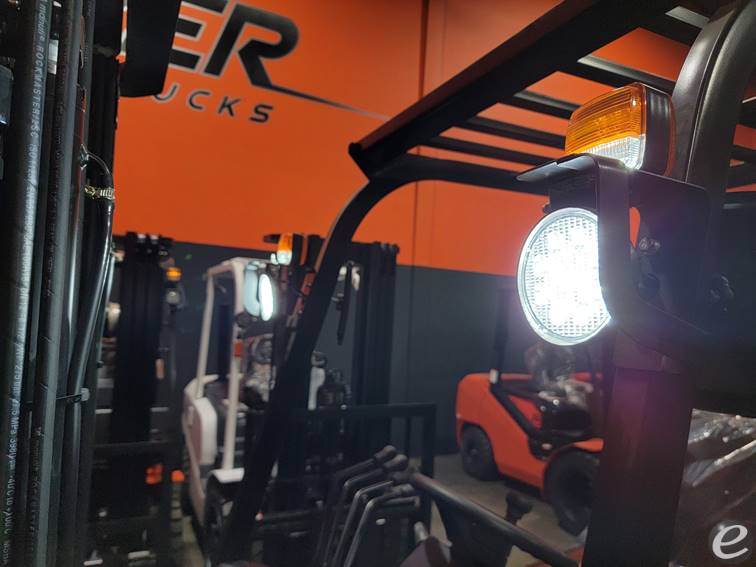

6000LB BASE CAPACITY 3 STAGE MAST 88” LOWERED 189” RAISED AIR PNEUMATIC TIRES DIESEL FUEL KUBOTA ENGINE KUBOTA WARRANTY LOAD BACKREST BACKUP ALARM LED LIGHTS AND TURN SIGNALS STROBE LIGHT SIDE SHIFTER 48” FORKS 12 MO / 2000 HOUR MANUFACTURER WARRANTY SERVICEABLE BY ANY DEALER IN THE UNITED STATES EXTENDED WARRANTIES AVAILABLE - PLEASE VISIT OUR WEBSITE AT WWW.ILLINOISLIFT.COM FOR MORE INVENTORY OR CONTACT JOHN HELLYER AT 630-417-0788 FOR MORE INFORMATION.

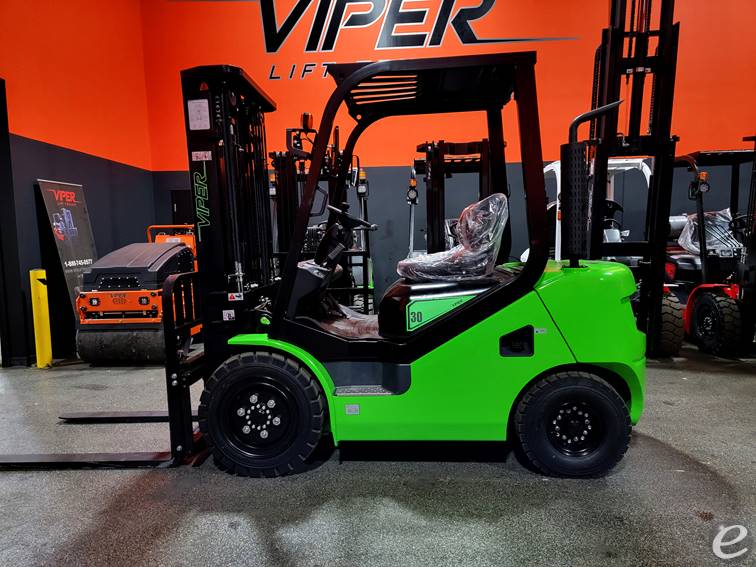

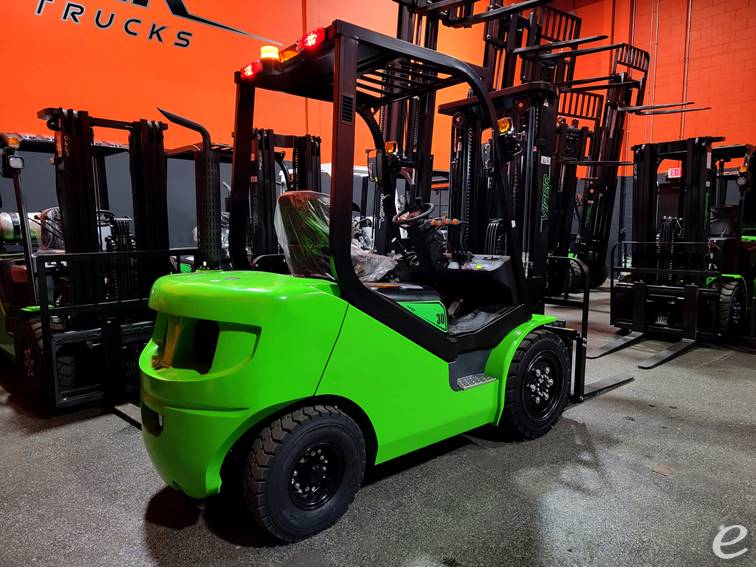

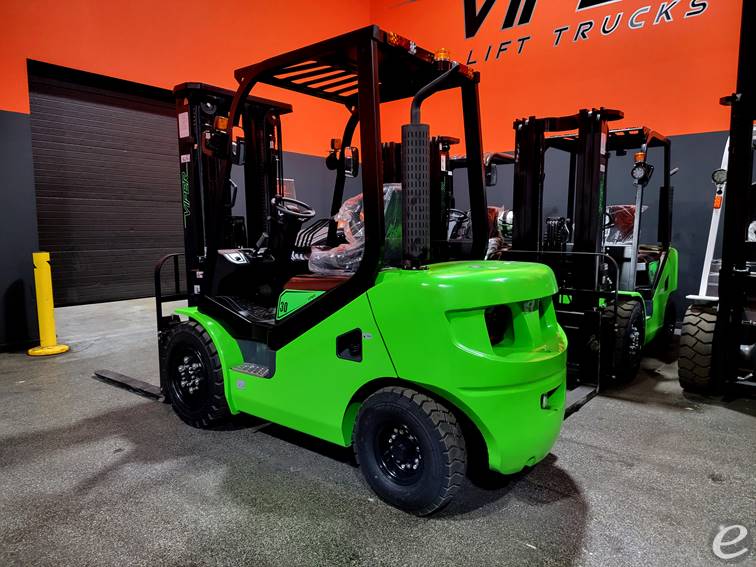

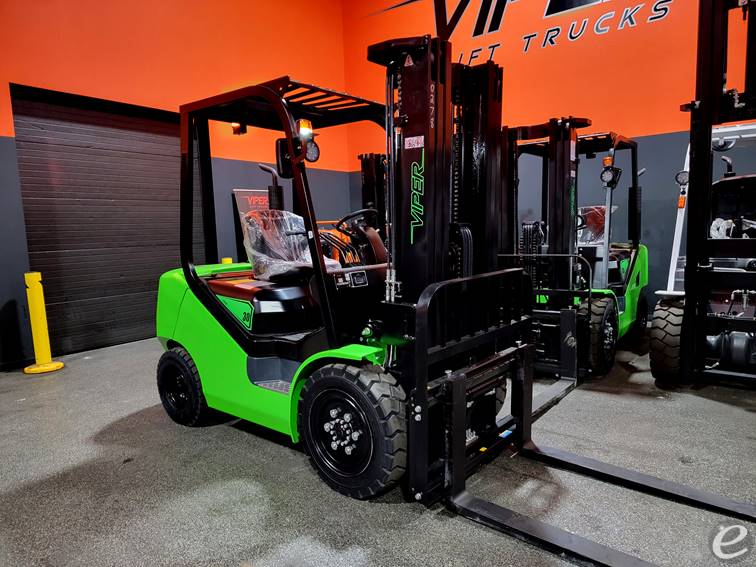

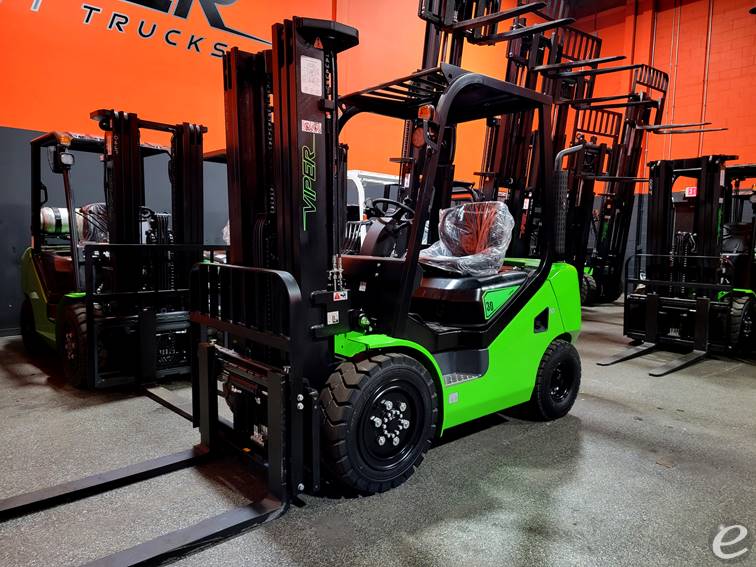

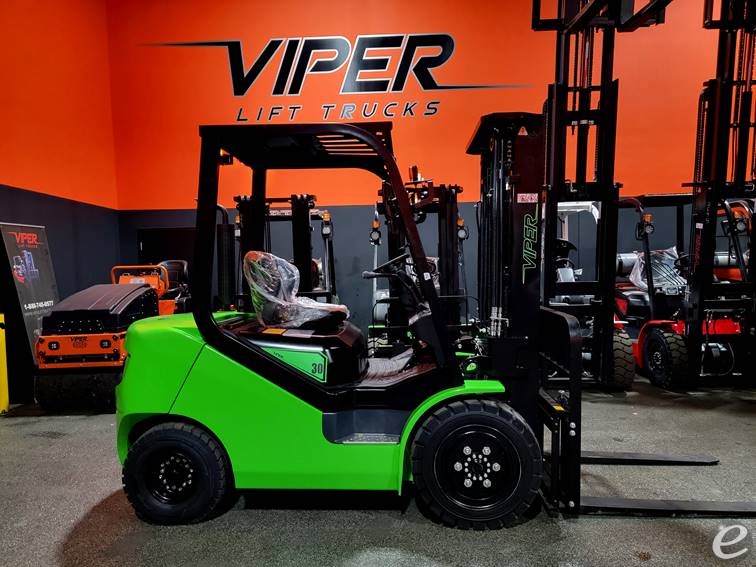

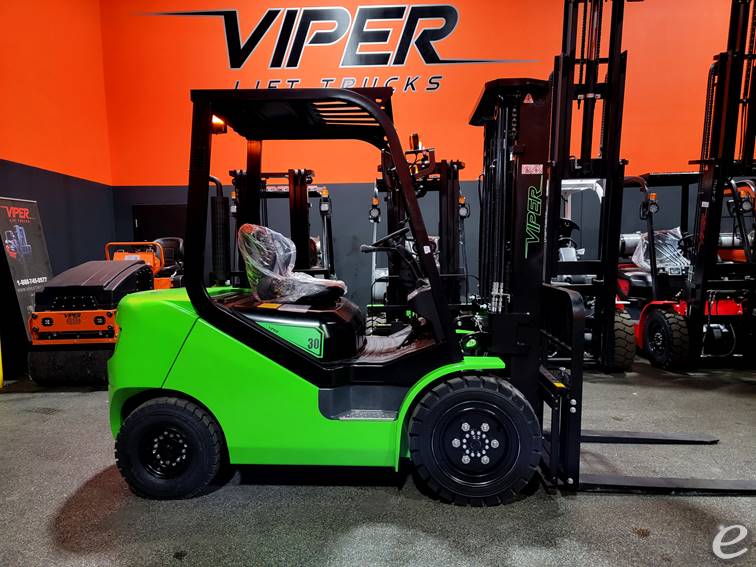

2024 Diesel Viper Lift Trucks FD30T Pneumatic Tire 4 Wheel Sit Down

Call for priceNew

Contact Information

Illinois Lift Equipment
640 Industrial Dr
Cary, Illinois 60013

CONTACT :

John Hellyer

PHONE :

224-404-3255

Stock #:

YEAR:

2024

Manufacturer:

Viper Lift Trucks

MODEL #:

FD30T

CAPACITY:

6000

FUEL:

Diesel

SUBCATEGORY:

Pneumatic Tire 4 Wheel Sit Down

MAST TYPE:

Three Stage

MAST HEIGHT:

88 / 189 in

SIDE SHIFTER:

CONDITION:

New

LOCATION:

Illinois [60013]

DESCRIPTION:

3 STAGE MAST, DIESEL FUEL, 6000LB CAPACITY

Equipment Description:

This product was posted on 11/8/2024

Engine

Model: Mitsubishi S4S
Type: Diesel, 4-cylinder
Power Output: 48.9 kW @ 2,300 rpm
Torque: 200 Nm @ 1,700 rpm
Displacement: 3.331 L

Capacity and Load Handling

Load Capacity: 3,000 kg (6,600 lbs)
Load Center: 500 mm
Max Lift Height: 4,560 mm
Free Lift Height: 160 mm
Fork Dimensions: L=1,070 mm, W=125 mm, T=45 mm

Performance

Max Travel Speed: 19 km/h (without load)
Max Lift Speed: 490 mm/sec (with load)
Max Lowering Speed: 520 mm/sec (with load)
Gradeability: 20% (with load)

Dimensions

Overall Length: 3,668 mm
Overall Width: 1,226 mm
Overall Height (Overhead Guard): 2,214 mm
Wheelbase: 1,700 mm
Turning Radius: 2,380 mm

Wheels & Tires

Tires: Pneumatic
Front Tires: 28x9-15-14PR
Rear Tires: 6.50-10-10PR

Weight

Total Weight: 4,320 kg (Unladen)
Axle Load with Load: Front: 6,265 kg, Rear: 1,055 kg
Axle Load without Load: Front: 2,175 kg, Rear: 2,145 kg

Fuel and Capacity

Fuel Tank Capacity: 70 L
Hydraulic Tank Capacity: 70 L
