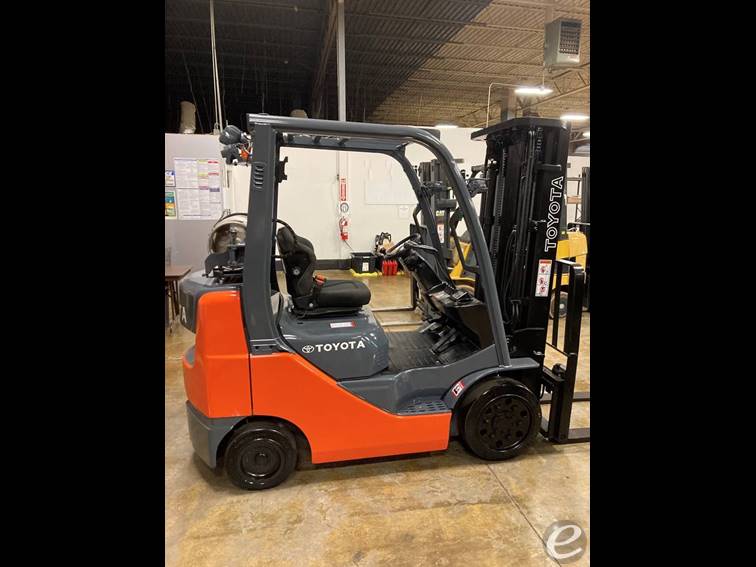

2017 Toyota 8FGCU25

lp gas cushion tire 4 wheel sit down (indoor warehouse)

Call for priceFor Rent
CONTACT INFO
Name:
Sales Dept.
Phone:

ADDRESS
Supreme Forklift & Equipment
25250 S Power Rd
Queen CreekArizona 85142
ATTRIBUTES
YEAR:
2017
Manufacturer:
MODEL #:
CAPACITY:
5000
FUEL:
LP Gas
MAST TYPE:
Three Stage
MAST HEIGHT:
83 / 189 in
SIDE SHIFTER:
Yes
CONDITION:
Rental
HOUR METER:
5798
LOCATION:
N/A
POST DATE:
11/26/2024
Equipment Description
5000LB CAPACITY 3 STAGE MAST 83" LOWERED 189" RAISED LPG FUEL CUSHION TIRES SIDE SHIFT FORKS INCLUDED
  • Manufacturer: Toyota
  • Model Number: 8FGCU25
  • General Specifications:
    • Power Type: LPG (Liquid Petroleum Gas)
    • Operator Position: Sit-down
    • Tire Type: Cushion
    • Number of Wheels: 4
  • Dimensions:
    • Length to Face of Forks: 8.17 ft
    • Overall Width (Without Load): 3.5 ft
    • Height to Top of Overhead Guard: 7 ft
    • Turning Radius: 80.5 in
    • Minimum Outside Turning Radius: 5.5 ft
    • Wheelbase: 5.08 ft
  • Performance:
    • Rated Load Capacity: 5,000 lbs
    • Load Center: 24 in
    • Travel Speed (Loaded): 11.2 mph
    • Travel Speed (Unloaded): 11.5 mph
    • Lifting Speed (Loaded): 118 ft/min
    • Lifting Speed (Unloaded): 131 ft/min
    • Lowering Speed (Loaded): 98 ft/min
    • Lowering Speed (Unloaded): 98 ft/min
  • Engine Specifications:
    • Engine Model: Toyota 4Y
    • Engine Type: 4-cylinder, water-cooled
    • Displacement: 142 in³
    • Rated Power: 51 hp @ 2,400 RPM
    • Torque: 118.6 lbf·ft @ 1,600 RPM
  • Weights:
    • Service Weight: 8,750 lbs
    • Axle Loading Front: 12,284 lbs (With Load)
    • Axle Loading Rear: 1,466 lbs (With Load)
  • Wheel Specifications:
    • Front Tires: 21x7x15
    • Rear Tires: 16x5x10 ½
    • Tread (Front/Rear): 36/36 in
  • Transmission:
    • Transmission Type: Powershift
    • Number of Speeds (Forward/Reverse): 1/1
  • Brakes:
    • Service Brake: Hydraulic
    • Parking Brake: Mechanical, hand operated
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.


1 Review Shipping Dimensions
Schematic for Toyota 8FGCU25
These dimensions are taken from the base model. If your equipment has been modified, please update the dimensions.
Length
ft in m
Width
ft in m
Height
ft in m
Weight
lbs kg
2 Pickup Location & Delivery Location
Pickup Location
Delivery Location
