Equipment Description:

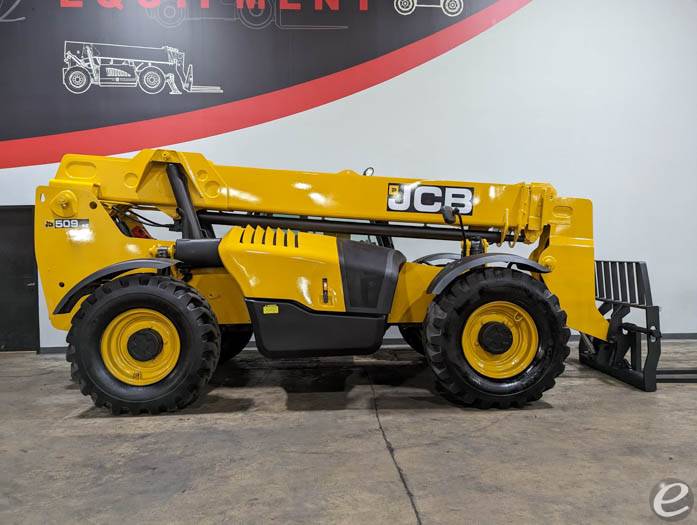

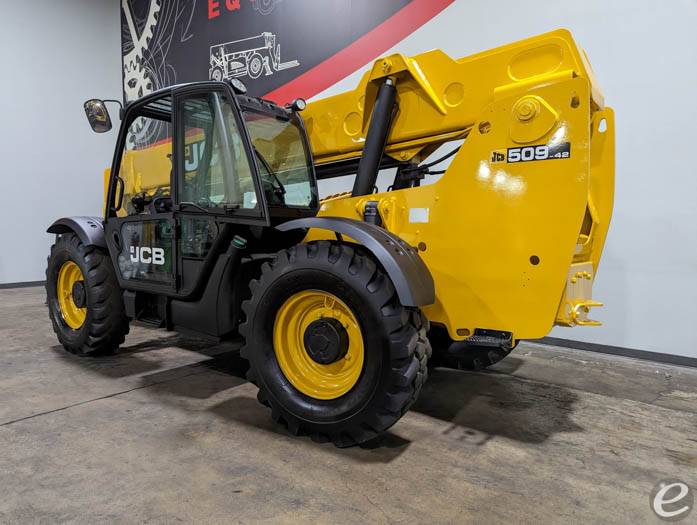

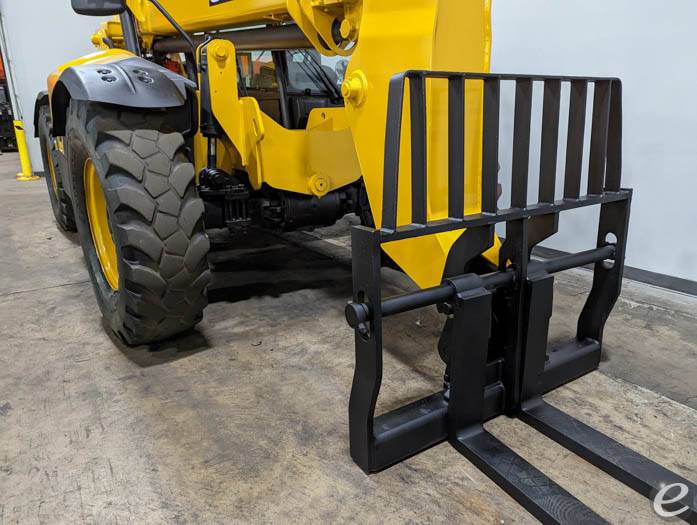

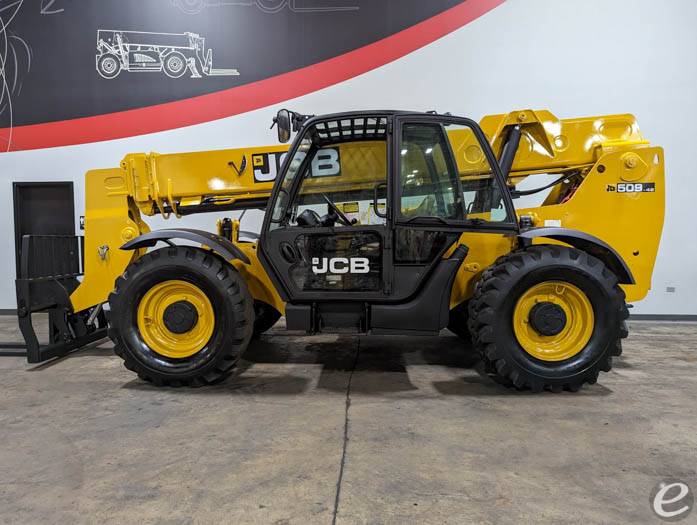

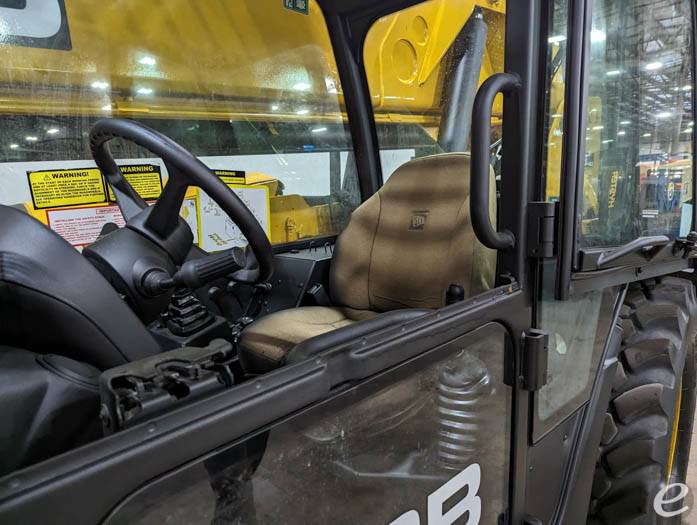

9000LB CAPACITY 42' MAX REACH 4X4X4 PNEUMATIC TIRES DIESEL FUEL ENCLOSED CAB W/HEAT HYDRAULIC LEVELING AUXILIARY HYDRAULICS FORKS AS SHOWN

2013 Diesel JCB 509-42

Call for price

Contact Information

Illinois Lift Equipment
640 Industrial Dr
Cary, Illinois 60013

CONTACT :

John Hellyer

PHONE :

Stock #:

12526

YEAR:

2013

Manufacturer:

MODEL #:

POWER:

Diesel

Height:

CAPACITY:

9000

CONDITION:

Used

LOCATION:

DESCRIPTION:

9000LB CAPACITY HYDRAULIC LEVELING 42' MAX REACH DIESEL FUEL

Equipment Description:

9000LB CAPACITY 42' MAX REACH 4X4X4 PNEUMATIC TIRES DIESEL FUEL ENCLOSED CAB W/HEAT HYDRAULIC LEVELING AUXILIARY HYDRAULICS FORKS AS SHOWN

This product was posted on 11/8/2024

Engine
- Make: JCB
- Model: Ecomax T4
- Gross Power: 74 hp (55 kW)
- Maximum Torque: 295 lb-ft (400 Nm)
Performance
- Maximum Lift Capacity: 9,000 lbs (4,082 kg)
- Maximum Lift Height: 42 ft (12.8 m)
- Maximum Forward Reach: 30 ft (9.1 m)
Dimensions
- Overall Height: 8 ft 4 in (2.53 m)
- Overall Width: 7 ft 10 in (2.38 m)
- Overall Length (to Front of Carriage): 19 ft 11 in (6.07 m)
- Wheelbase: 10 ft 1 in (3.08 m)
- Ground Clearance: 1 ft 5 in (0.44 m)
Weight
- Operating Weight: 27,112 lbs (12,296 kg)
Hydraulic System
- Maximum System Pressure: 3,625 psi (250 bar)
- Pump Type: Variable Displacement Load Sensing
Steering
- Steering Type: 4-Wheel/Crab/2-Wheel
- Turning Radius: 12 ft 6 in (3.81 m)

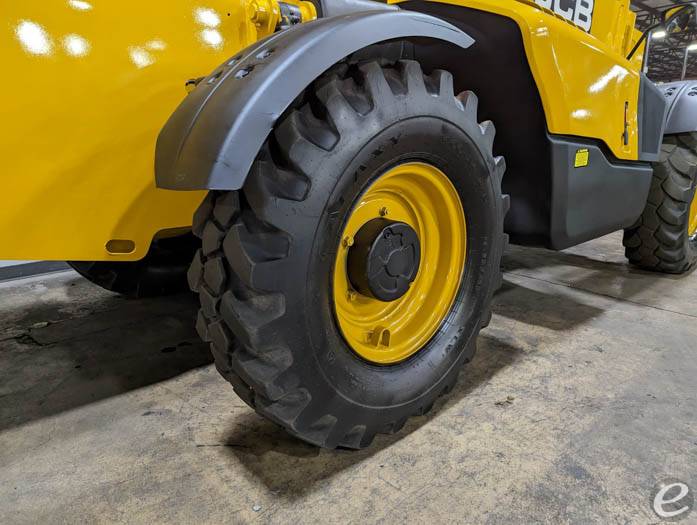

Tires
- Size: 13.00 x 24 Pneumatic
Transmission
- Type: Powershift
- Speeds: 4 Forward/4 Reverse
Fuel Tank
- Capacity: 30.3 gallons (115 L)
