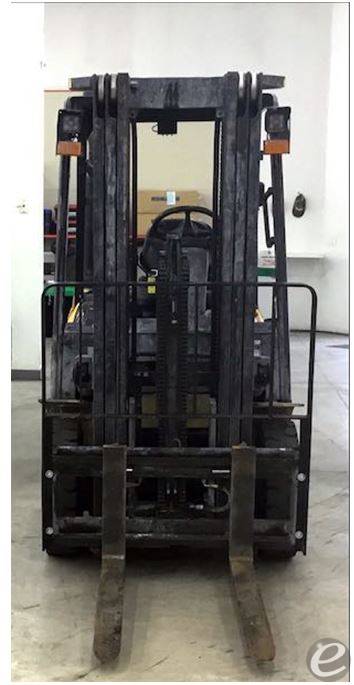

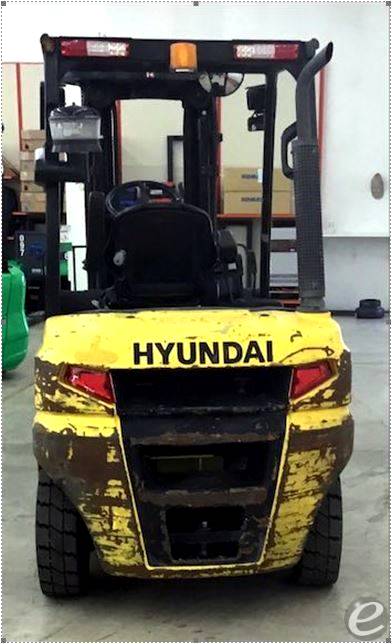

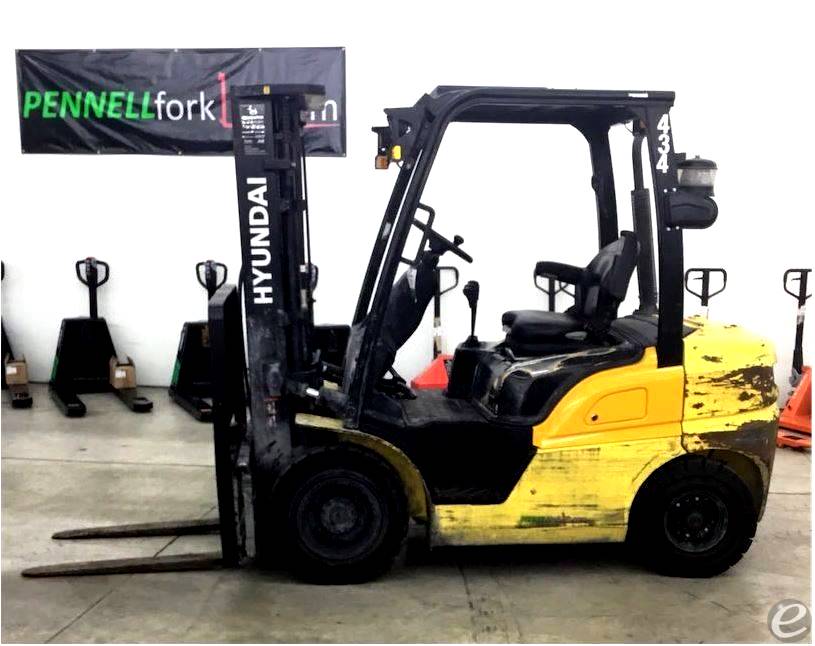

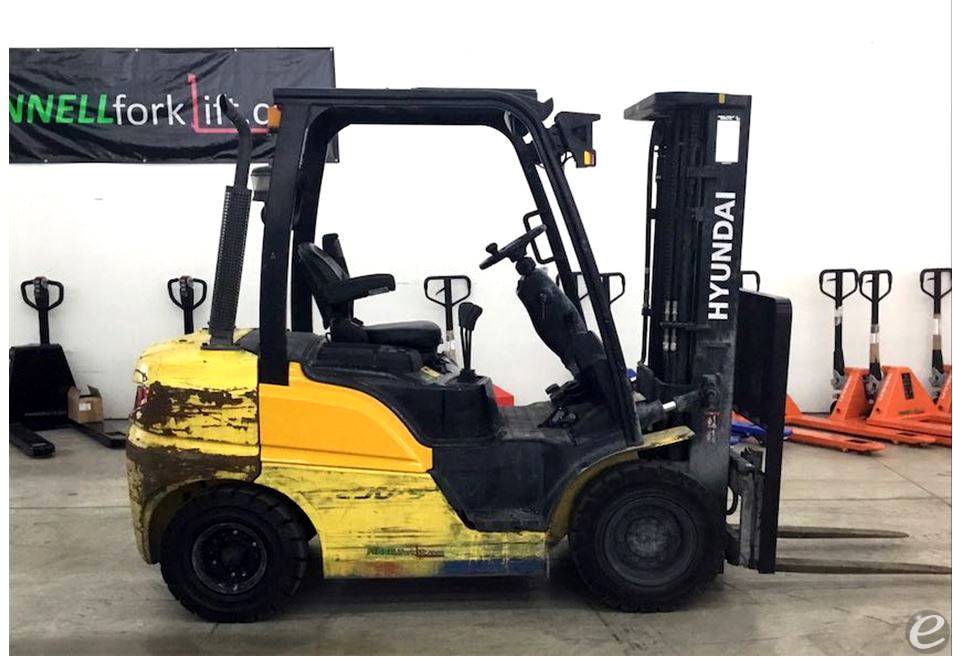

2017 Diesel Hyundai 25D-9 Pneumatic Tire 4 Wheel Sit Down

Call for price
Contact Information
CONTACT :
Sales Dept.
PHONE :
FAX :
Stock #:
HYU434
YEAR:
2017
Manufacturer:
MODEL #:
CAPACITY:
5000
FUEL:
Diesel
MAST TYPE:
Three Stage
MAST HEIGHT:
86 / 185 in
SIDE SHIFTER:
Yes
CONDITION:
Used

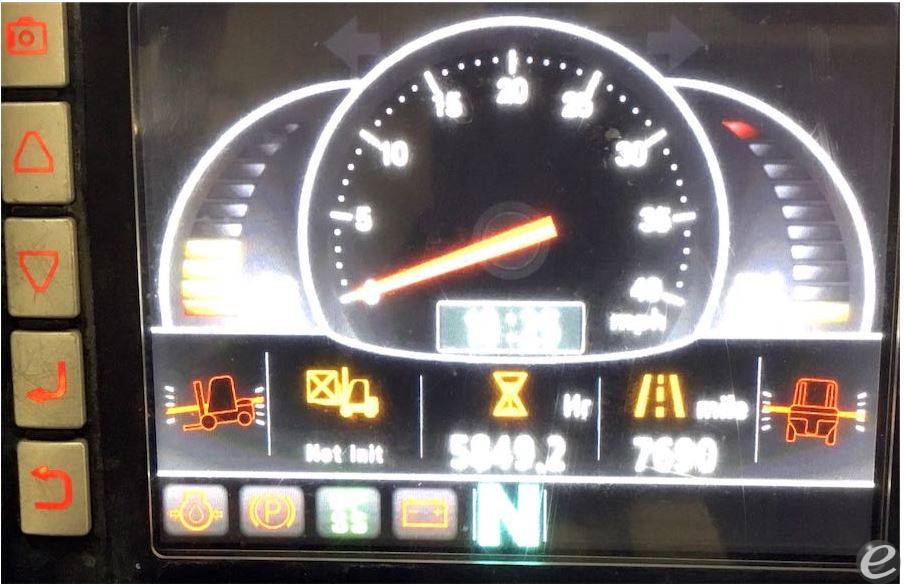

HOUR METER:
5849
LOCATION:
DESCRIPTION:
Solid Used Unit!!
Equipment Description:
Just Serviced!!

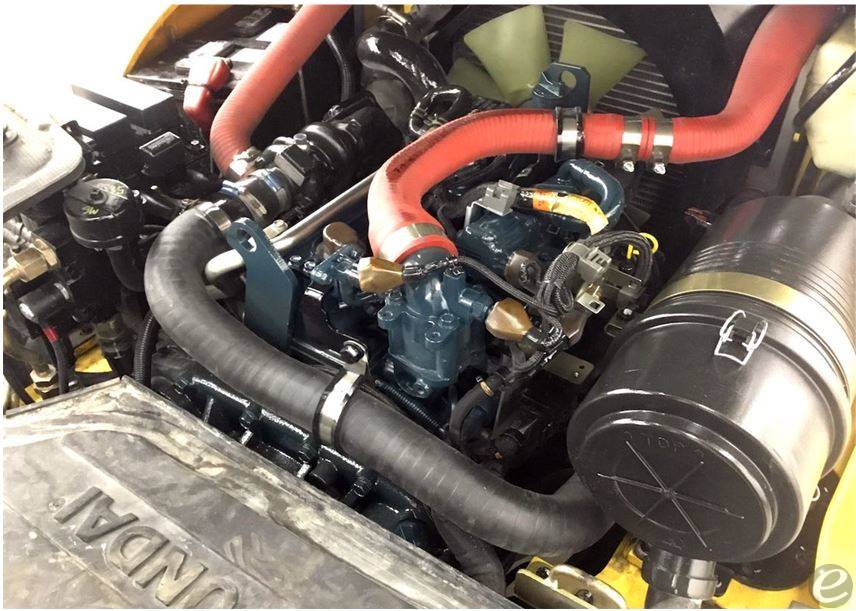

  • Engine
    • Engine Model: Yanmar 4TNE98
    • Rated Output: 63.3 HP (47.2 kW) @ 2,300 rpm
    • Max Torque: 24.5 kgf·m (182 lb·ft) @ 1,600 rpm
    • Cylinder Type: Water-cooled, 4-cycle diesel
    • Number of Cylinders: 4
    • Piston Displacement: 3.319 L
  • Performance
    • Load Capacity: 2,500 kg
    • Travel Speed: 18.7 km/h
    • Lift Speed (unloaded): 580 mm/sec
    • Lowering Speed (unloaded): 500 mm/sec
    • Maximum Drawbar Pull: 19,200 N
  • Dimensions
    • Overall Length (with standard forks): 3,650 mm
    • Overall Width: 1,260 mm
    • Overall Height (to top of overhead guard): 2,145 mm
    • Turning Radius: 2,320 mm
    • Wheelbase: 1,650 mm
    • Ground Clearance (minimum): 135 mm
  • Weight
    • Total Operating Weight: 3,950 kg
  • Tires
    • Front Tire Size: 7.00-12-12PR
    • Rear Tire Size: 6.00-9-10PR
  • Brake System
    • Service Brake: Foot applied, hydraulic
    • Parking Brake: Hand operated, mechanical
  • Steering
    • Steering System: Hydrostatic Power Steering
    • Steering Angle (full): 85°
  • Hydraulic System
    • Pump Type: Gear
    • Hydraulic Pressure: 174 kgf/cm²
