Equipment Description:

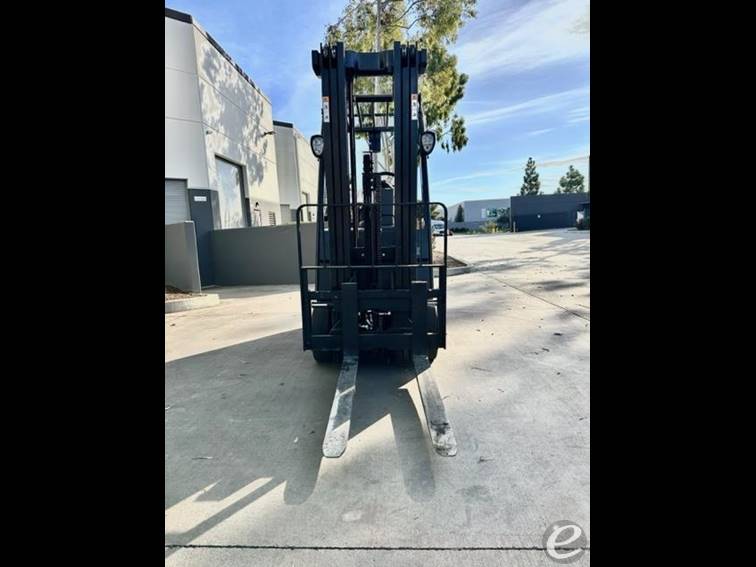

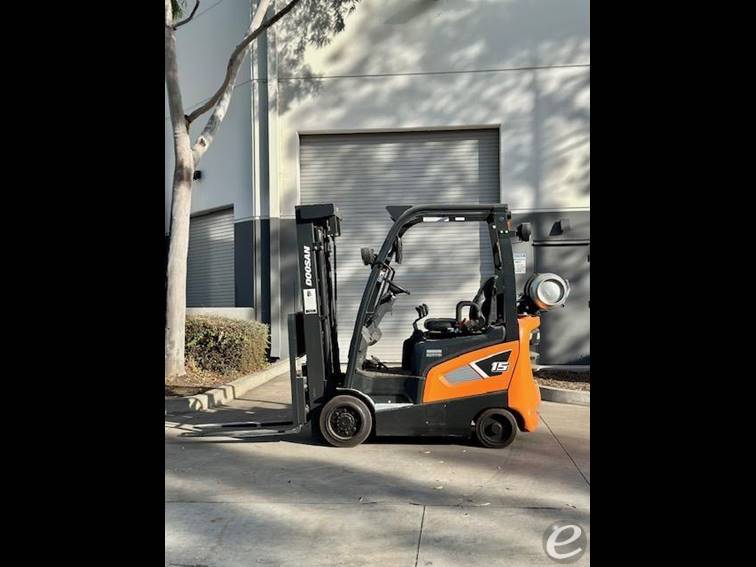

2020 Doosan GC15S-9 Cushion Tire 4 Wheel Sit Down (Indoor Warehouse)

Call for price

Contact Information

National Lift Fleet Leasing & Sales
201 North Rice Avenue Unit G
Oxnard, California 93030

CONTACT :

Sales Dept

PHONE :

FAX :

Stock #:

150101495132

YEAR:

2020

Manufacturer:

MODEL #:

CAPACITY:

3000

SUBCATEGORY:

MAST TYPE:

Three Stage

SERIAL #:

FGA1A-1290-00053

CONDITION:

Used

HOUR METER:

LOCATION:

Equipment Description:

This product was posted on 10/1/2024

Model: Doosan GC15S-9
Capacity: 3,000 lbs (1,500 kg)
Engine:
- Type: LPG Engine
- Model: GK21E (Nissan)
- Power: 31.2 kW (42 hp) @ 2700 rpm
- Cylinders: 4
Dimensions:
- Overall Length: 92.7 inches (2,355 mm) with forks
- Overall Width: 42 inches (1,070 mm)
- Overall Height (Overhead Guard): 83.7 inches (2,125 mm)
- Wheelbase: 55.1 inches (1,400 mm)
Performance:
- Travel Speed (Unloaded): 11.8 mph (19 km/h)
- Lift Speed (Loaded): 98.4 feet/min (0.5 m/s)
- Gradeability (Loaded): 43%
Mast Specifications:
- Lift Height: Up to 188 inches (4,775 mm)
- Free Lift Height: 5.5 inches (140 mm)
Weight: 6,834 lbs (3,100 kg)
Tires:
- Front: 6.50-10-10PR
- Rear: 5.00-8-10PR
Hydraulic System:
- Hydraulic Pump Capacity: 11 gallons/min (42 liters/min)
- Hydraulic Operating Pressure: 2,755 psi (190 bar)
Transmission:
- Type: Electronic Powershift Transmission
- Speeds: 1 Forward, 1 Reverse
Steering:
- Type: Hydrostatic Power Steering System
- Steering Angle: 90 degrees each direction
Brakes:
- Service Brake: Hydraulic Actuated Drum Brake
- Parking Brake: Hand Lever Mechanical Brake
