Equipment Description:

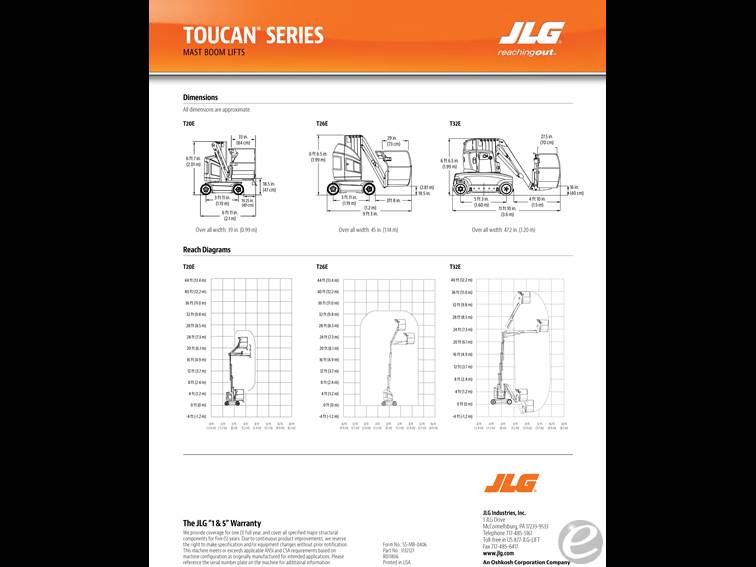

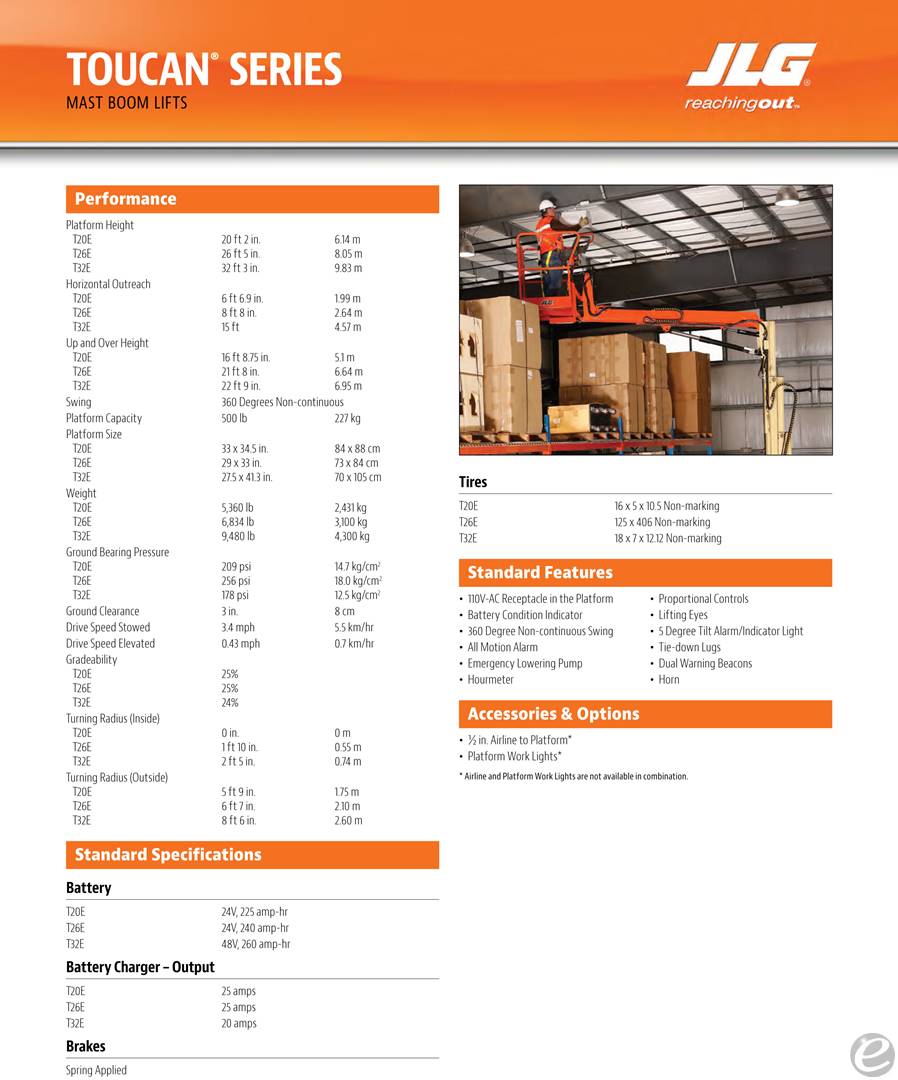

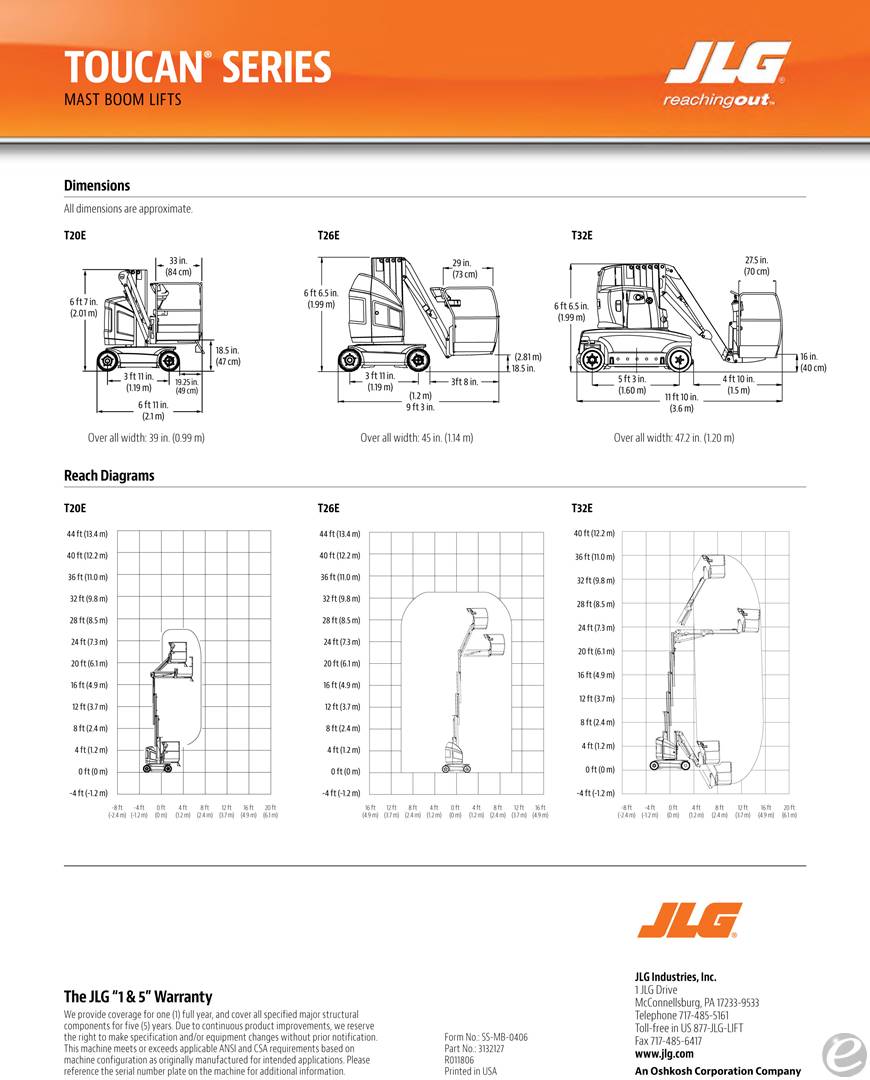

Self-propelled single person vertical mast lift with jib. 26ft 5in max platform height and 8ft 8in horizontal reach. 500lb capacity. Electric power with on-board charger. Full spec sheet in photos. *Stock Photo. **Long-term discounts available.

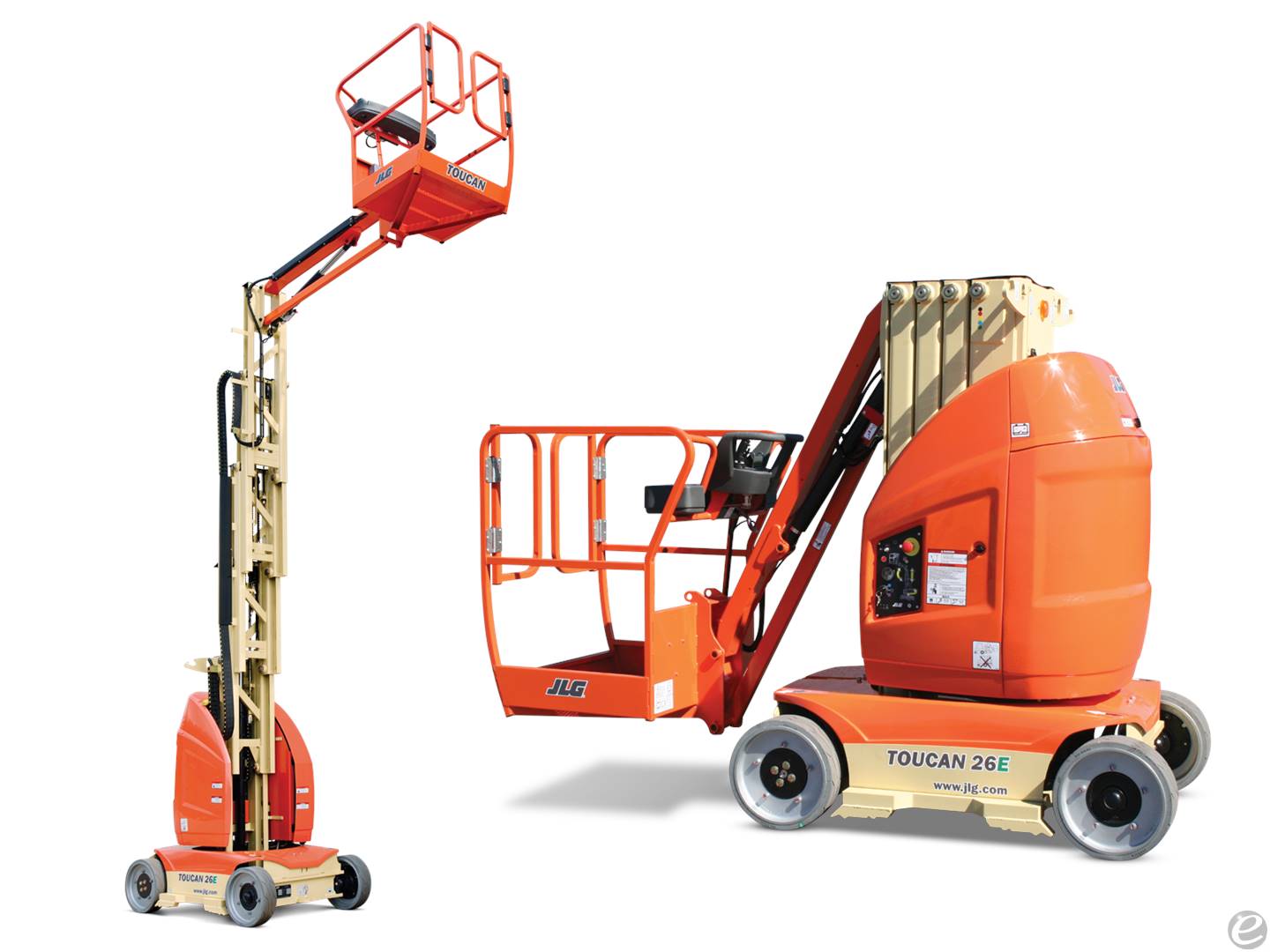

Electric JLG Toucan 26E Vertical Mast

Call for priceBuy or Rent

$150 USD per day

$350 USD per week

$1,000 USD per month

Contact Information

Lift-X Lift Services L.L.C.
N4134 State Rd 57
Waldo, Wisconsin 53093

CONTACT :

Greg Herzog

PHONE :

920-776-6952

Stock #:

LX145

Manufacturer:

JLG

MODEL #:

Toucan 26E

SUBCATEGORY:

Vertical Mast

POWER:

Electric

Height:

26 ft

SERIAL #:

A3000052044

CONDITION:

Used/Rental

LOCATION:

Wisconsin [53073]

DESCRIPTION:

26ft single person self-propelled vertical mast lift

Equipment Description:

This product was posted on 8/6/2024

Platform Height
- Maximum Platform Height: 26 ft (7.9 m)
Working Height
- Maximum Working Height: 32 ft 6 in (9.9 m)
Horizontal Outreach
- Maximum Horizontal Outreach: 10 ft 1.75 in (3.1 m)
Lift Capacity
- Platform Capacity: 500 lbs (227 kg)
Machine Dimensions
- Overall Width: 39 in (1 m)
- Overall Length: 98 in (2.5 m)
- Overall Height (Stowed): 78 in (1.98 m)
- Wheelbase: 47 in (1.2 m)
Platform Dimensions
- Platform Size: 35.5 in x 27.6 in (0.9 m x 0.7 m)
Rotation
- Jib Boom: 70 Degrees
- Turntable Swing: Non-continuous 345 Degrees
Power Source
- DC Electric
- System Voltage: 48V
- Battery: (8) 6V, 370 Ah capacity
Performance
- Drive Speed: 4.5 mph (7.2 km/h)
- Gradeability: 25%
- Turning Radius Inside: Zero
- Turning Radius Outside: 71 in (1.8 m)
Weights
- Machine Weight: 6,800 lbs (3,084 kg)
