Diesel JLG 800AJ Articulated Boom

Call for priceBuy or Rent

$550 USD per day

$1,425 USD per week

$4,275 USD per month

Contact Information
CONTACT :
Greg Herzog
PHONE :
Stock #:
LX116
Manufacturer:
MODEL #:
Drive:
4WD
SUBCATEGORY:
Height:
80 ft
FUEL:
Diesel
SERIAL #:
0300147098
CONDITION:
Used/Rental
LOCATION:
DESCRIPTION:

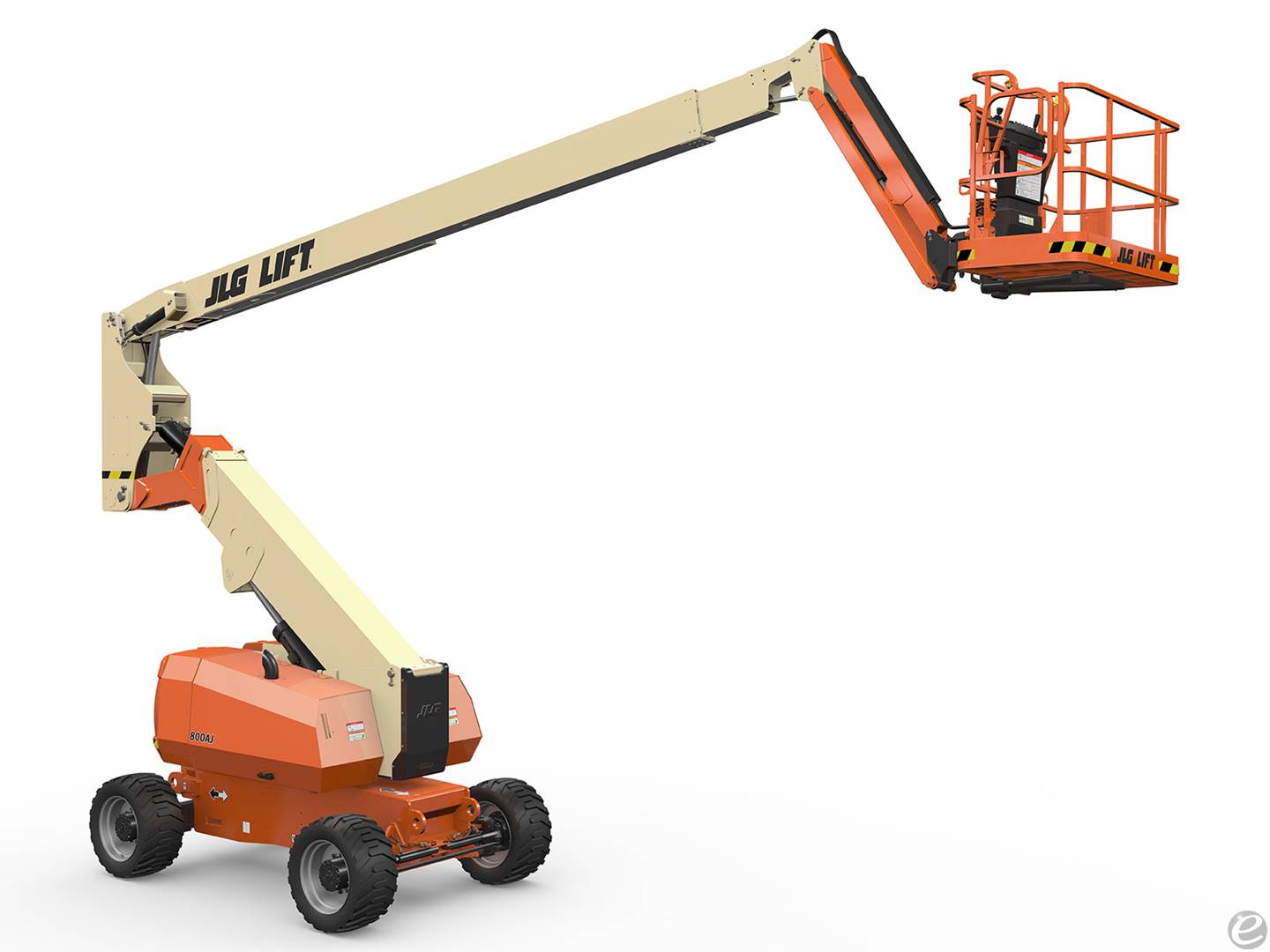

80ft self-propelled Articulating diesel boom lift with jib
Equipment Description:

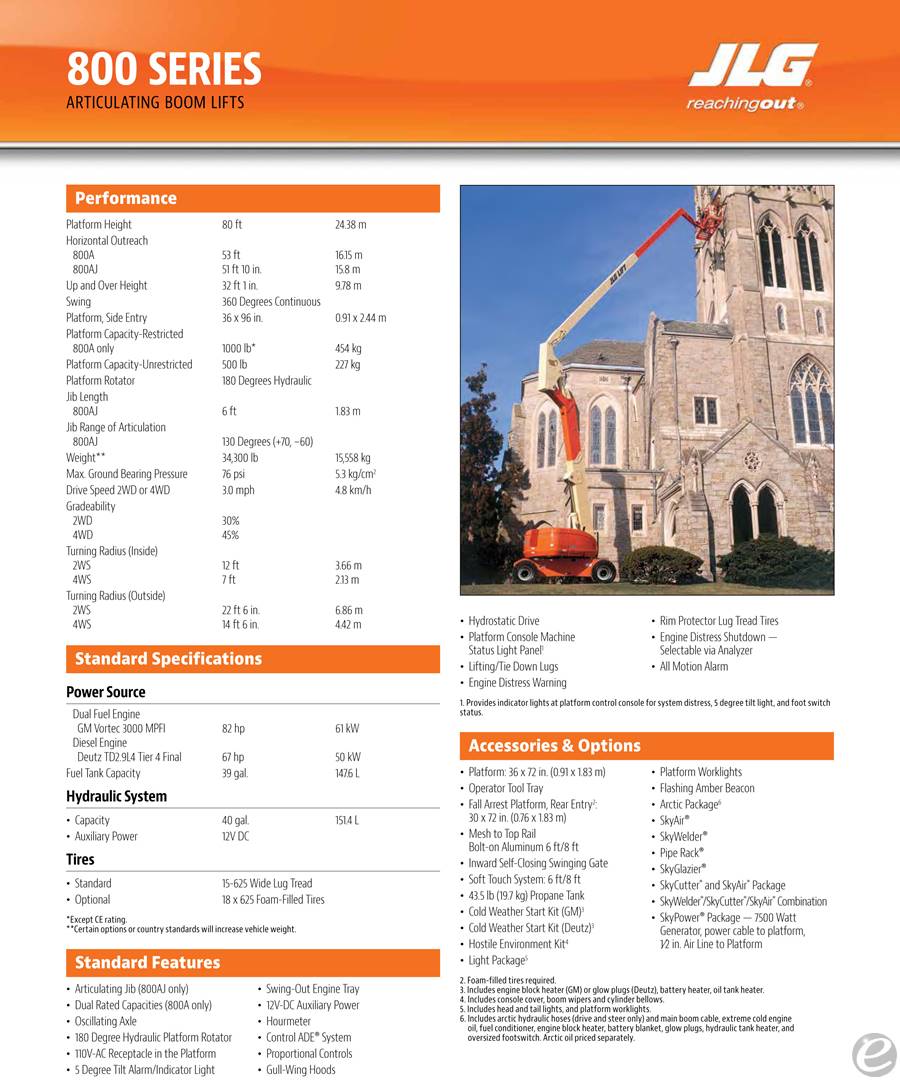

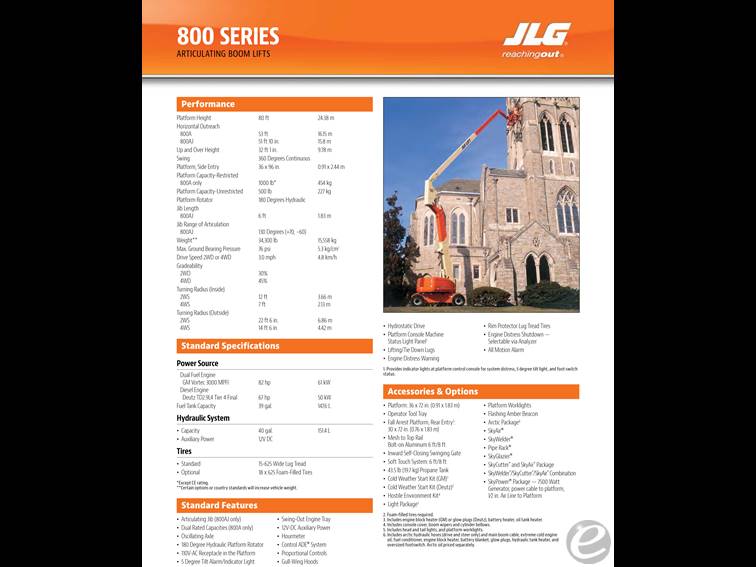

Self-propelled articulating boom lift with jib. 80ft vertical reach and 52ft horizontal reach. Diesel, 4wd. Full spec sheet in photos. *Stock Photo. **Long-term discounts available.
  • Platform Height
    • Maximum platform height: 80 ft (24.38 m)
  • Horizontal Outreach
    • Maximum horizontal outreach: 51 ft 10 in (15.85 m)
  • Up and Over Height
    • 55 ft 6 in (16.92 m)
  • Platform Capacity
    • 500 lb (227 kg)

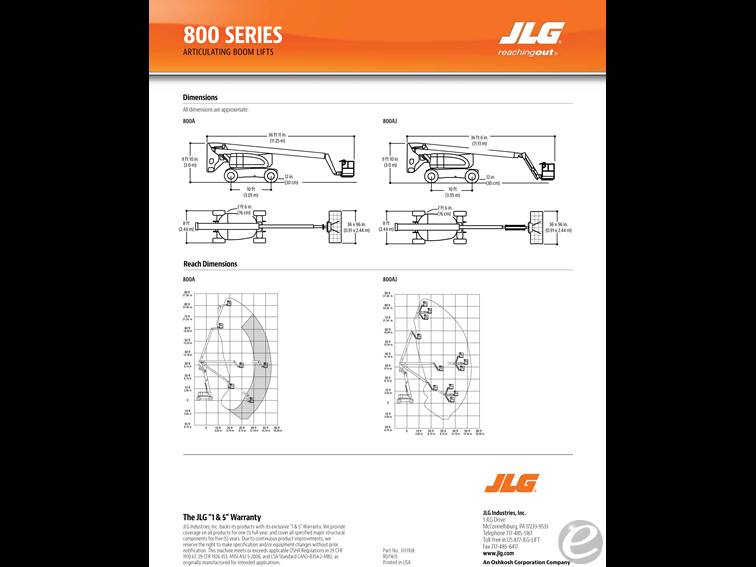

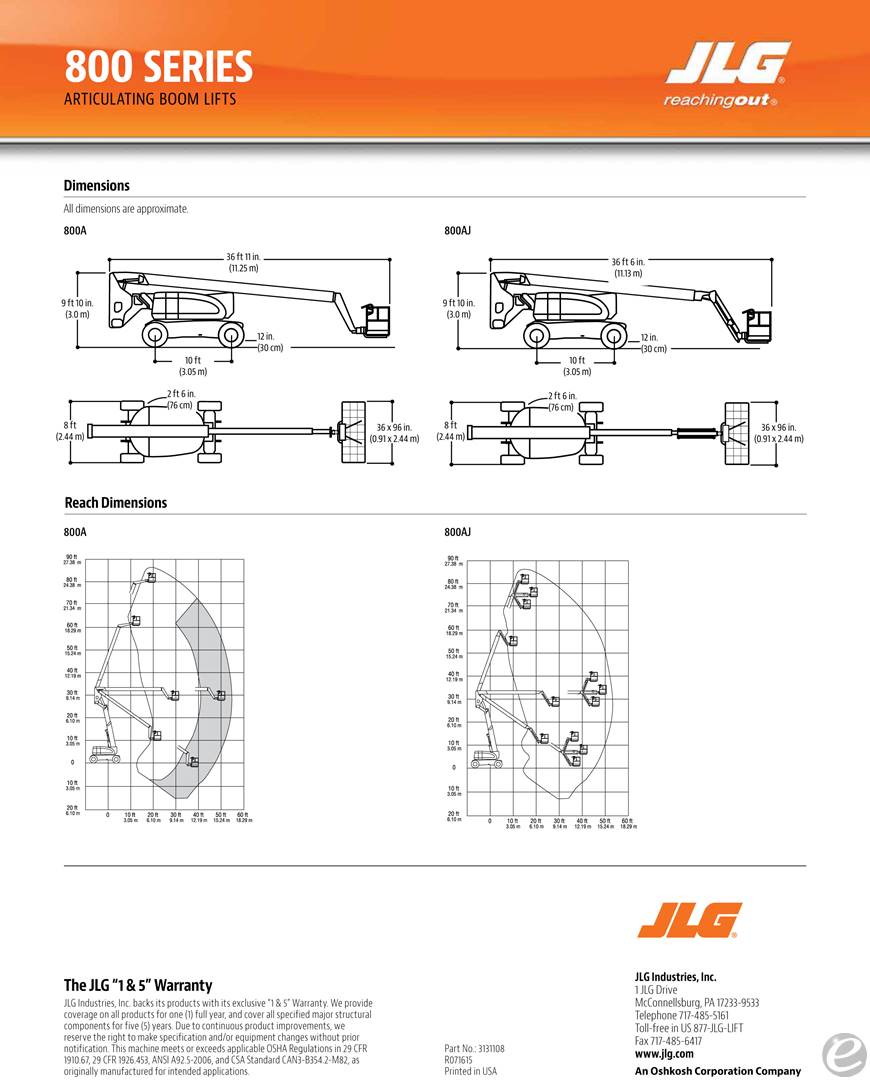

  • Dimensions
    • Platform size: 36 in x 96 in (91 cm x 244 cm)
    • Overall width: 8 ft 2 in (2.49 m)
    • Overall height (stowed): 9 ft 10 in (3 m)
    • Overall length: 37 ft 7 in (11.45 m)
  • Weight
    • 36,250 lb (16,443 kg)
  • Drive Speed
    • 4.5 mph (7.2 km/h)
  • Gradeability
    • 45%
  • Power Source
    • Engine: Deutz D2011L04 48 hp (35.8 kW)
    • Fuel type: Diesel
  • Turning Radius
    • Inside: 13 ft 4 in (4.06 m)
    • Outside: 19 ft 6 in (5.94 m)
  • Working Envelope
    • Articulating jib: 6 ft (1.83 m)
    • Range of articulation: 144 degrees (+78, -66)
  • Performance
    • Swing: 360 Degrees Continuous
  • Operational
    • Tire type: Foam-filled
    • Axle oscillation: 8 in (0.20 m)
