Electric JLG E400AJPN Articulated Boom

Call for priceBuy or Rent

$240 USD per day

$550 USD per week

$1,650 USD per month

Contact Information
CONTACT :
Greg Herzog
PHONE :
Stock #:
LX16
Manufacturer:
MODEL #:
Drive:
2WD
SUBCATEGORY:
Height:
40 ft
FUEL:
Electric
SERIAL #:
0300142276
CONDITION:
Used/Rental
LOCATION:
DESCRIPTION:

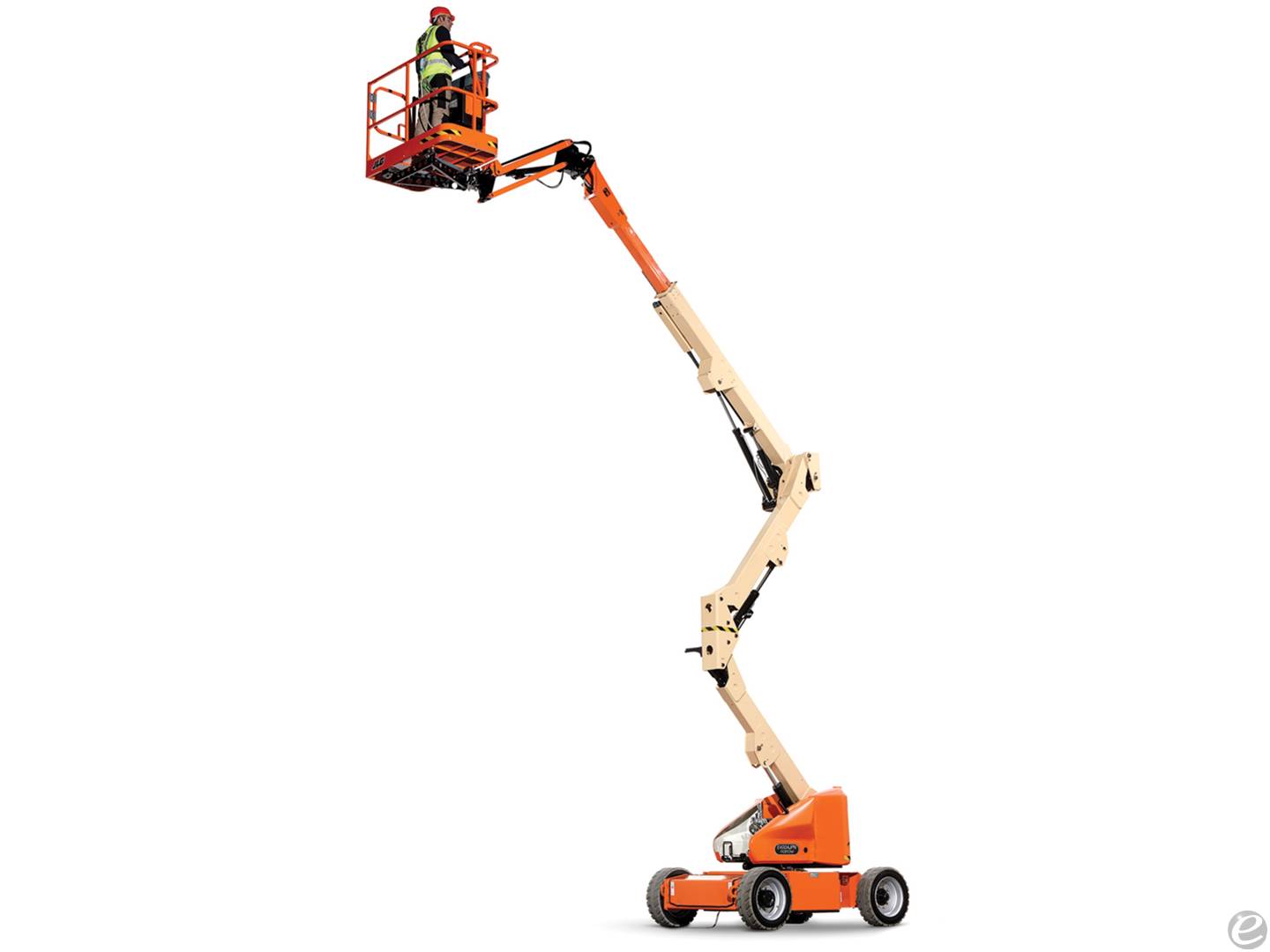

40ft electric self-propelled articulating narrow boom lift
Equipment Description:

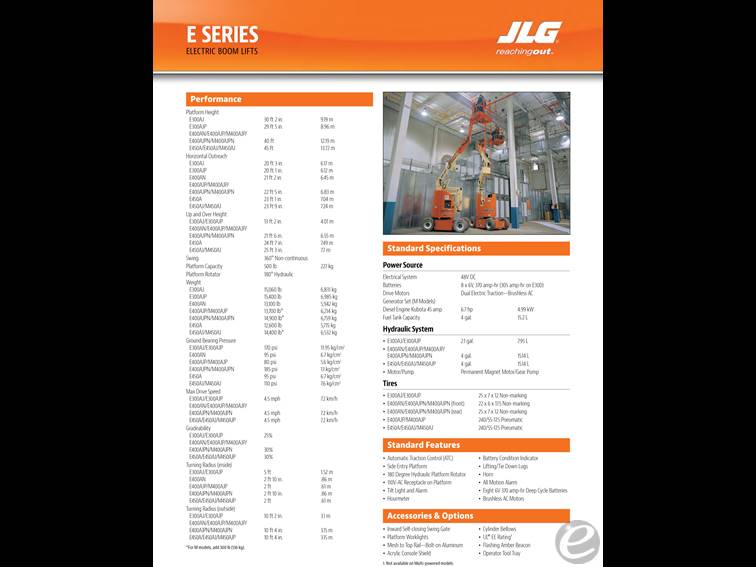

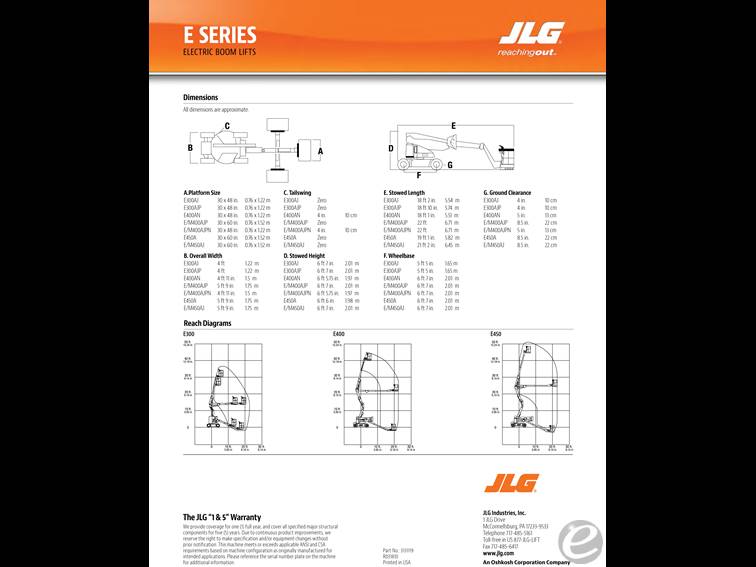

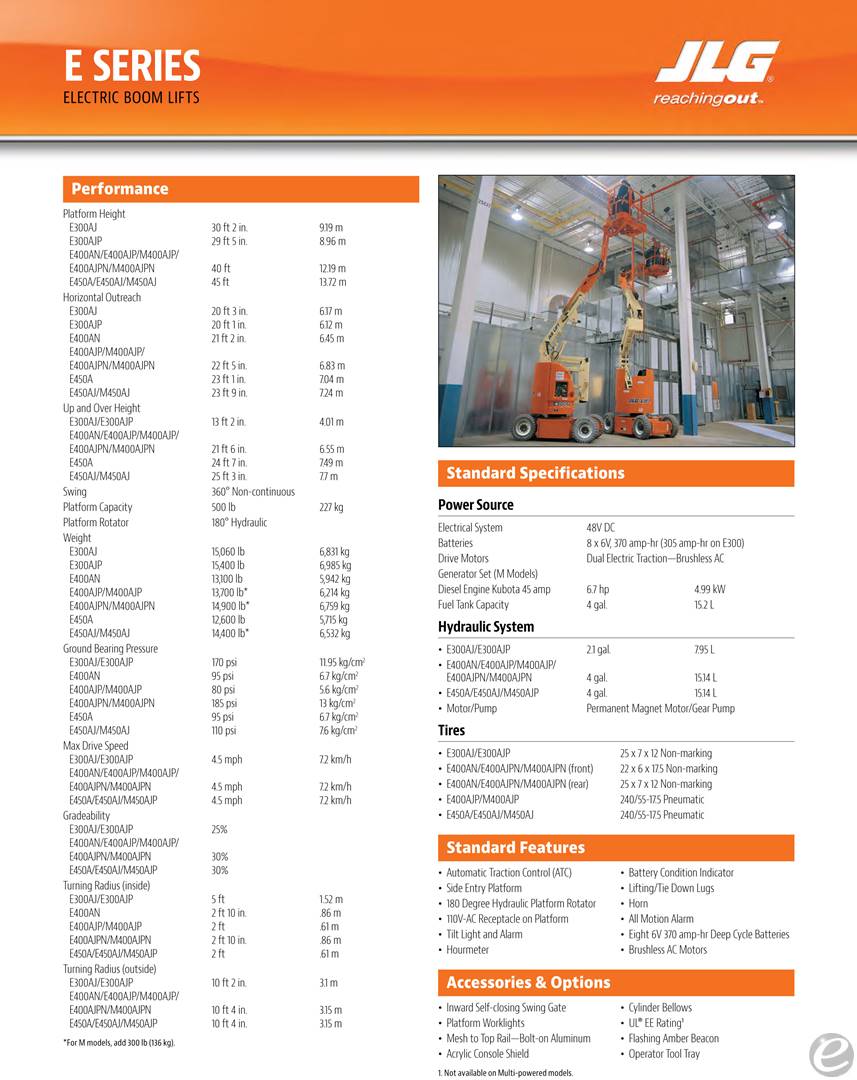

Self-propelled articulating boom lift with 40ft vertical reach and 23ft horizontal reach. Narrow model, 4ft 11in wide. Rotating jib. Electric powered. Full spec sheet in photos. *Stock Photo. **Long-term discounts available.
Specifications:
  • Machine Width: 1.5 m / 5 ft
  • Platform Height: 12.19 m / 40 ft
  • Horizontal Outreach: 6.12 m / 20 ft
  • Up and Over Height: 4.62 m / 15 ft
  • Platform Capacity - Unrestricted: 230 kg / 507 lb
  • Platform Capacity - Restricted: 230 kg / 507 lb
  • Platform Size A: 0.76 m / 2 ft 6 in
  • Platform Size B: 1.17 m / 3 ft 10 in
  • Overall Height: 2.0 m / 6 ft 7 in
  • Overall Length: 5.49 m / 18 ft
  • Overall Width: 1.75 m / 5 ft 9 in
  • Wheelbase: 1.71 m / 5 ft 7 in
  • Ground Clearance: 0.1 m / 4 in
  • Drive Speed - Platform Lowered: 5 km/h / 3.1 mph
  • Drive Speed - Platform Elevated: 0.8 km/h / 0.5 mph
  • Gradeability: 25%
  • Turning Radius - Inside: 0.34 m / 1 ft 1 in
  • Turning Radius - Outside: 2.99 m / 9 ft 10 in
  • Power Source: Electric
  • Battery: 8 x 6V, 370 A-h
  • Hydraulic System Fluid Capacity: 18 L / 4.8 gal
  • Ground Bearing Pressure: 8.28 kg/cm² / 117 psi
  • Machine Weight: 5963 kg / 13,146 lb
  • Drive Motor Voltage: 48V
  • Maximum Elevation Time: 80 seconds
  • Maximum Lowering Time: 60 seconds
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.


1 Review Shipping Dimensions

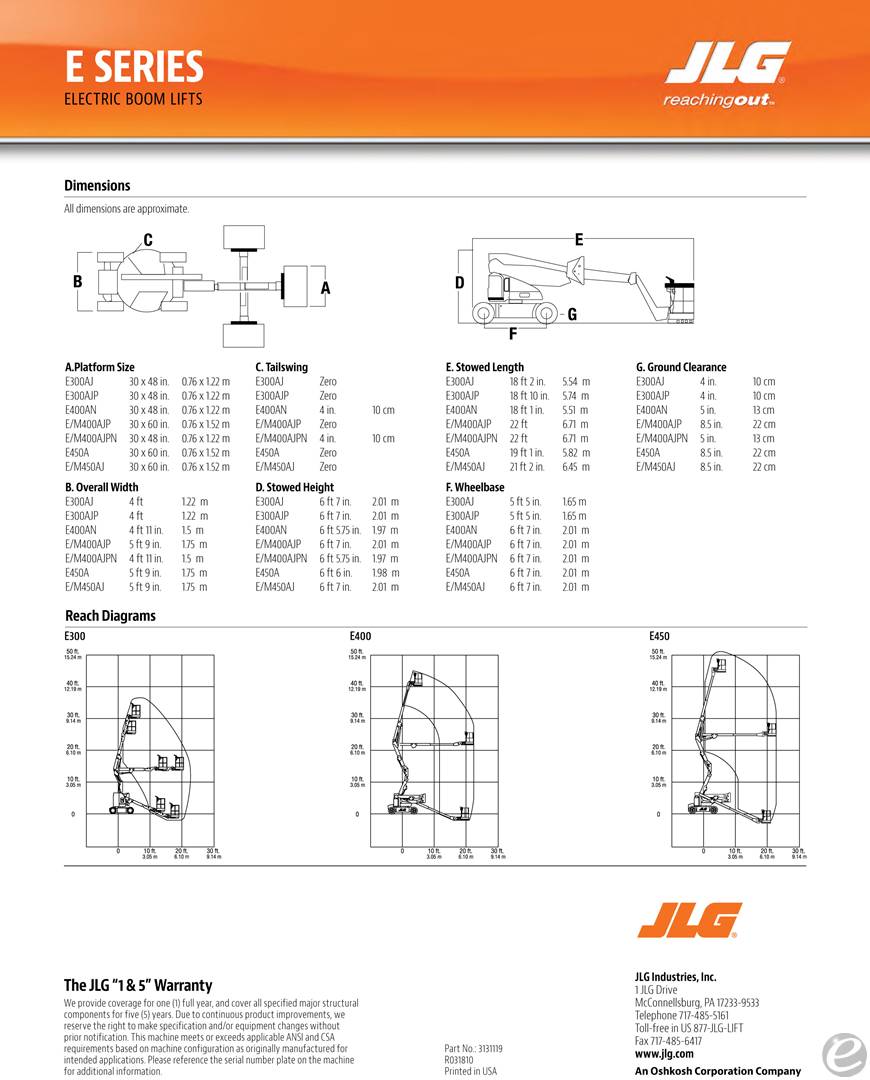

Schematic for JLG E400AJPN
