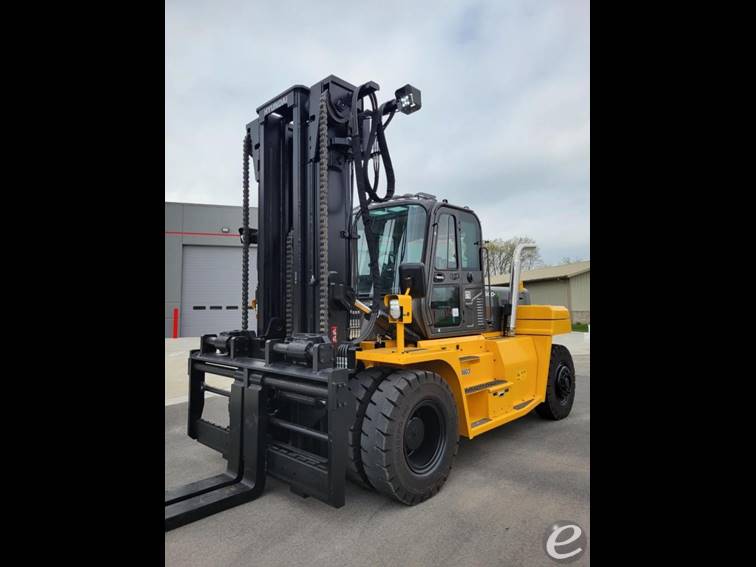

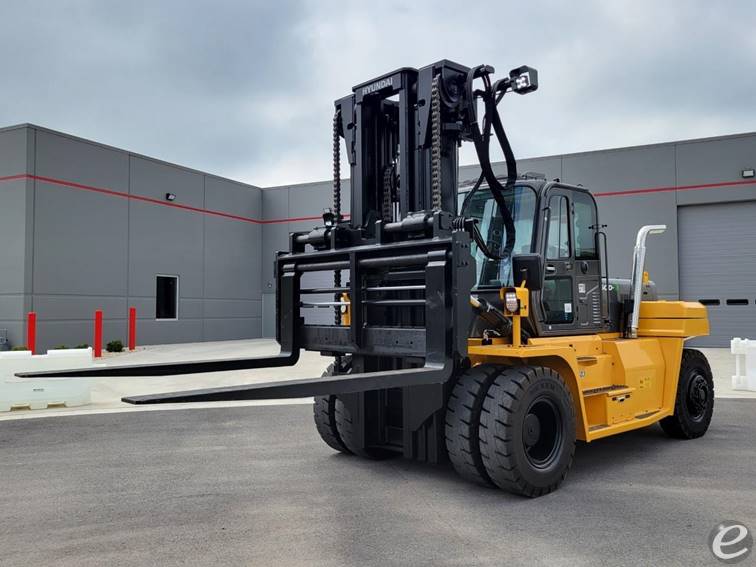

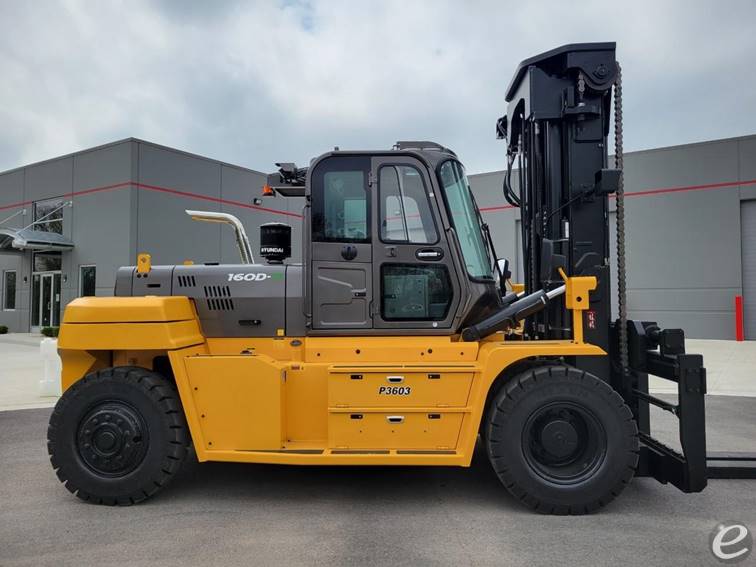

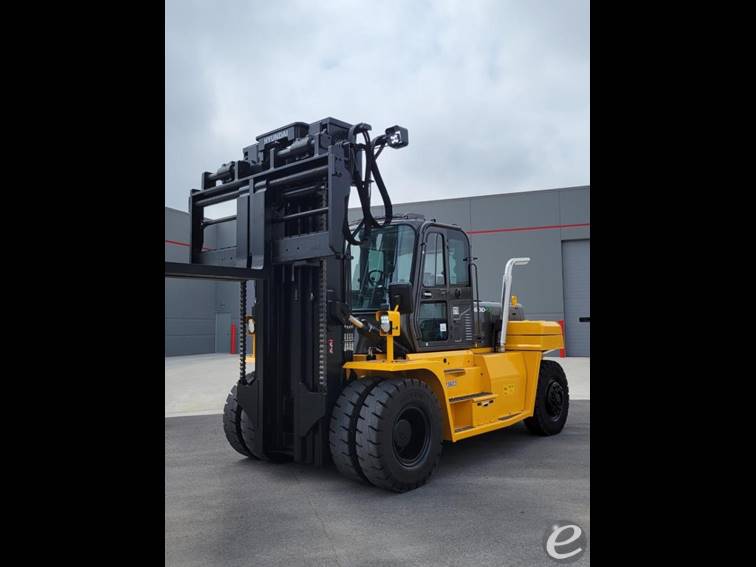

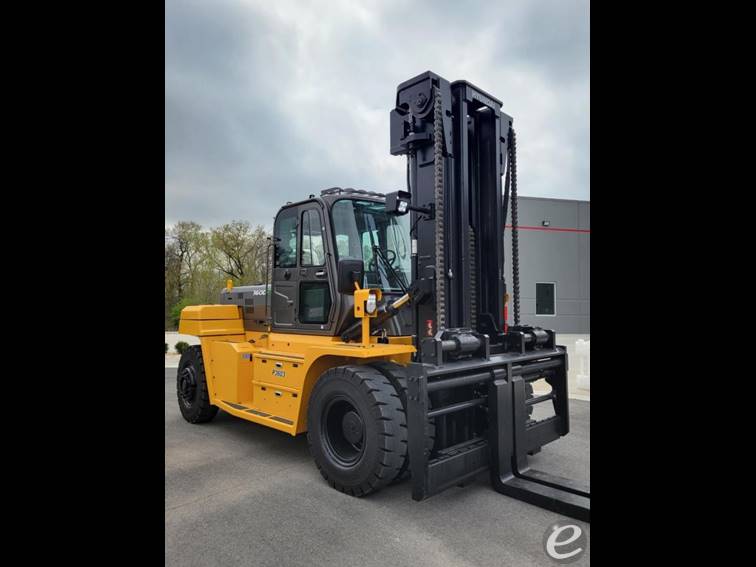

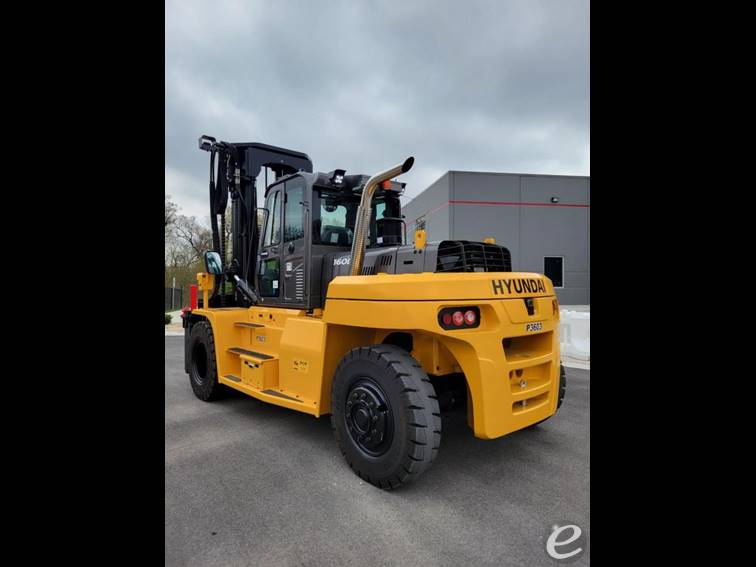

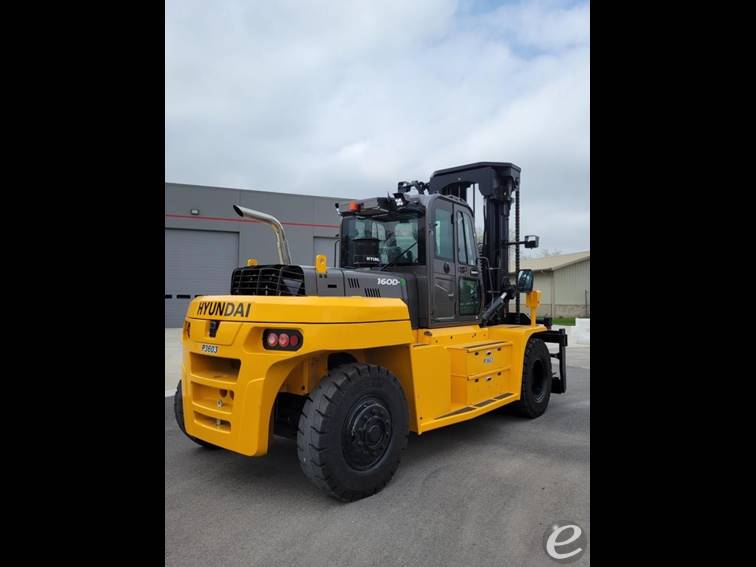

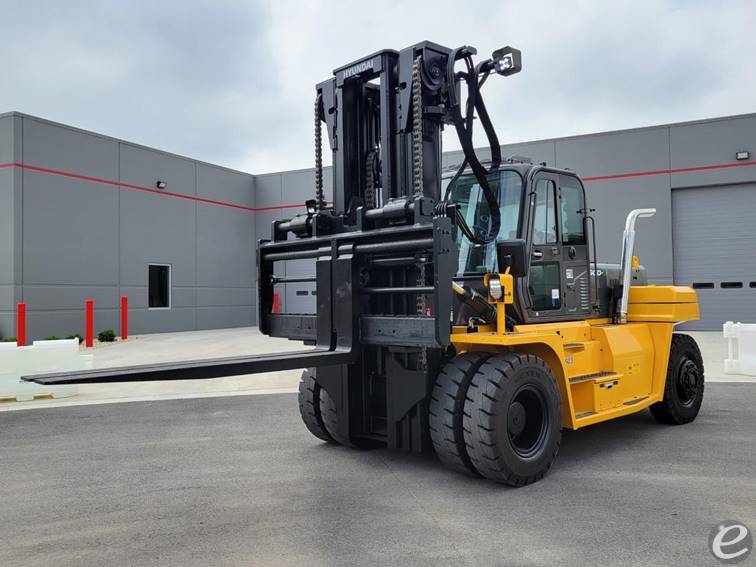

2023 Hyundai 160D-9

diesel pneumatic tire 4 wheel sit down

Call for price
Chicago Industrial Equipment
CONTACT INFO
Name:
Justin Cyrnek
Phone:

ADDRESS
Chicago Industrial Equipment
600 Oakwood Ct
RockdaleIllinois 60436
ATTRIBUTES
STOCK #:
P3603
YEAR:
2023
Manufacturer:
MODEL #:
CAPACITY:
36000
FUEL:
Diesel
MAST TYPE:
Three Stage
MAST HEIGHT:
257 in
SERIAL #:
HHKHFT23VF0000888
SIDE SHIFTER:
Yes
CONDITION:
Used
LOCATION:
Illinois [60436]
POST DATE:
3/8/2025
Equipment Description

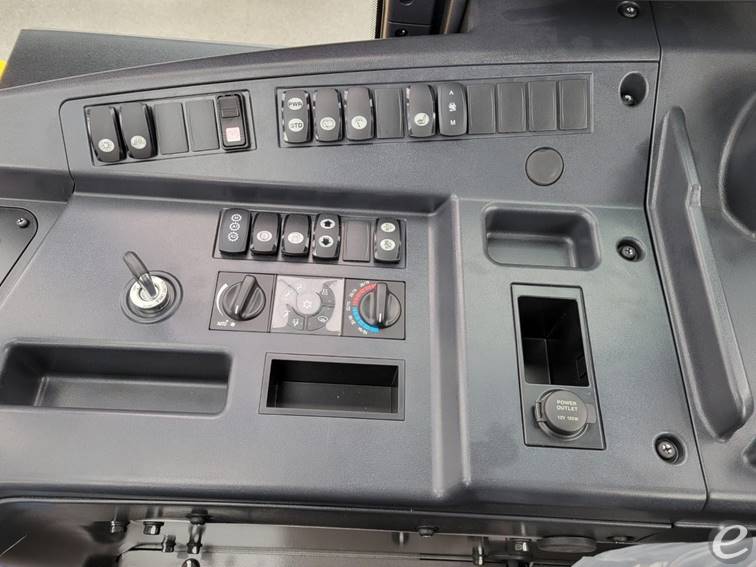

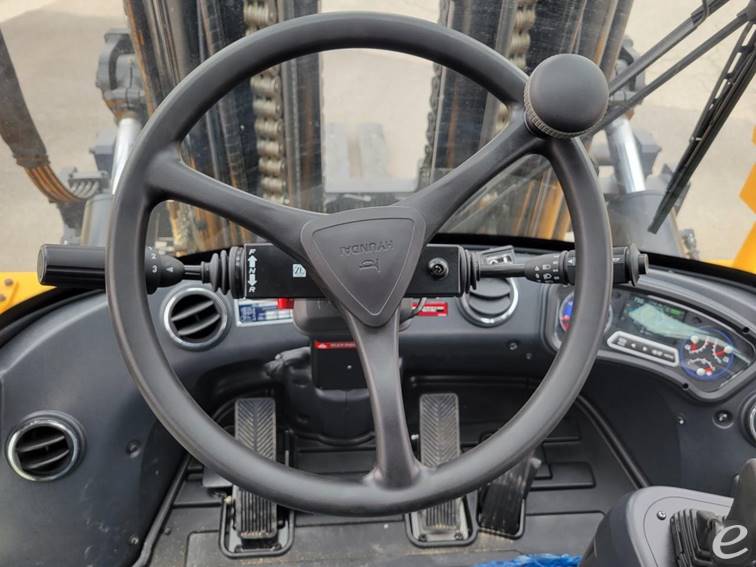

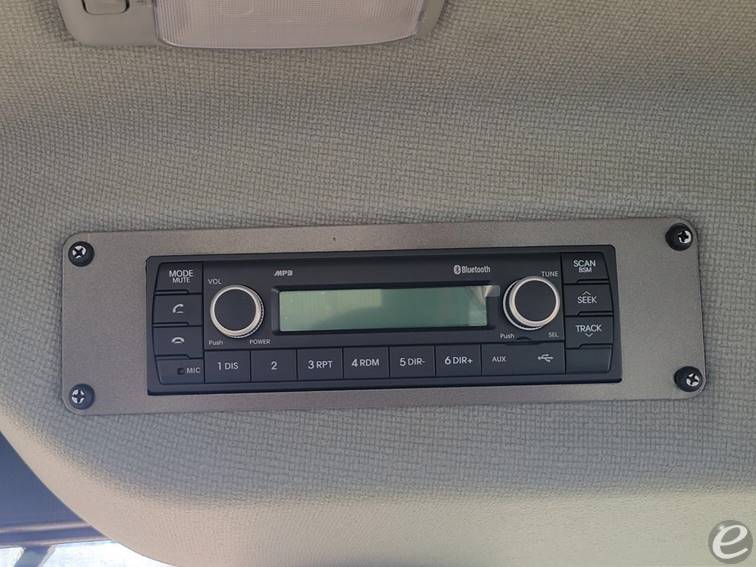

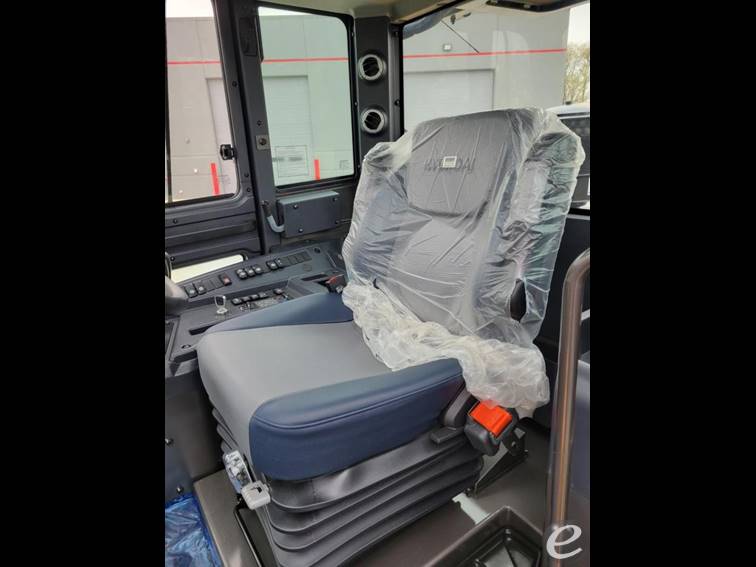

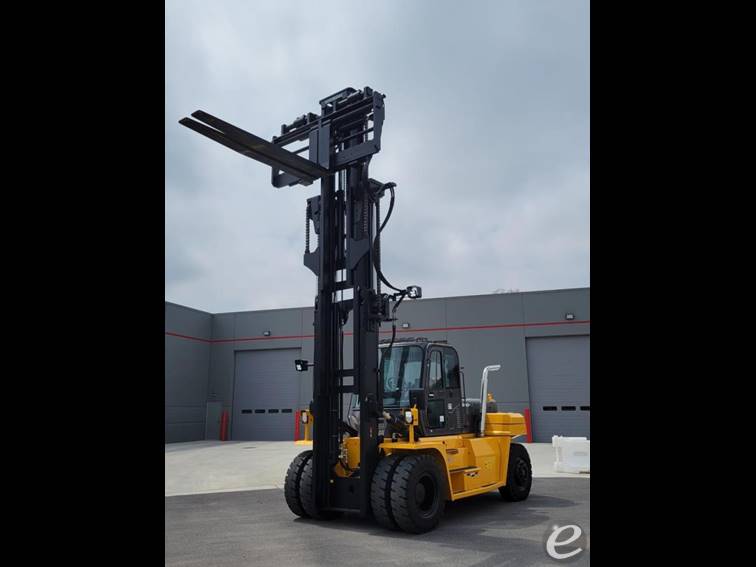

DIESEL FULL CAB RADIO HEAT/ AC CUMMINS ENGINE HEATED SEAT 3 STAGE MAST MAST LOWERED 145" MAST RAISED 257" 36000 LB CAPACITY SIDE-SHIFT FORK POSITIONER 96 INCH FORKS PNEUMATIC TIRES FULL FREE LIFT MAST TILT READY TO WORK CONTACT US FOR COMPETITIVE FREIGHT RATES!
  • General Specifications
    • Model Number: 160D-9
    • Manufacturer: Hyundai
    • Type: Forklift
    • Subtype: Rough Terrain (Vertical Mast)
  • Dimensions
    • Overall Length: 206.3 inches (varies with fork length)
    • Overall Width: 96.5 inches
    • Overall Height: 130.7 inches
    • Wheelbase: 122 inches
    • Ground Clearance: 11.6 inches
  • Performance
    • Load Capacity: 35,273 lbs
    • Travel Speed: 18.6 mph
    • Lifting Speed: 59 feet/min (laden)
    • Lowering Speed: 55 feet/min (laden)

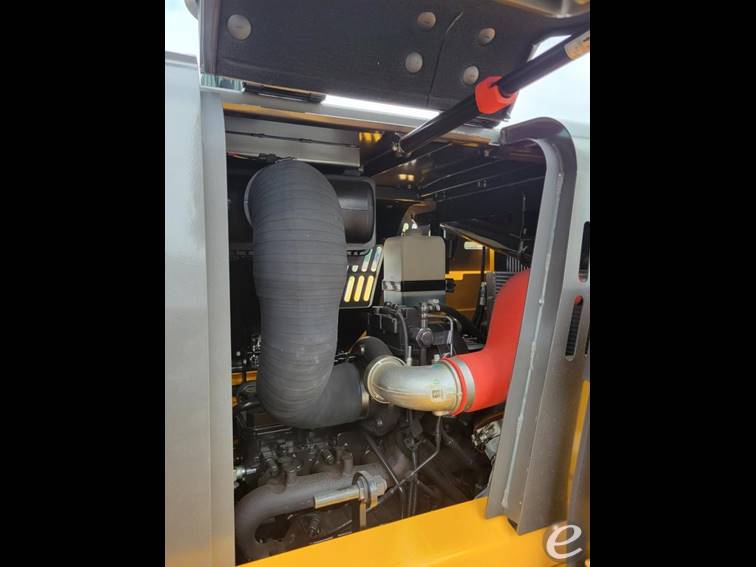

  • Engine

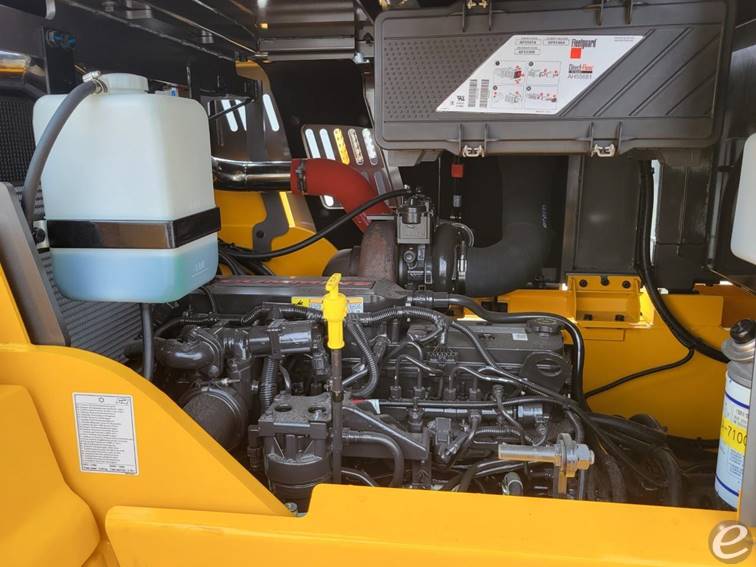

    • Engine Model: Cummins QSB6.7
    • Power Output: 222 hp at 2,200 RPM
    • Torque: 652 lb-ft at 1,500 RPM
  • Fuel
    • Fuel Type: Diesel
    • Fuel Capacity: 48 gallons

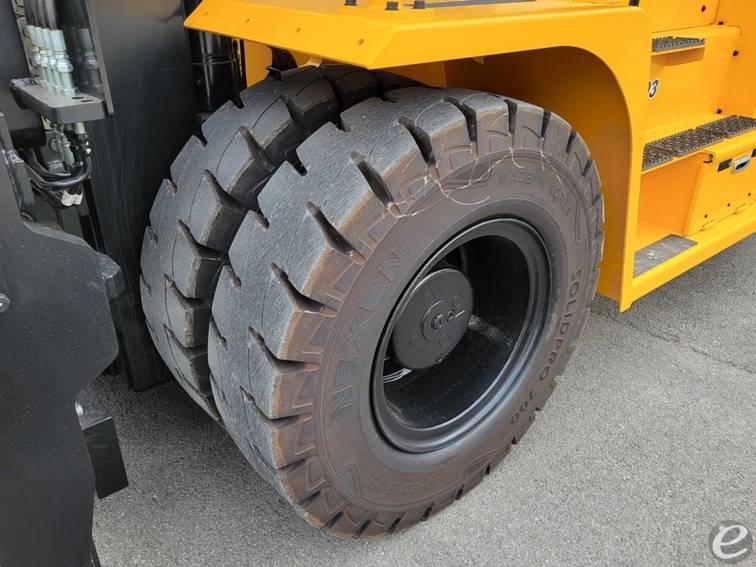

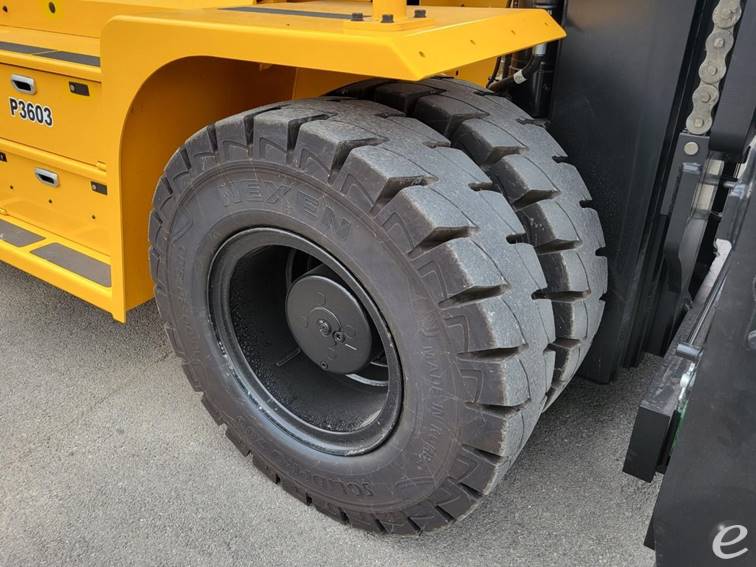

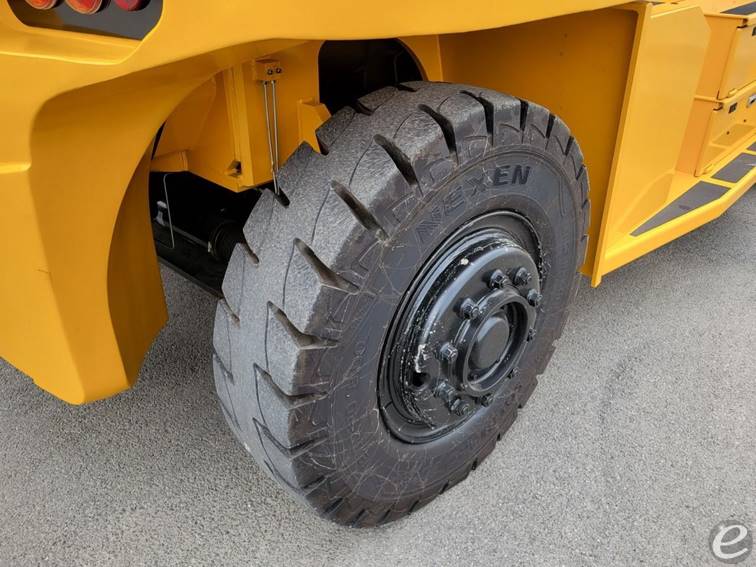

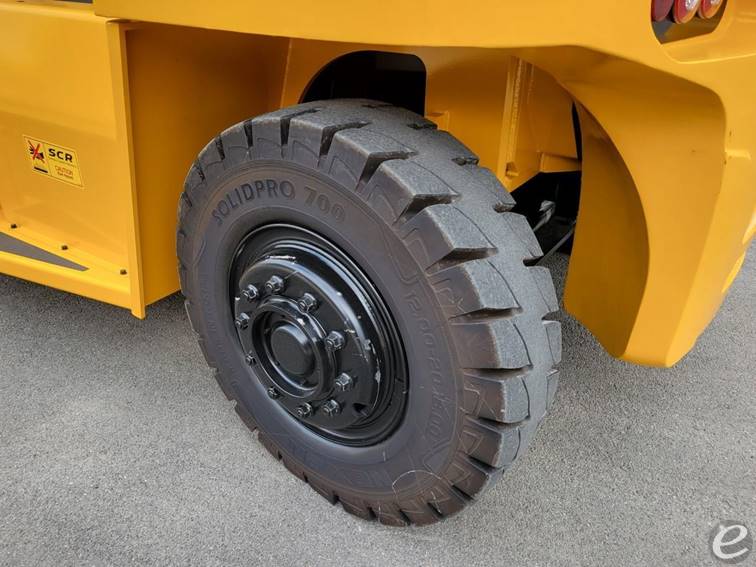

  • Tires
    • Tire Type: Pneumatic
    • Tire Size (Front): 12.00x20 18PR
    • Tire Size (Rear): 12.00x20 18PR
  • Brakes
    • Brake Type: Hydraulic Wet Disc
  • Transmission
    • Transmission Type: Powershift
    • Number of Gears (Forward/Reverse): 3/3
  • Hydraulic System
    • Hydraulic Pump Type: Gear Pump
    • Hydraulic Pressure: 2,700 psi
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
