Equipment Description:

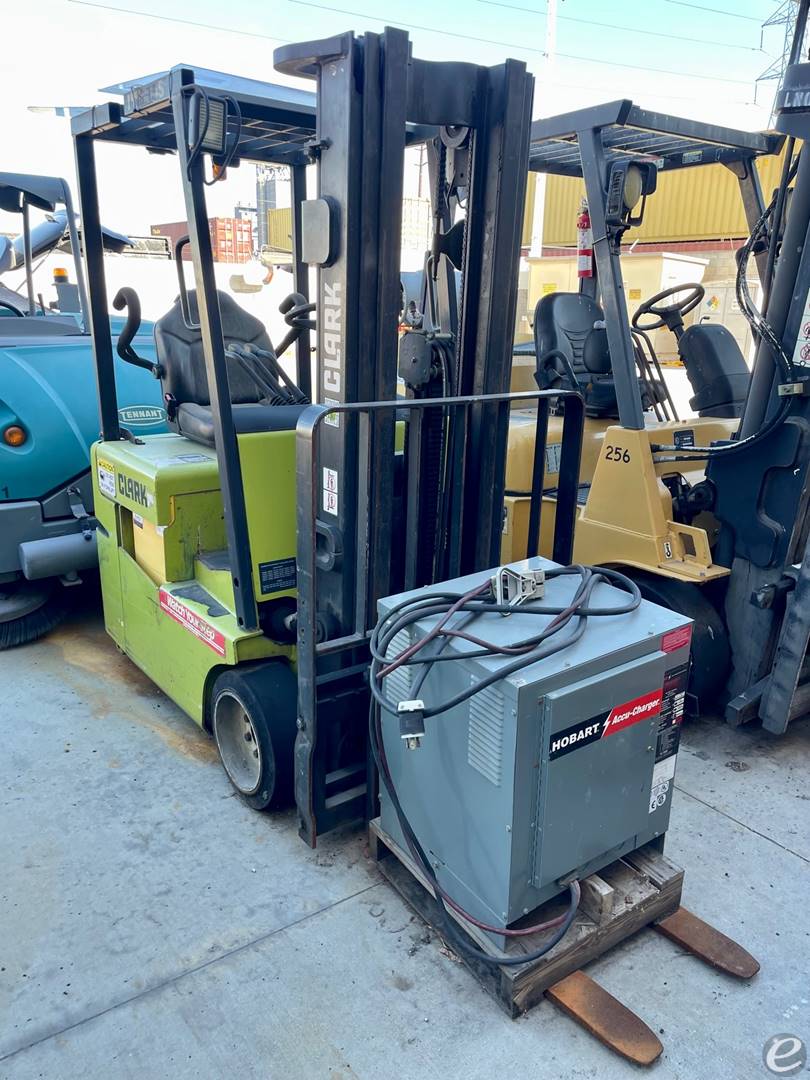

2001 Electric Clark TMG15S Electric 3 Wheel Sit Down

Call for price

Contact Information

TB Forklifts
5410 Mary Francis Dr
Houston, Texas 77039

CONTACT :

Antonio Borboa

PHONE :

281-746-6799

Stock #:

570KF

YEAR:

2001

Manufacturer:

Clark

MODEL #:

TMG15S

CAPACITY:

3000

FUEL:

Electric

SUBCATEGORY:

Electric 3 Wheel Sit Down

MAST TYPE:

Three Stage

MAST HEIGHT:

188 in

SERIAL #:

TMG248-0150-9570KF

SIDE SHIFTER:

Yes

CONDITION:

Used

LOCATION:

Texas [77087]

Equipment Description:

This product was posted on 8/15/2024

General Specifications
- Model: Clark TMG15S
- Type: Three-wheel electric forklift
- Operator Type: Seated Rider
- Load Capacity: 3,000 lbs (1,500 kg)
- Weight: Approximately 6,592 lbs (2,990 kg) without battery
- Wheelbase: 54.1 inches (1374 mm)
- Tires: Cushion tires for indoor use
Dimensions
- Overall Width: 41.5 inches (1054 mm)
- Overall Length (without forks): 75.8 inches (1926 mm)
- Height to Top of Overhead Guard: 82.7 inches (2100 mm)
- Turning Radius: 57.1 inches (1450 mm)
Mast Specifications
- Mast Type: Various options available
- Lift Height: Typically up to 189 inches (4800 mm), depending on mast
- Lowered Mast Height: Varies by mast type
- Free Lift Height: Varies by mast and fork configuration
Powertrain
- Power Source: Electric battery
- Voltage: 36V or 48V options available
- Traction Motor: 5.5 kW AC drive motor
- Hydraulic Motor: 7.8 kW AC hydraulic motor
- Brakes: Regenerative and hydraulic disc brakes
Performance
- Travel Speed (Loaded): Up to 10.6 mph (17 km/h)
- Lifting Speed (Loaded): Approximately 59 ft/min (0.3 m/s)
- Lowering Speed (Loaded): Approximately 98 ft/min (0.5 m/s)
Operator Features
- Steering System: Hydraulic power steering
- Seat Type: Ergonomic suspension seat with adjustable settings
- Controls: Fingertip controls for ease of operation
- Display: Digital display with key performance indicators
Additional Features
- Safety: Operator presence detection system
- Lighting: LED work lights and signal lights
- Battery Removal: Easy battery access for quick changes
- Cooling System: Integrated cooling system for the drive and hydraulic motors
