Equipment Description:

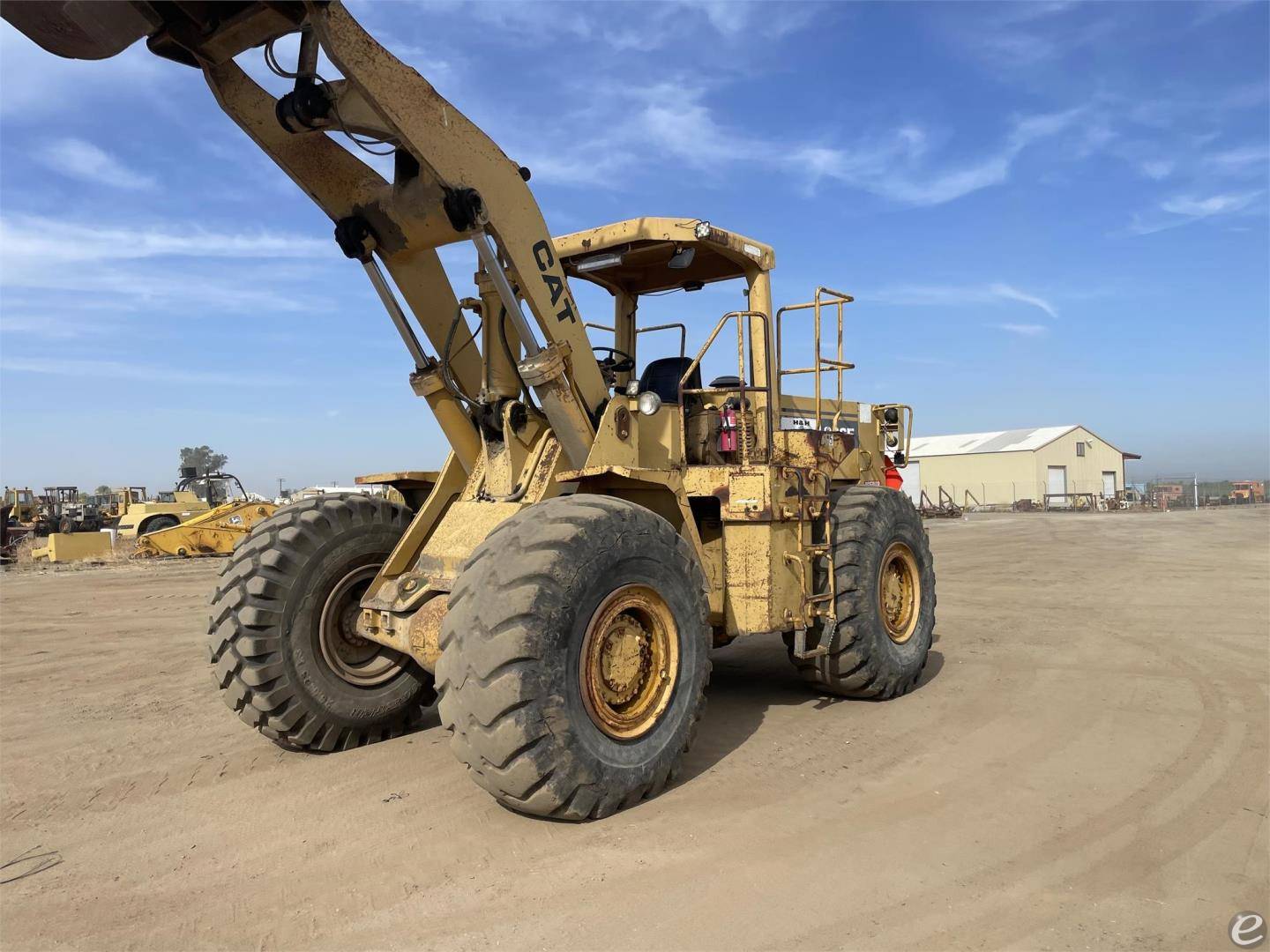

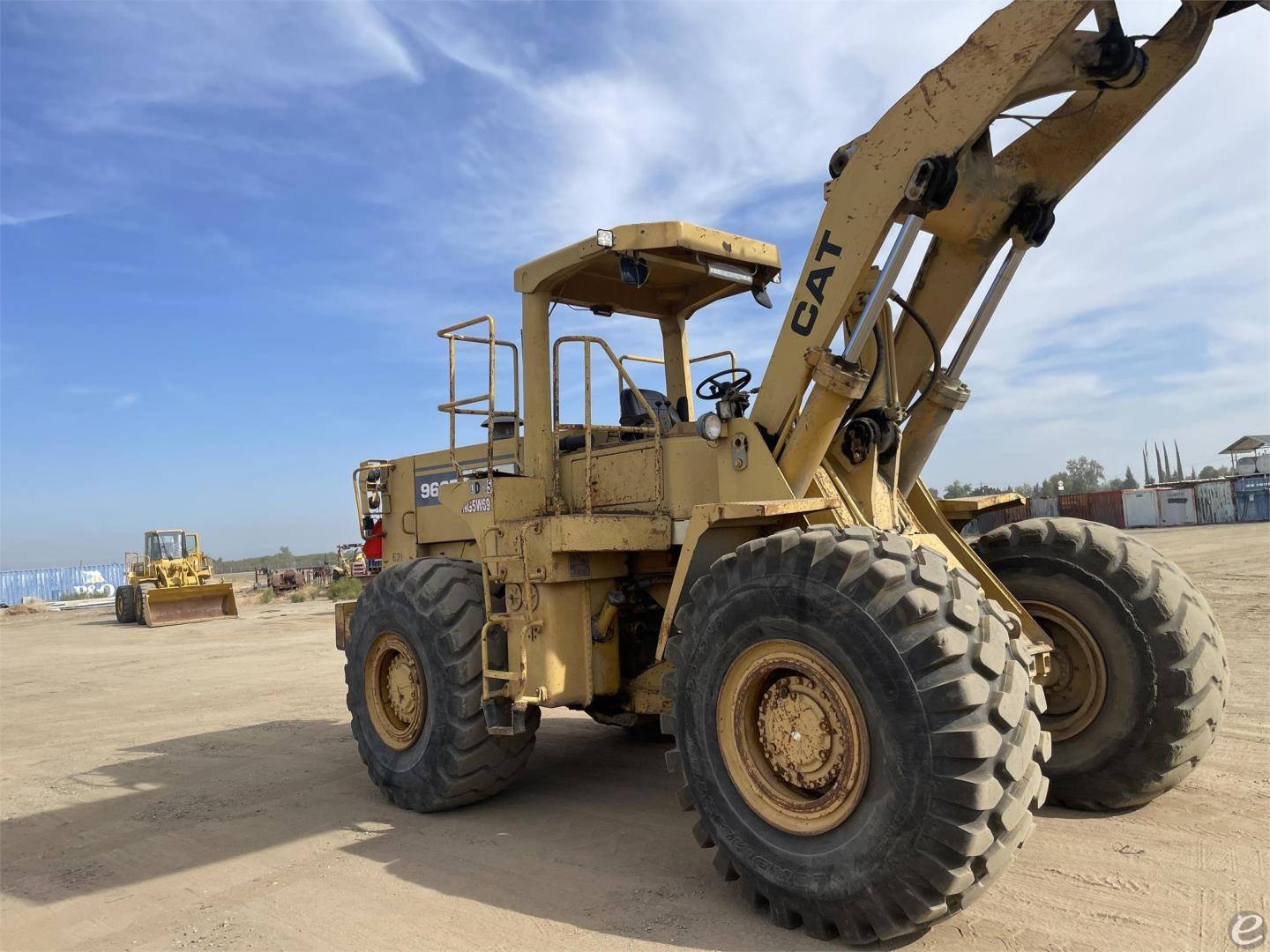

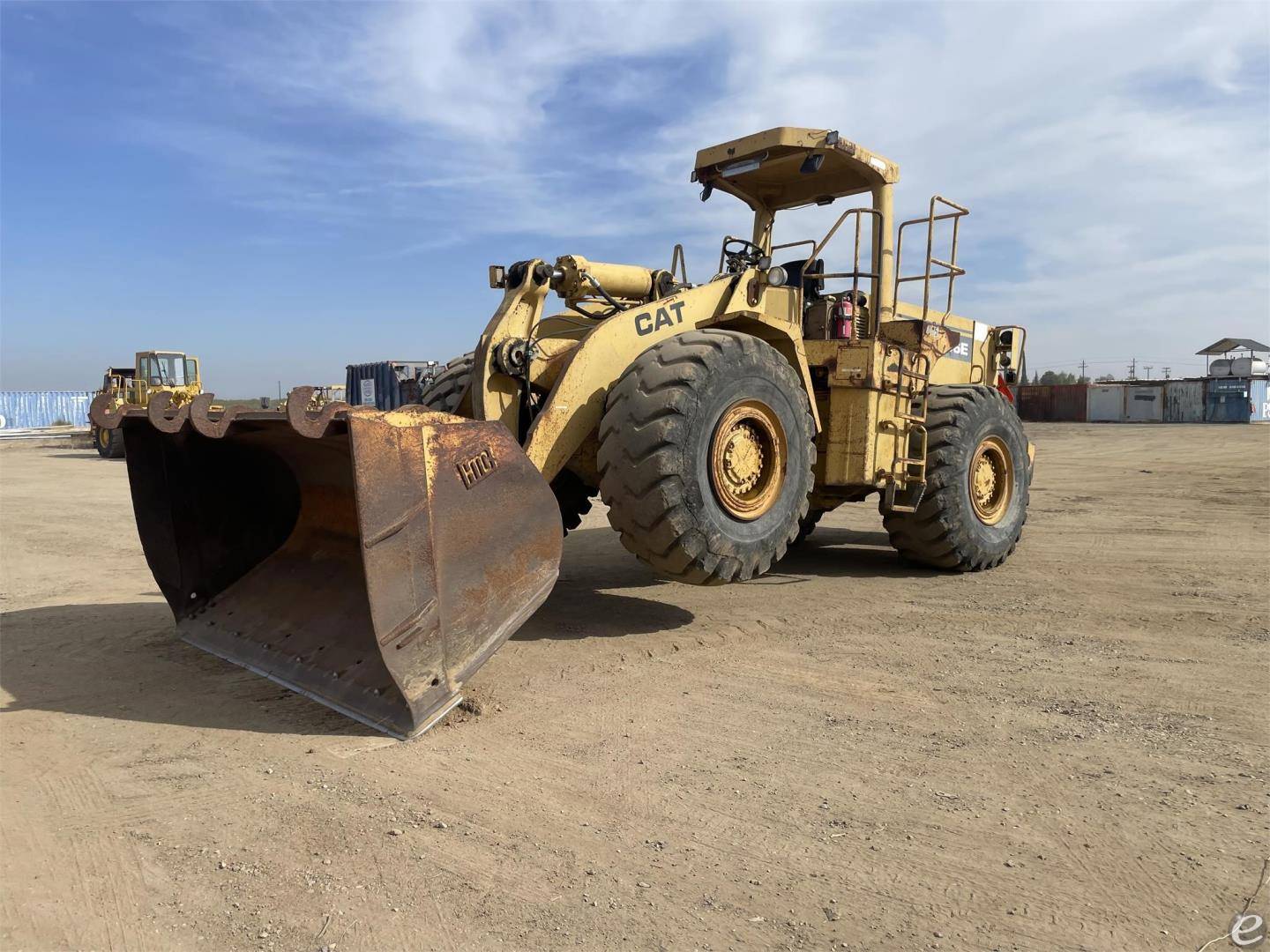

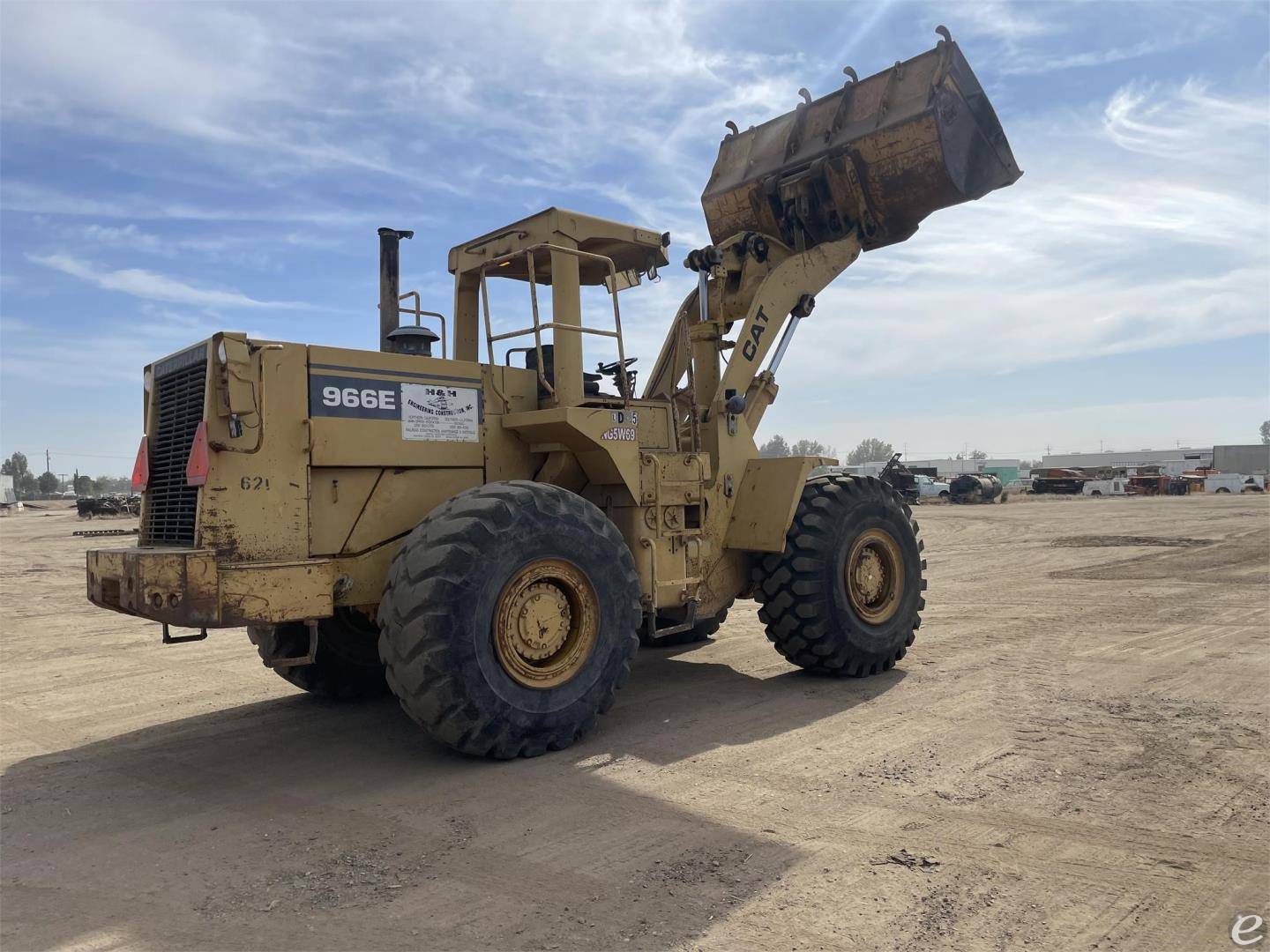

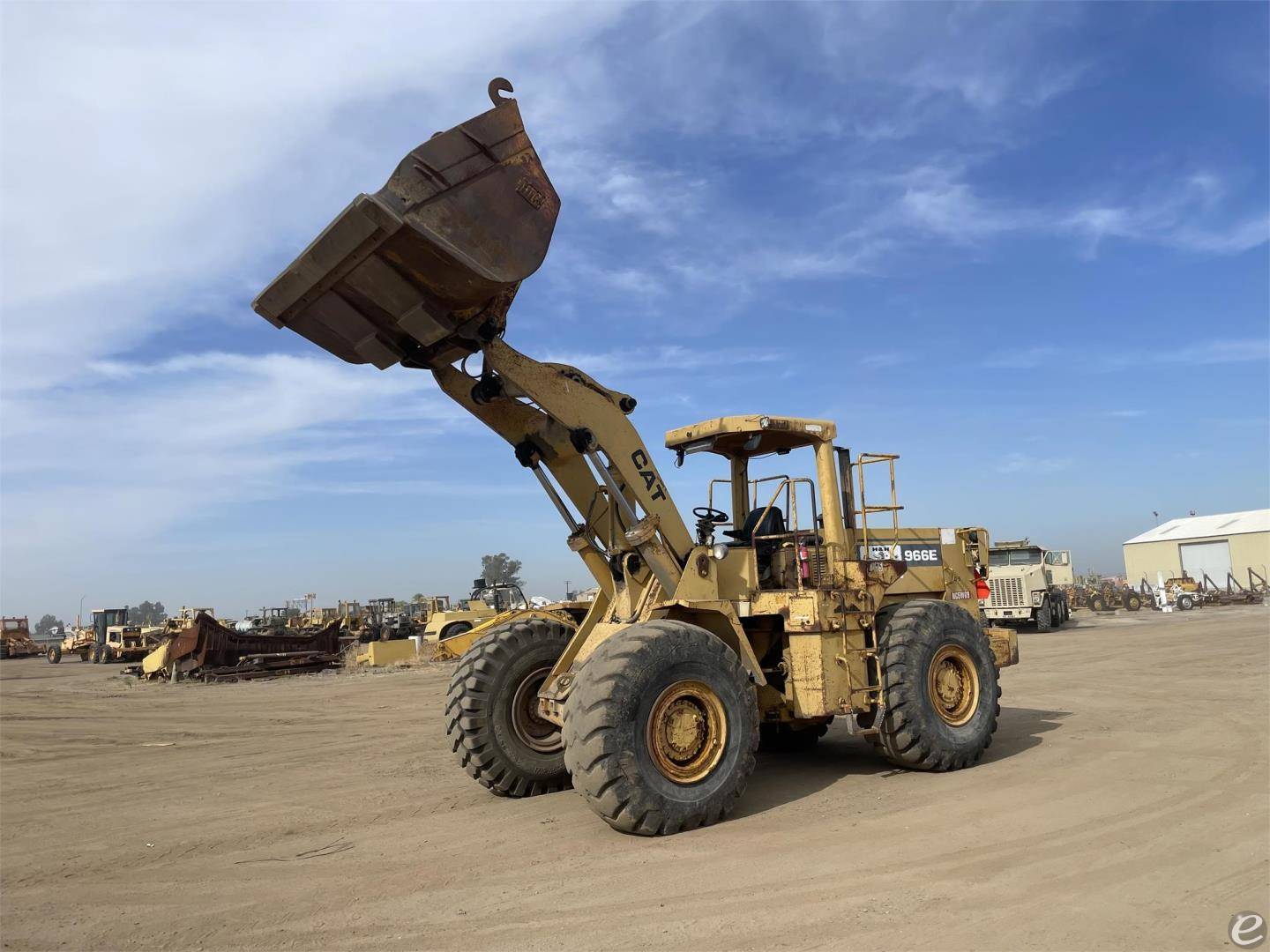

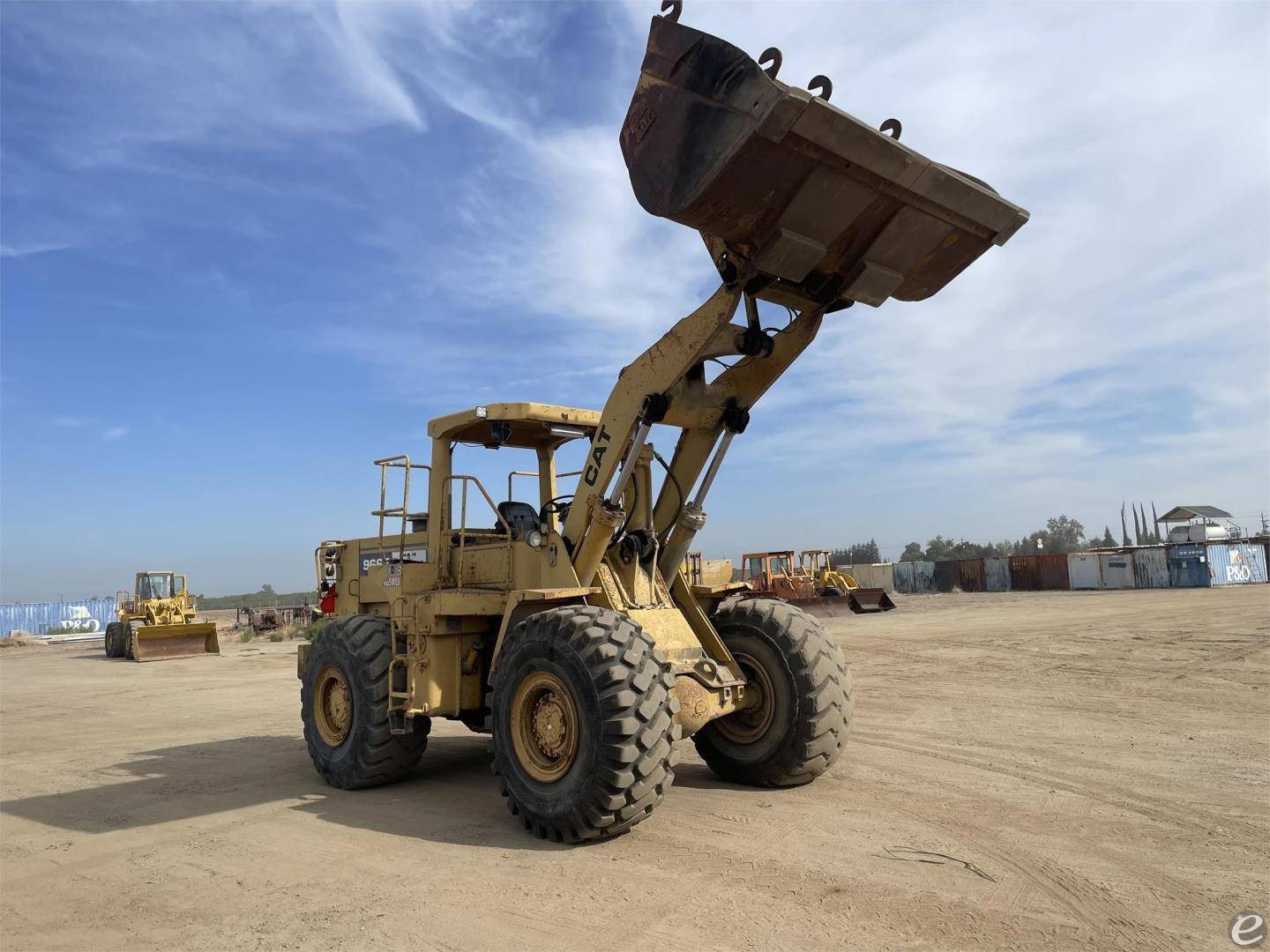

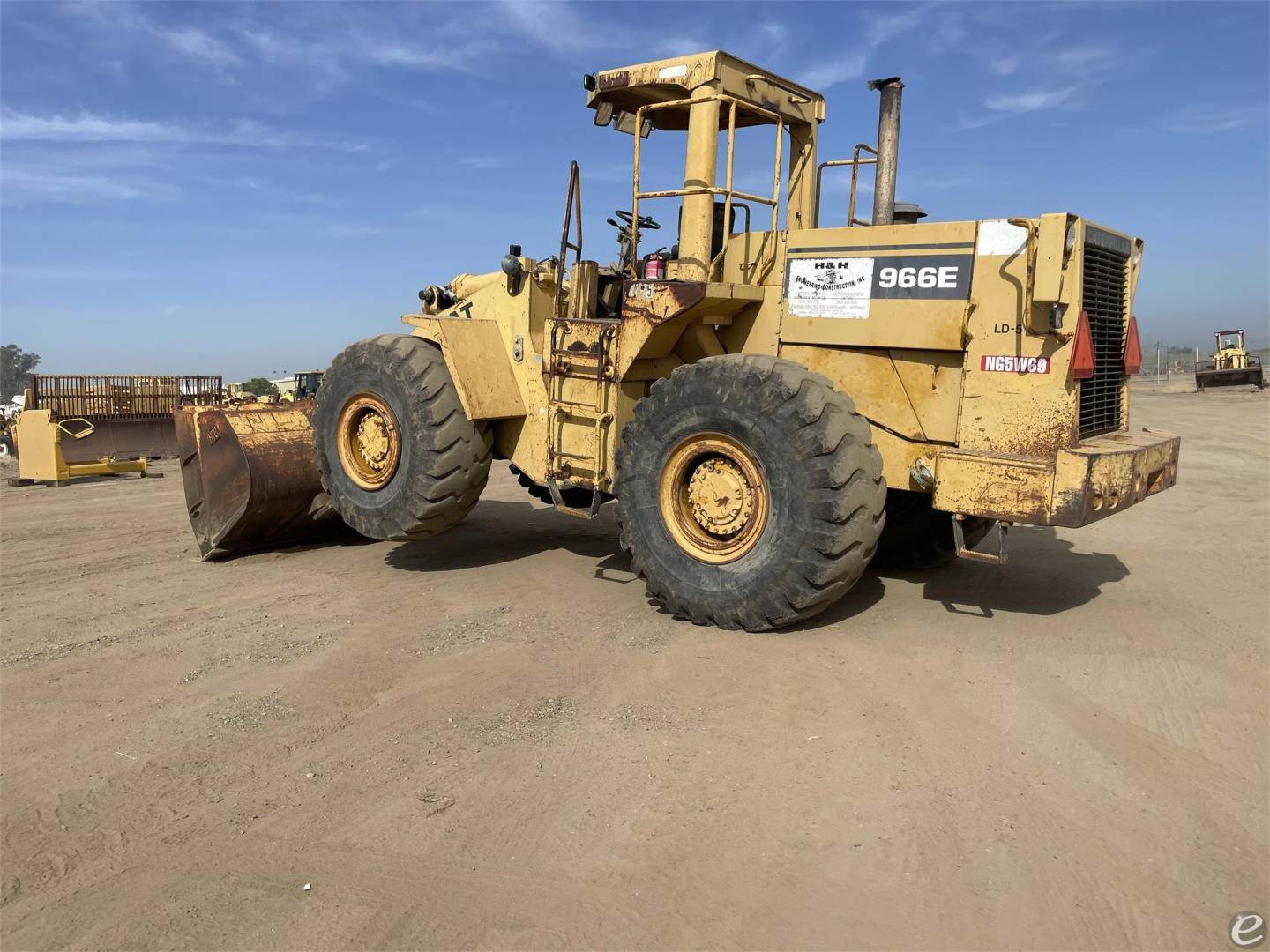

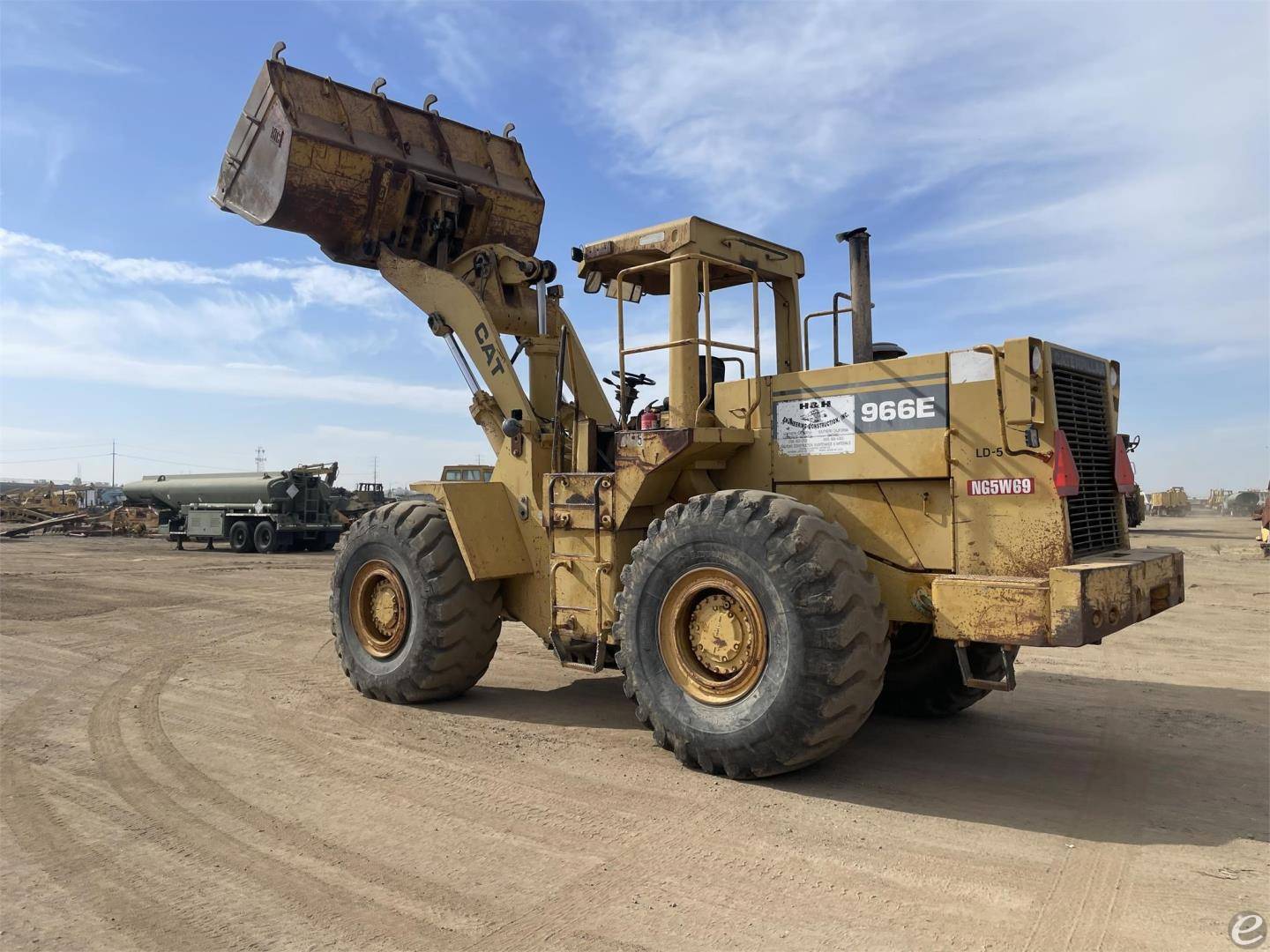

1988 Cat 966E Earth Moving and Construction

$47,500 USD

Instant Quote Eligible Listing - CLICK HERE!

Contact Information

National Equipment, LLC
12201 Hwy 99 (at Ave 12)
Madera, California 93638

CONTACT :

Jim Gagliardi

PHONE :

559-517-3272

Stock #:

0288

YEAR:

1988

Manufacturer:

Cat

MODEL #:

966E

SUBCATEGORY:

Earth Moving and Construction

SERIAL #:

99Y05426

CONDITION:

Used

LOCATION:

California [93638]

DESCRIPTION:

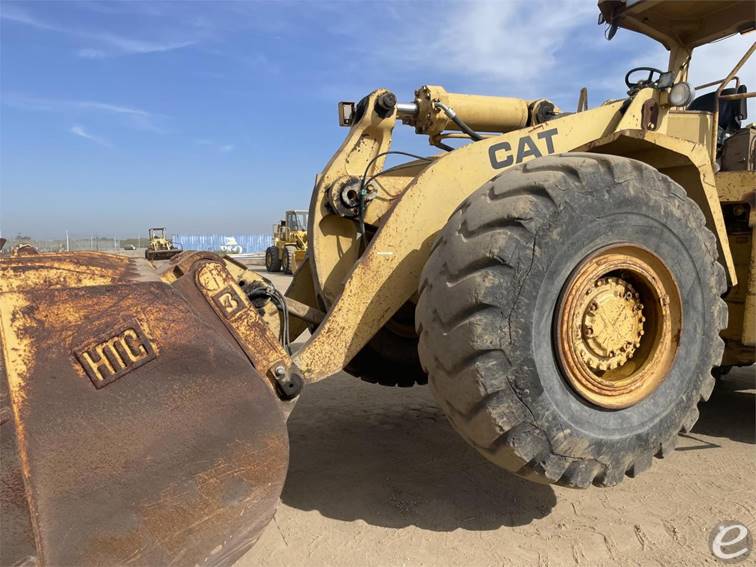

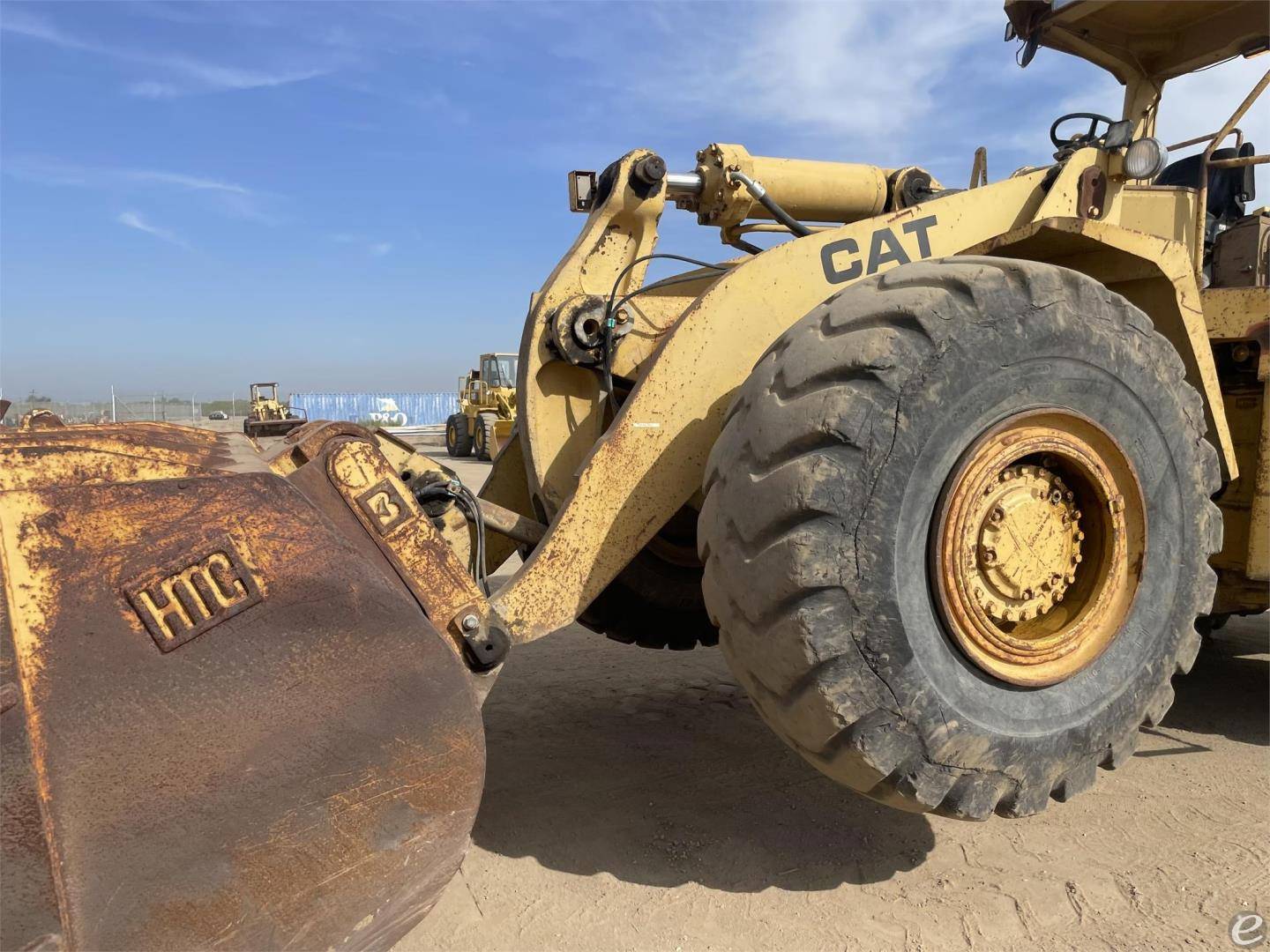

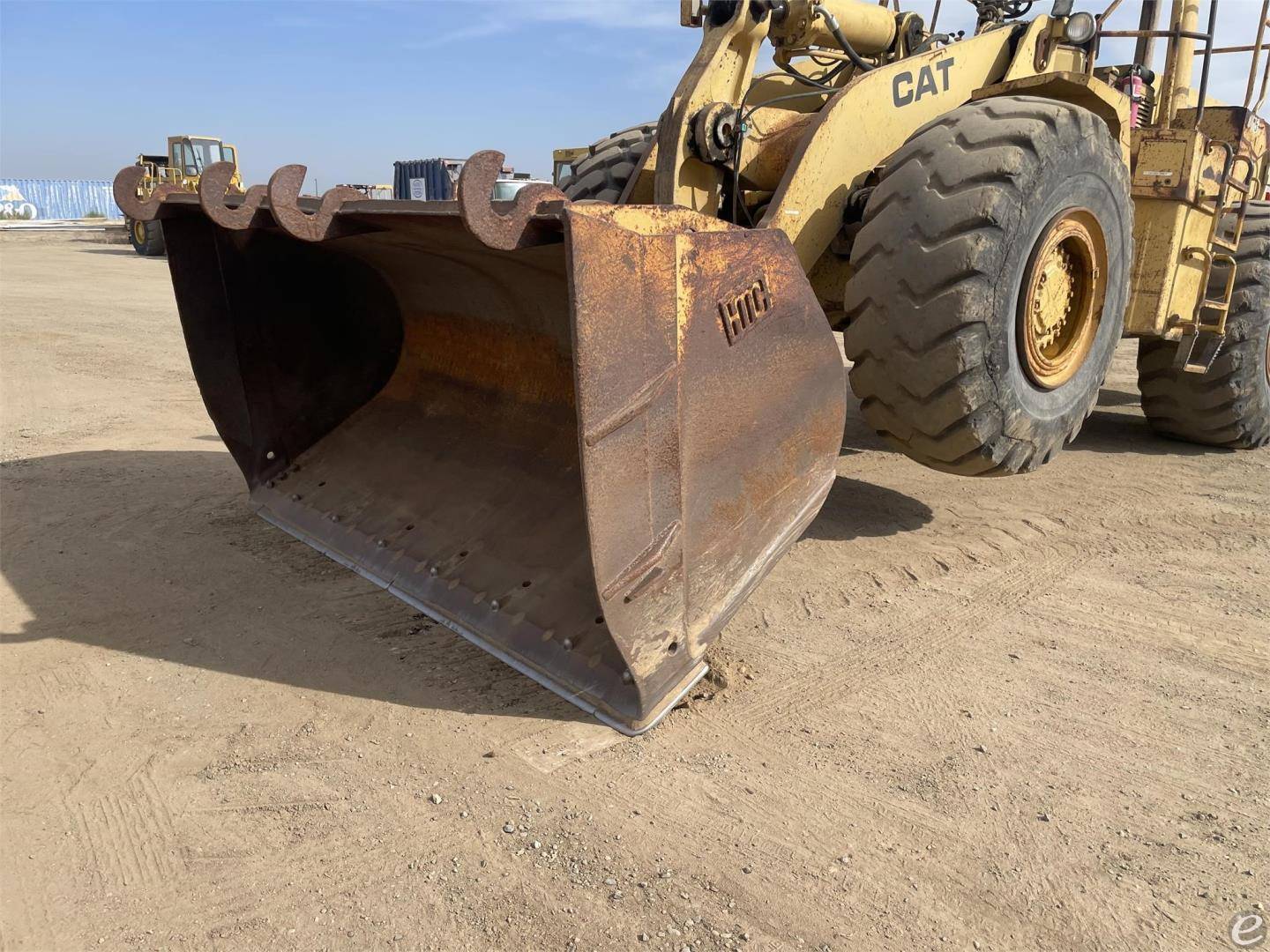

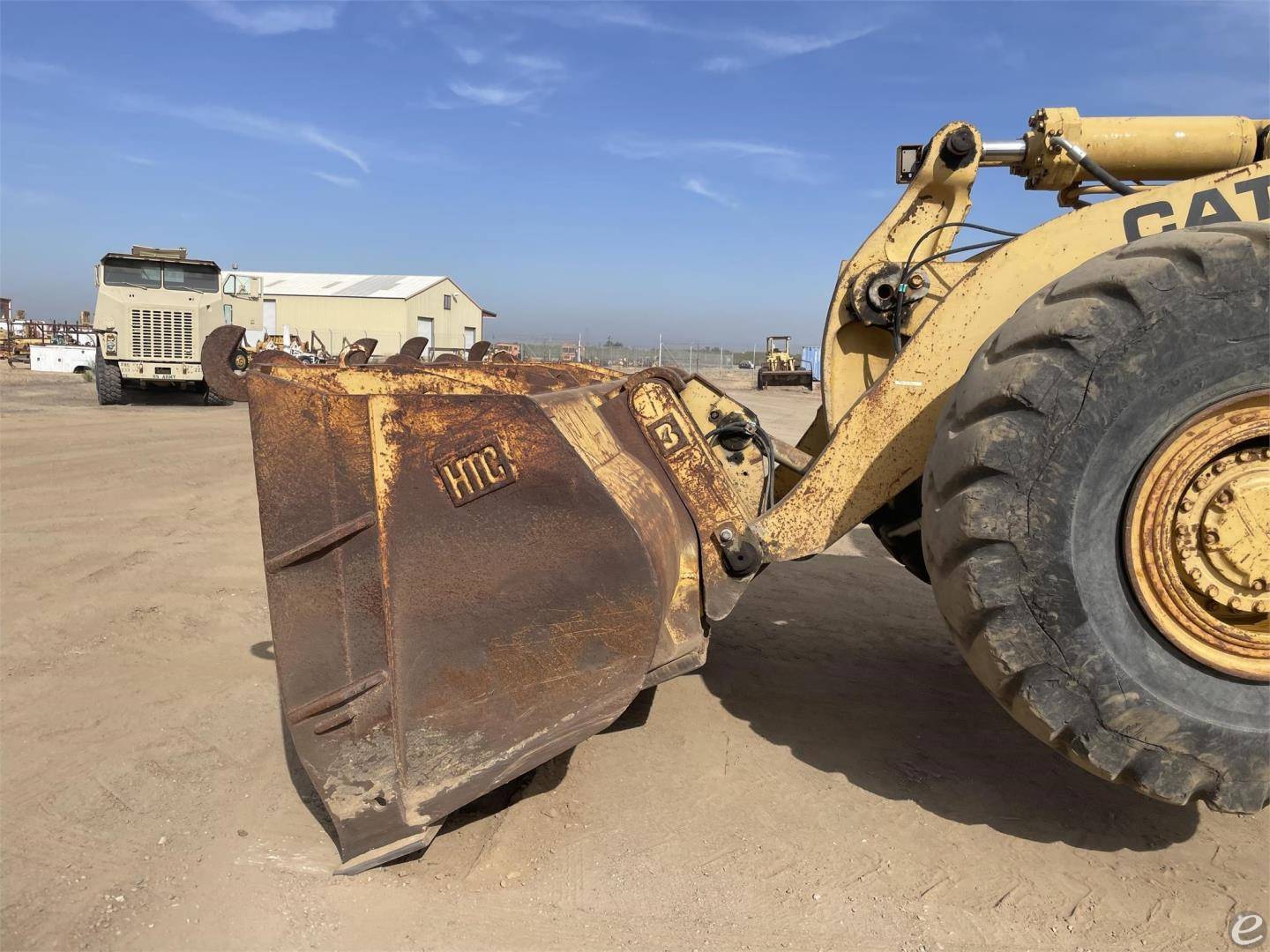

Canopy, CAT 3306 DI, 26.5-25 Tires, Quick Attach Bucket,

Equipment Description:

This product was posted on 11/4/2024

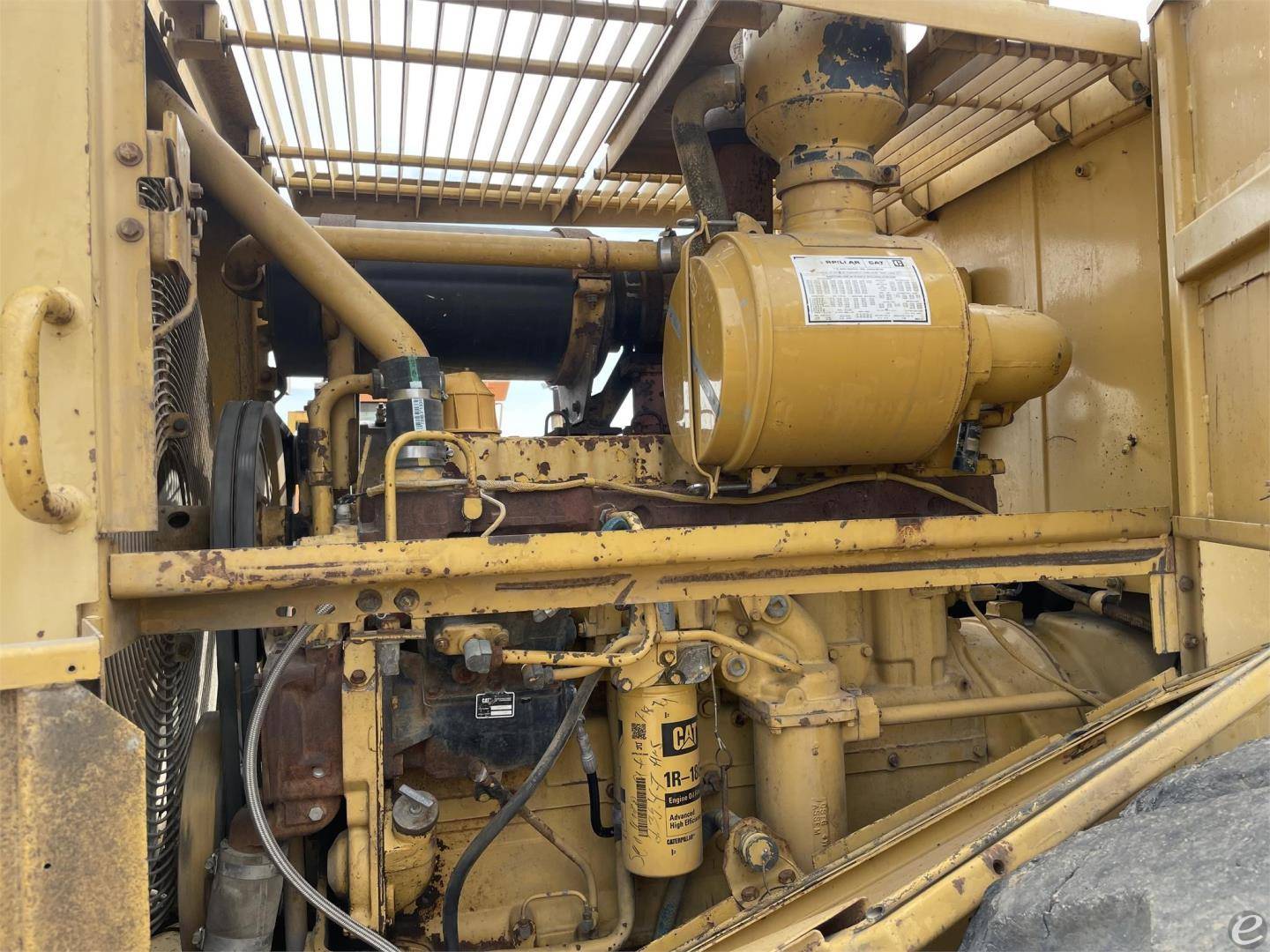

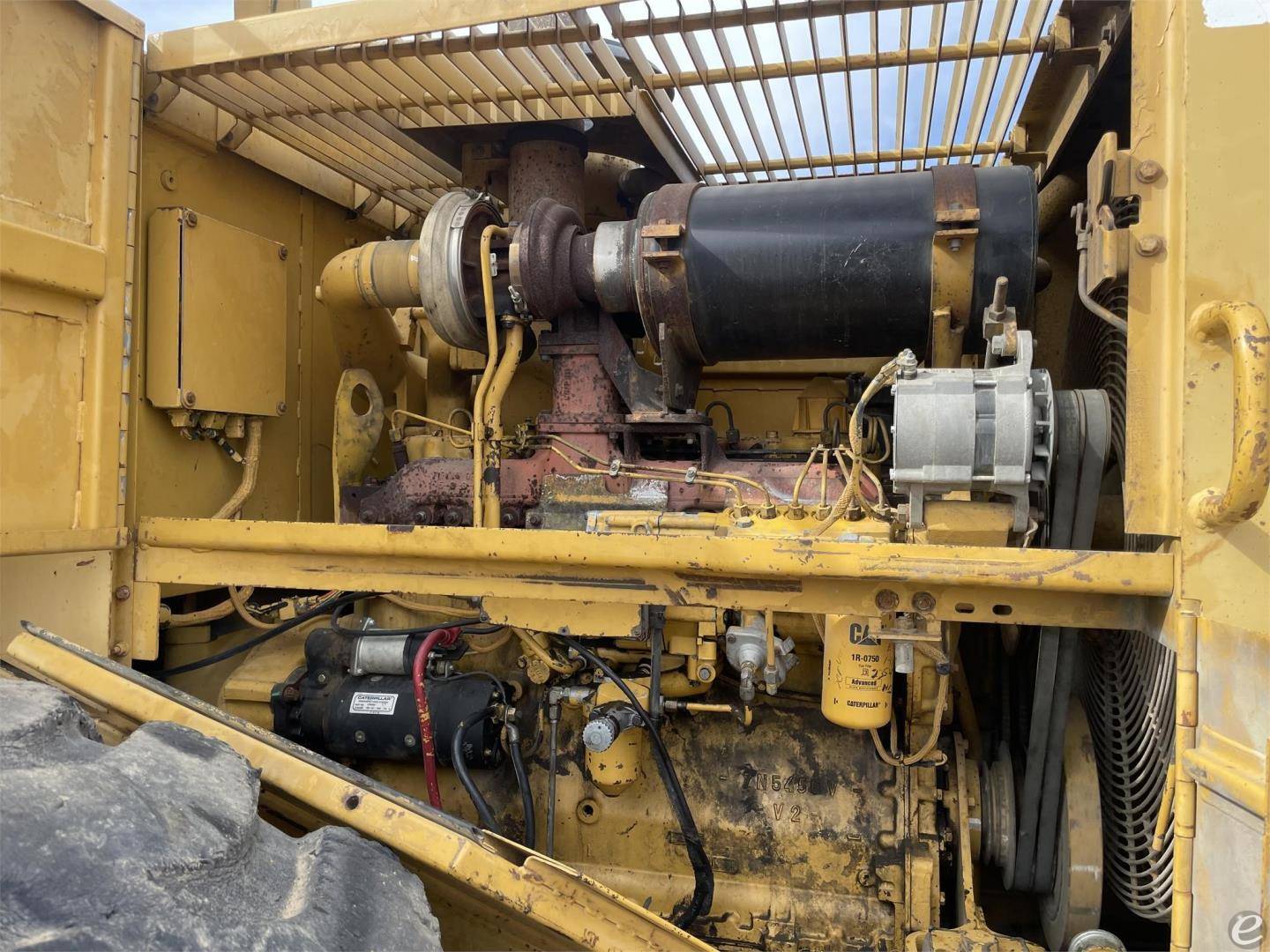

Engine
- Model: Caterpillar 3306
- Net Power: 212 hp (158 kW)
- Gross Power: 240 hp (179 kW)
- Displacement: 10.5 L (638 in³)
- Cylinders: 6
- Aspiration: Turbocharged
Performance
- Rated Load Capacity: 5.44 tonnes (12,000 lbs)
- Bucket Capacity: 3.8 m³ (5 yd³)
- Breakout Force: 18,166 kg (40,060 lbs)
- Dump Clearance at Full Lift: 3.22 m (10.56 ft)
- Max Travel Speed: 36.8 km/h (22.9 mph)
Dimensions
- Overall Length: 8.03 m (26.35 ft)
- Height to Top of Cab: 3.58 m (11.75 ft)
- Wheelbase: 3.35 m (11 ft)
- Ground Clearance: 0.39 m (1.25 ft)
Weights
- Operating Weight: 20,630 kg (45,490 lbs)
- Shipping Weight: 18,688 kg (41,210 lbs)
Hydraulic System
- System Type: Closed center, load sensing system
- Pump Flow Capacity: 278 L/min (73.4 gal/min)
- Relief Valve Setting: 24,500 kPa (3,553 psi)

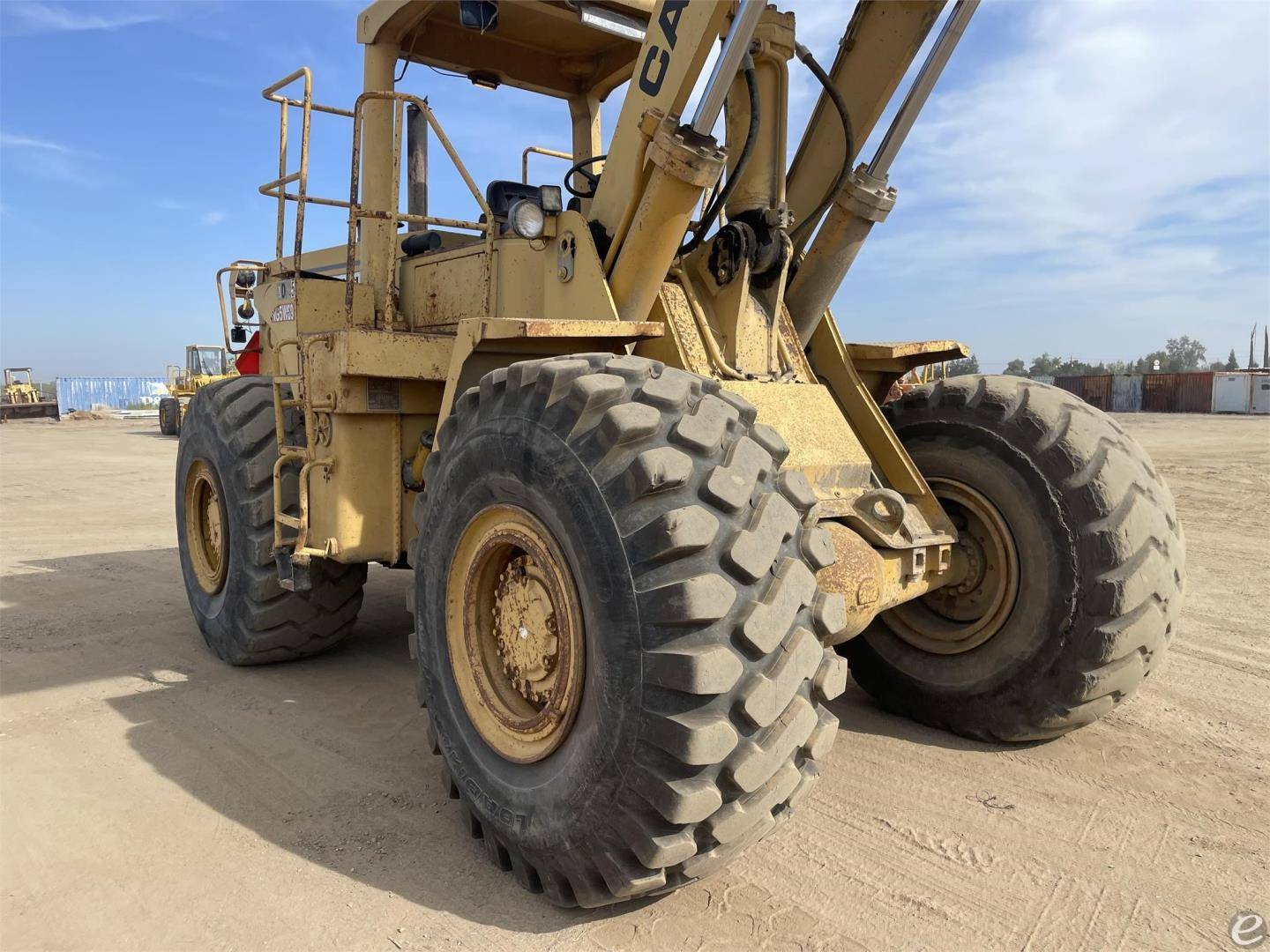

Tires
- Tire Size: 26.5x25
Transmission
- Type: Powershift
- Number of Forward Gears: 4
- Number of Reverse Gears: 4
Fuel Capacity
- Capacity: 351 L (92.7 gal)
Service Refill Capacities
- Cooling System: 60 L (15.8 gal)
- Crankcase: 27 L (7.1 gal)
- Transmission: 62 L (16.4 gal)
- Differential - Front: 46 L (12.2 gal)
- Differential - Rear: 46 L (12.2 gal)
- Hydraulic Tank: 64 L (16.9 gal)
Brakes
- Service Brake Type: Wet disc, air over hydraulic
- Parking Brake Type: Spring applied, air released
