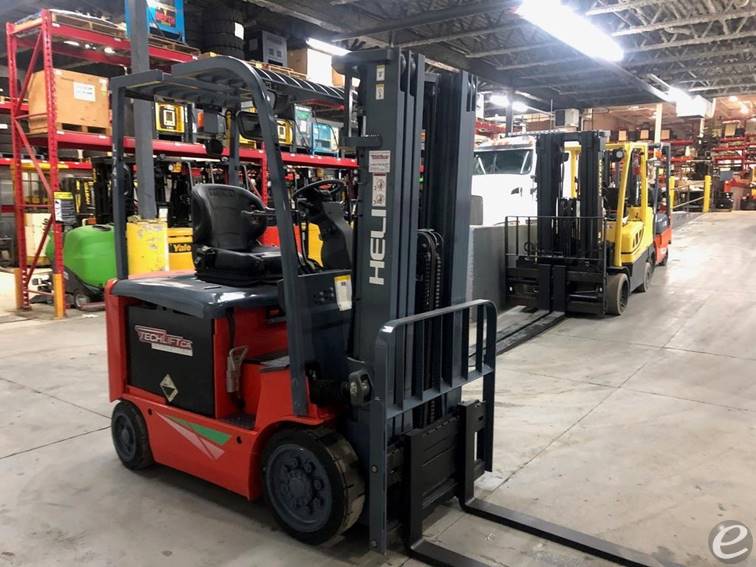

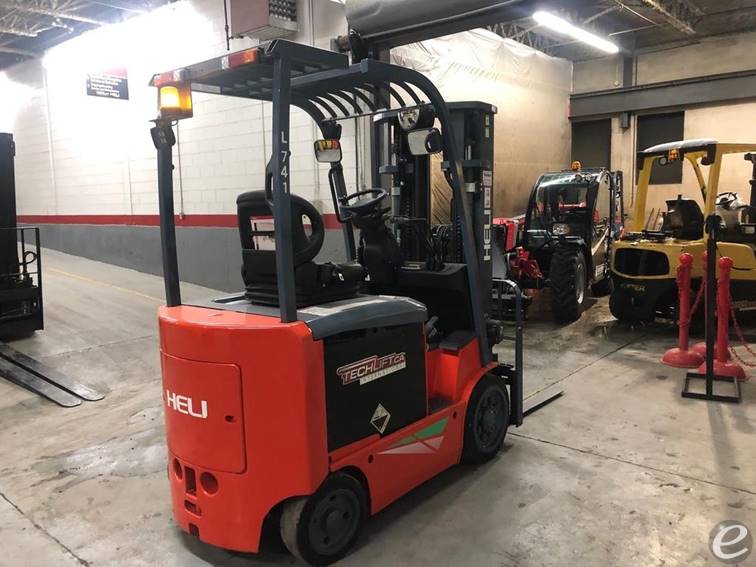

2018 Electric Heli CPD25-GA2C

Call for price
Contact Information
Techlift International
5705, Place Kubota
Drummondville, Quebec J2B6V4
CONTACT :
Francis Duchesneau
PHONE :
FAX :
Stock #:
L-741
YEAR:
2018
Manufacturer:
MODEL #:
CAPACITY:
5000
FUEL:
Electric
MAST TYPE:
Three Stage
MAST HEIGHT:
86 / 189 in
SERIAL #:
05025DB5432
CONDITION:
Used
LOCATION:
DESCRIPTION:
cabin: no, operator roof height: 88.5, weight: 10800.0
Equipment Description:
  • General Information
    • Manufacturer: Heli
    • Model: CPD25-GA2C
    • Type: Electric Forklift
  • Load Capacity
    • Rated Load Capacity: 2,500 kg
    • Load Center Distance: 500 mm
  • Dimensions
    • Overall Length (without fork): 2,382 mm
    • Overall Width: 1,150 mm
    • Overall Height (mast lowered): 2,140 mm
    • Overall Height (mast extended): 4,265 mm
    • Turning Radius: 2,170 mm
  • Mast Specifications
    • Mast Type: Standard
    • Lift Height: 3,000 mm
    • Free Lift Height: 140 mm
  • Performance
    • Travel Speed (loaded/unloaded): 16.5 km/h / 18.5 km/h
    • Lift Speed (loaded/unloaded): 300 mm/s / 400 mm/s
    • Lowering Speed (loaded/unloaded): 450 mm/s / 450 mm/s
    • Maximum Drawbar Pull (loaded/unloaded): 17 kN / 11 kN
    • Gradeability (loaded/unloaded): 20% / 15%
  • Battery
    • Battery Voltage/Capacity: 80V/525Ah
    • Battery Weight: 1,600 kg
  • Weight
    • Service Weight: 4,360 kg
  • Tires
    • Type: Pneumatic
    • Front: 7.00-12-12PR
    • Rear: 6.00-9-10PR
  • Other Features
    • Power Steering: Yes
    • Fork Dimensions: 1,070 mm x 100 mm x 40 mm
    • Brake Type: Hydraulic
