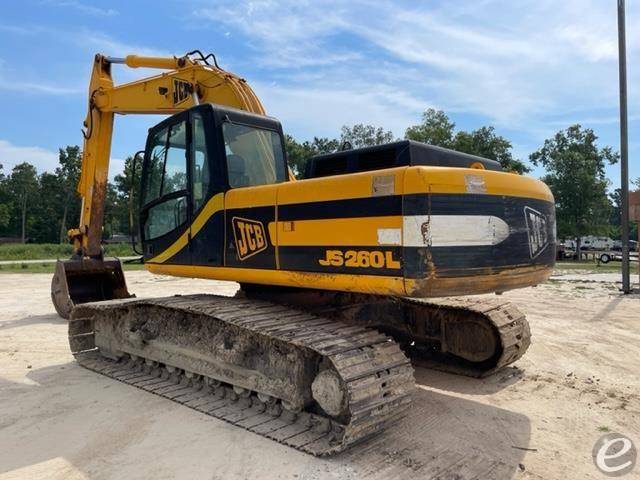

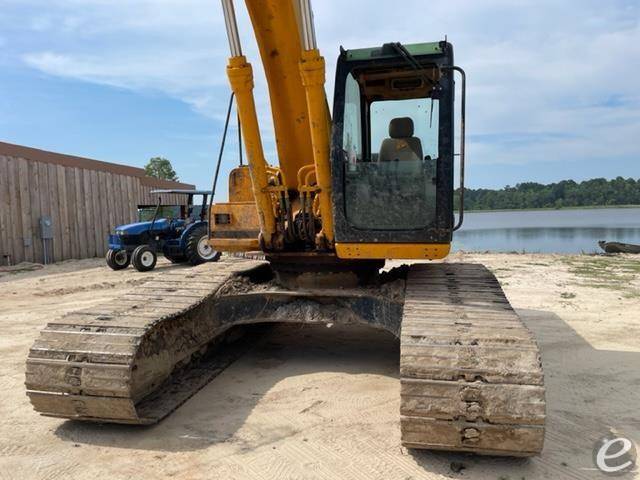

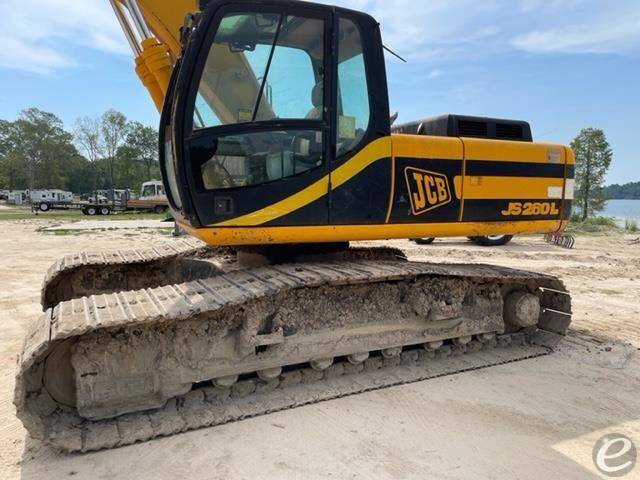

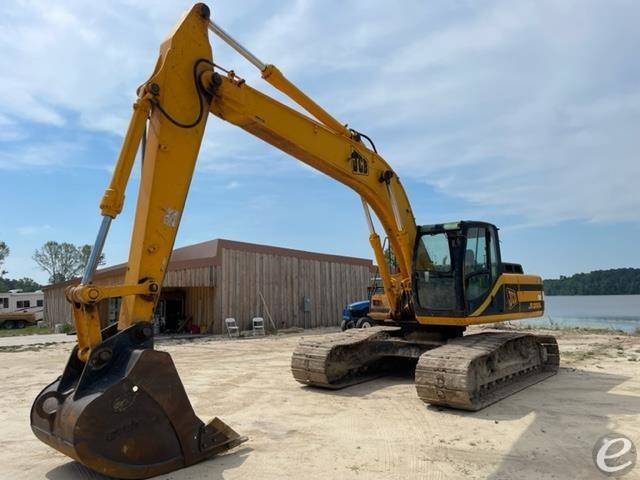

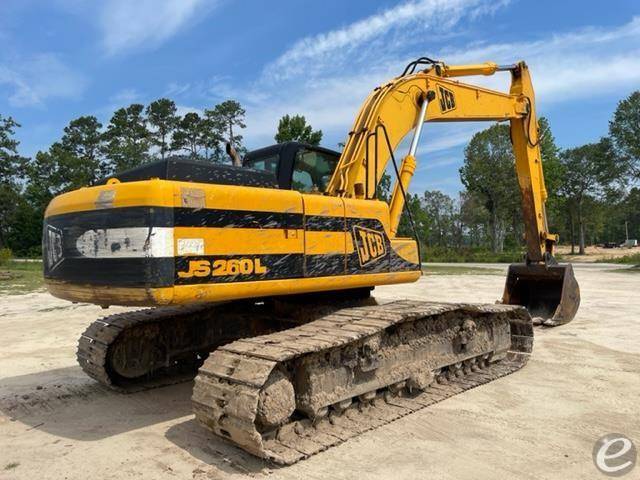

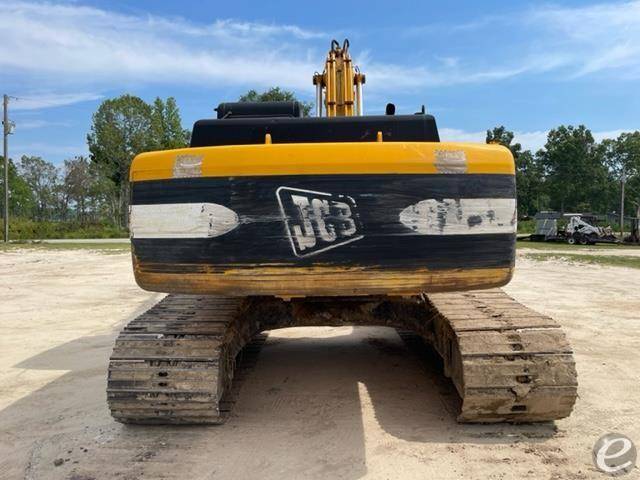

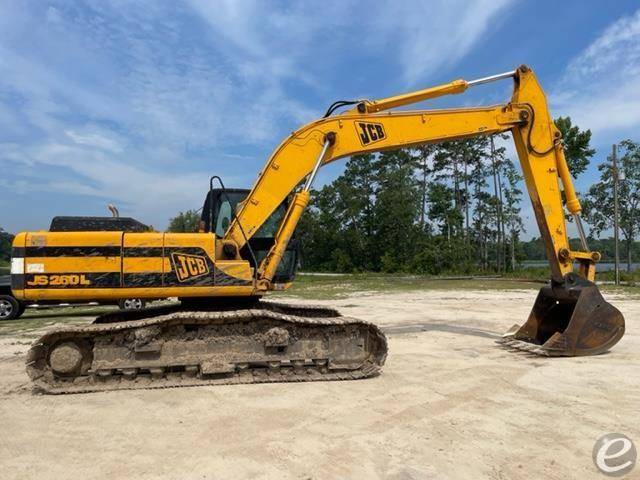

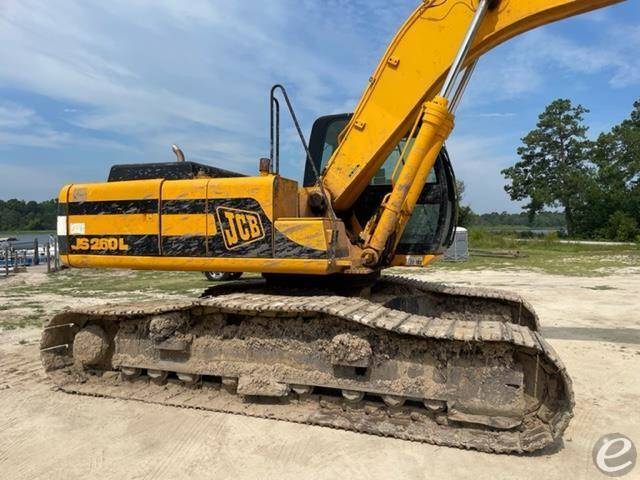

1999 JCB JS260 LC Earth Moving and Construction

Name: 1999 JCB JS260 LC
Brand: JCB
SKU: 16552
Price: 49900 USD
Availability: InStock

$49,900 USD

Contact Information

4M Iron
344 Winningham Road,
St. George, South Carolina 29477

CONTACT :

Mike Finley

PHONE :

Stock #:

16552

YEAR:

1999

Manufacturer:

MODEL #:

SUBCATEGORY:

CONDITION:

Used

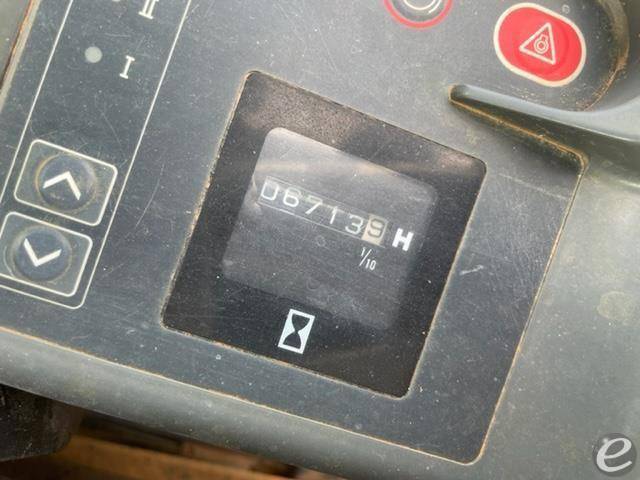

HOUR METER:

6713

LOCATION:

Equipment Description:

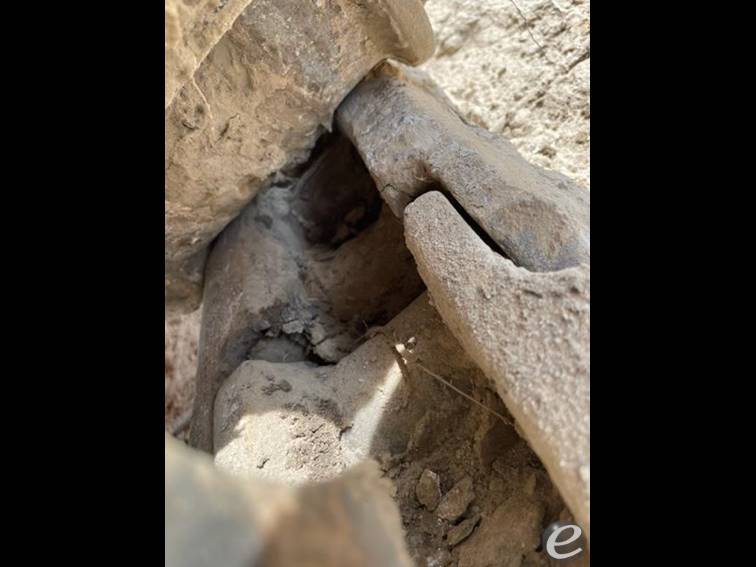

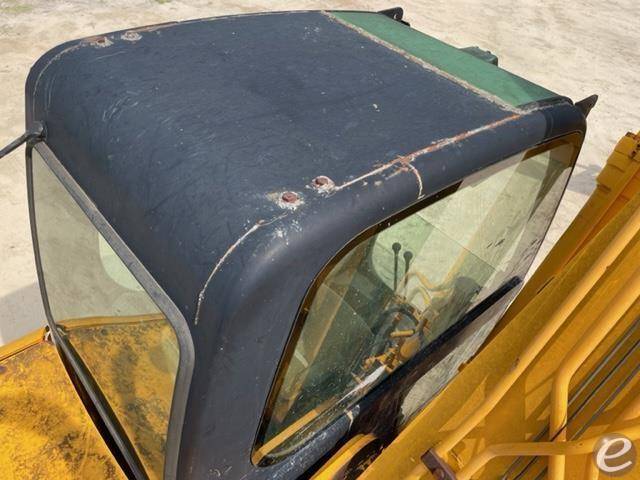

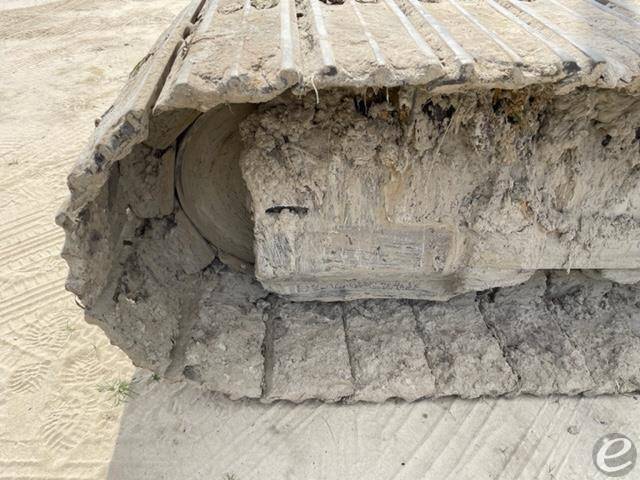

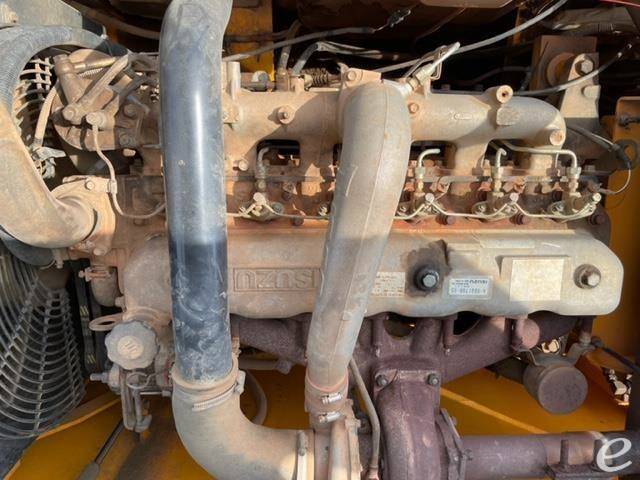

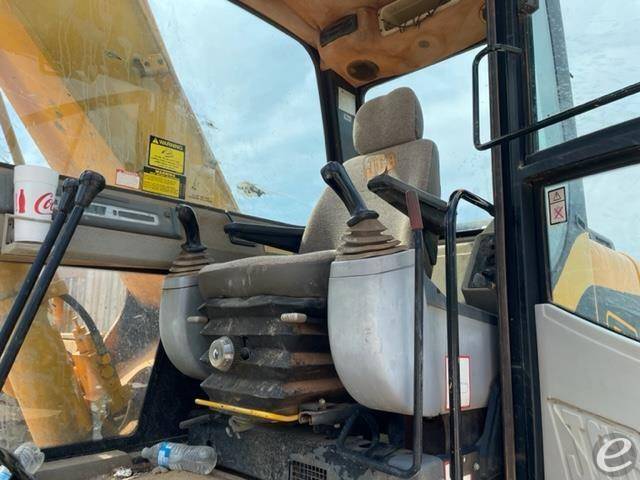

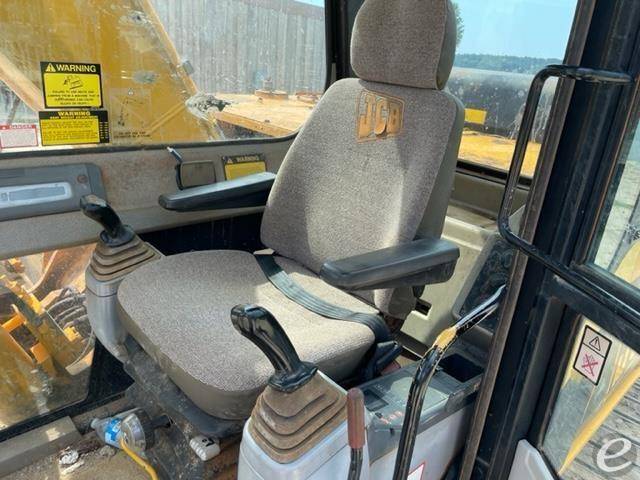

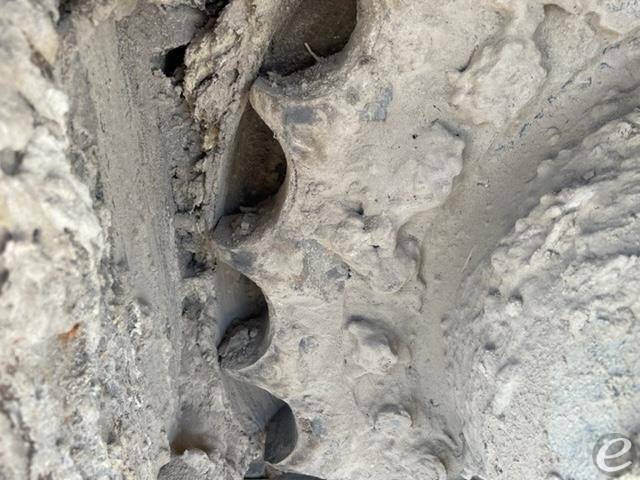

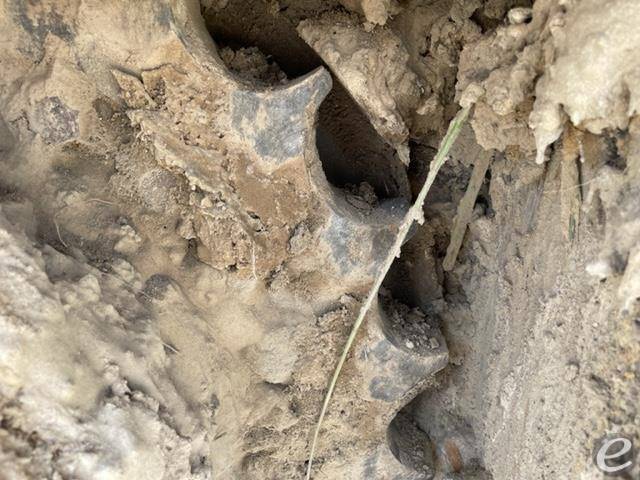

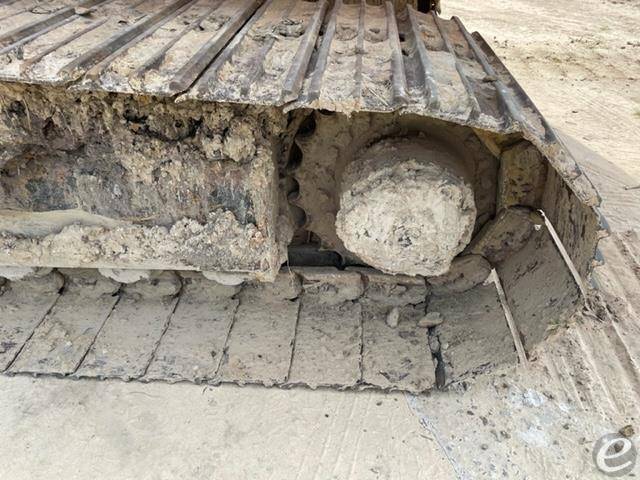

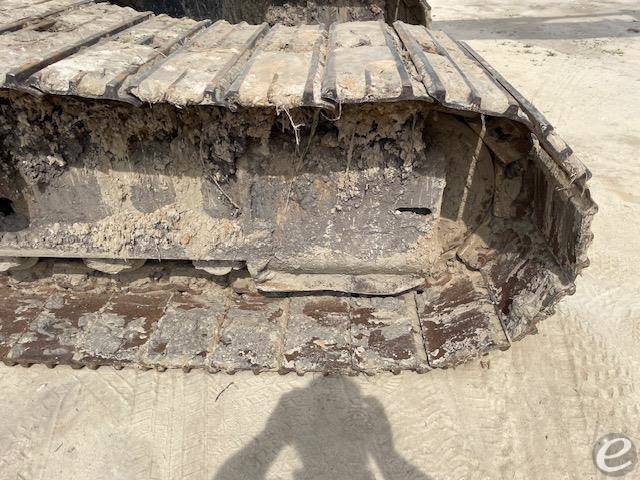

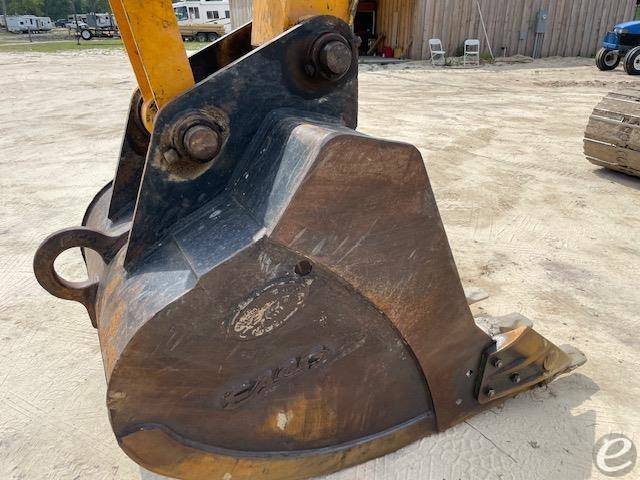

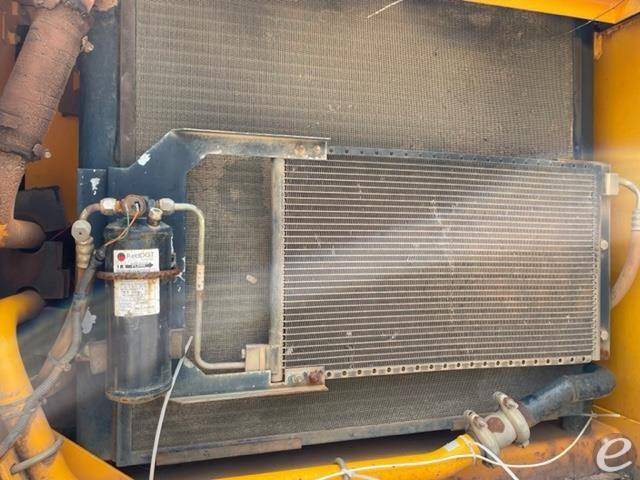

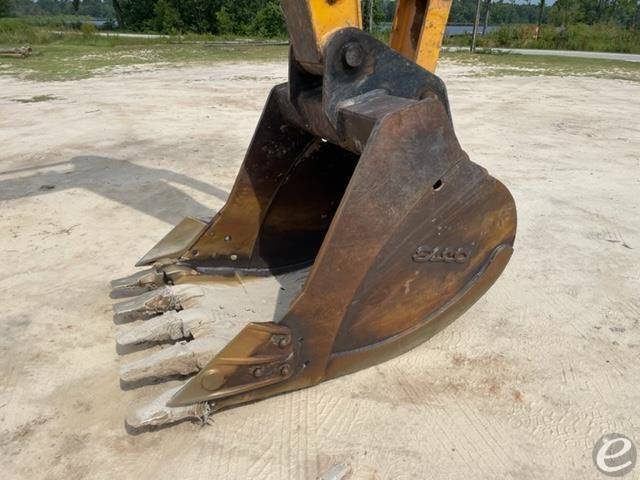

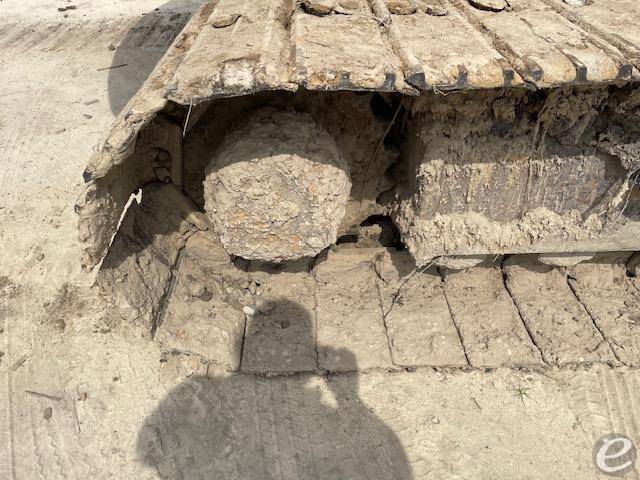

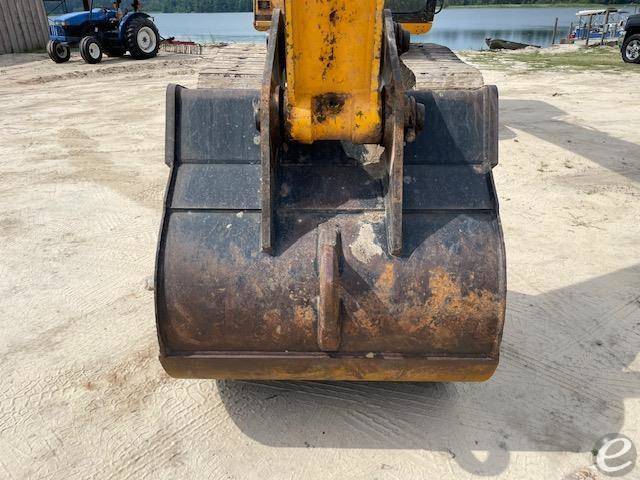

CAB WITH AC, ISUZU DIESEL, BUCKET, UNDERCARRIAGE AT 40%, CLEAN AND RUNS GOOD

This product was posted on 9/27/2024

Engine
- Engine Model: Isuzu AH-6HK1XYSA-01
- Gross Power: 188 kW (252 hp)
- Net Power: 180 kW (241 hp)
- Rated Engine Speed: 1850 rpm
- Torque: 1080 Nm at 1500 rpm
- Displacement: 7.79 liters
Operating Specifications
- Operating Weight: Approximately 26,690 kg
- Fuel Tank Capacity: 472 liters
- Hydraulic Tank Capacity: 290 liters
- Noise Level Exterior: 106 dB(A)
Dimensions
- Overall Length: 10.35 meters
- Overall Width: 3 meters
- Overall Height: 3.16 meters
- Track Length on Ground: 4.22 meters
- Ground Clearance: 0.5 meters
- Shoe Width: 600 mm
- Tail Swing Radius: 3.05 meters
Performance
- Maximum Dig Depth: 6.6 meters
- Maximum Reach: 9.84 meters
- Bucket Capacity: 0.9 - 1.86 m³
Hydraulic System

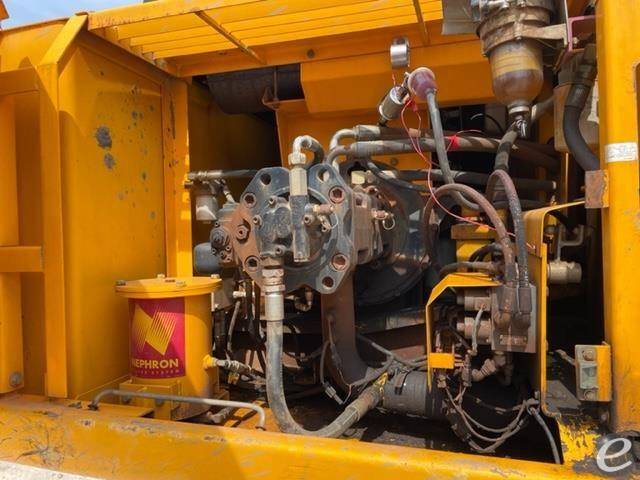

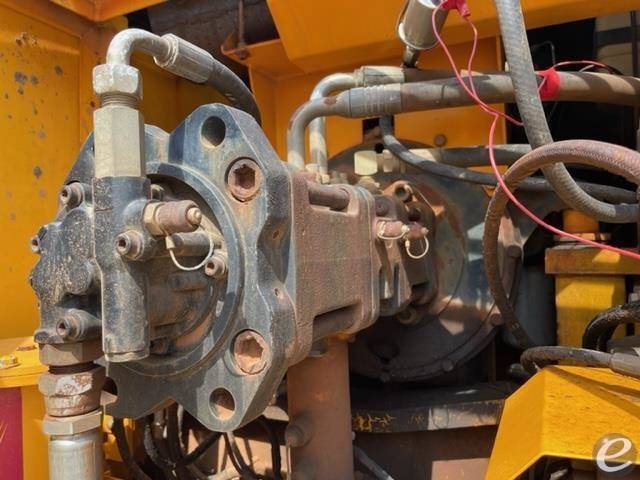

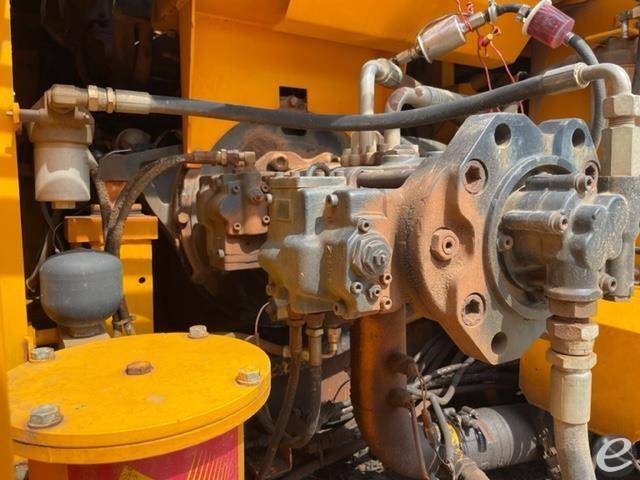

- Main Pumps: Two variable displacement axial piston pumps
- Max Pump Flow: 211 liters/min
- Operating Pressure: 32.1 MPa
Swing System
- Swing Speed: 13.3 rpm
- Swing Torque: 89.6 kNm
Travel System
- Max Travel Speed: 5.3 km/h
- Low Travel Speed: 3.1 km/h
- Gradeability: 70%
