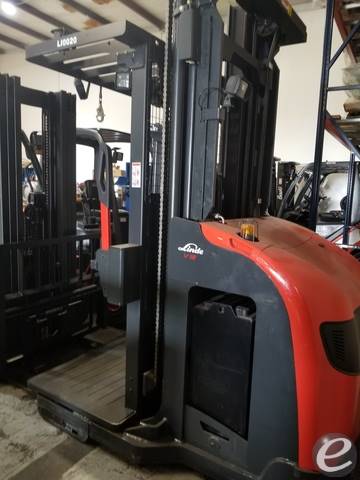

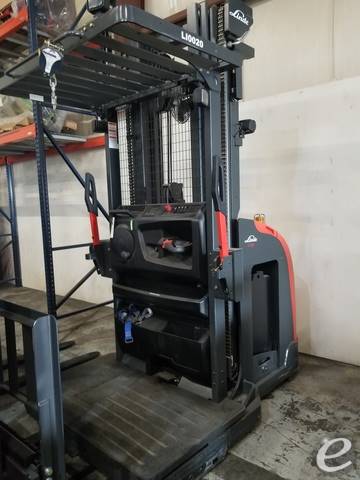

2022 Electric Linde V15 Electric Order Picker

$22,000 USDNew
Contact Information
CONTACT :
Kyle Free
PHONE :
Stock #:
LI0020
YEAR:
2022
Manufacturer:
MODEL #:
CAPACITY:
3000
FUEL:
Electric
SUBCATEGORY:
MAST TYPE:
Three Stage
MAST HEIGHT:
106.5 / 240 in
SERIAL #:
C15215V00020
CONDITION:
New
HOUR METER:
28
LOCATION:
DESCRIPTION:
3,000 lbs Capacity Electric Forklift
Equipment Description:
3,000 lbs Capacity Polyurethane Tires 36V Battery Triple Stage Mast 106.5/240" Carriage 31.8" Wide Chassis/Outriggers 54" Operators Fan Retractable Side Guard Operator Compartment Light Multifunction Control Handle Working Light Lateral Lights Adjustable Height Dashboard power Lowering/Regenerative Lowering Blue Spot Back Facing Mast Protection Metal Mesh 42" Pallet Forks Hour Meter Reading: 28
  • Model: Linde V15
  • Capacity: 1,500 kg
  • Lift Height: Up to 11 meters
  • Fork Lengths: 1,200 mm
  • Truck Width: 1,220 mm
  • Aisle Width for Pallets 1000 x 1200 crossways: 3,420 mm
  • Aisle Width for Pallets 800 x 1200 lengthways: 3,320 mm
  • Travel Speed (With/Without Load): 10/12 km/h
  • Lift Speed (With/Without Load): 0.29/0.40 m/s
  • Lowering Speed (With/Without Load): 0.41/0.41 m/s
  • Drive Motor: 6.5 kW
  • Lift Motor: 14 kW
  • Battery Voltage/Rated Capacity: 48 V / 620 Ah
  • Service Weight: 8,210 kg
  • Turning Radius: 2,150 mm
  • Tilt of Mast/Fork Carriage Forward/Backward: 1.5°/3°
  • Ground Clearance, Center of Wheelbase: 80 mm
  • Chassis Length: 3,320 mm
  • Wheelbase: 2,550 mm
  • Tires - Front/Rear: Polyurethane/Polyurethane
  • Steering Angle of Drive Wheels: 93°
  • Control Type: Electric (AC)
  • Noise Level at Operator's Ear: 65 dB(A)
