Equipment Description:

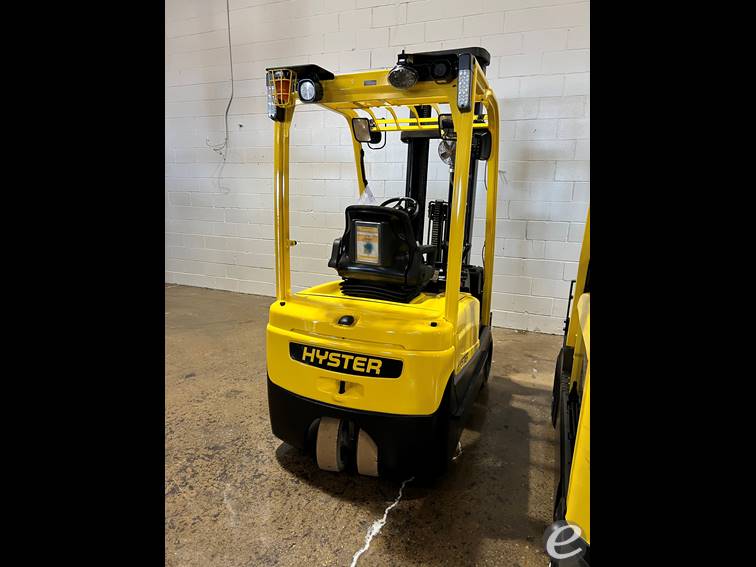

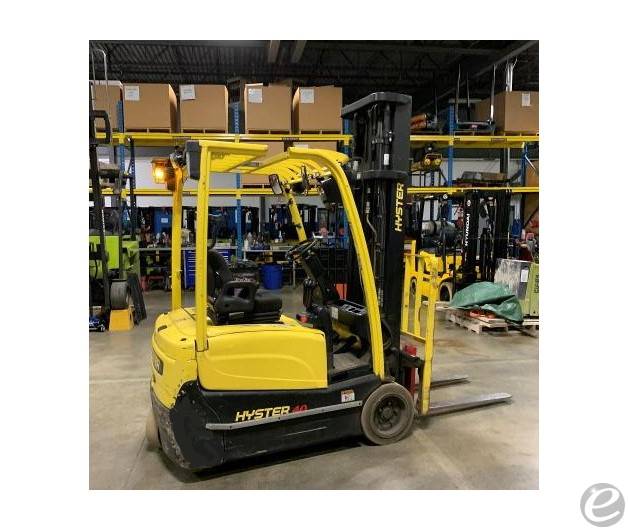

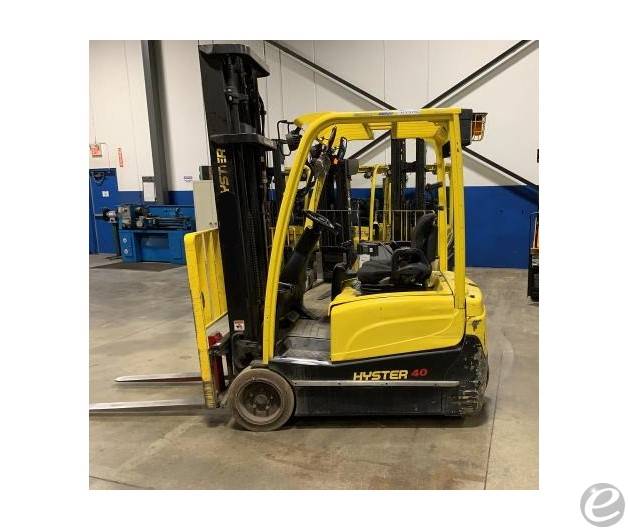

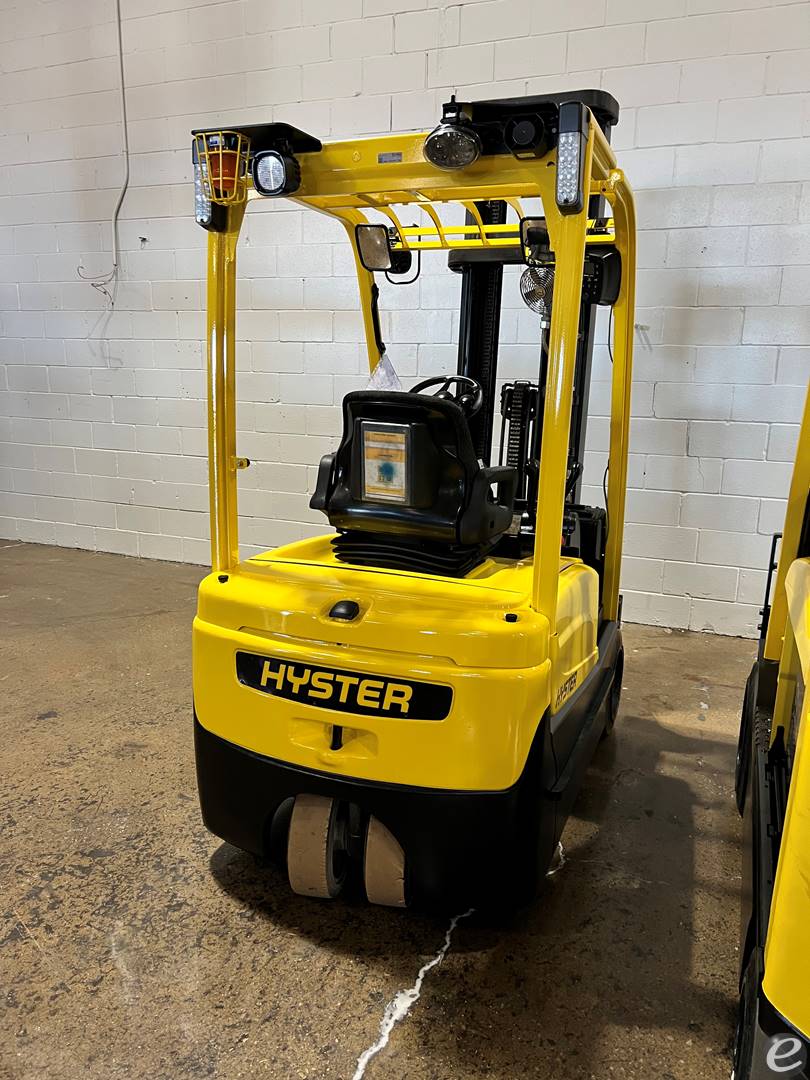

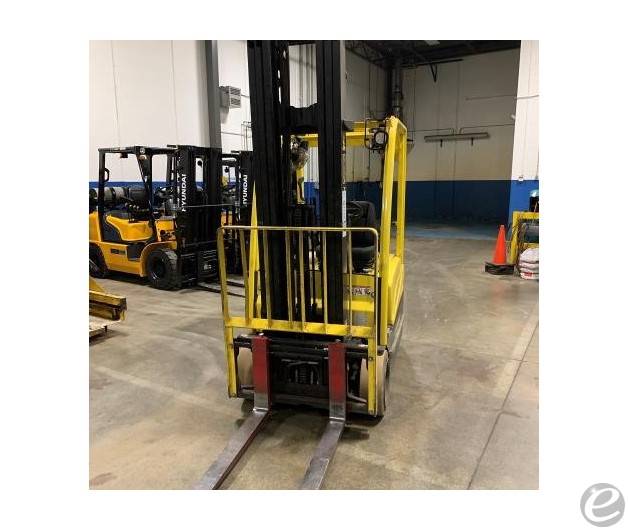

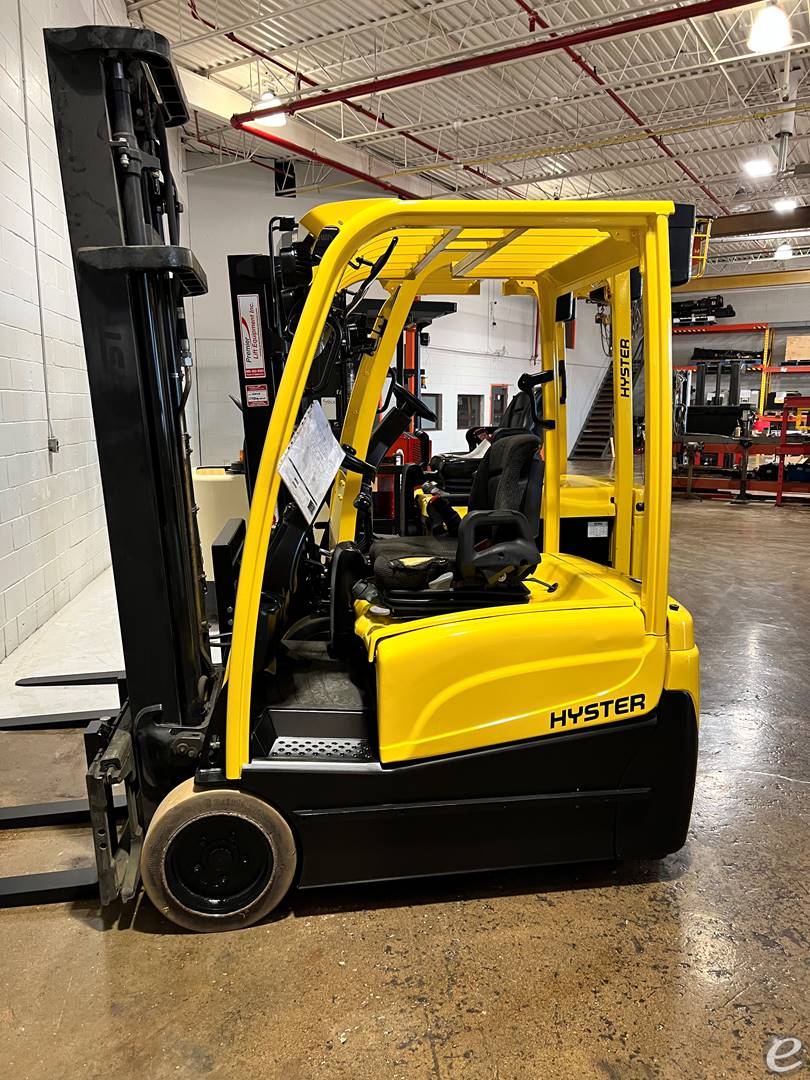

2010 Electric Hyster J40XNT Electric 3 Wheel Sit Down

Call for price

Contact Information

Premier Lift Equipment
99 West Drive Building H
Brampton, Ontario L6T 2J6

CONTACT :

Kevin Patrick

PHONE :

905-452-8361

FAX :

905-452-0246

Stock #:

7087

YEAR:

2010

Manufacturer:

Hyster

MODEL #:

J40XNT

CAPACITY:

4000

FUEL:

Electric

SUBCATEGORY:

Electric 3 Wheel Sit Down

MAST TYPE:

Three Stage

MAST HEIGHT:

101 / 228 in

SERIAL #:

K160N01564H

SIDE SHIFTER:

Yes

CONDITION:

Used

HOUR METER:

3947

LOCATION:

Ontario [L6W 2J6]

DESCRIPTION:

load back rest, non mark tires, battery and charger.

Equipment Description:

This product was posted on 10/9/2024

General Specifications

Model: J40XNT
Manufacturer: Hyster
Type: Electric Three-Wheel Sit Down Counterbalanced Forklift
Operator Type: Seated

Dimensions

Overall Length (to face of forks): 98.1 inches (249.2 cm)
Width: 41.5 inches (105.4 cm)
Height to top of overhead guard: 83.5 inches (212.1 cm)
Wheelbase: 59.1 inches (150.1 cm)
Ground Clearance: 3.5 inches (8.9 cm)

Performance

Load Capacity: 4,000 lbs (1,814 kg)
Maximum Travel Speed: 9.8 mph (15.8 km/h)
Lift Speed (full load): 98 ft/min (0.5 m/s)
Lowering Speed: 98 ft/min (0.5 m/s)

Powertrain

Power Source: Electric
Voltage: 36V or 48V
Drive Motor: AC Motor
Transmission: Infinitely Variable

Tires

Type: Pneumatic or Cushion
Front Tires: 18 x 7-8
Rear Tires: 16 x 5-9

Chassis

Steering: Power Steering
Brakes: Wet Disc

Capacity and Weight

Service Weight: 7,645 lbs (3,468 kg)
Axle Load with Maximum Load - Drive/Steer: 9,970 lbs (4,521 kg) / 1,675 lbs (760 kg)
Axle Load without Load - Drive/Steer: 3,950 lbs (1,792 kg) / 3,695 lbs (1,676 kg)

Additional Features

Operator Compartment: Ergonomically designed for comfort
Safety Features: Includes operator presence system
Visibility: Enhanced through mast design and overhead guard
