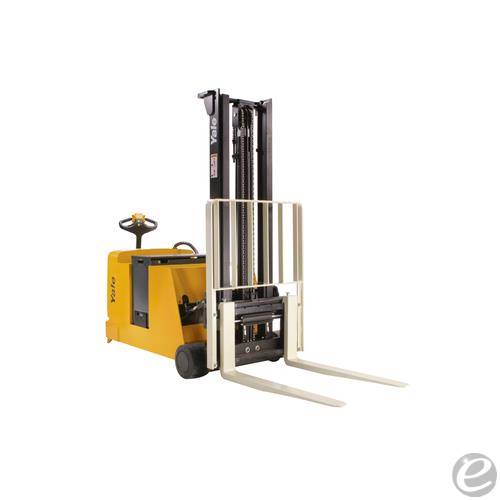

2016 Electric Yale MCW040-E Electric Walkie Counterbalanced Stacker

Call for priceBuy or Rent
Contact Information
Guardian Fleet Solutions
3306 Gilmore Industrial Blvd
Louisville, Kentucky 40213
CONTACT :
Cameron Carter
PHONE :
Stock #:
LEAMPAC02
YEAR:
2016
Manufacturer:
MODEL #:
CAPACITY:
4000
FUEL:
Electric
MAST TYPE:
Three Stage
MAST HEIGHT:
186 / 83 in
CONDITION:
Used/Rental
LOCATION:
Equipment Description:
  • General Specifications
    • Model: Yale MCW040-E
    • Forklift Type: Electric Counterbalanced Stacker
    • Operator Type: Walkie
    • Load Capacity: 4000 lbs (1814 kg)
    • Power Source: Electric
    • Voltage: 24V
  • Dimensions
    • Overall Length: 71.6 inches (1,820 mm)
    • Overall Width: 34.1 inches (865 mm)
    • Height to Top of Overhead Guard: 78.2 inches (1,990 mm)
    • Wheelbase: 50 inches (1,270 mm)
    • Turning Radius: 60.2 inches (1,530 mm)
  • Performance
    • Travel Speed (Loaded): 3.6 mph (5.8 km/h)
    • Travel Speed (Unloaded): 3.9 mph (6.3 km/h)
    • Lifting Speed (Loaded): 15.5 ft/min (0.08 m/s)
    • Lifting Speed (Unloaded): 26.5 ft/min (0.13 m/s)
    • Lowering Speed (Loaded): 24 ft/min (0.12 m/s)
    • Lowering Speed (Unloaded): 19 ft/min (0.10 m/s)
  • Mast Specifications
    • Mast Type: Two-Stage Limited Free Lift (LFL)
    • Maximum Fork Height: 118 inches (3,000 mm)
    • Lowered Mast Height: 78.2 inches (1,990 mm)
    • Free Lift: 6 inches (150 mm)
  • Battery
    • Battery Type: Industrial Battery
    • Battery Voltage: 24V
    • Battery Capacity: 510 Ah
    • Weight: Approximately 762 lbs (345 kg)
  • Brakes
    • Service Brake: Electric Regenerative
    • Parking Brake: Mechanical
  • Tyres
    • Drive Tyre Material: Polyurethane
    • Drive Tyre Size: 11 x 5 inches
    • Load Wheel Material: Polyurethane
    • Load Wheel Size: 4 x 3 inches
  • Additional Features
    • Ergonomic Handle Controls
    • Advanced Drive Axle System
    • Durable Construction with Heavy-Duty Components
    • Multifunction Display for Monitoring Key Parameters
Legal Disclaimer

The specifications provided herein are for informational purposes only and are not guaranteed to be 100% accurate. This tool is currently in beta testing, and while we strive to provide the most accurate and up-to-date information, there may be discrepancies or errors. We strongly recommend that you verify all specifications and details with the manufacturer of the equipment or an authorized dealer. The information presented should not be considered definitive or relied upon as the sole basis for decision-making. In some cases, certain specifications are based on new equipment when shipped from the factory and may have changed over time. For example, masts and forks are routinely changed or updated. Headlights, taillights, and backup alarms are usually included with new equipment, but can be removed over time. Neither the creators of this tool nor any affiliated parties shall be held liable for any inaccuracies, errors, or omissions in the information provided. By using this tool, you acknowledge and agree that you assume all risks associated with the use of the specifications and information provided. For 100% accuracy and the most reliable information, please contact the manufacturer of the equipment or an authorized dealer directly.
