Equipment Description:

CAB WITH AC, HYDRAULIC THUMB WITH BUCKET, UNDERCARRIAGE IN GREAT SHAPE, RUNS GREAT

2016 Doosan DX180 LC Earth Moving and Construction

Name: 2016 Doosan DX180 LC
Brand: Doosan
SKU: 26038
Price: 149900 USD
Availability: InStock

$149,900 USD

Contact Information

4M Iron
344 Winningham Road,
St. George, South Carolina 29477

CONTACT :

Mike Finley

PHONE :

Stock #:

26038

YEAR:

2016

Manufacturer:

MODEL #:

SUBCATEGORY:

CONDITION:

Used

HOUR METER:

847

LOCATION:

Equipment Description:

CAB WITH AC, HYDRAULIC THUMB WITH BUCKET, UNDERCARRIAGE IN GREAT SHAPE, RUNS GREAT

This product was posted on 11/11/2024

Engine
- Model: Doosan DL06
- Type: Water-Cooled, Diesel Engine
- Power: 119 kW (160 hp) at 2,000 rpm
- Maximum Torque: 735 Nm at 1,400 rpm
- Bore x Stroke: 100 mm x 125 mm
- Displacement: 5,890 cc
Operating Weight
- Approximate: 18,000 kg
Performance
- Maximum Digging Depth: 6,165 mm
- Maximum Digging Reach: 9,345 mm
- Maximum Digging Height: 9,280 mm
- Bucket Capacity: 0.38 - 0.92 m³
- Bucket Digging Force: 119.8 kN
- Arm Digging Force: 83.4 kN
Hydraulic System
- Main Pumps: 2 x Variable Displacement Axial Piston Pumps
- Maximum Flow: 2 x 188 l/min
- Relief Valve Pressure: 350 bar

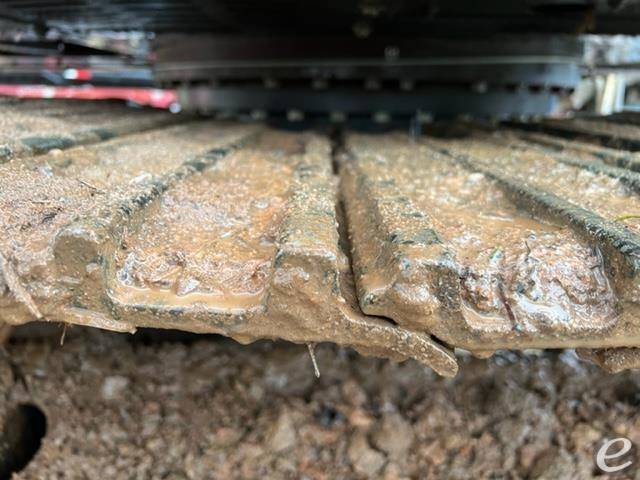

Undercarriage
- Track Shoe Type: Triple Grouser
- Track Shoe Width: 600 mm
- Number of Rollers: 5 (upper) / 9 (lower) per side
- Track Length: 4,210 mm
Dimensions
- Overall Length: 8,680 mm
- Overall Width: 2,600 mm
- Overall Height: 2,835 mm
- Ground Clearance: 440 mm
- Tail Swing Radius: 2,370 mm
Fuel and Fluids
- Fuel Tank Capacity: 320 liters
- Hydraulic Tank Capacity: 126 liters
- Engine Oil Capacity: 27.5 liters
- Coolant Capacity: 20 liters
Cabin
- Type: ROPS & FOPS Certified
- Features: Air Conditioning, Adjustable Seat, Color Monitor
