Equipment Description:

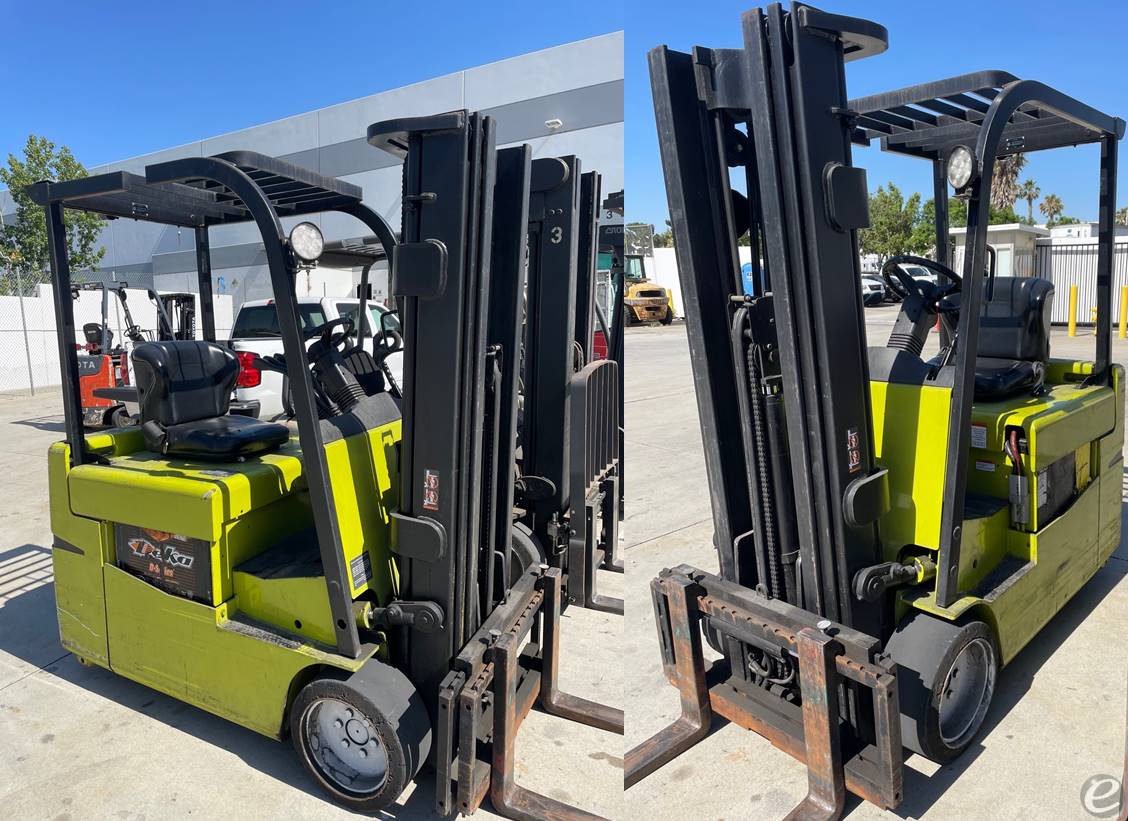

2012 Electric Clark TMX25 Electric 3 Wheel Sit Down

Call for price

Contact Information

Select Equipment Sales
6911 8th St
Buena Park, California 90620

CONTACT :

Sales Dept.

PHONE :

FAX :

Stock #:

U210652

YEAR:

2012

Manufacturer:

MODEL #:

CAPACITY:

5000

FUEL:

Electric

SUBCATEGORY:

MAST TYPE:

Three Stage

MAST HEIGHT:

83 / 188 in

SIDE SHIFTER:

Yes

CONDITION:

Used

HOUR METER:

5340

LOCATION:

DESCRIPTION:

Triple 83/188 Mast, S/S, 42" Forks, 5340 Hours

Equipment Description:

This product was posted on 10/30/2024

General Specifications
- Model: TMX25
- Type: Electric Forklift
- Operator Type: Sit-down
- Capacity: 5,000 lbs
- Manufacturer: Clark
Dimensions
- Overall Length: Approx. 117 inches
- Overall Width: Approx. 42 inches
- Height to Top of Overhead Guard: Approx. 85 inches
Performance
- Max Travel Speed: 10.5 mph (unloaded)
- Lift Speed: 81 feet/min (loaded)
- Lowering Speed: 98 feet/min (loaded)
- Gradeability: 16% (loaded)
Powertrain
- Motor Type: AC
- Voltage: 80V
- Control System: AC System with MOSFET/IGBT control
Battery
- Type: Lead-Acid or Lithium-ion
- Capacity: Varies by configuration
- Battery Weight: Approx. 3000 lbs (Lead-Acid)
Mast Options
- Mast Type: 2-stage, 3-stage, or Quad
- Lift Height: Varies from 83 inches to 240 inches
- Free Lift: Varies by mast
Tires
- Tire Type: Cushion
- Front Tire Size: 18x7-8
- Rear Tire Size: 15x4.5-8
Brakes
- Service Brake: Wet disc brakes
- Parking Brake: Hand operated/mechanical
Additional Features
- Ergonomic operator compartment
- Advanced control system for increased efficiency
- Multiple safety features including anti-roll back
- Optional attachments available
